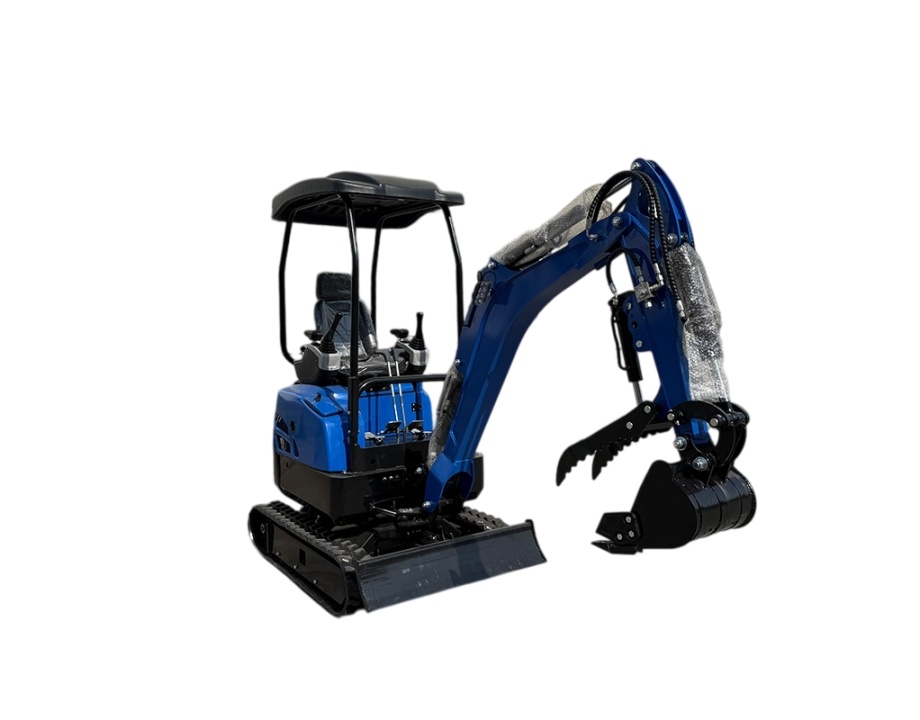

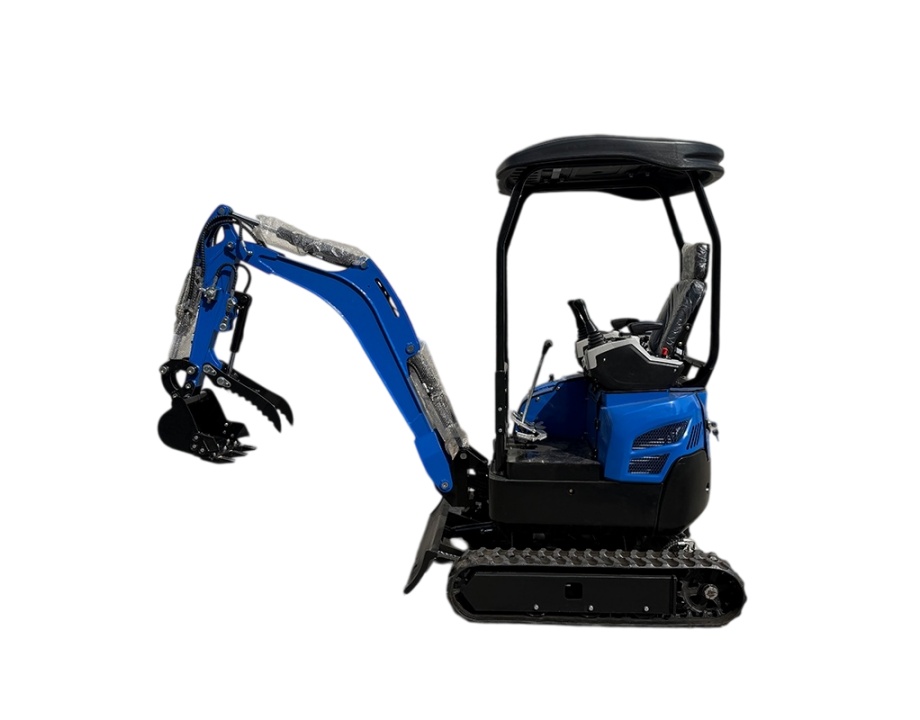

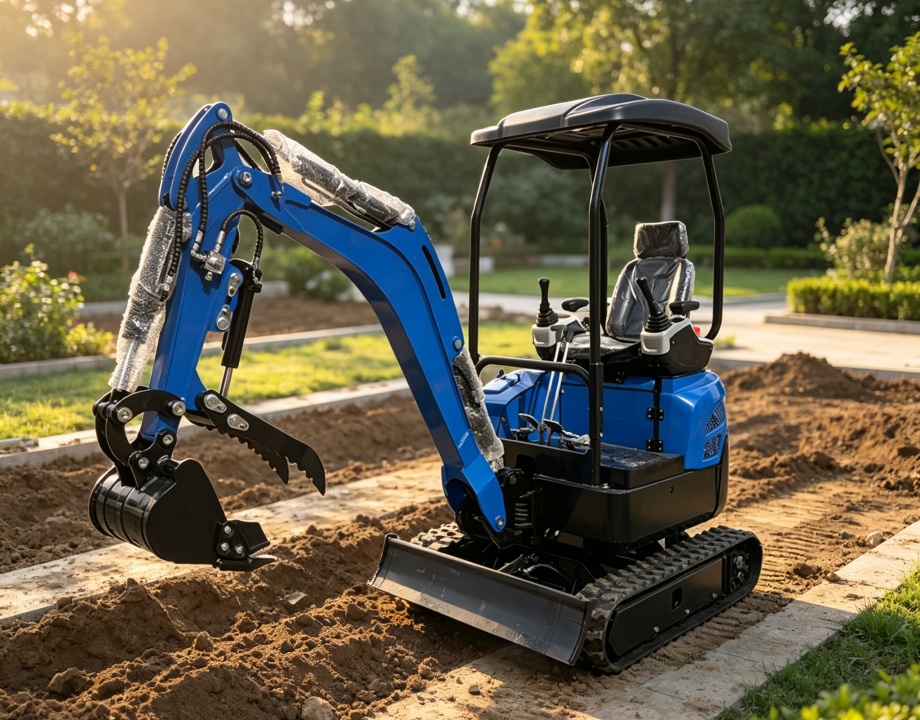

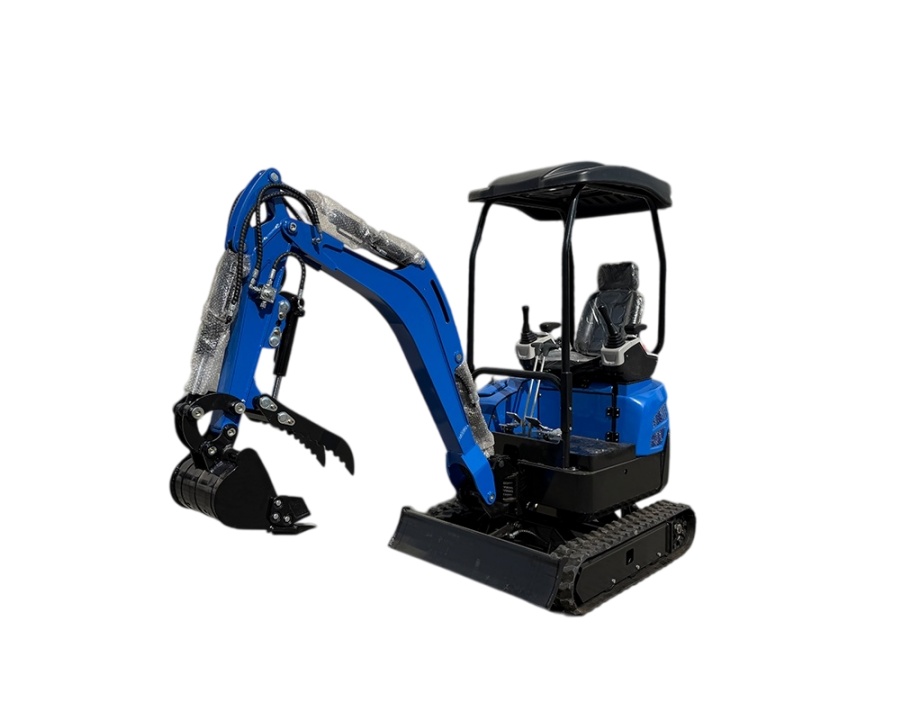

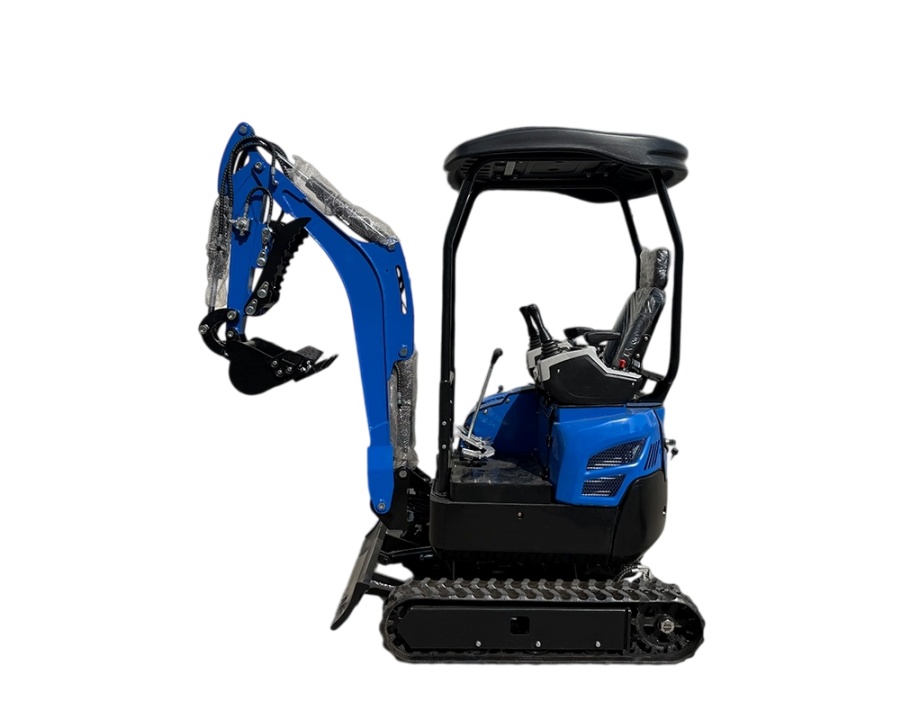

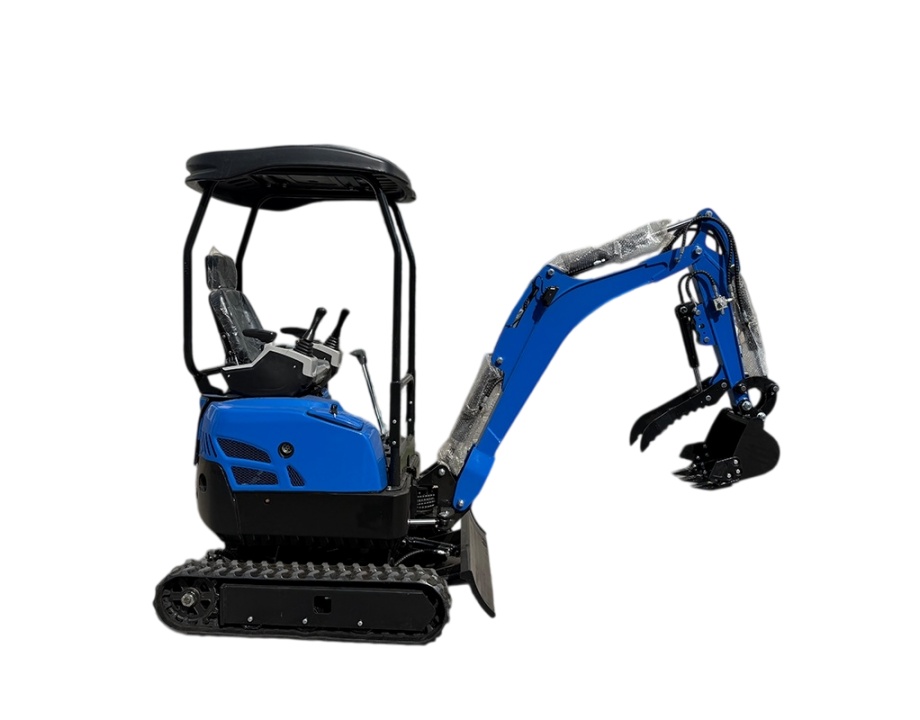

KXZ18 mini excavator adopts brand engine, stable performance and low fuel consumption. Compact and flexible, suitable for mountain reclamation, municipal engineering, landscaping, farm maintenance. Optional cabin, boom lateral movement and telescopic chassis, multiple engine choices available.
| Model | KXZ18 |
| Engine Model | KOOP192F |
| Power Type | Single-cylinder / Four-stroke / Air-cooled / Vertical |
| Fuel Type | Diesel |
| Displacement (cc) | 499 |
| Rated Power (kW/rpm) | 7.6 / 3000 |
| Horsepower (HP) | 10.3 |
| Fuel Tank Capacity (L) | 5.5 |
| Overall Dimensions (mm) | 2870*1100*2300 |
| Machine Weight (kg) | 960 |
| Bucket Capacity (m³) | 0.03 |
| Track Ground Contact Length (mm) | 1200 |
| Track Width (mm) | 180 |
| Max. Digging Depth (mm) | 1800 |
| Max. Dumping Height (mm) | 1745 |
| Max. Digging Height (mm) | 2580 |
| Gradeability (°) | 30 |
| Travel Speed (km/h) | 0-3 |
| Bucket Digging Force (kN) | 11.5 |
If you have any questions, please leave a message, we will reply as soon as possible.
