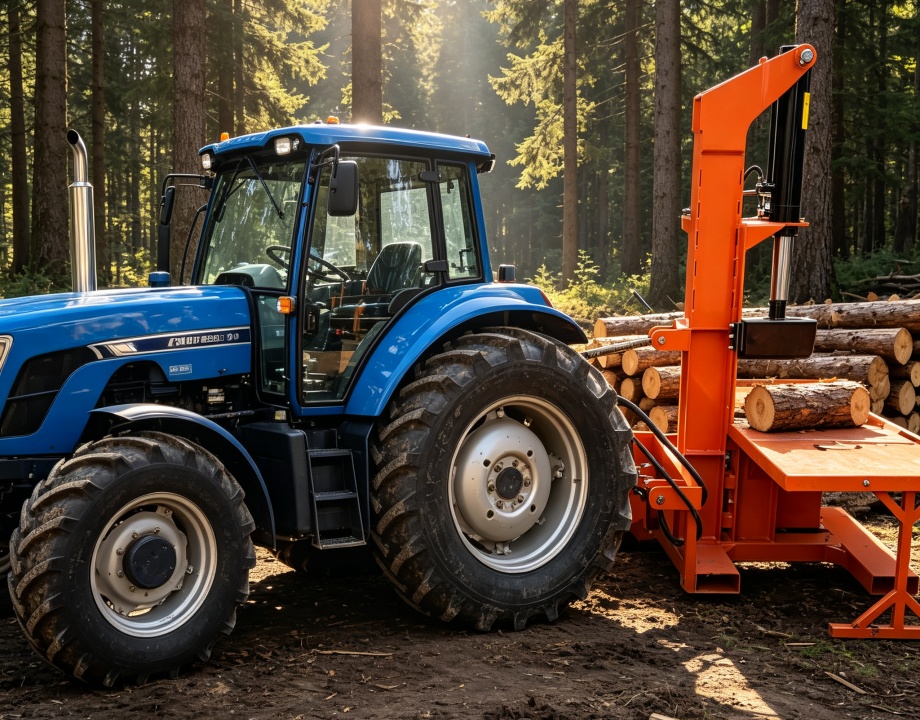

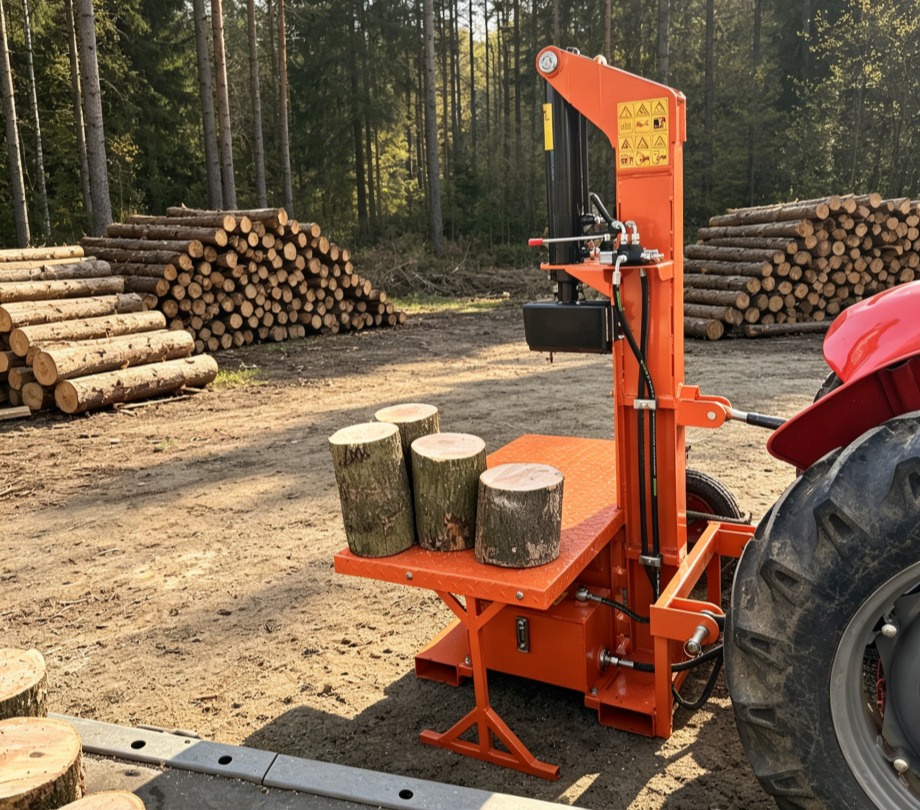

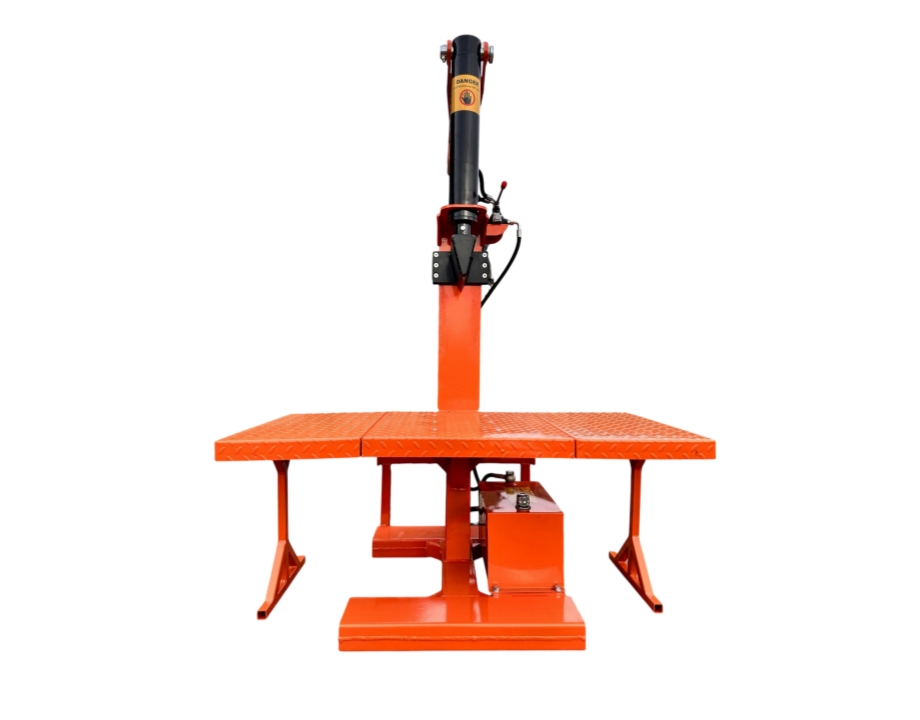

A super heavy-duty, tractor-mounted log splitter designed to make logging tasks easier and more efficient. The PTO-driven hydraulic system provides strong splitting power for demanding log-splitting work.
| Model | STWS18 |
| Splitting Force | 18 Ton |
| Max. Log Height / Length | Up to 60 cm (source text also states 20″) |
| Bench Height | 60 cm |
| Bench Width | 70 cm |
| Bench Length | 1.4 m |
| Overall Height | 2 m |
| Overall Width | 1.4 m |
| Overall Depth | 107 cm |

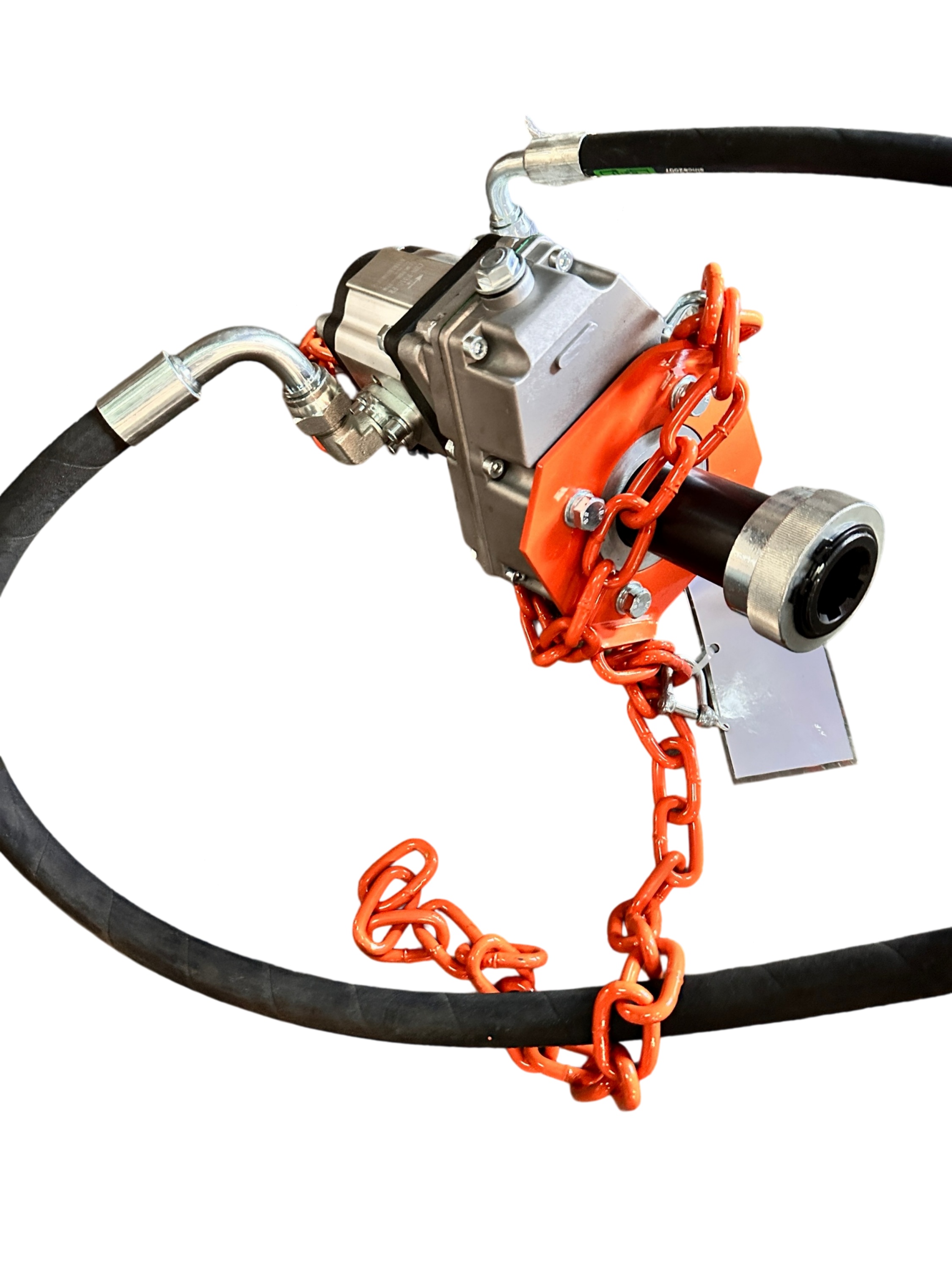

| Drive System | PTO Driven |
| PTO Speed | 540 rpm |
| Hydraulic Flow Rate | 26 L/min at 540 rpm |
| Ram Return Time (bottom to top) | 6 seconds |
| Hydraulic Oil | ISO 46 |
| Hydraulic Oil Capacity | 17 L (not supplied) |
| PTO Pump Oil | 500 ml EP90 required before use |
| Finish | Fully powder coated |
| Machine Weight | 320 kg |
| Mounting | Tractor mounted |

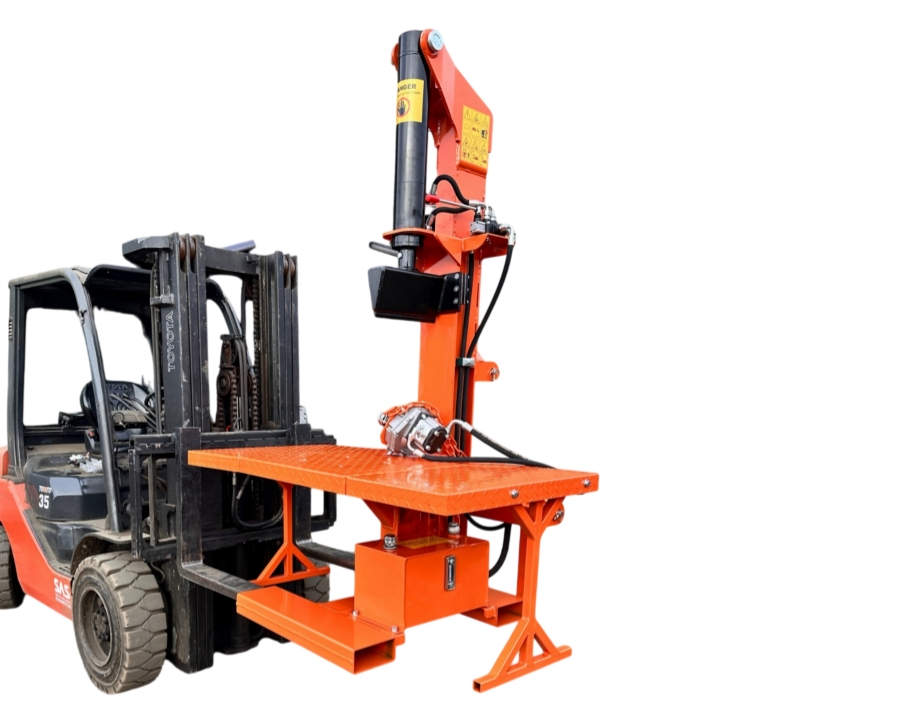

| Additional Mounting Feature | Forklift slots |
| Included | Table extensions and legs |
