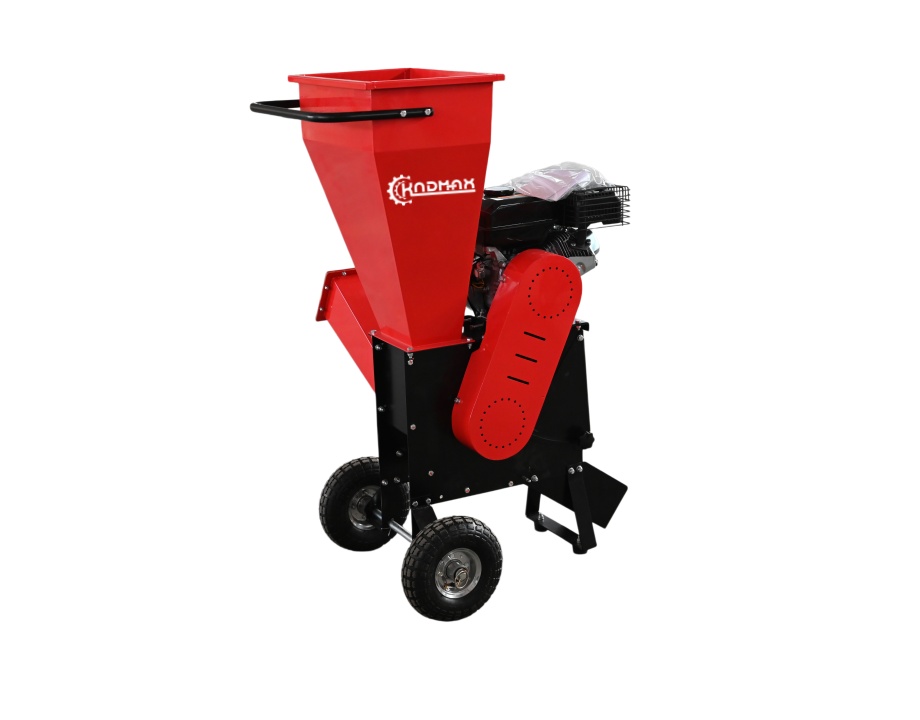

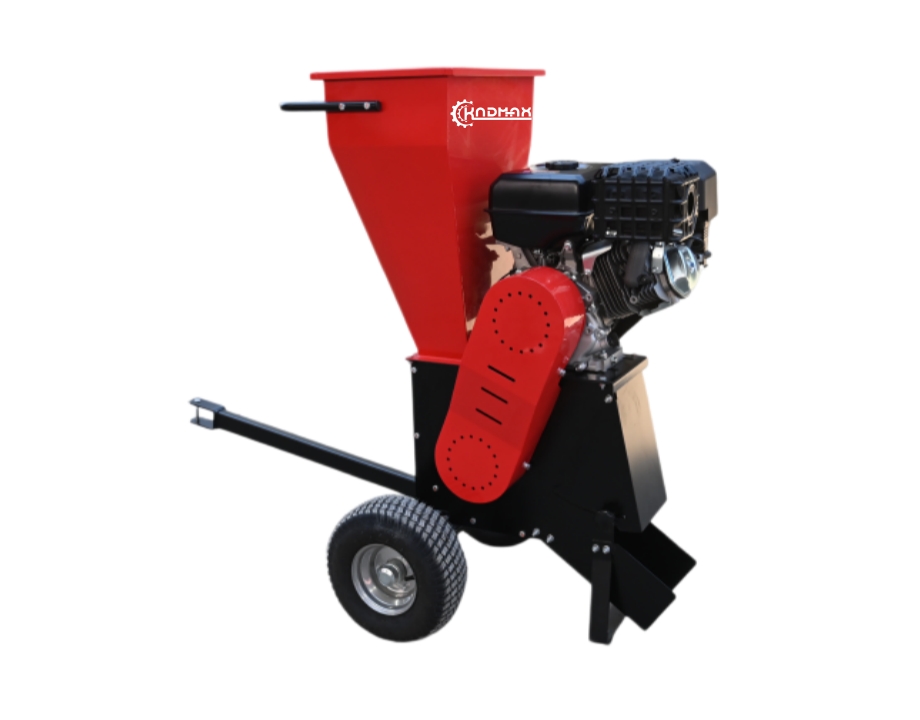

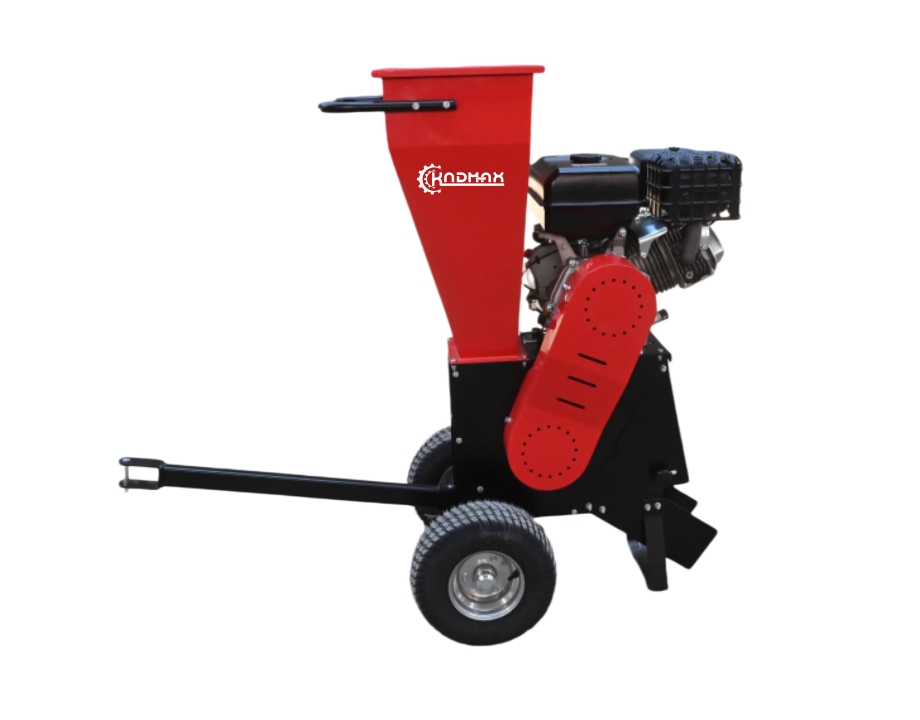

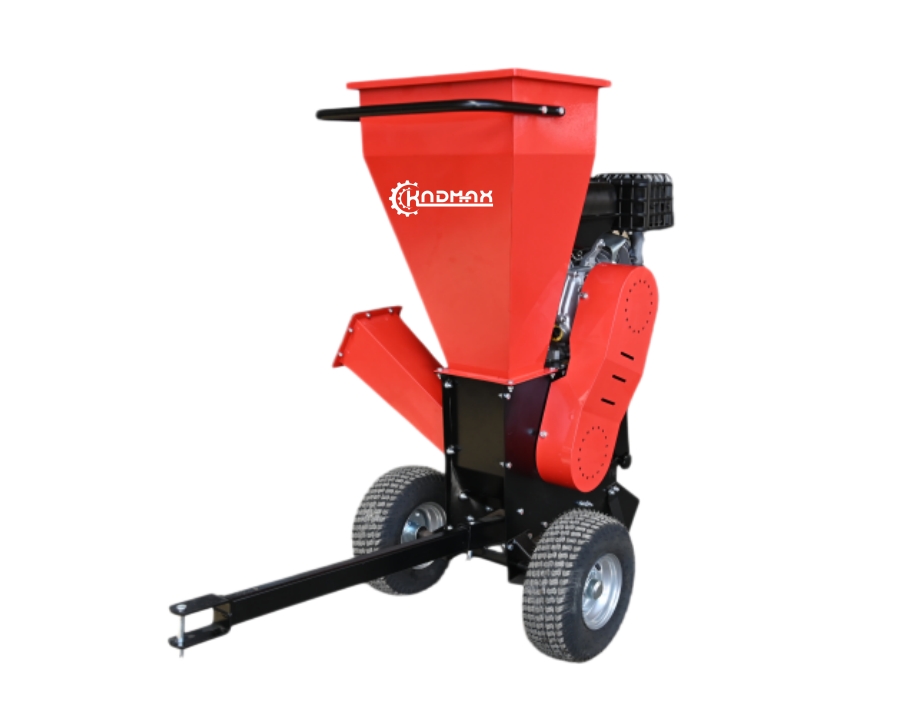

| Model | DCS703 | DCS154 |
| Engine | 7HP, Single cylinder, four-stroke, air cooling | 15HP, Single cylinder, four-stroke, air cooling |
| Displacement | 210cc | 420cc |
| Net Power | 3600rpm,4.8kw | 3600rpm,11kw |
| Max. Chipping Diameter | 76mm | 100mm |
| Net Weight | 76kgs | 103kgs |
| Gross Weight | 96kgs | 123kgs |
| External dimensions | 890×460×1270mm | 890×460×1300mm |
| Type of Fuel | Gasoline | Gasoline |
| Starting method | Manual | Manual |
| Wheel Tire | 10in | 13×5-6 |
| Cutting method | Disc | Disc |
| Cutter wheel RPM | 2400rpm/min | 2160rpm/min |
| Blade Nos. | 2× Moving knives, 1 fixed knife，10×fly knives，10×Flail Hammers | 2× Moving knives, 1 fixed knife，10×fly knives，10×Flail Hammers |
| Drive | Direct Belt Drive /Centrifugal Clutch | Direct Belt Drive /Centrifugal Clutch |
| Chipper | Yes | Yes |
| Shredder | Yes | Yes |
| Recommended Oil | 10W-30 oil (5W-30 is recommended for cold weather climate) | 10W-30 oil (5W-30 is recommended for cold weather climate) |
| Feeding system | Hydraulic Feeding System | Hydraulic Feeding System |
| Hydraulic oil and oil tank capacity | No | No |
| Towbar | No | Yes |
| Package Size | 750×490×1170mm | 750×490×1170mm |
| 40GP Loading Qty. | 144pcs | 144pcs |
