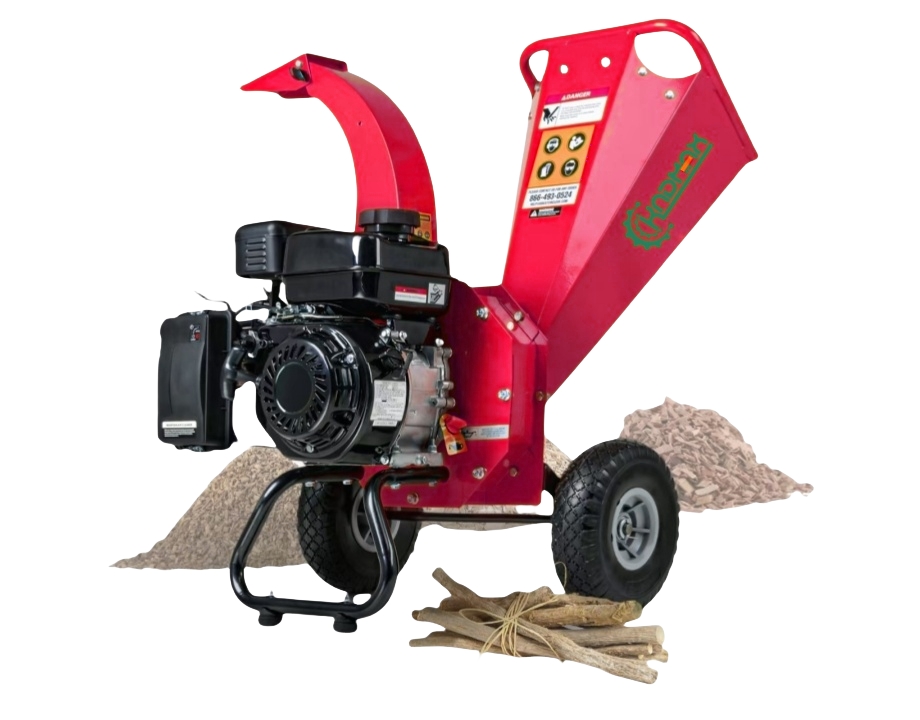

This wood shredder has a reduction ratio of 15:1 and is capable, through the filling hopper, to shred, chop or grind large amounts of branches and plant debris up to 7.5 cm.
This design is compact and lighter than other steel grinders and features an ideal elongated vertical ejection chute with an adjustable ejection guide for precise waste ejection in an angle range of 90° to 145°.
This powerful 7 HP horizontal 4-stroke single cylinder OHV petrol engine is suitable for returning the crusher. It makes it easy to process wood with a diameter of up to 7.5 cm. Fuel: 87+ unleaded petrol (Ethanol not recommended) Maximum capacity of approximately 3 litres.
Always work according to the instructions in the user manual, always wear proper protection for hands and eyes (engine oil not included). The crusher can be used to assist in fire prevention and fire barrier construction. This machine is EPA certified.
Use for forestry, garden, landscaping or recycling green waste, chopping branches, cutting into small pieces brushwood, fallen leaves and corn stalks. Do not use for: greenery, pine cones, palm branches (palm leaves may get stuck), old wood or bunches of grapes.
| Engine | 7HP, Single cylinder, four stroke, air cooling |
| Net Power | 3600rpm,11kw |
| Max. Chipping Diameter | 76mm |
| Net Weight | 40kgs |
| Gross Weight | 60kgs |
| External dimensions | 879× 818× 579mm |
| Type of Fuel | Gasoline |
| Starting method | Manuel |
| Wheel Tire | 10in |
| Cutting method | Disc |
| Cutter wheel RPM | 3600 rpm/min |
| Blade Nos. | 2 × fly knives |
| Drive | Direct Link |
| Chipper | Yes |
| Shredder | No |
| Recommended Oil | 10W-30 oil (5W-30 is recommended for cold weather climate) |
| Feeding system | Self-feeding |
| Hydraulic oil and oil tank capacity | No |
| Package Size | 770×730×460mm |
| 40HQ Loading Qty. | 240pcs |
