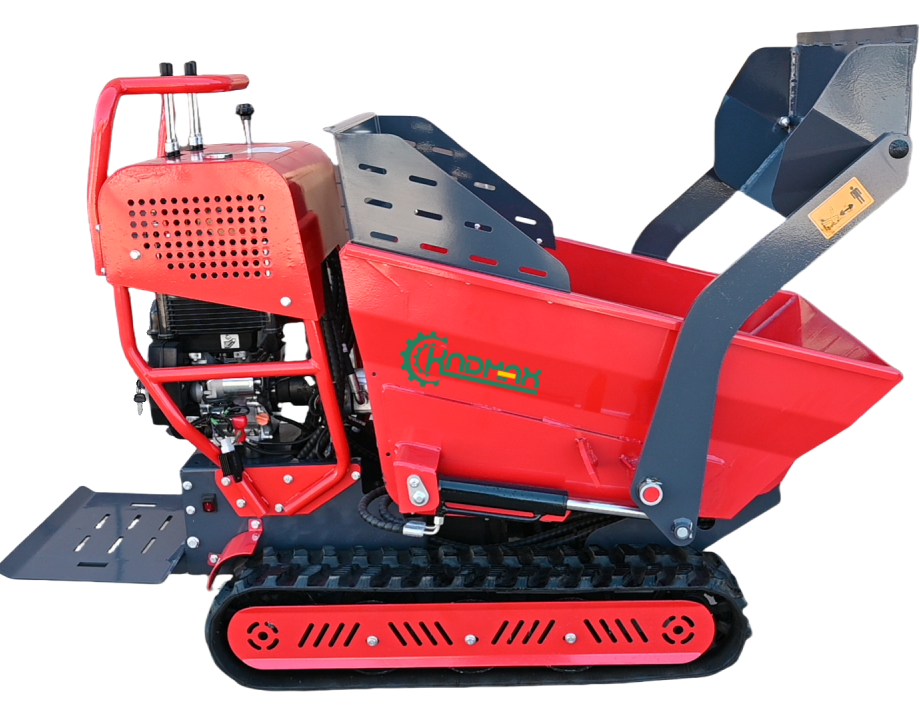

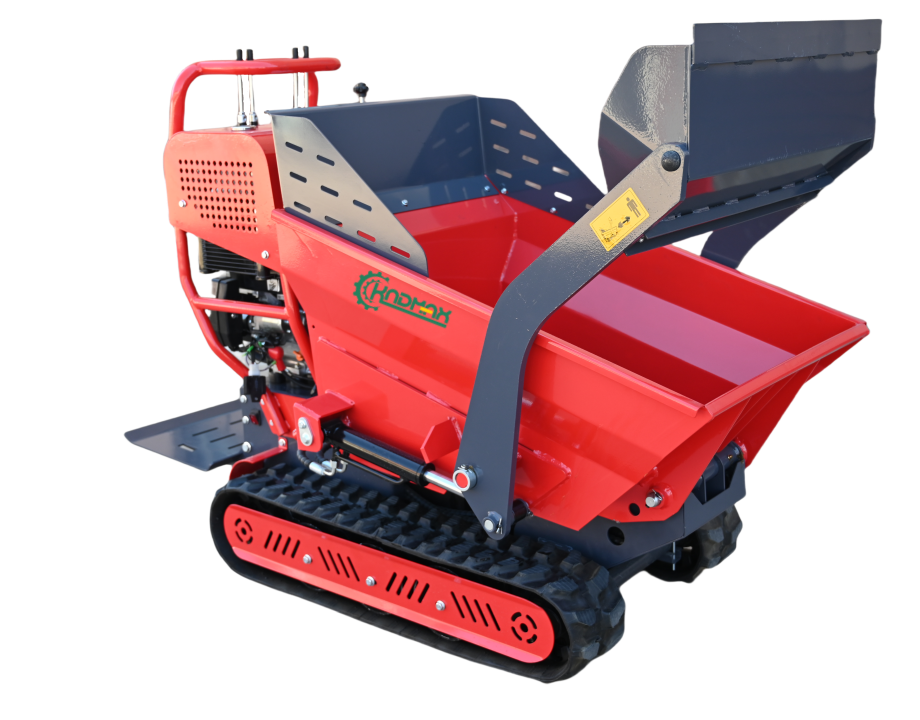

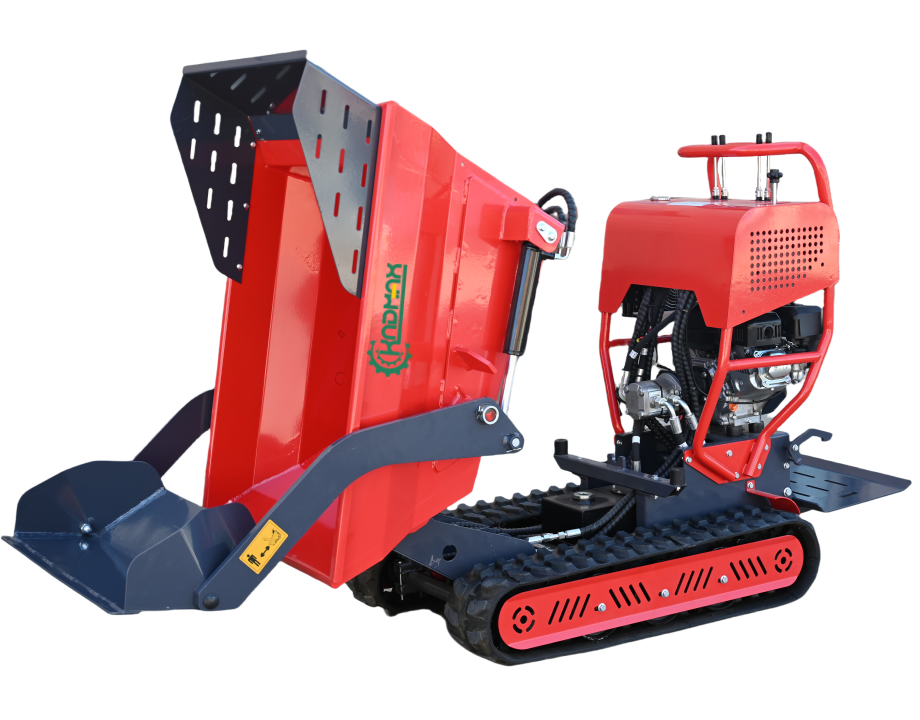

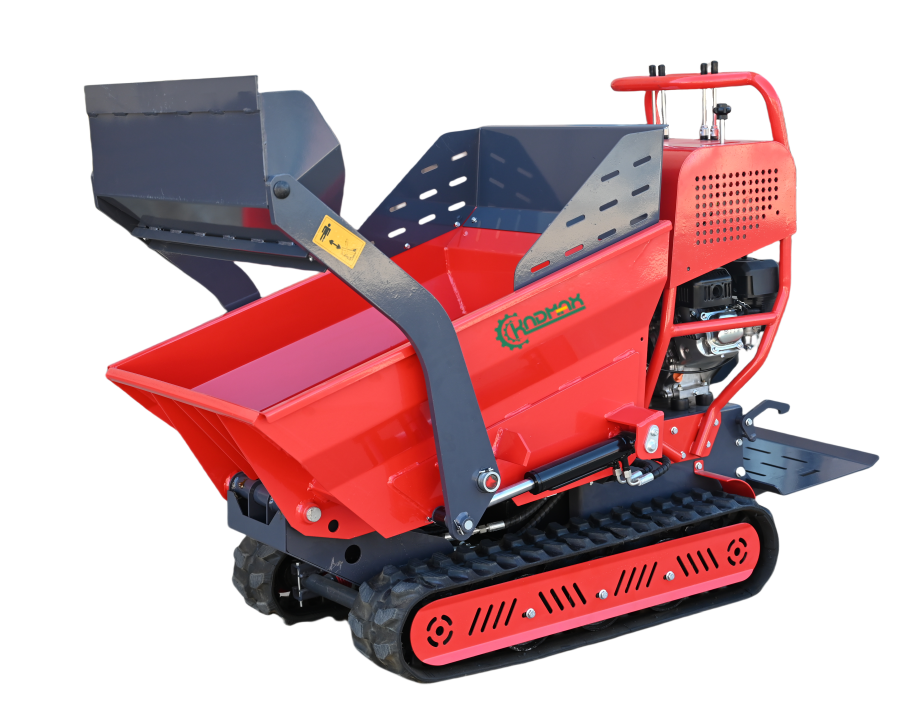

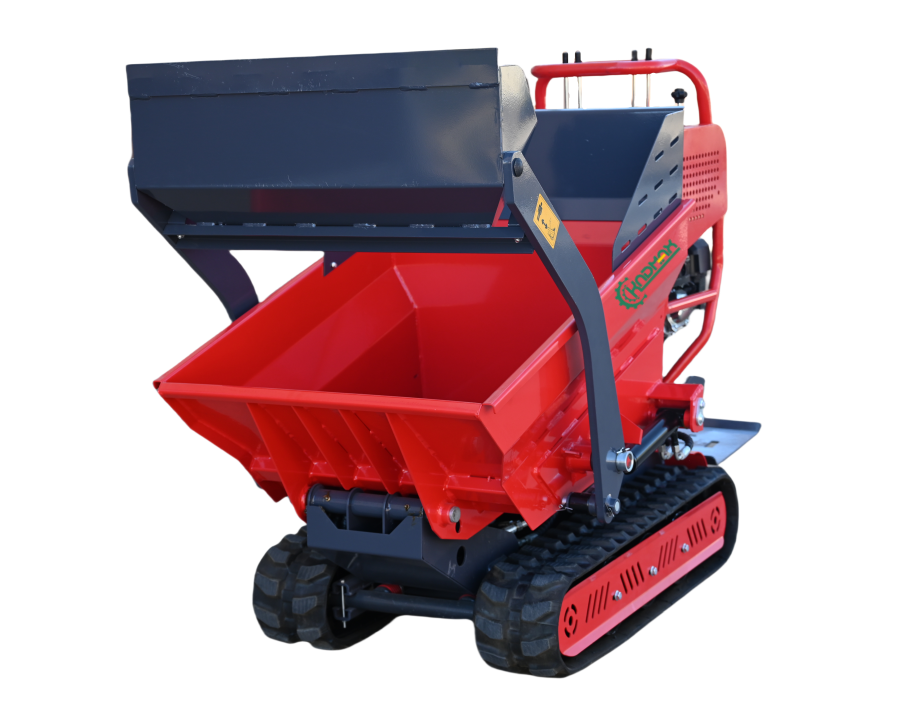

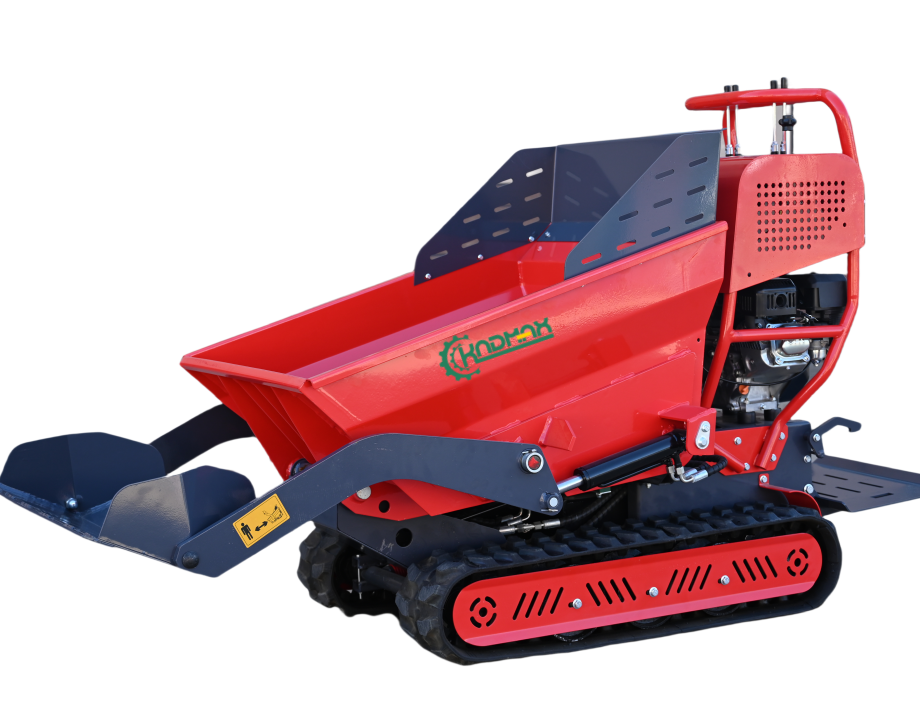

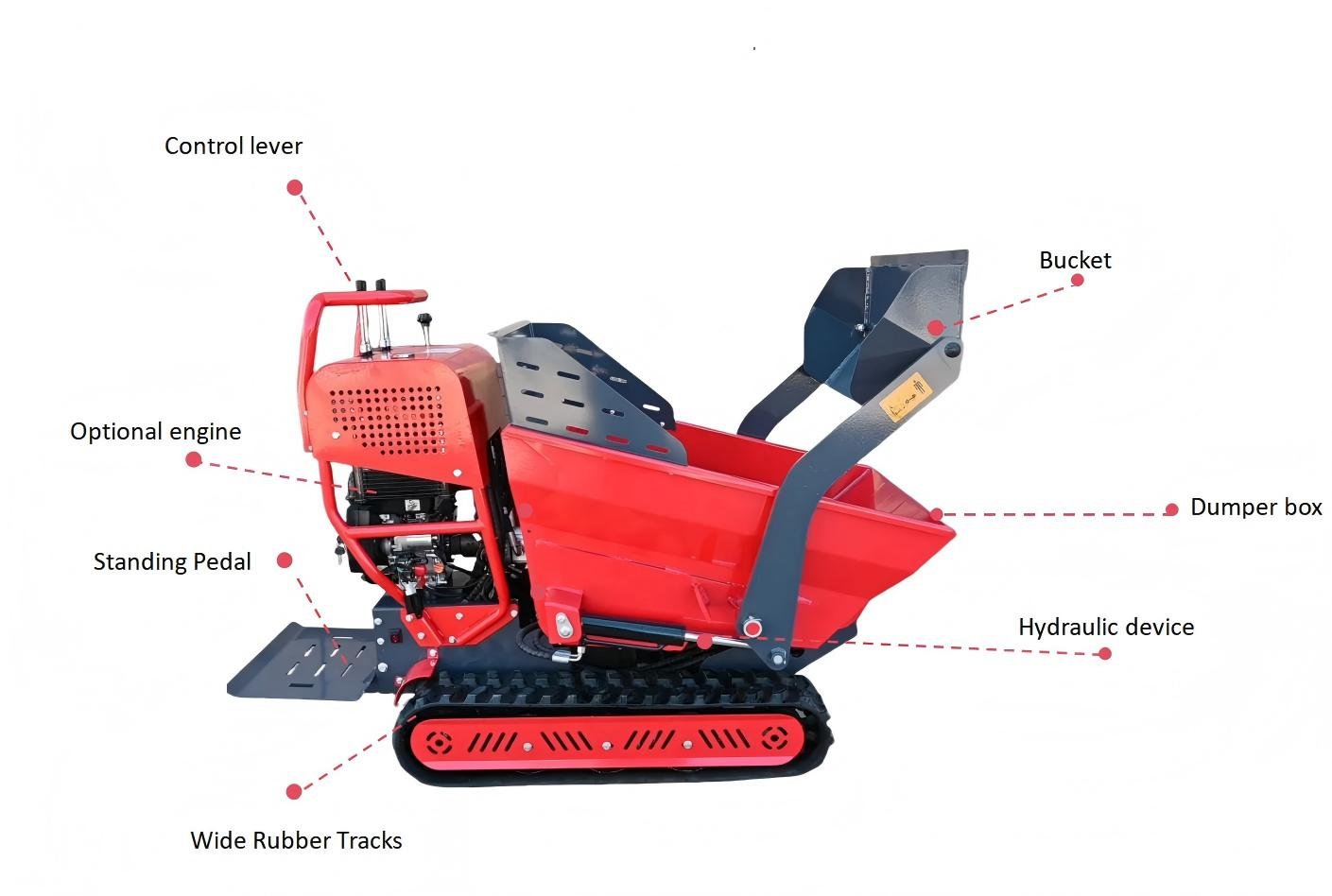

| Model | KFD50 | |
| Machine Weight | 400Kg | |
| MAX Capacity | 500Kg | |
| Engine | Brand | RATO |
| Model | 130G | |
| Displacement (cc) | 208 | |
| Total(HP)*＠3600rpm | 6.5（4.8KW/3600） | |
| Fuel capacity (L) | 3.1 | |
| Oil capacity (L) | 0.6 | |
| Motor | Brand | Li Ke Hydraulics |
| Displacement | 200cc | |
| Max working pressure | 20MPa | |
| Max torque | 805Nm | |
| Working speed | 1.7/3.5（km/h） | |
| Mini turning radius | 0.95m | |
| Track center distance | 509mm | |
| Mini ground clearance | 85mm | |
| Working slope | 20° | |
| Hydraulic oil tank capacity | 7L | |
| Hydraulic oil type | 46#Anti-wear hydraulic oil | |
| Dumper box volume（m³） | 0.22（1040*730*590） | |

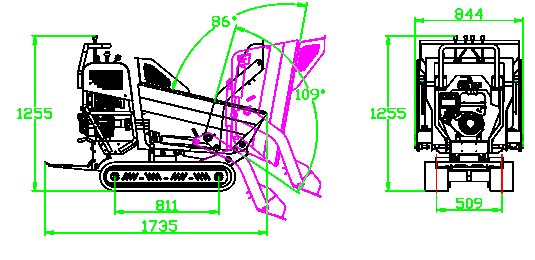

| LxWxH（mm） | 1735x844x1255 | |
| 20GP Loading Qty. | 6pcs | |
| 40GP Loading Qty. | 14pcs | |
| 40HQ Loading Qty. | 14pcs | |
