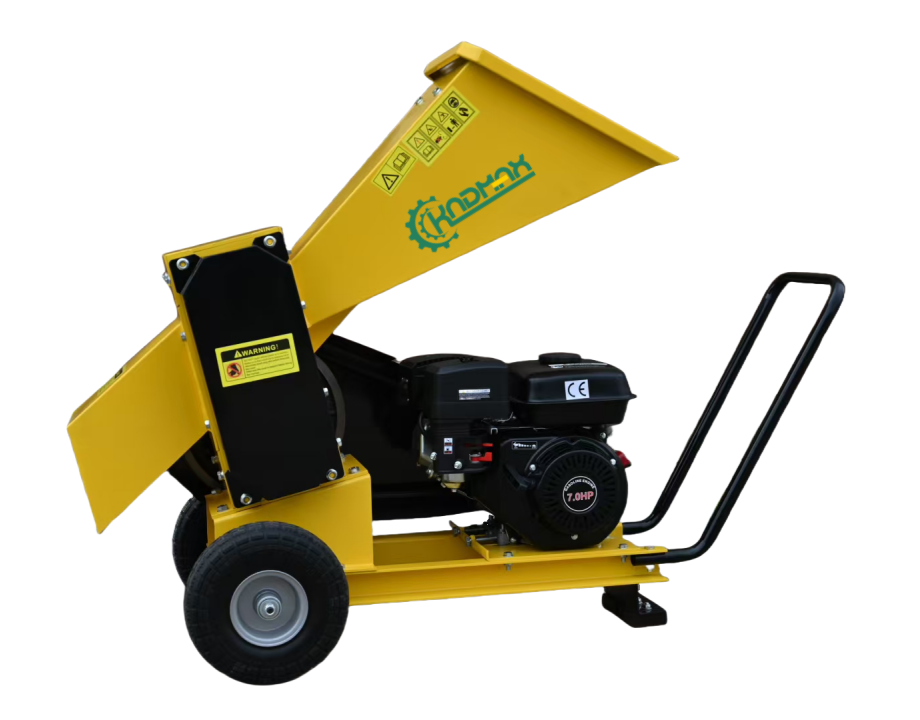

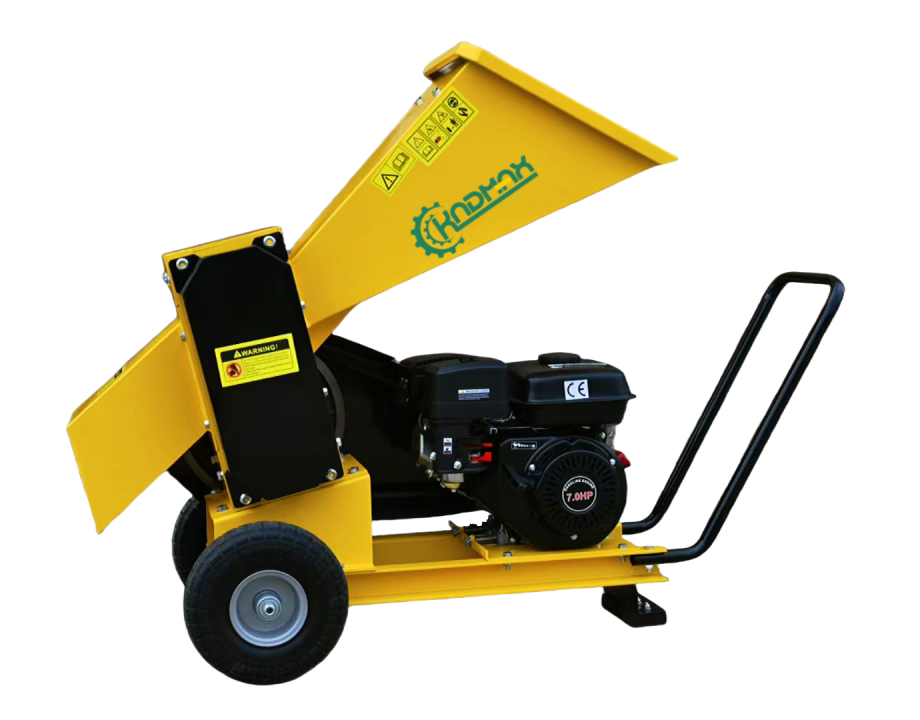

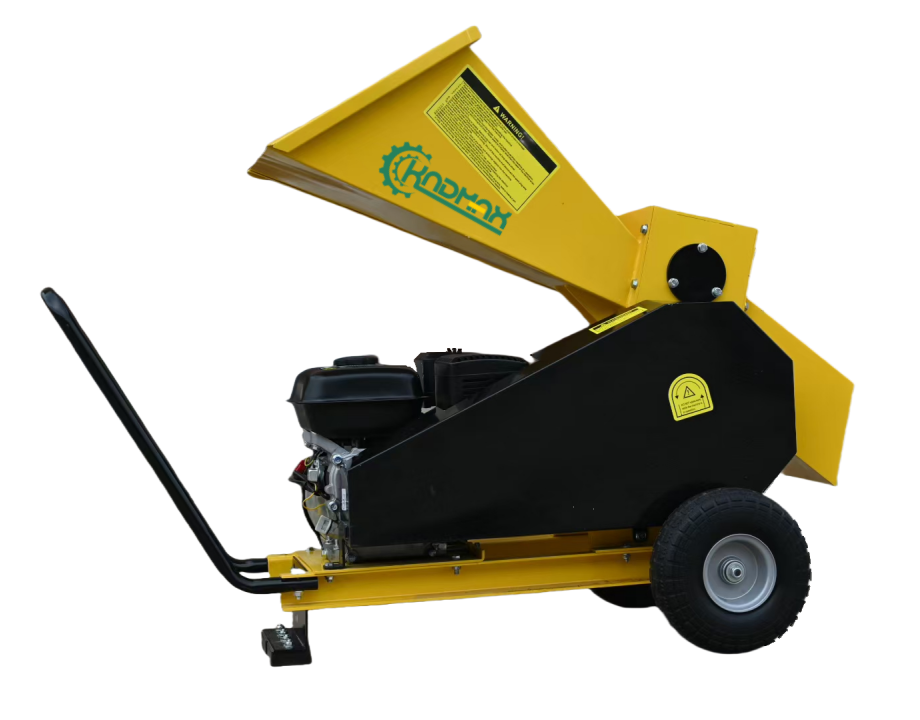

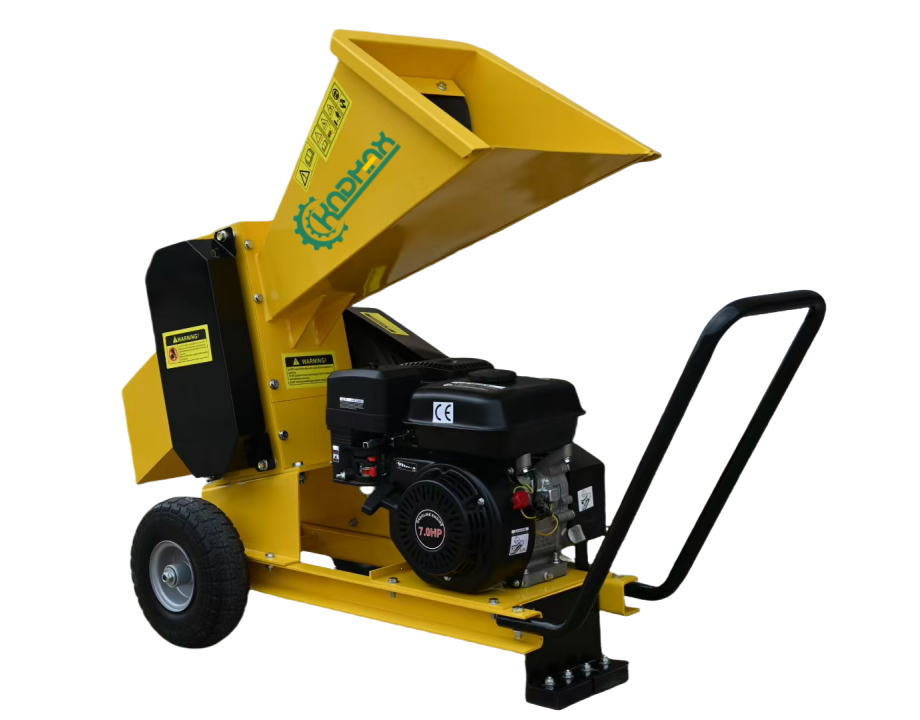

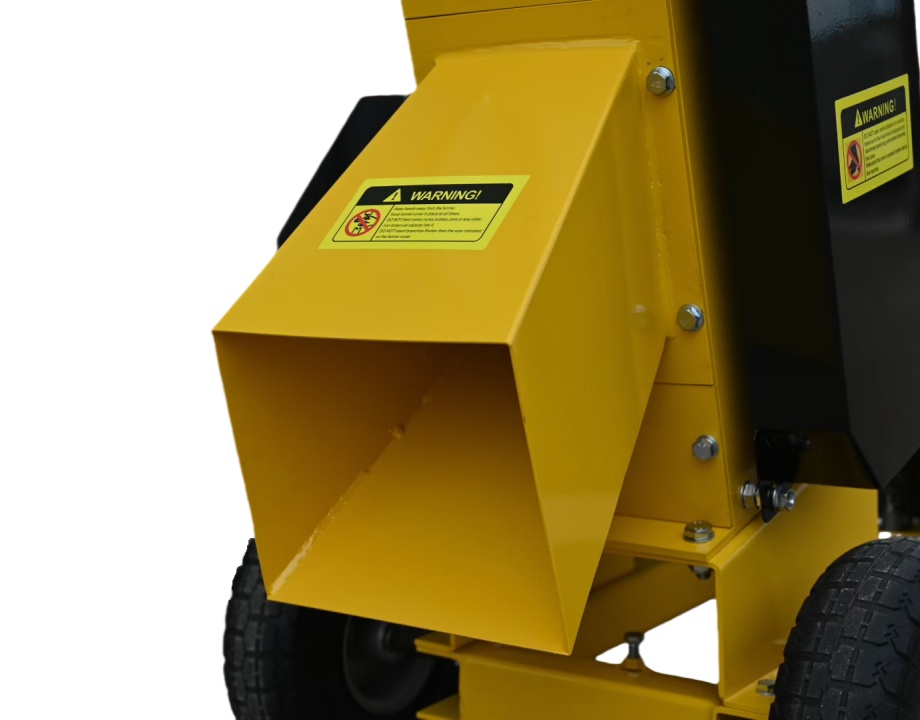

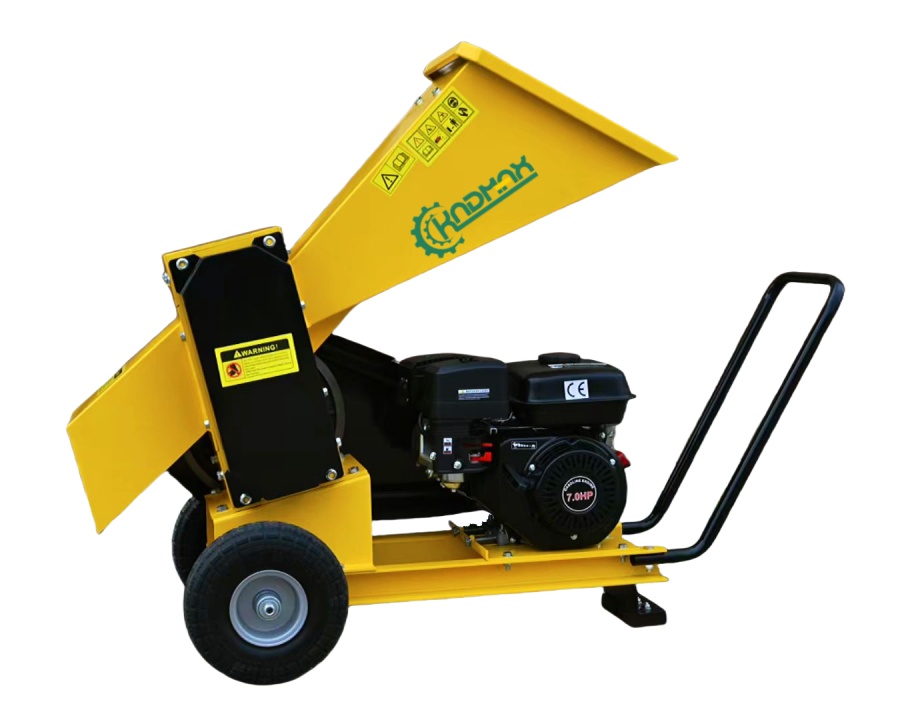

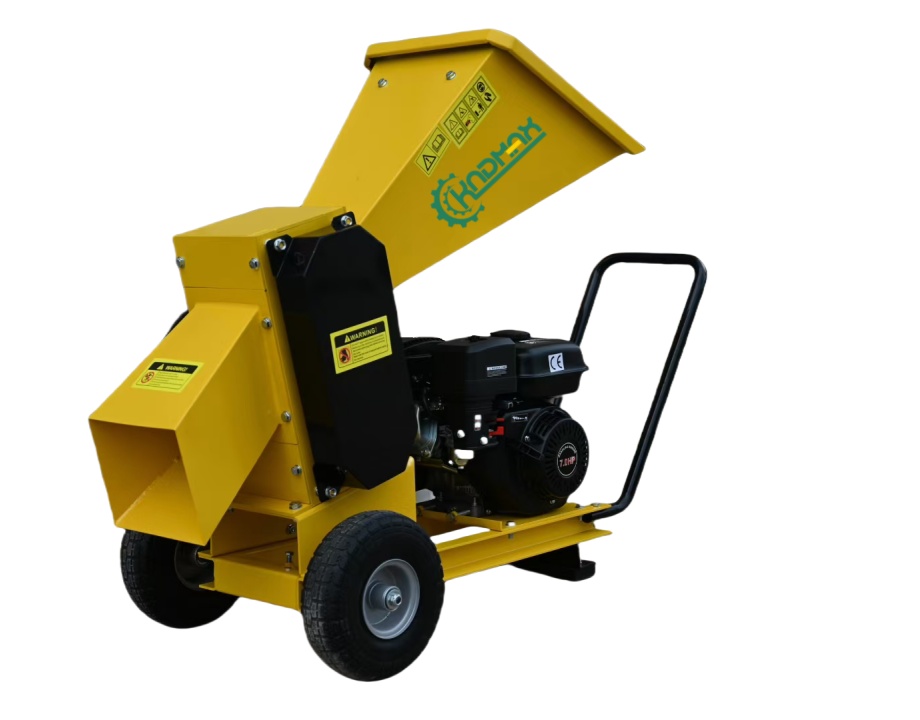

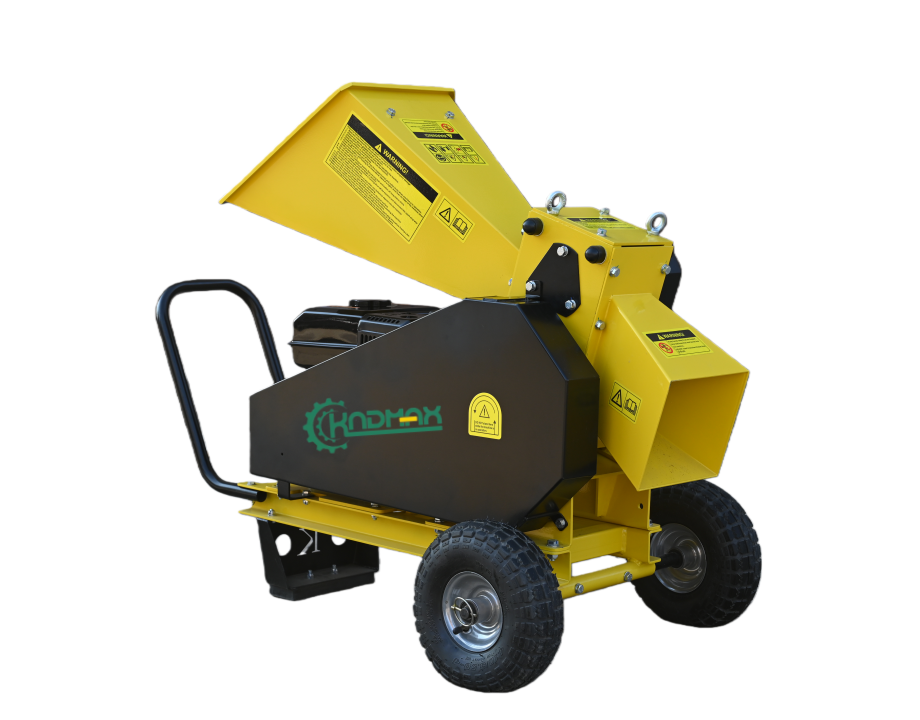

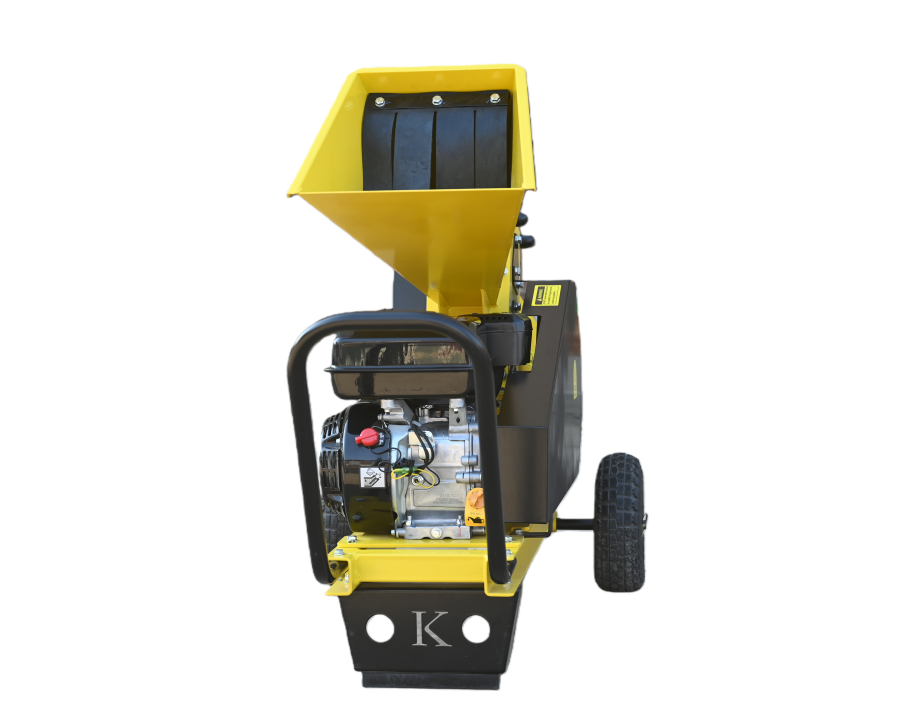

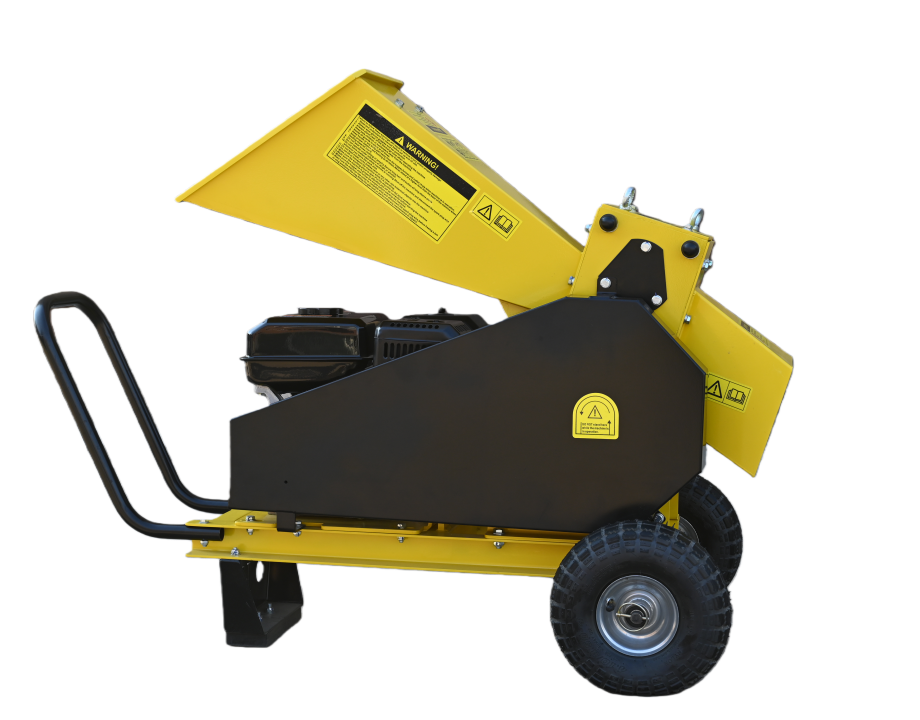

WGC60 is a 7HP gasoline-powered Branch Logger, engineered for fast and efficient disposal of branches up to 60 mm in diameter. It is a perfect choice for private homeowners, cottage house residents, and garden plot owners.
It is the go-to choice for anyone who needs a convenient, affordable, and effective solution for post-pruning cleanup, shrub trimming, and seasonal garden work. Combining compact size with ease of use, this model delivers reliable, safe operation while fully complying with European quality and safety standards.

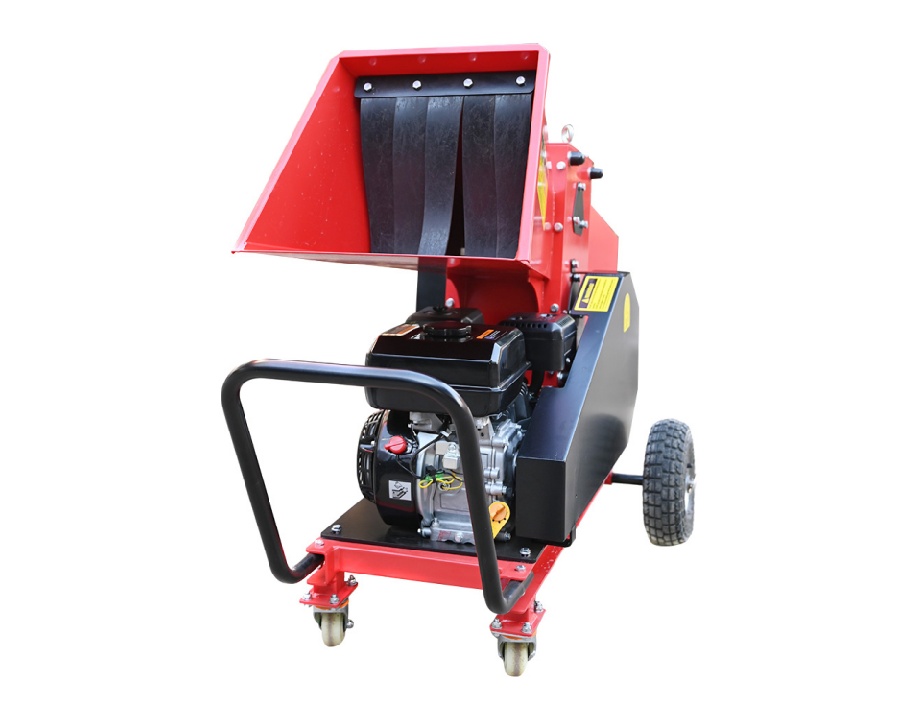

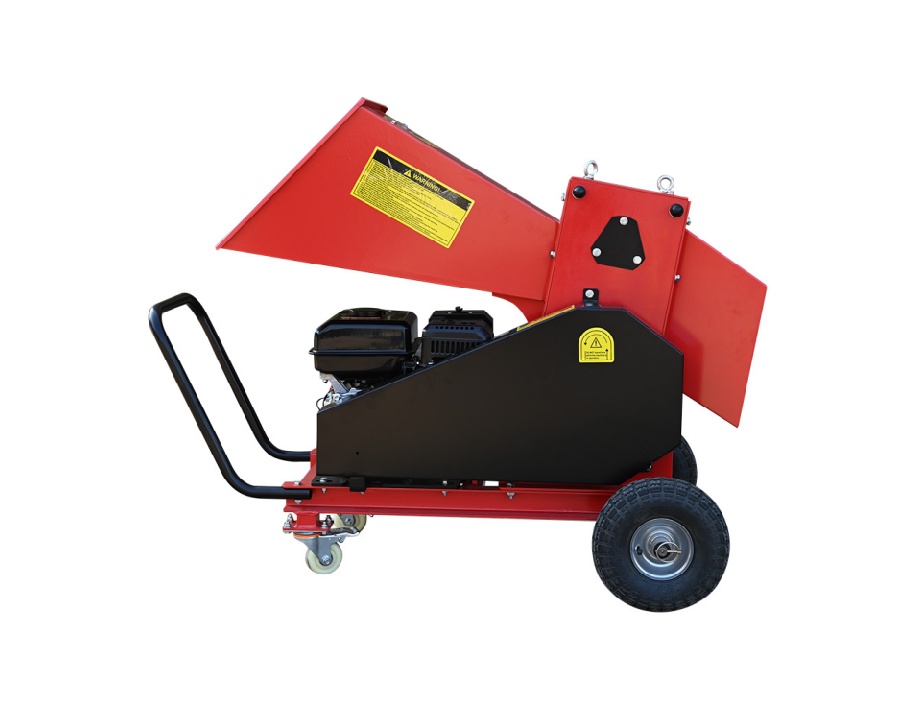

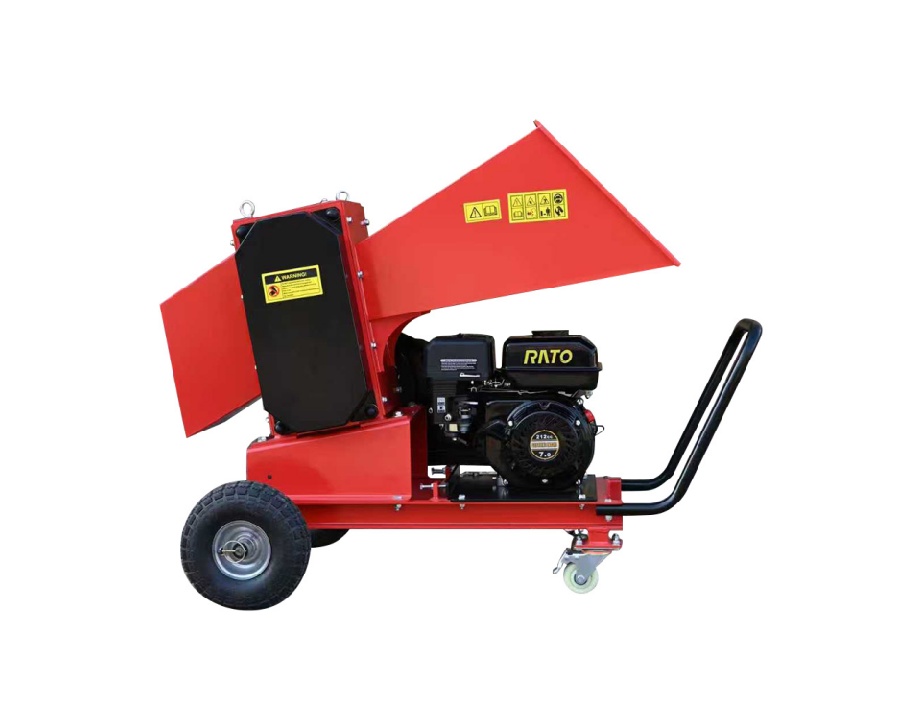

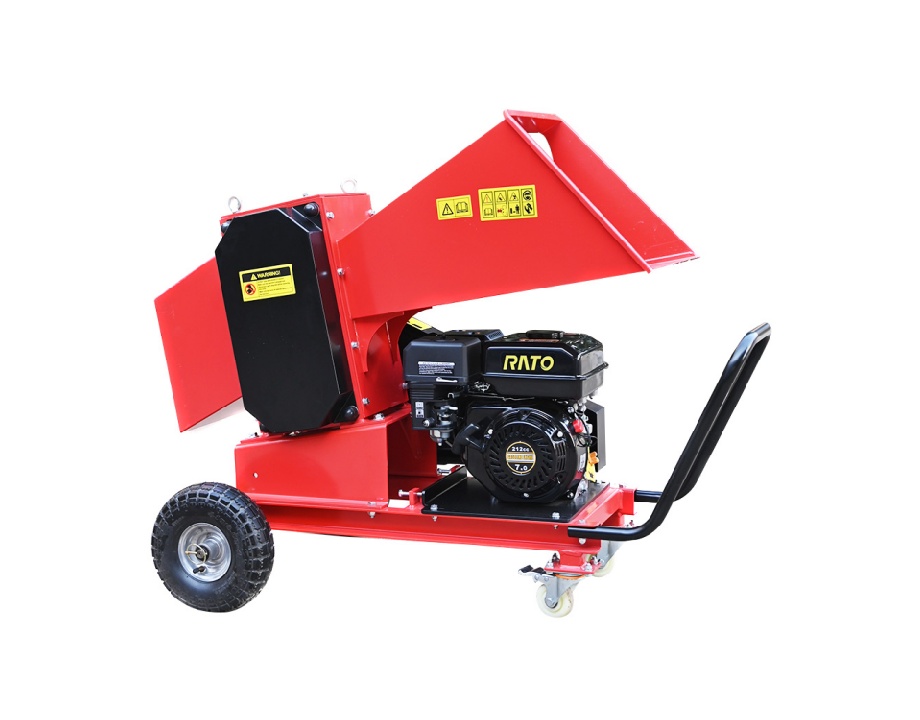

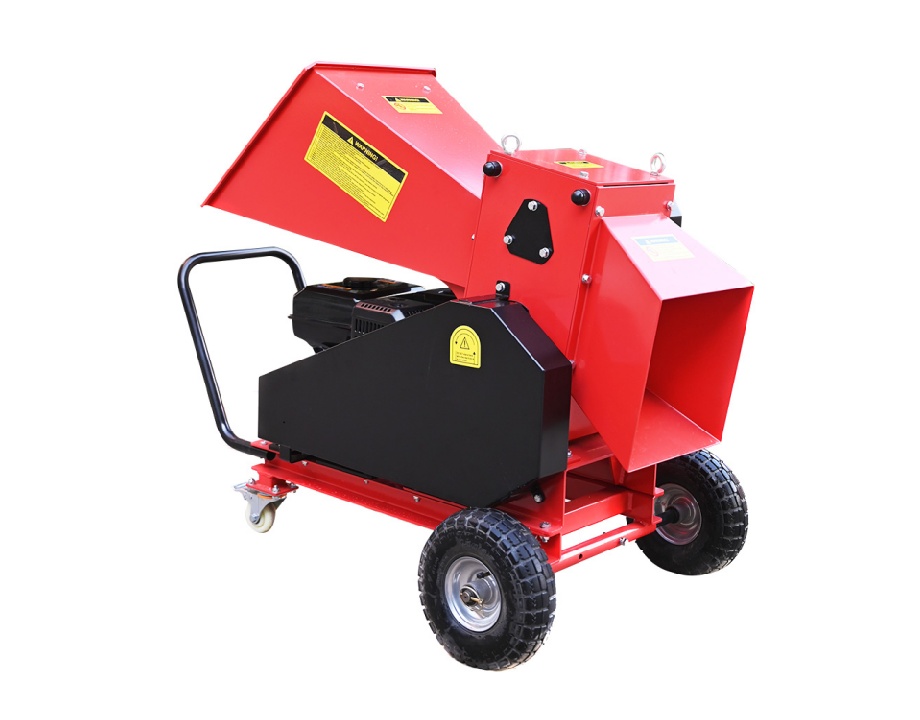

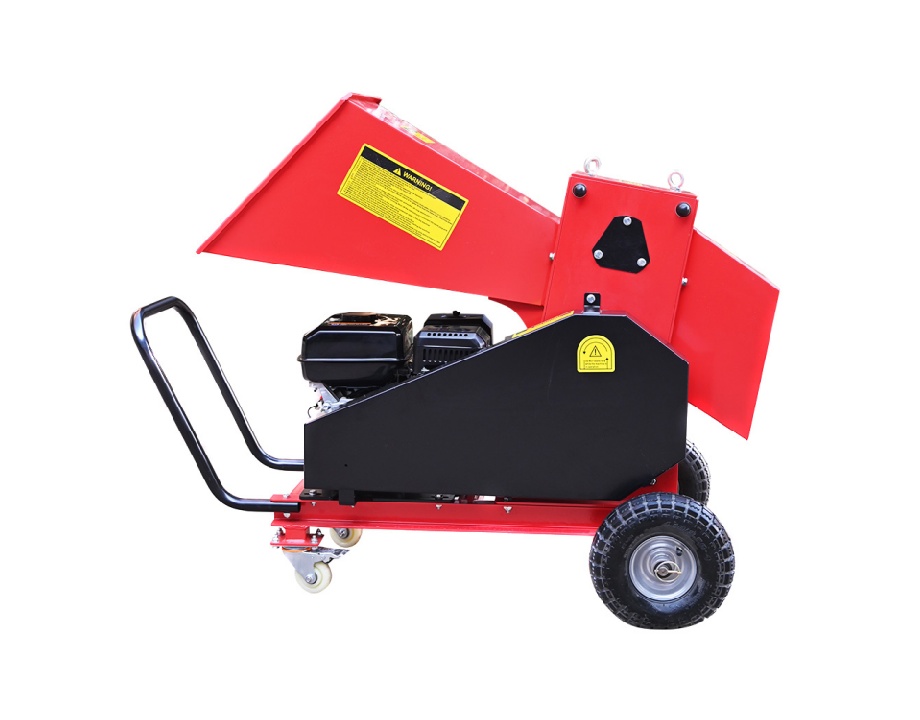

The Branch Logger WGC80 is designed for processing and utilization by cutting branches, rods, dallets, lamellas and other wood waste. The shredder of the branches turns the raw material into pieces with a length of 6-12 cm, this size is not regulated but depends on the diameter (thickness) of the raw materials. Branch Logger WGC80 is capable of cutting branches with a diameter of up to 8 cm, depending on the humidity and wood species. Chopped branches are ideal fuel for pyrolysis and solid fuel boilers, fireplaces, stoves and other heating appliances, as well as for the production of charcoal. The productivity of the Branch Logger WGC80 is 4 cubic meters of finished products per hour. Productivity directly depends on the quality of raw material preparation and the number of personnel involved in the work. Branch Logger WGC80 is equipped with a gasoline engine RATO 7 hp.
| Model: | WGC60 | WGC80 |
| Chipping Capacity: | Dried Wood 50mm Wet Timber 60mm | Hard wood 60mm Wet Timber 80mm |
| Blade Speed: | 400rpm | 300rpm |
| Engine Type: | OHV 4-Stroke | OHV 4-Stroke |
| Starting System: | Recoil | Recoil |
| Displacement: | 212CC | 212CC |
| Max. Output: | 7HP/3600rpm | 7HP/3600rpm |
| Number Of Blade: | 6pcs | 6pcs |
| Reduction Rate: | 15:01 | 15:01 |
| Tyre: | Pneumatic Tire350-4 | Pneumatic Tire350-4 |
| Fuel Volume: | 3.6L | 3.5L |
| Oil Volume: | 0.6L | 0.6L |
| Fuel Type: | Unleaded Gasoline | Unleaded Gasoline |
| G.W/N.W: | 105/120kg | 146/160kg |
| Packing: | 1000x370x825mm | 1165X450X880mm |
| 20GP Loading Qty. | 60pcs | 50pcs |
| 40GP Loading Qty. | 144pcs | 100pcs |
| 40HQ Loading Qty. | 198pcs | 150pcs |
