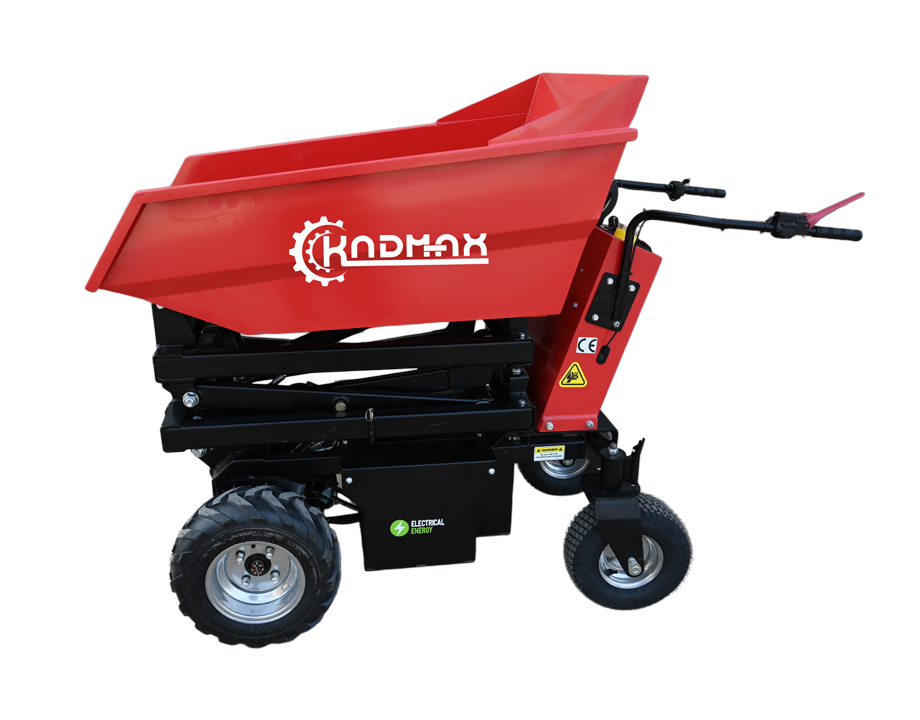

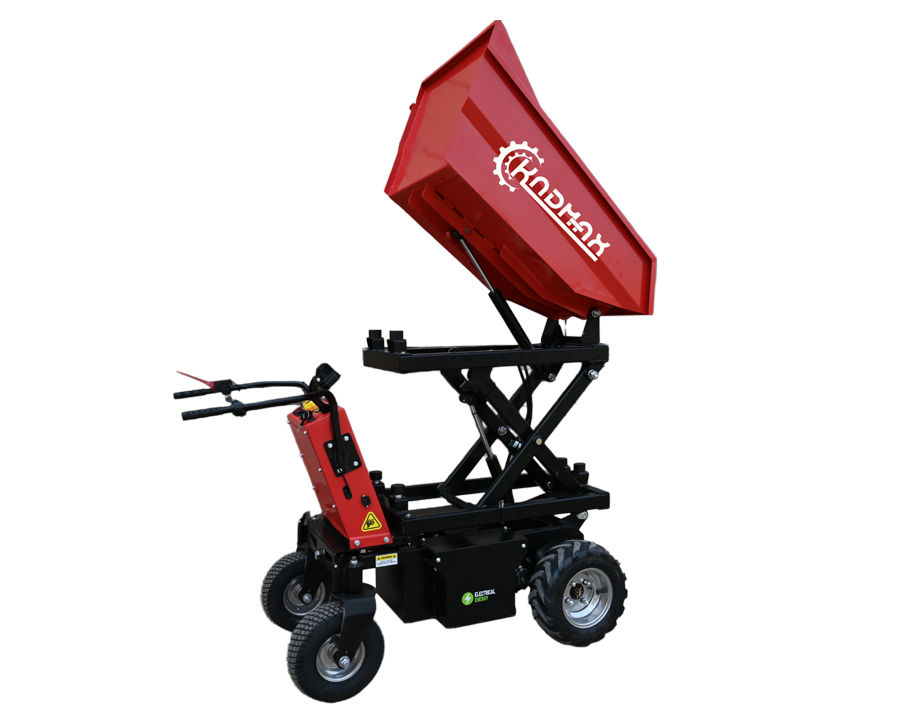

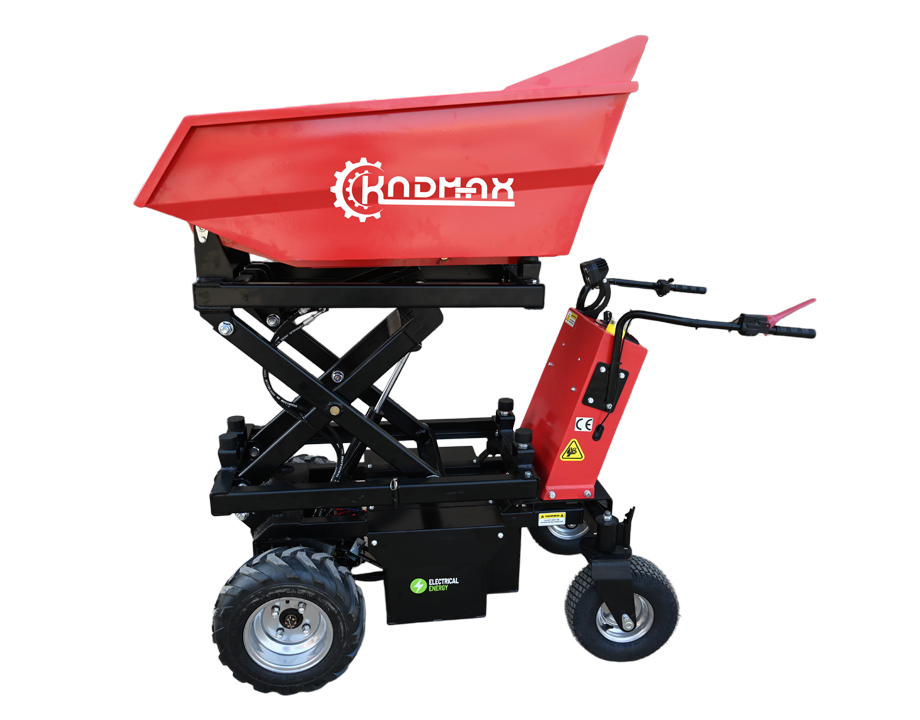

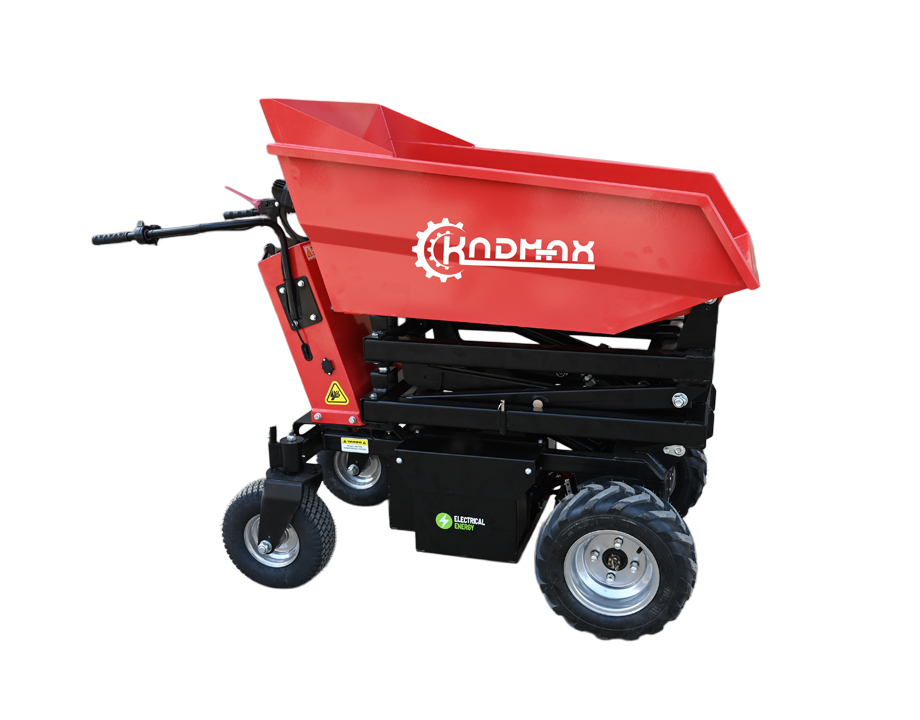

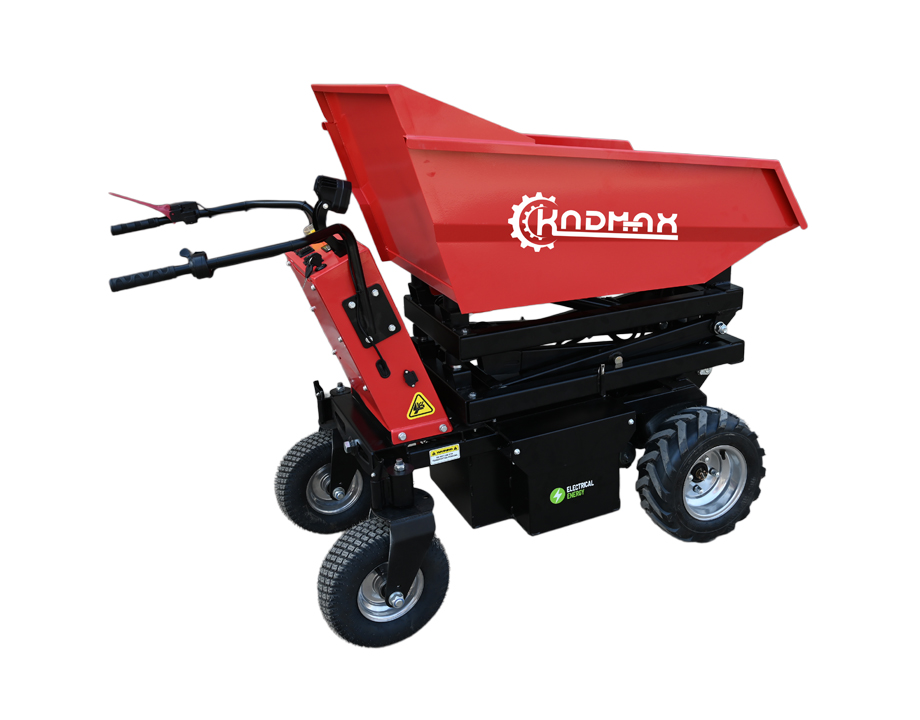

| Model | ED500HT |
| Power: | 1000W, 48V Brushless DC Motors |
| Braking System: | Electromagnetic Brake |
| Lighting: | 2 Lights (18W each) |
Speed | Forward Speed: Max Speed: 0–6.0 km/h Medium Speed: 0–4.0 km/h Low Speed: 0–2.0 km/h |
Reverse Speed 0-2 km/h | |
| Net Weight: | 289.5kg |
| Rated Load Capacity: | 500 kg |
| Tipping: | Hydraulic Tipping |
| Drive System: | Front-Wheel Drive |
| Wheels: | Front: 2 PCS 16×6.50-8; Rear: 2PCS 13×5.0-6 |
| Noise Level: | Max 5 dB |
| Continuous Operation Time: | 6–8 hours |
| Charging Time: | To 80% (6 hours); To 100% (8 hours) |
| Charger: | Wide-Voltage Smart Charger (110V–240V) |
| Max. Climbing Angle: | 30 Degrees |
| Max. Lifting Height: | 1.4 m |
| Dimensions (L × W × H): | 1661 × 770 × 1283 mm |
If you have any questions, please leave a message, we will reply as soon as possible.
