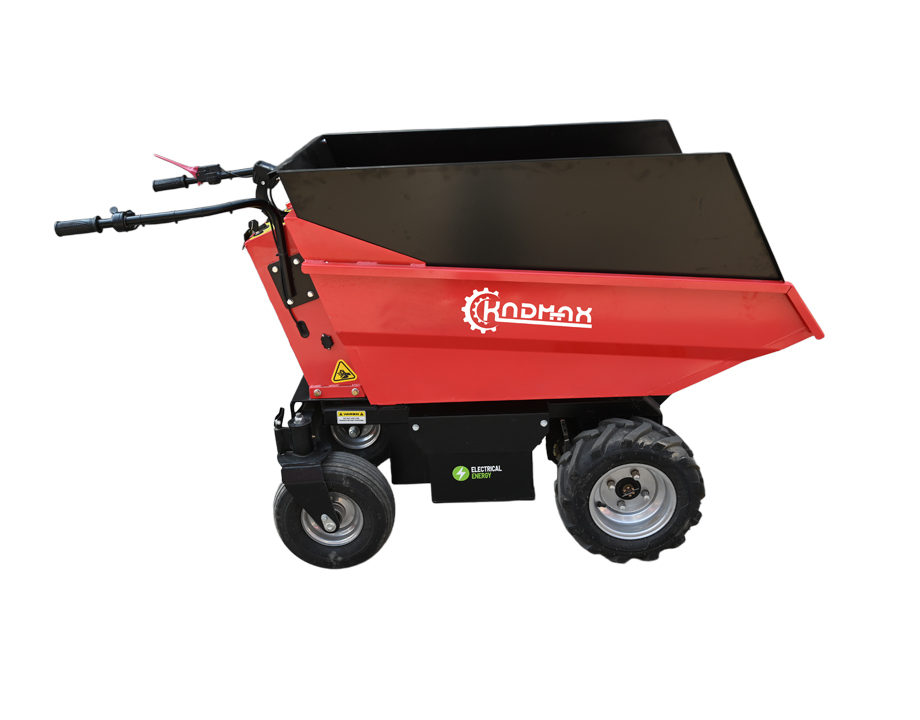

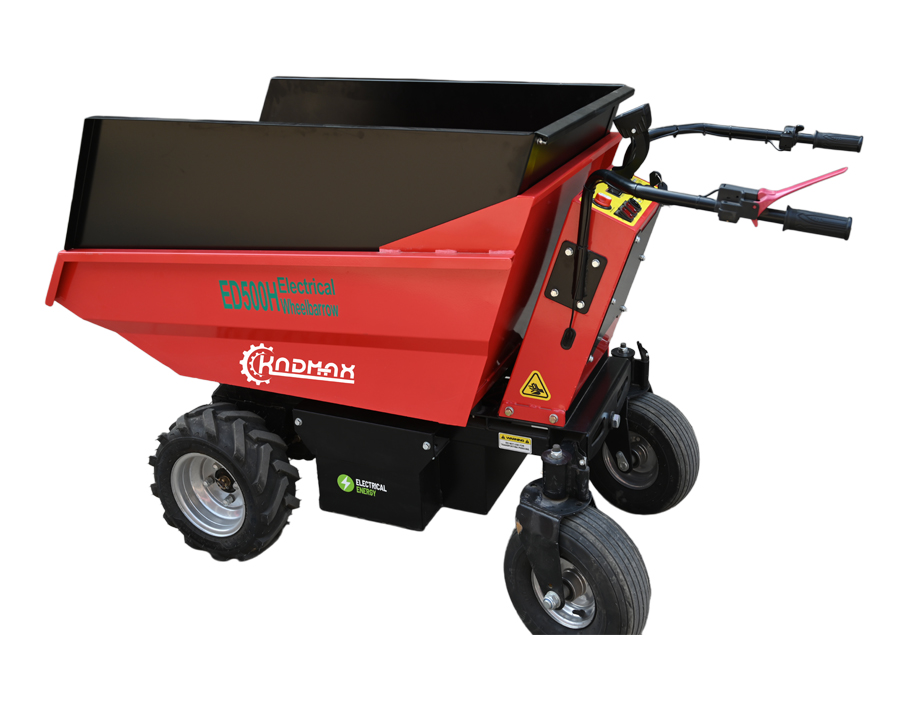

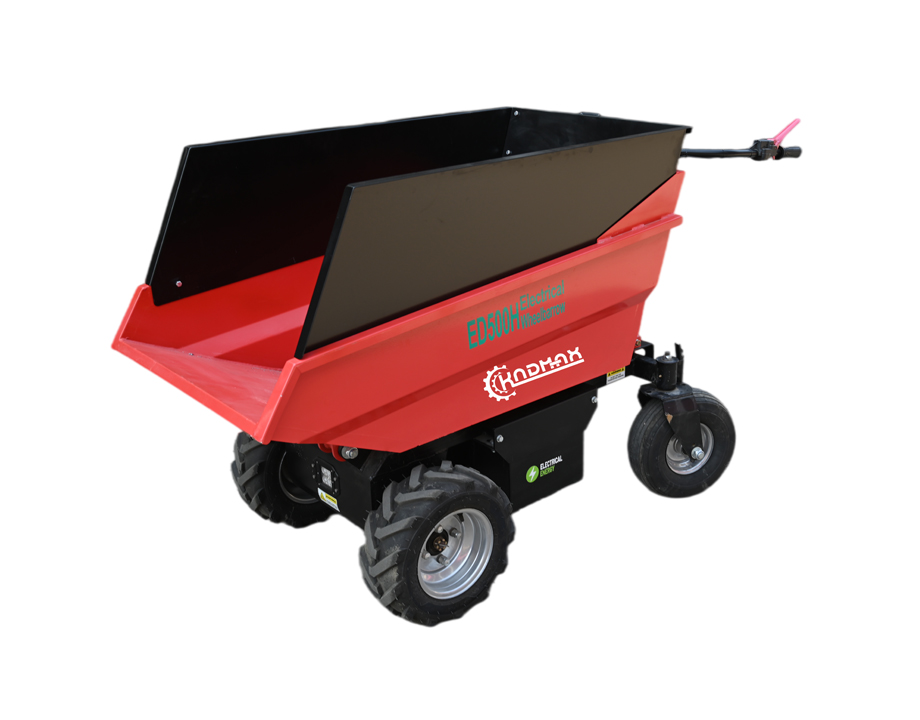

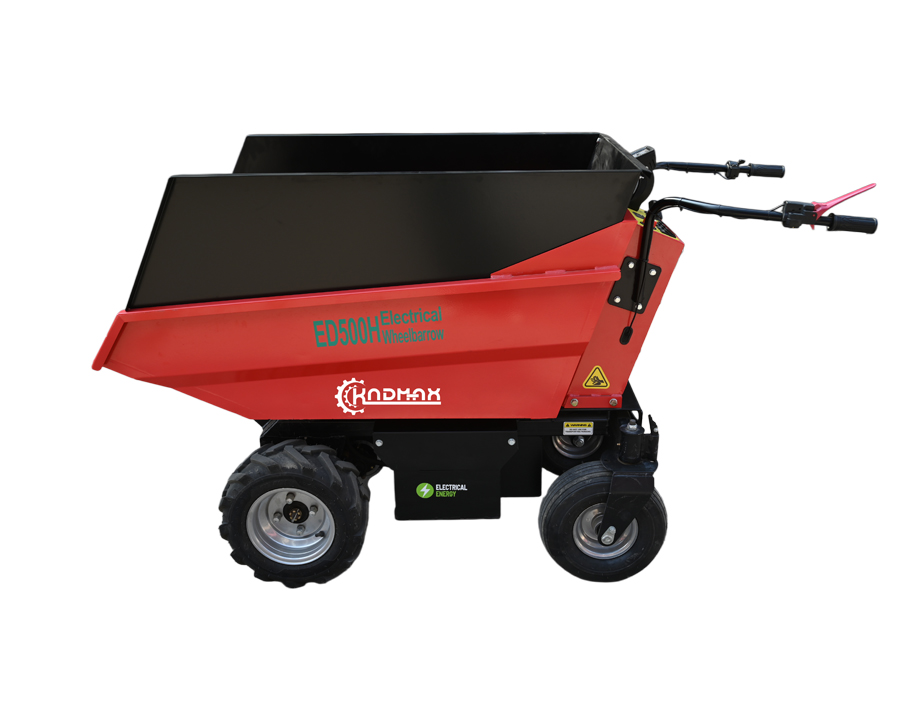

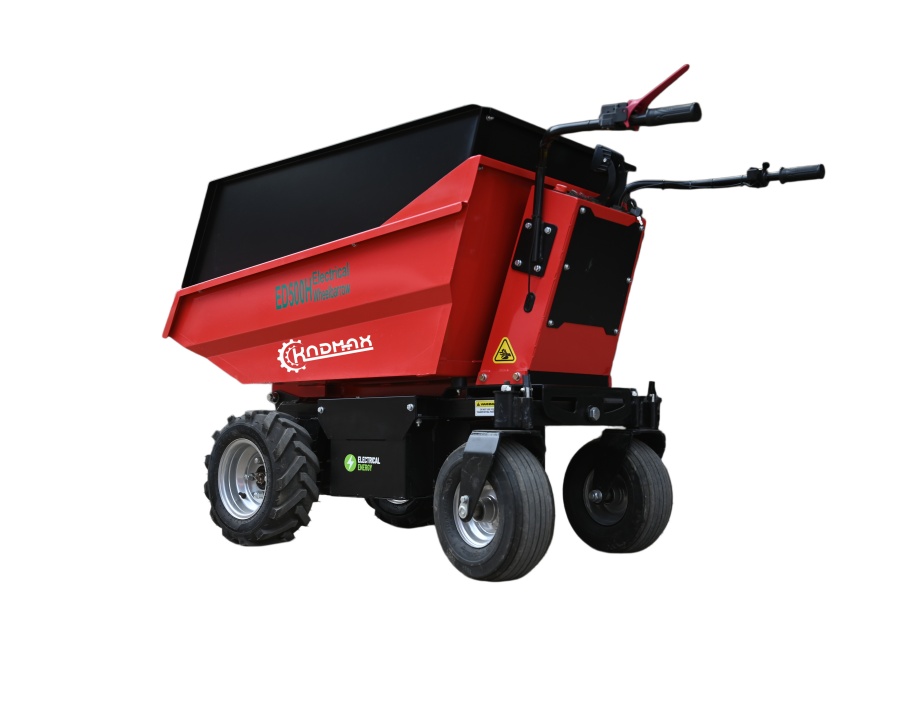

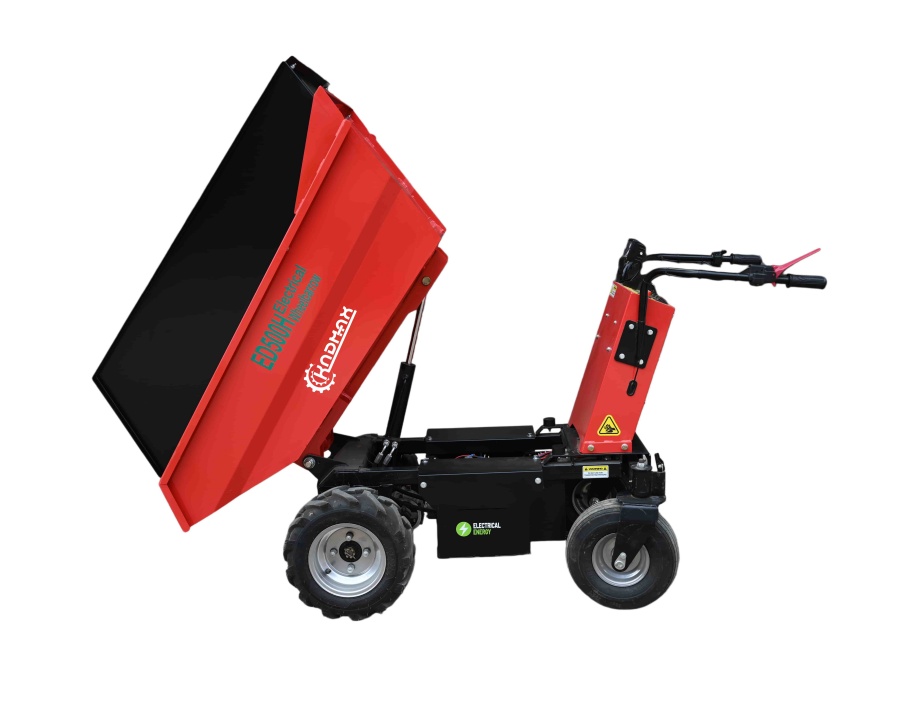

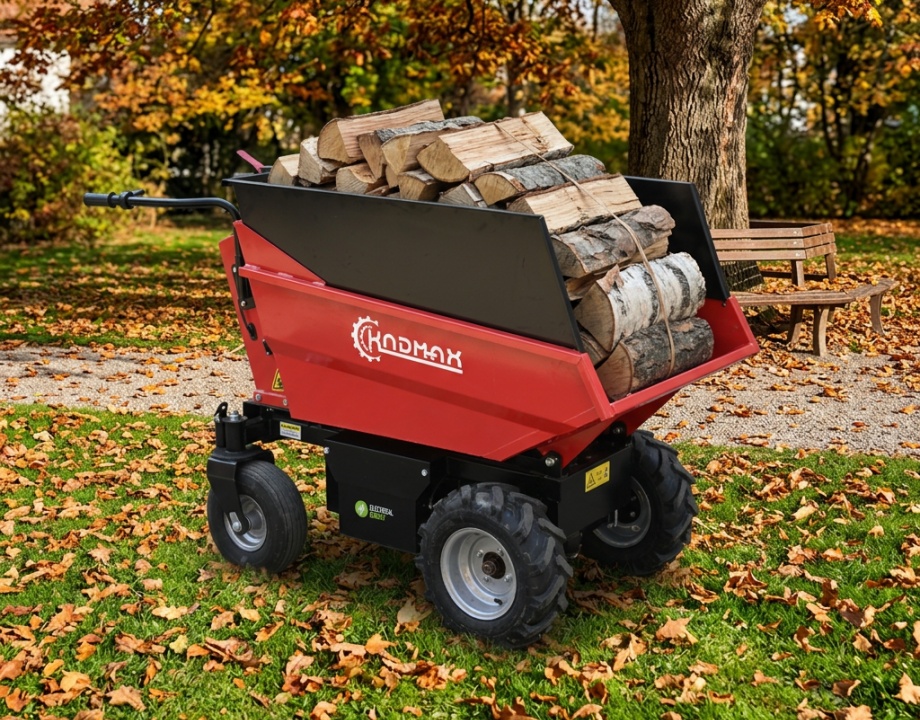

It is a truck designed for carrying bulk materials, usually on construction sites. It carries materials efficiently, ensuring intensive work cycles. The machine occupies a small area and is easy to drag. The operation is simple, and the driving smoothness is good. Electric design allows you to complete the operation work silently and efficiently. Electric mini dump truck ED500H, equipped with 48v 1000w battery system, this wheelbarrow can provide maximum versatility and light touch operation. The ED500H Mini Dump Truck features an 1100lbs load capacity and hydraulic bucket for use indoors or outdoors, and its compact size will allow passage through doorways/driveways as small as 29in, providing excellent load capacity and productivity. This mini dump truck has an electromagnetic braking system, which can significantly reduce the wear and tear of the system as there is no need for physical contact to create friction between components. It requires almost no maintenance costs. It has forward and reverse transmission and can be rotated 360 degrees. Convenient to use in narrow areas.
Loading Capacity：500KG
Tipping:Hydraulic
| Model: | ED500H |
| Power: | 1000W, 48V brushless DC motor |
| Capacity of the battery： | 32AH |
| Braking System: | Electromagnetic brake |
| Lights: | 2 lights, 18W each |
| Speed: | Maximum speed: 0-6.0 km/h |
| Medium speed: 0-4.0 km/h | |
| Low speed: 0-2.0 km/h | |
| Reverse speed: 0-2.0 km/h | |
| Capacity: | 290 liters |
| Net weight/Gross weight: | 220 kg/236 kg |
| Rated load: | 500 kg |
| Unloading method: | Hydraulic |
| Drive method: | Front-wheel drive |
| Wheels: | Front wheels: 2, size 16×6.50-8; Rear wheels: 2, size 13×5.0-6 |
| Noise level: | Maximum 5 dB |
| Continuous working time: | 6-8 hours |
| Charging time: | 6 hours to 80%, 8 hours to 100% |
| Charger: | Wide voltage (110V-240V) smart charger |
| Maximum climbing angle: | 7 degrees |
| Equipment dimensions (L × W × H): | 1830 × 770 × 1100 mm |
| Packaging dimensions: | 1430 × 770 × 865 mm |
| 20GP Loading Qty. | 24PCS |
| 40GP Loading Qty. | 48PCS |
| 40HQ Loading Qty. | 72pcs |
Optional parts:
