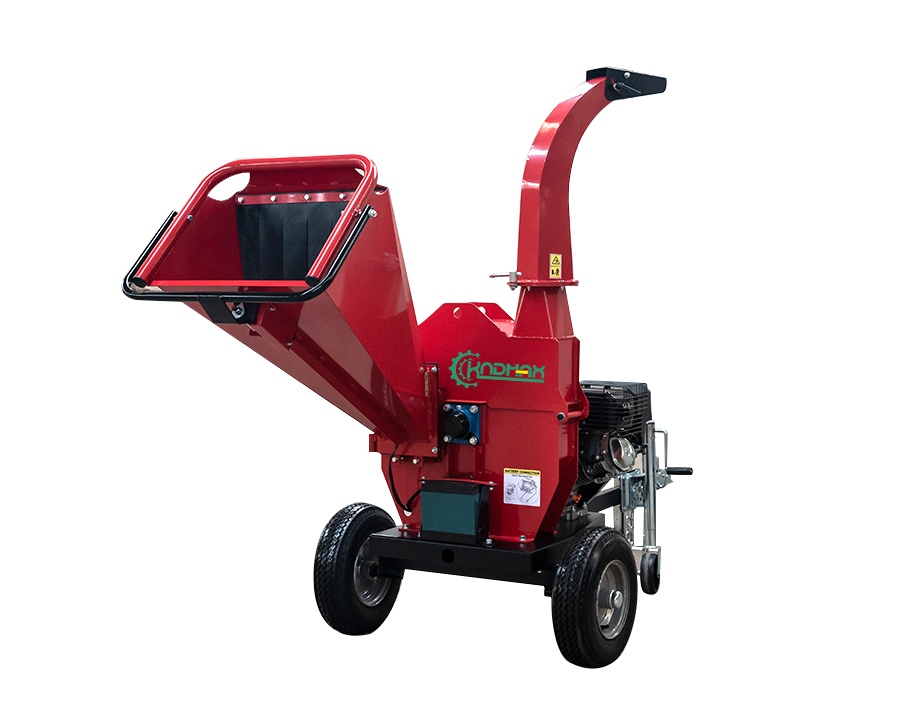

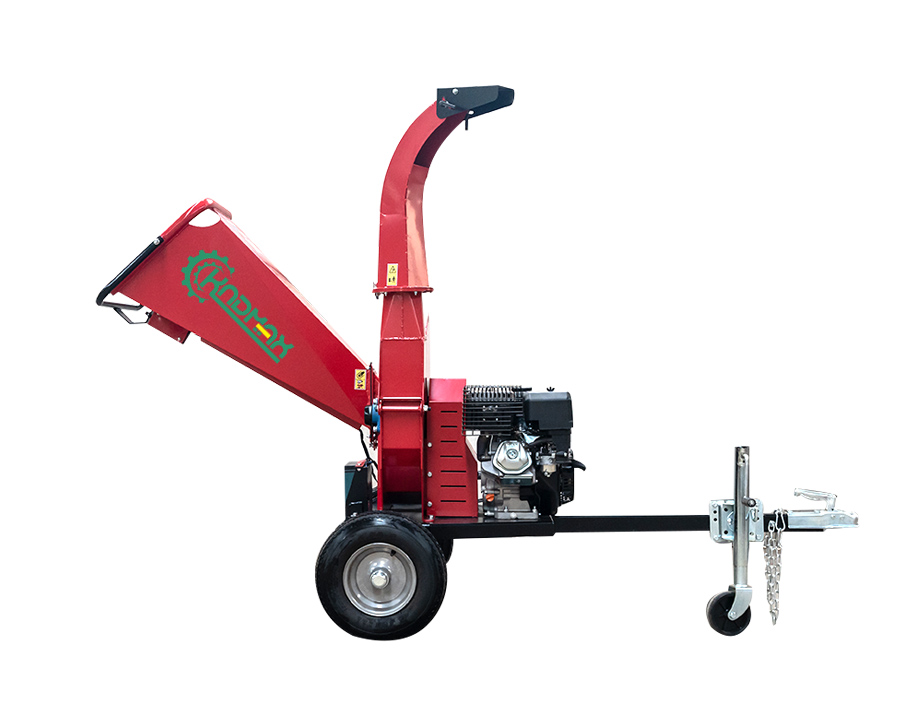

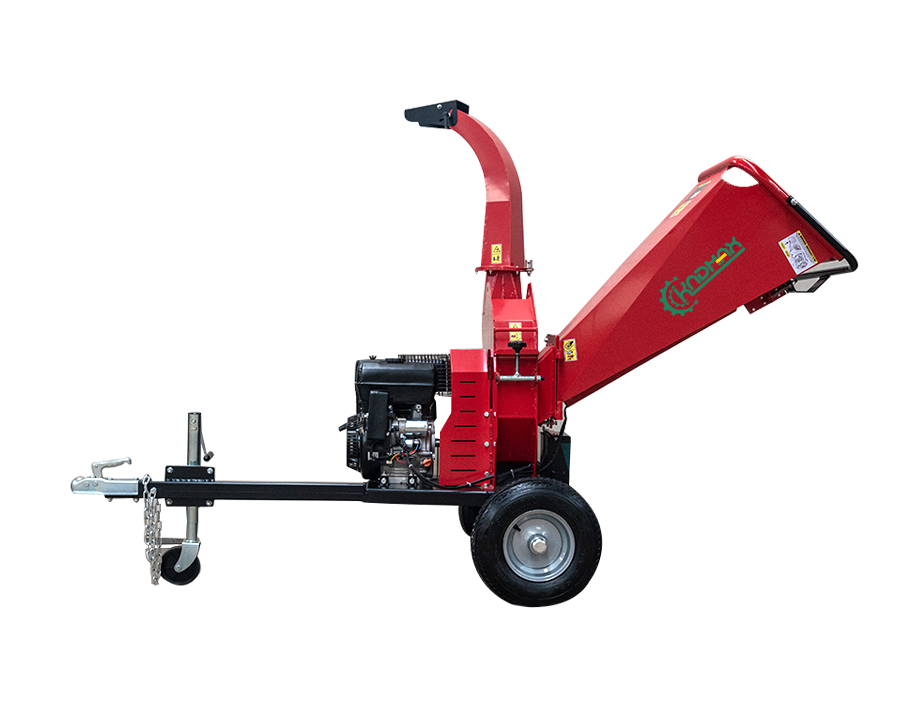

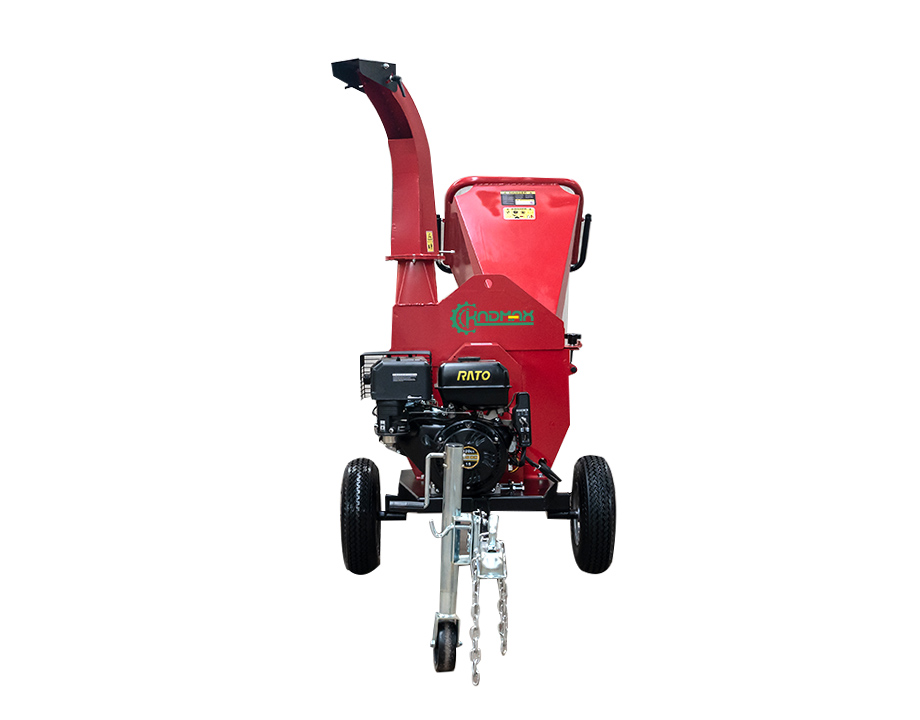

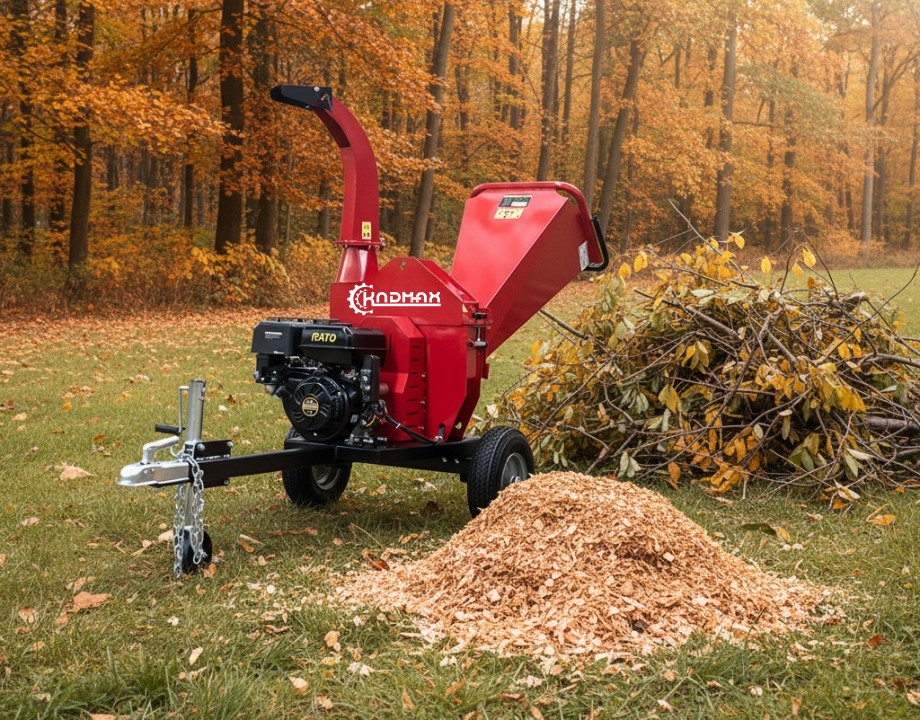

The KNDMAX DGC154 WOOD CHIPPER is a powerful machine designed for efficient wood chipping. With its impressive 550 disc diameter, it can handle larger branches and logs with ease.
This wood chipper is equipped with a high-performance engine that delivers reliable power and performance. It features a 12cm chipping capacity, allowing you to process a wide range of wood materials. The 550 disc diameter ensures that even larger pieces of wood can be chipped effectively.
The DGC154 Wood Chipper is built with durability in mind. It is constructed with high-quality materials that can withstand the rigors of heavy-duty use. The 550 disc diameter provides a larger cutting surface, resulting in faster and more efficient wood chipping.
In addition to its impressive disc diameter, this wood chipper also offers other convenient features. It has a self-feeding mechanism that allows for easy and safe operation. The chipper is also equipped with safety features such as a safety hopper and a safety bar, ensuring the operator's protection during use.
Overall, the KNDMAX DGC154 WOOD CHIPPER is a reliable and efficient machine that can handle large wood materials with its impressive 550 disc diameter. Whether you are a homeowner or a professional landscaper, this wood chipper is a great investment for your wood chipping needs.
Overview:
5inch Disc wood chipper ,connected to a 15HP electric start RATO gasoline engine

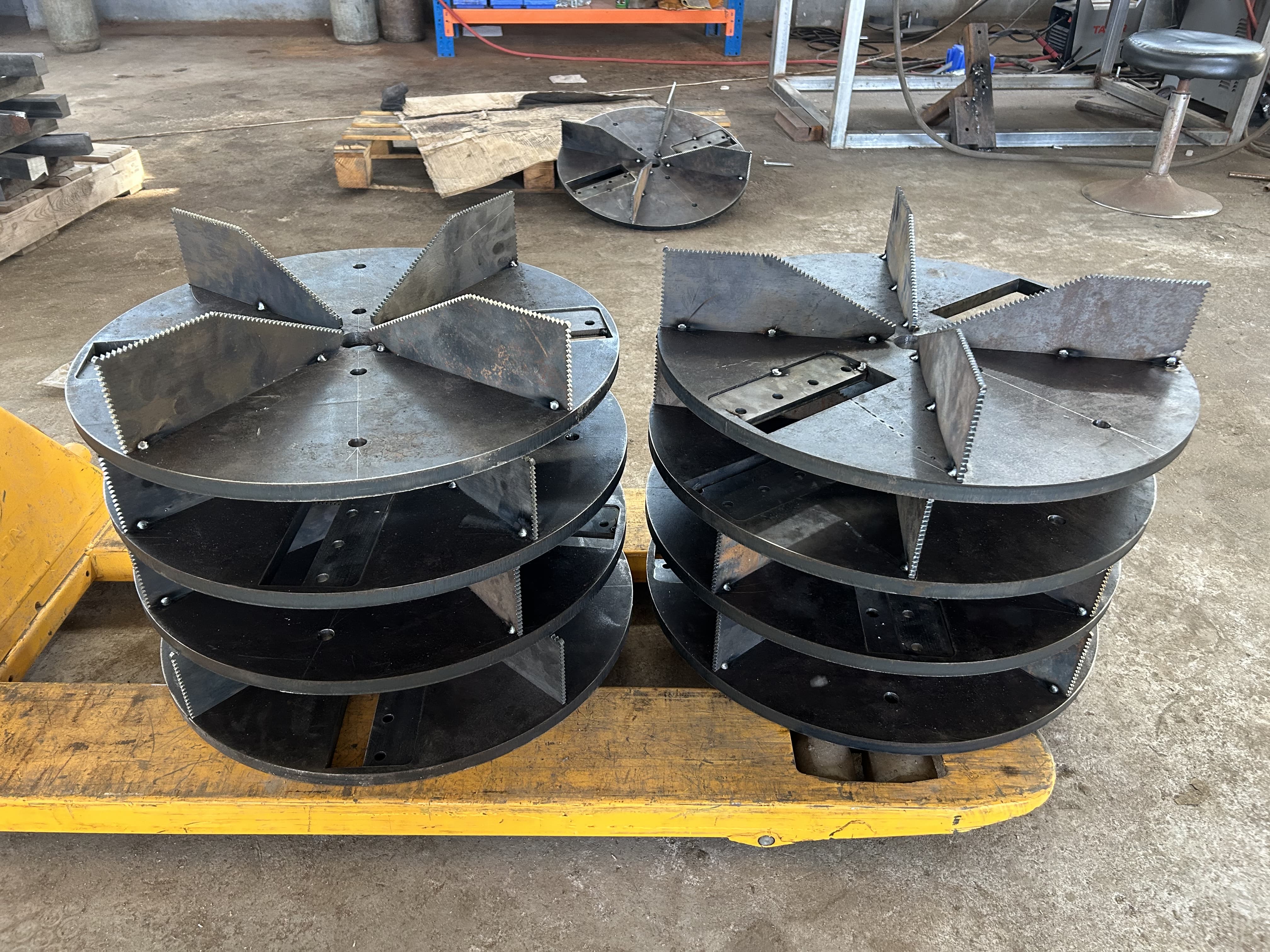

It has a long service life with two double sided usable blades on the disc. The feeding chute has hinge so that it can be opened quickly to replace the blades. The discharge chute can rotate 360 degrees due to the shaped steel tube.
Tow bar has a collapsible double jockey wheels, which improves the stability and the convenience of driving it.
You can stop the engine quickly in a crisis to improve operator safety with a jerk button and the emergency stop press bar above the feeding chute .
This is a high-performance wood chipper fit for professionals and leasing companies.
Gasoline/Petrol: Clean, fresh, unleaded gasoline
Oil: 10W-30
15HP engine provide strong power to help the machine maximize the performance.
Durable fly wheel ensures the operation is more stable ,more powerful.
Quick hitch draw bar, agricultural field tires, 360 degree rotating discharge chute.
Max diameter of wood chipper up to 5''
Feature:
Efficient Petrol Engine - The 420cc, 15 HP petrol engine with recoil start delivers the power you need for efficient operation.
Road Towable Hitch - This chipper can easily tow behind an ATV or UTV for convenient movement and it is ready to go wherever the job takes you.
550 Disc Diameter - It can handle larger branches and logs with ease.
Self-Feed System - Facilitates easy feeding of logs and branches into the chipper, maximising efficiency and reducing workload.
Cutting method - Disc
| Model | DGC154 |
| Engine | 15HP, Single cylinder, four stroke, air cooling |
| Net Power | 3600rpm,11kw |
| Max. Chipping Diameter | 120mm |
| Weight | 220kgs |
| External dimensions | 2610×1010×1735mm |
| Type of Fuel | Gasoline |
| Starting method | Electric |
| Wheel Tire | 4.8-8 |
| Cutting method | Disc |
| Cutter wheel RPM | 1600 rpm/min |
| Blade Nos. | 2 × fly knives, 1 fixed knife |
| Drive | Direct Belt Drive /Centrifugal Clutch |
| Chipper | Yes |
| Shredder | No |
| Recommended Oil | 10W-30 oil (5W-30 is recommended for cold weather climate) |
| Feeding system | Self-feeding |
| Hydraulic oil and oil tank capacity | No |
| Package Size | 1080×770×1250mm |
| Net Weight | 218kg |
| Gross Weight | 238kg |
| 20GP Loading Qty. | 15pcs |
| 40GP Loading Qty. | 33pcs |
| 40HQ Loading Qty. | 66pcs |
![]()
