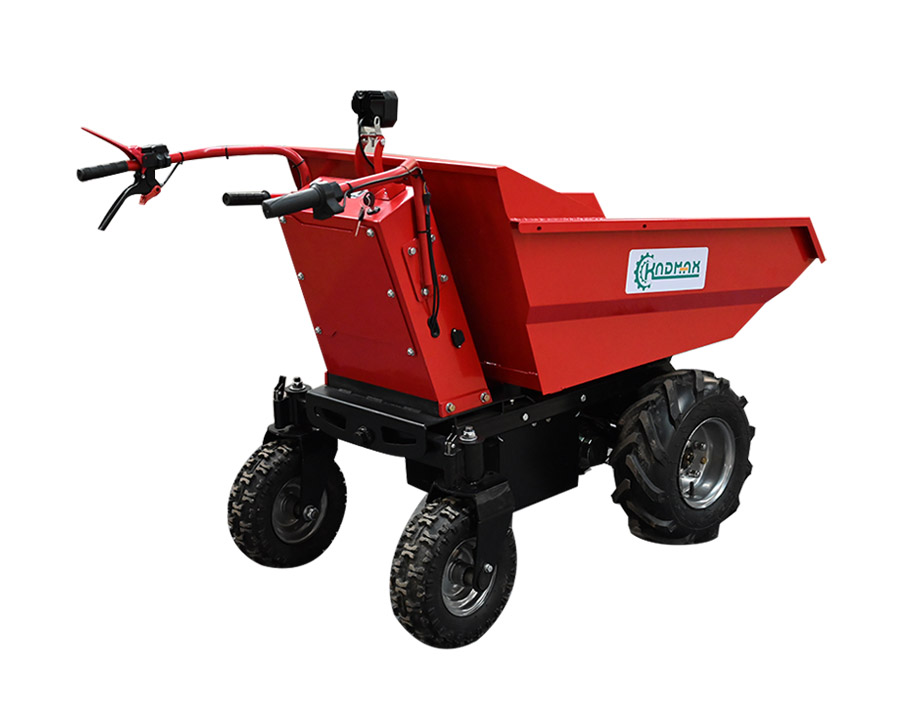

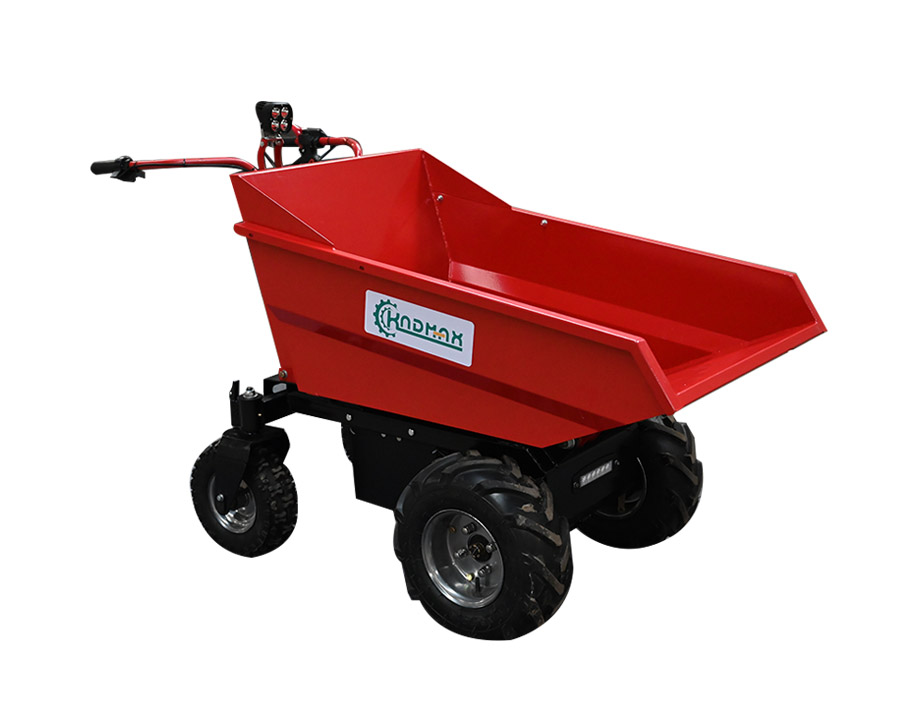

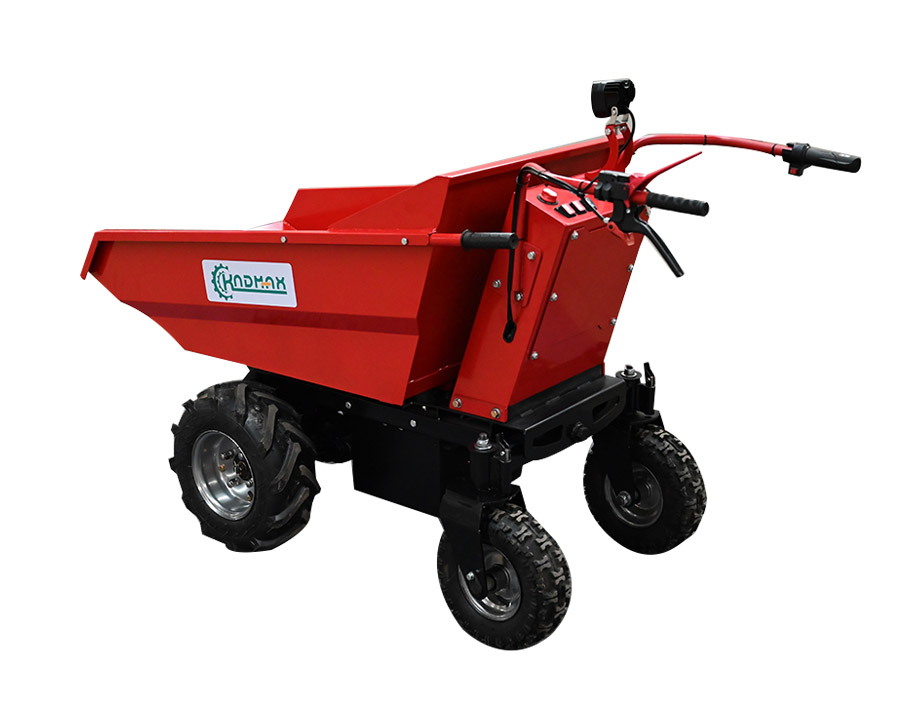

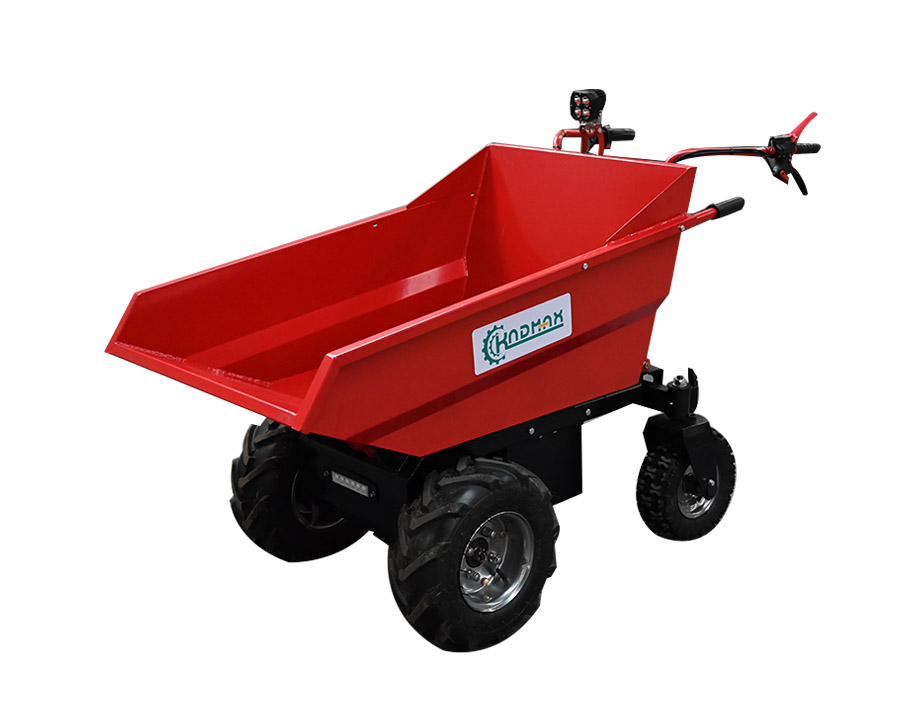

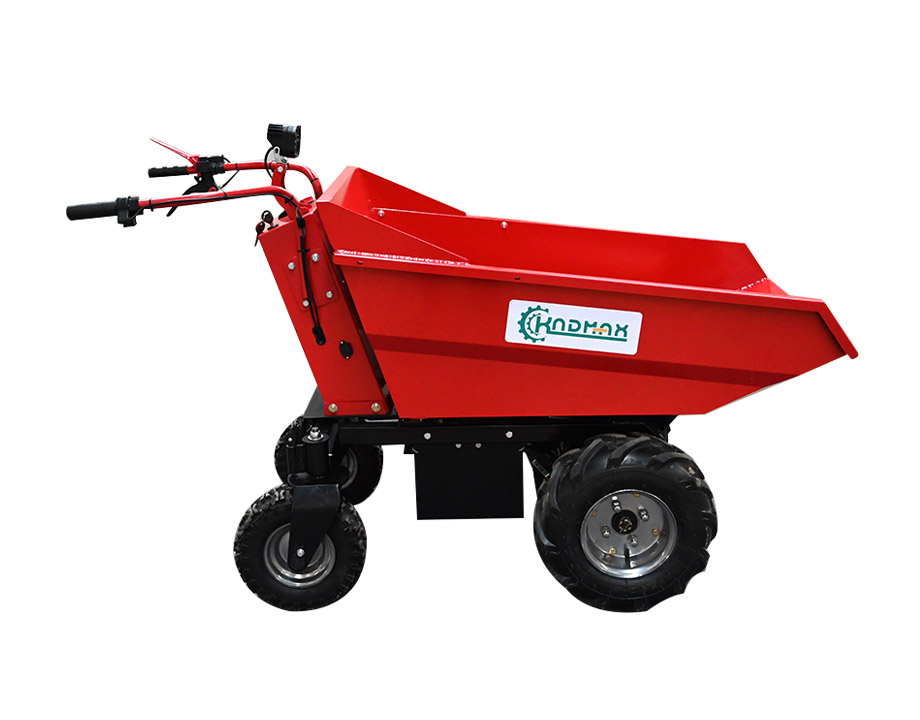

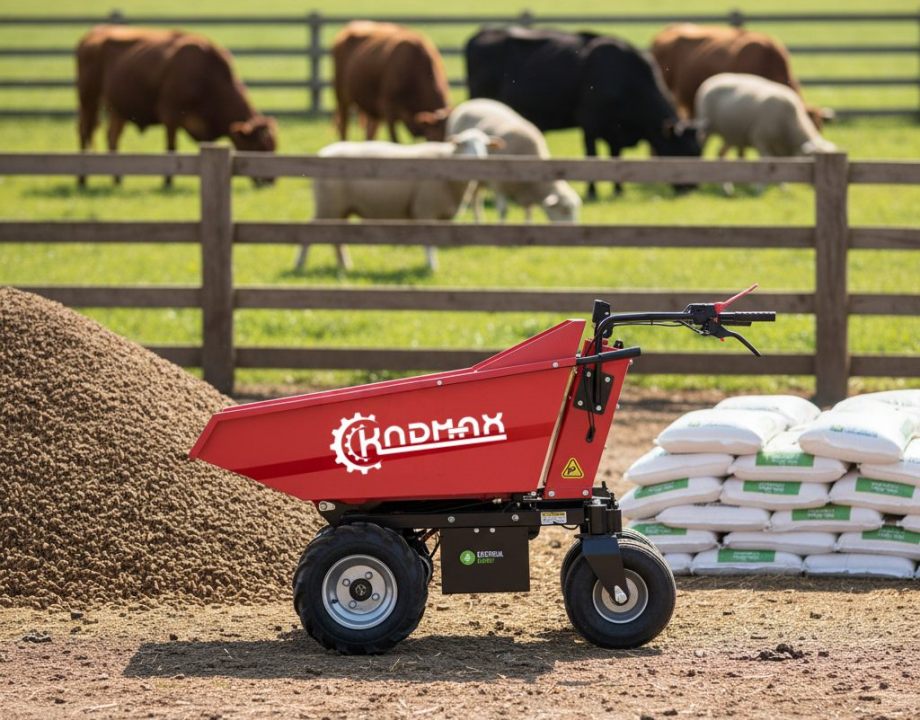

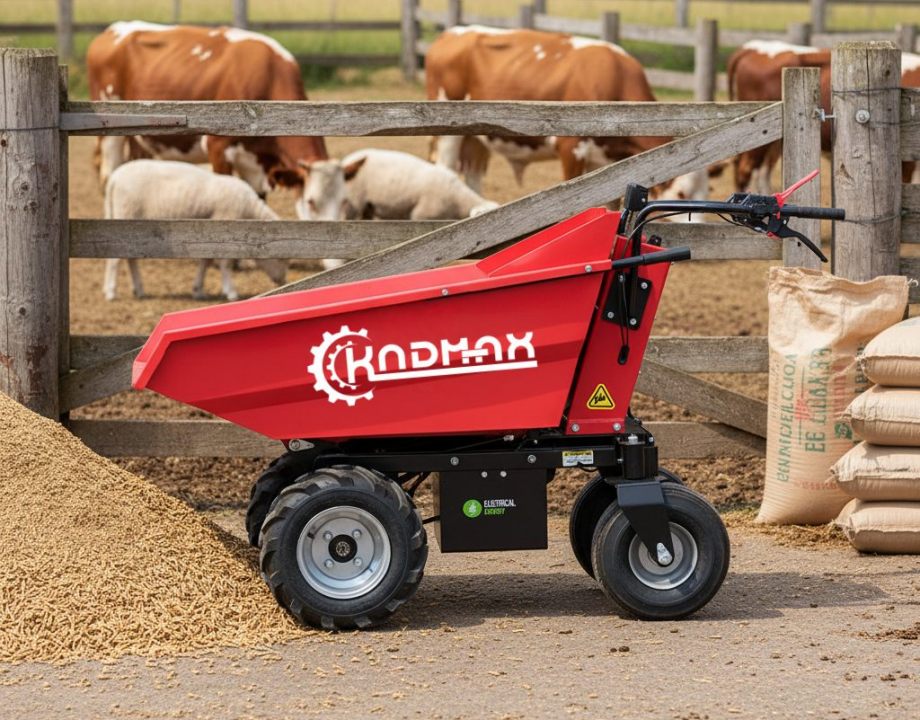

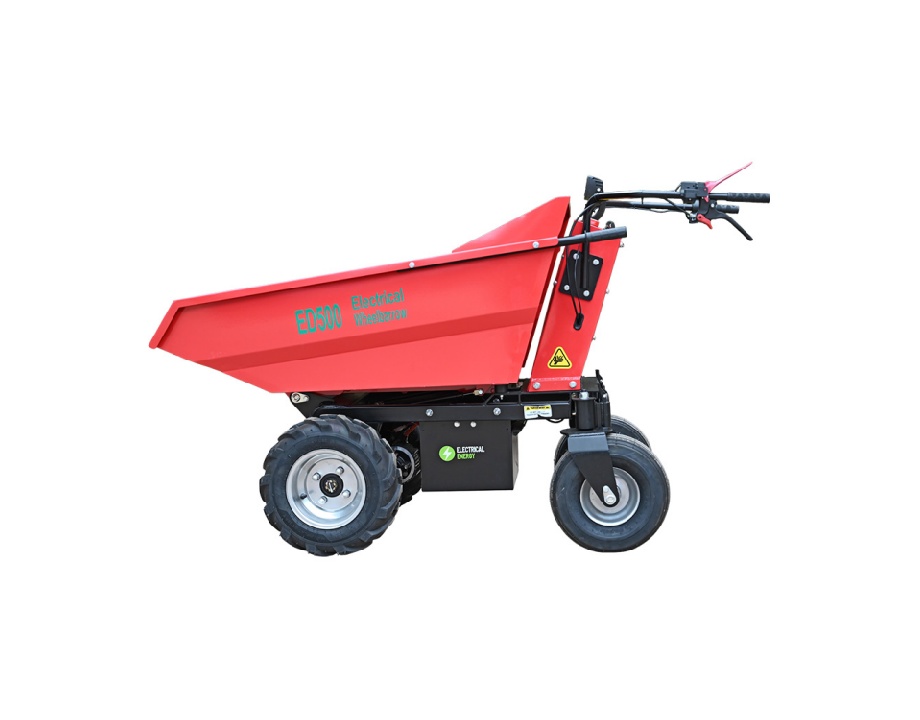

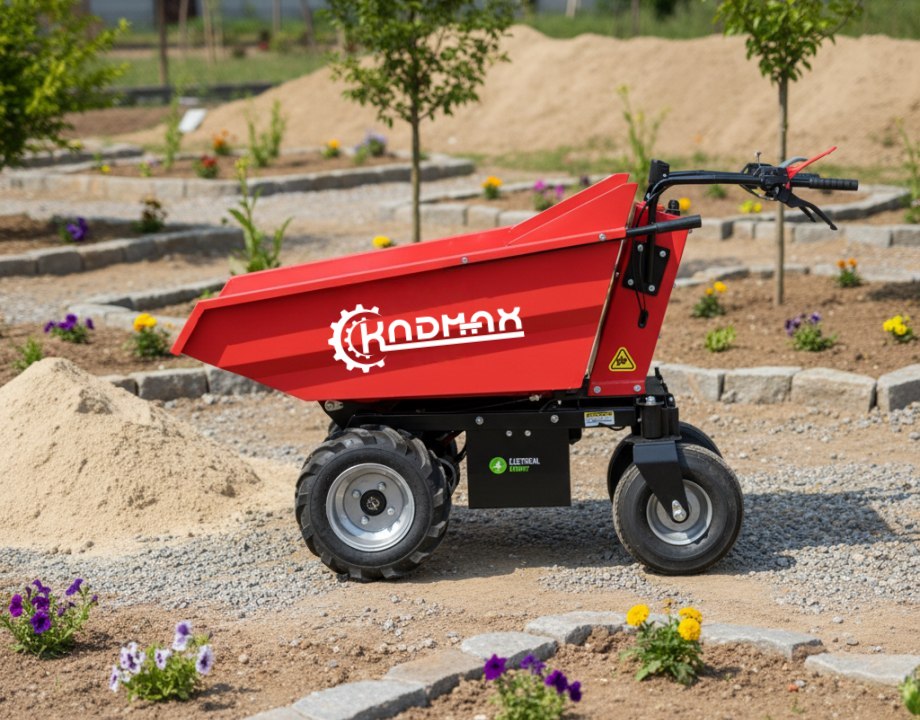

It is a truck designed for carrying bulk materials, usually on construction sites. It carries materials efficiently, ensuring intensive work cycles. The machine occupies a small area and is easy to drag. The operation is simple, and the driving smoothness is good. Electric design allows you to complete the operation work silently and efficiently.

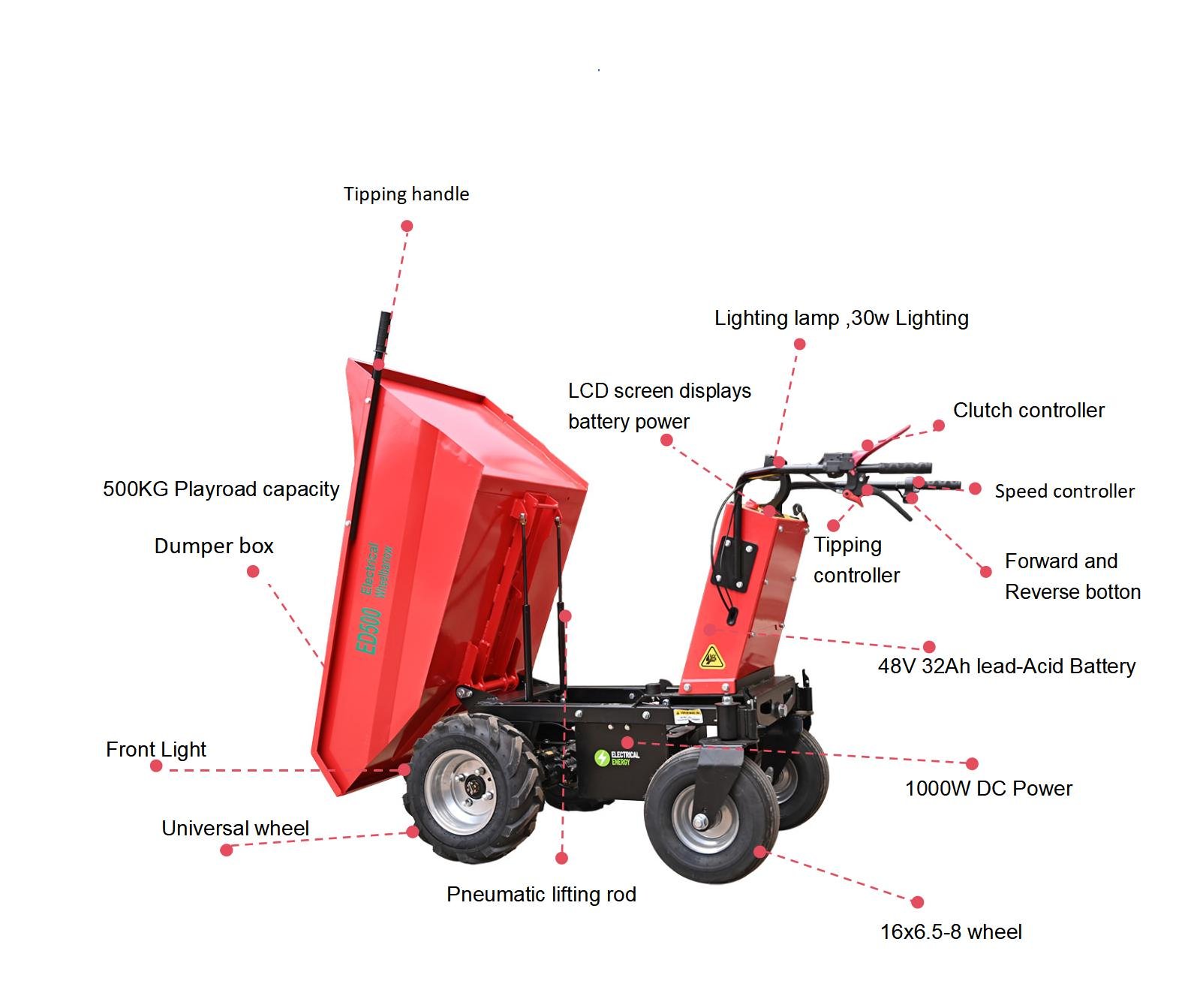

| Model | ED500 |
| Battery | 48V 32Ah lead acid battery |
| Motor | 1000W brushless DC motor |
| Brake System | Electromagnetic brake |
| Monitor | Electric quantity Voltage |
| Charging curent | 4.5A |
| Lighting Lamp | 2 (pcs) 30W |
| Working Time | 8-10 hours |
| Charging Time | 6-7 hours |
| Speed | Top Speed：0-5.1km/h |
| Middle Speed：0-4.4km/h | |
| Low Speed：0-2km/h | |
| Reverse speed：0-2km/h | |
| Load Capacity | 500KG |

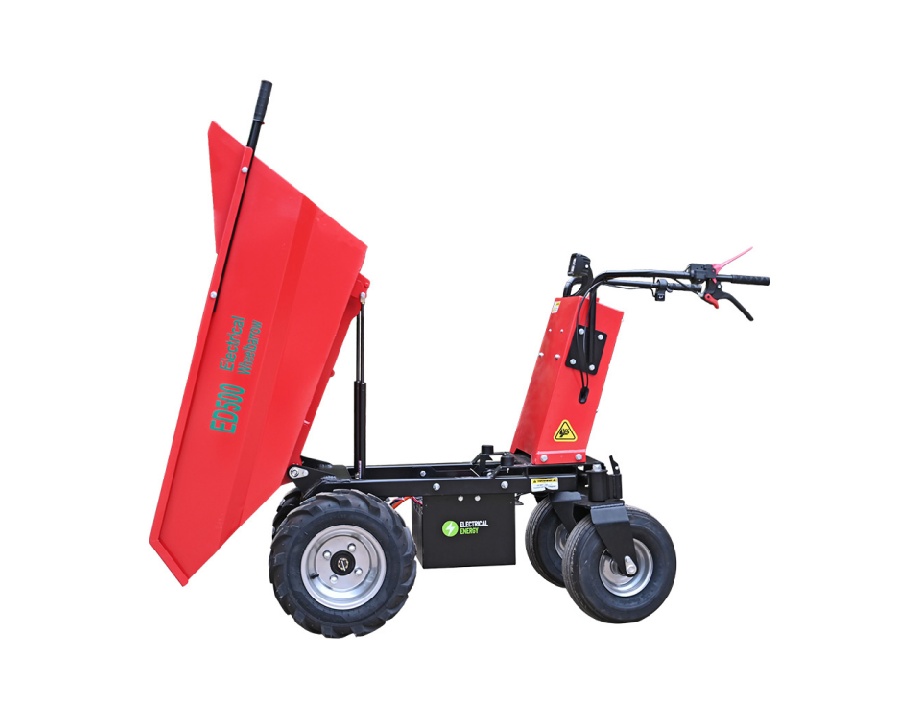

| Tipping method | Manual |
| Wheel | Front Wheel 16x6.5-8 Rear wheel 13×5.00-6 |

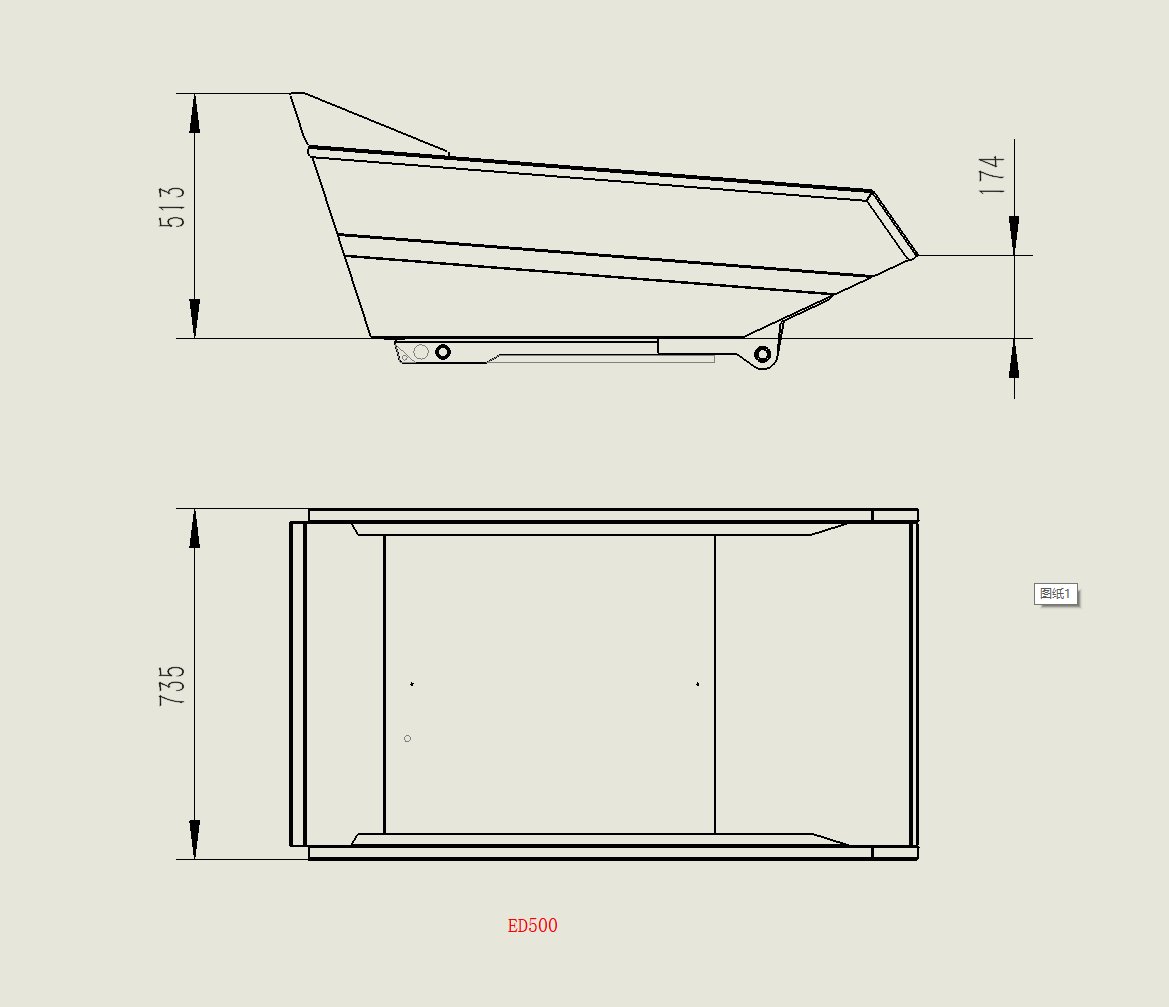

| Bucket Volume | 238L |
| Bucket type | Welded |
| Net Weight | 185KG |
| Gross Weight | 205KG |
| Overall Size | 1750*770*1080mm |
| Package Size | 1330×770×865mm |
| 40HQ Loading Qty. | 81pcs |
Q & A
1.Q: What is the internal volume in liters?
A: The ED500 and ED500H have a capacity of 235 liters
2. Q:Are there dump trucks with four-wheel drive or only 6.5HP gasoline mini dumper? In particular, electronic mini dumper should be equipped with four-wheel drive.
A: The only four-wheel drive mini dumper is the MD250, which is powered by a 6.5HP gasoline engine. The ED500 and ED500H mini dumper are electric two-front-wheel drive, and the HCD500 and HCD500FL are fully hydraulic crawler mini dumper. Electric four-wheel drive mini dumper are under development.
3. Q: What slope can your dump truck climb?
A: All dump trucks have a climbing angle of 20°
4. Q: Please describe the braking system
A: The brakes of the ED500 and ED500H dump trucks are achieved through electromagnetic brake discs.
5. Q: Do the 9HP gasoline dump truck and the electronic dump truck include remote controls?
A: Neither has a remote control.
If you have any questions, please leave a message, we will reply as soon as possible.
