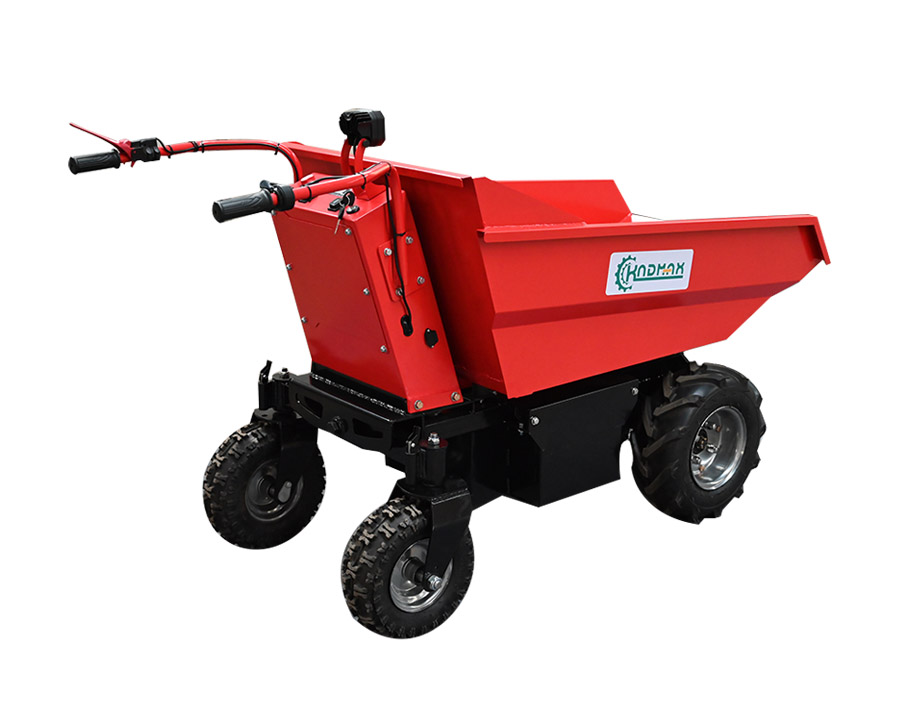

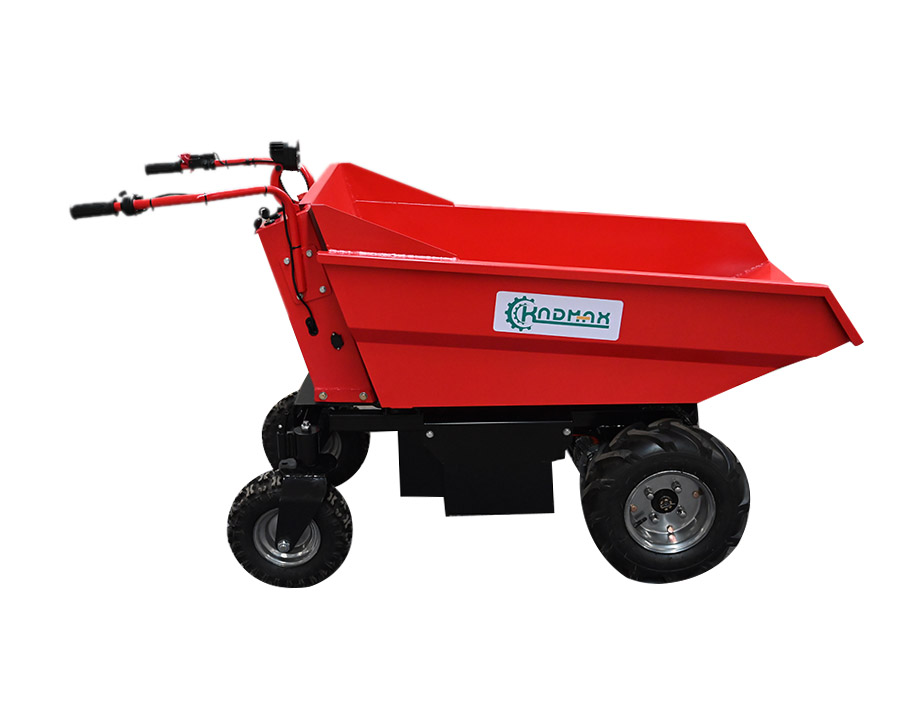

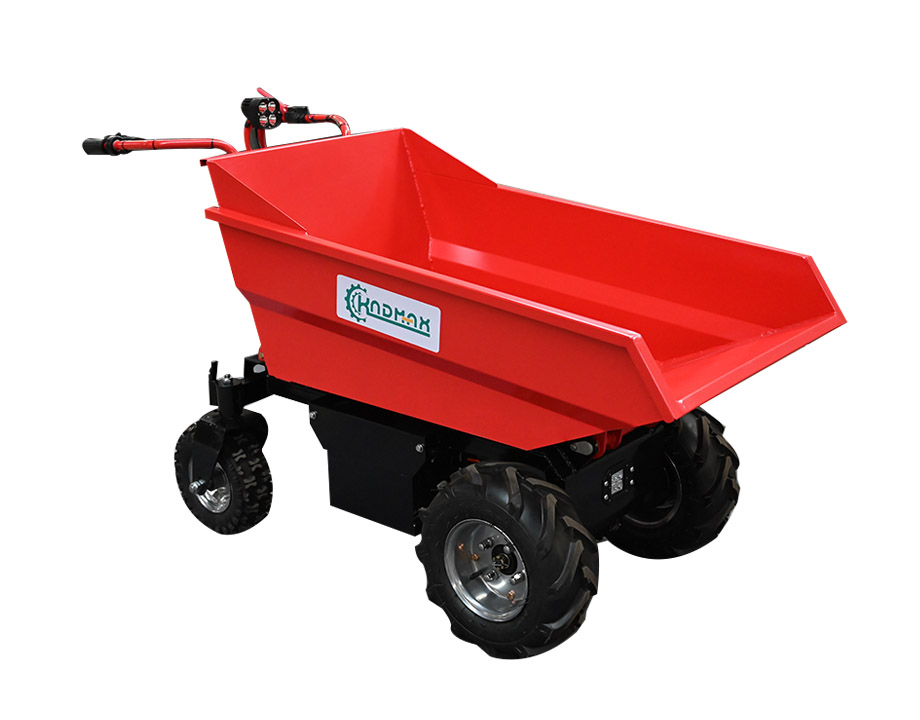

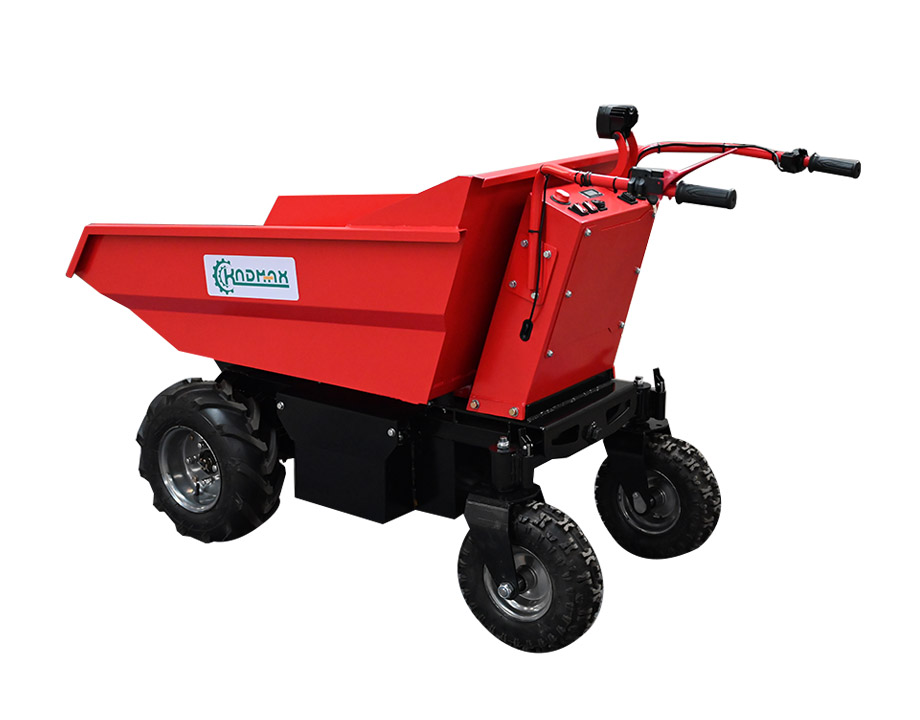

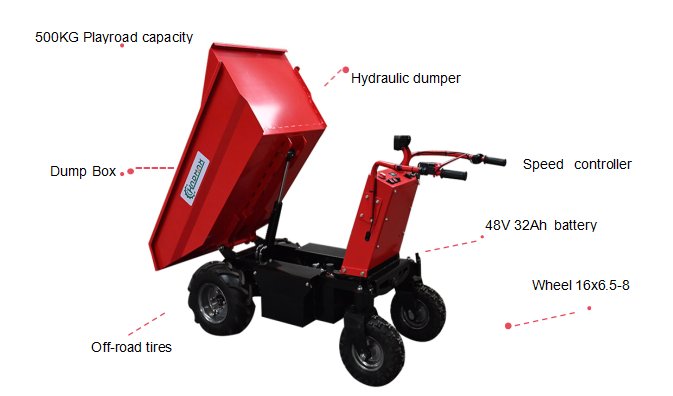

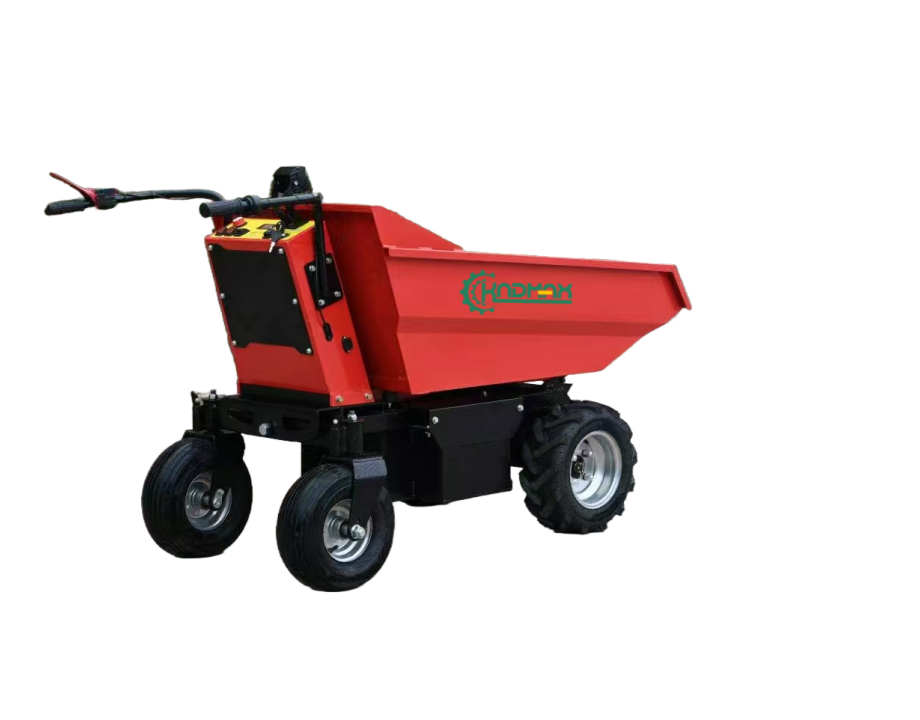

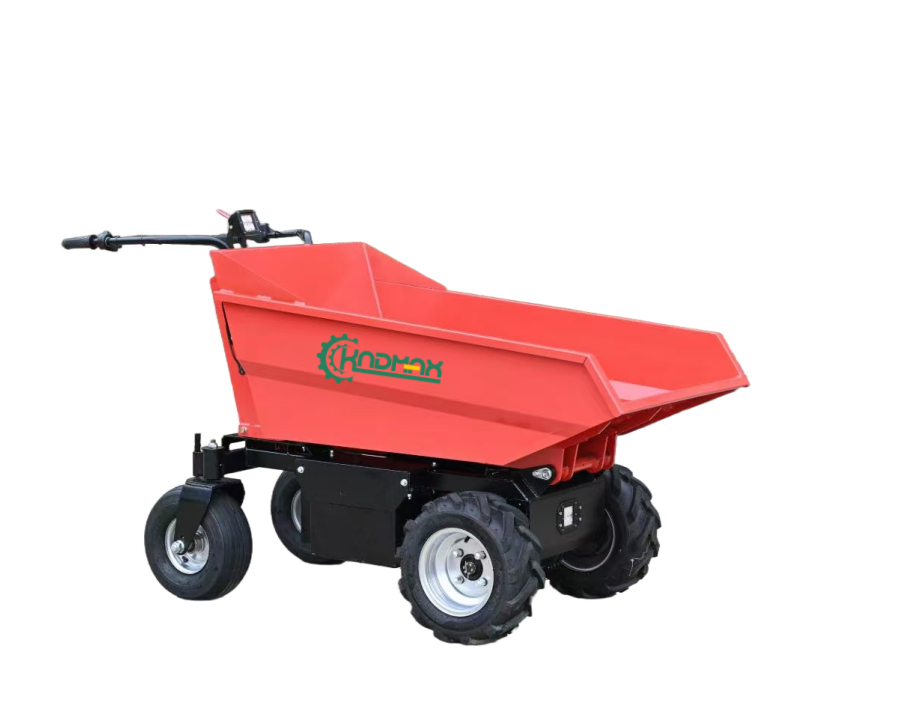

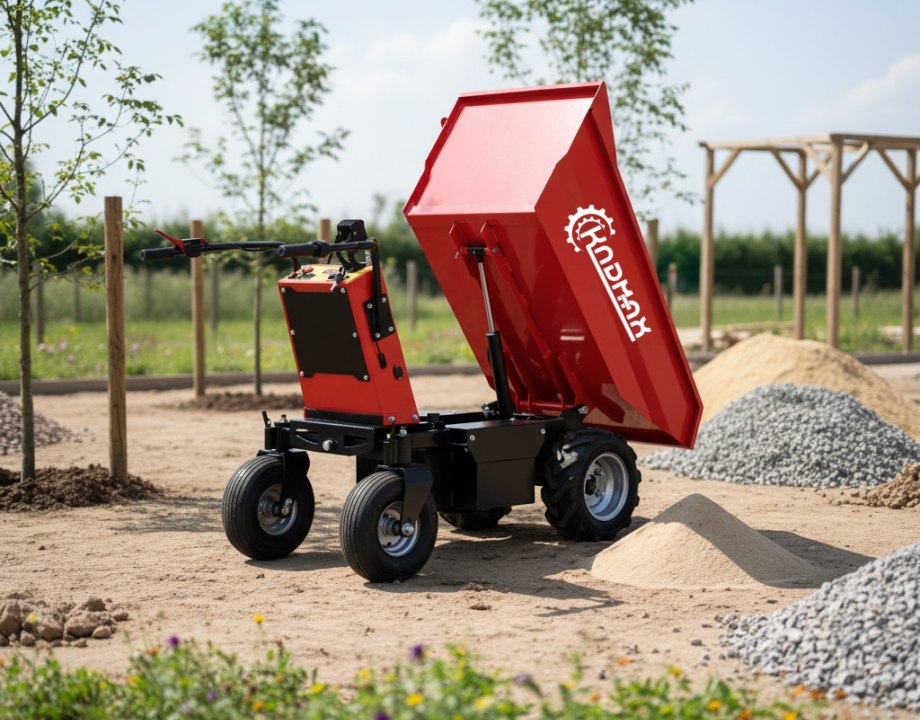

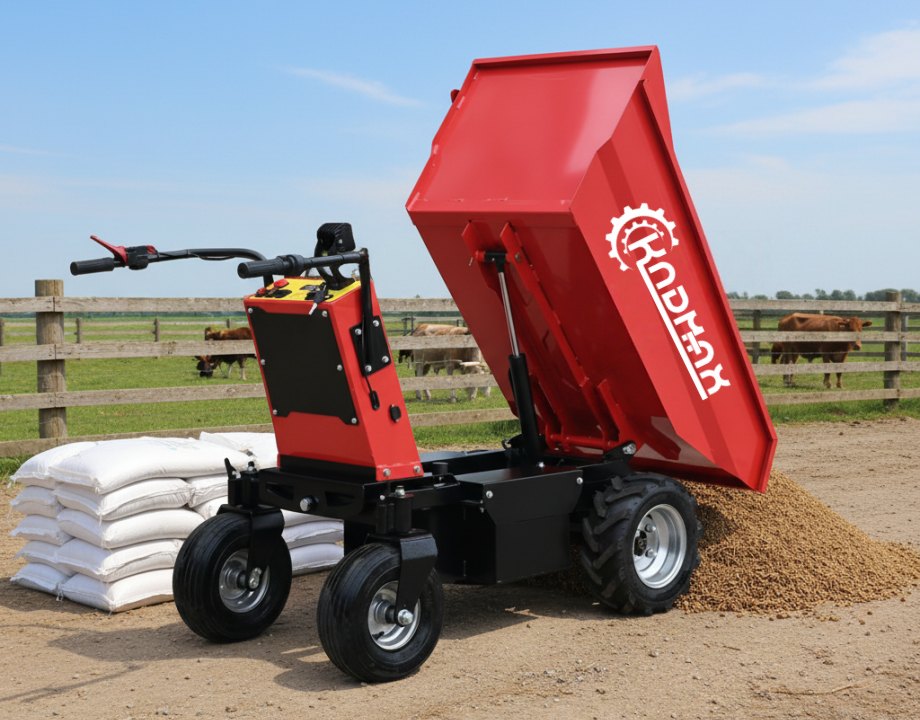

It is a truck designed for carrying bulk materials, usually on construction sites. It carries materials efficiently, ensuring intensive work cycles. The machine occupies a small area and is easy to drag. The operation is simple, and the driving smoothness is good. Electric design allows you to complete the operation work silently and efficiently. Electric mini dump truck ED500H, equipped with 48v 1000w battery system, this wheelbarrow can provide maximum versatility and light touch operation. The ED500H Mini Dump Truck features an 1100lbs load capacity and hydraulic bucket for use indoors or outdoors, and its compact size will allow passage through doorways/driveways as small as 29in, providing excellent load capacity and productivity. This mini dump truck has an electromagnetic braking system, which can significantly reduce the wear and tear of the system as there is no need for physical contact to create friction between components. It requires almost no maintenance costs. It has forward and reverse transmission and can be rotated 360 degrees. Convenient to use in narrow areas.

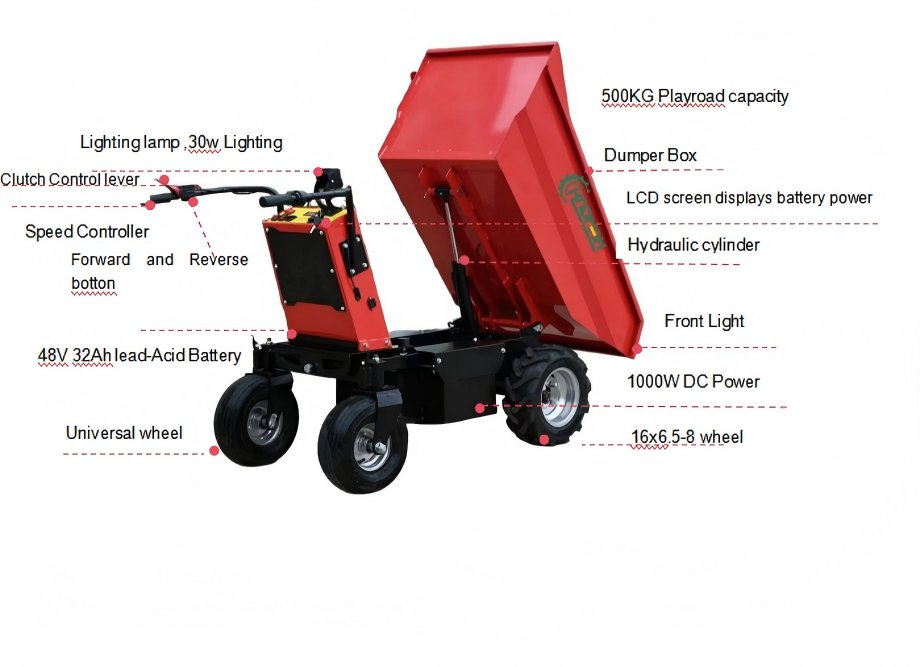

Model | ED500H |
Battery | 48V 32Ah lead acid battery |
Motor | 1000W brushless DC motor |
Brake System | Electromagnetic brake |
Monitor | Electric quantity Voltage |
Charging curent | 4.5A |
Lighting Lamp | 2 (pcs) 30W |
Working Time | 8-10 hours |
Charging Time | 6-7 hours |
Speed | Top Speed:0-5.1km/h |
Middle Speed:0-4.4km/h | |
Low Speed:0-2km/h | |
Reverse speed:0-2km/h | |
Load Capacity | 500KG |

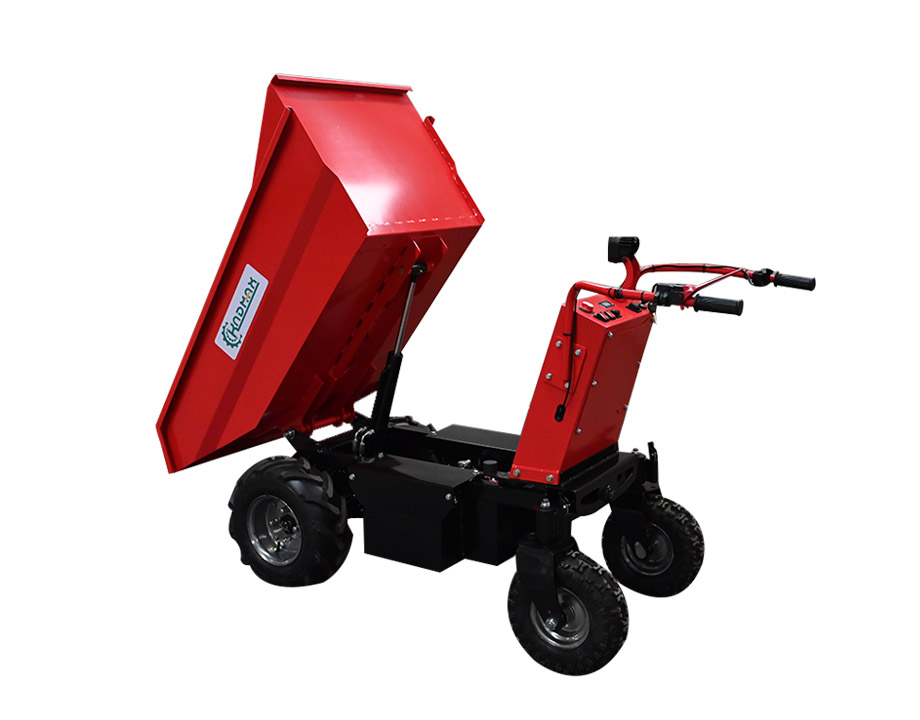

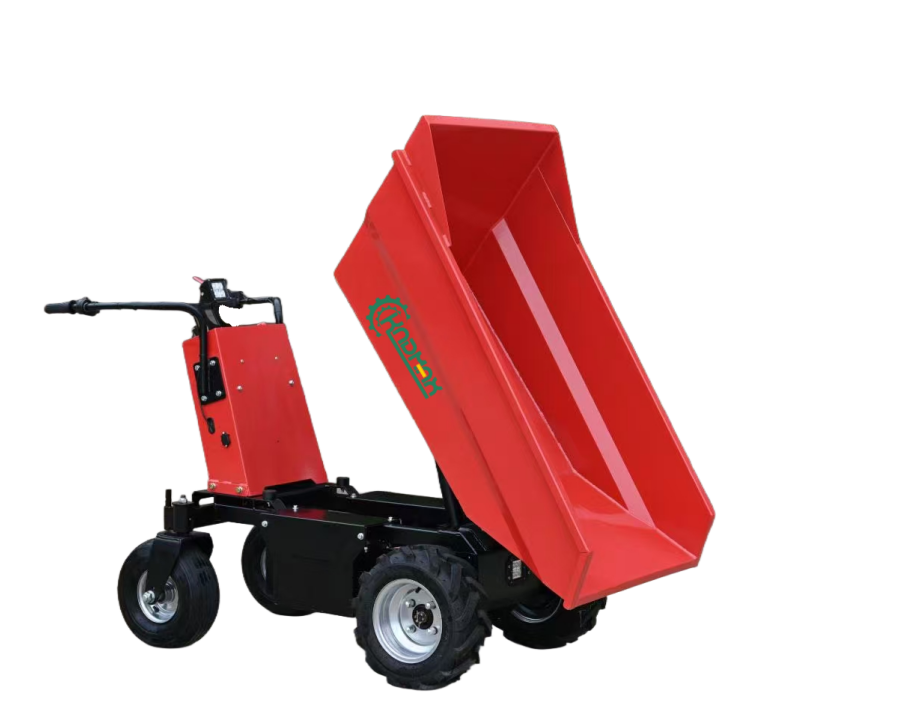

Tipping method | Hydraulic |
Wheel | Front Wheel 16x6.5-8 Rear wheel 13×5.00-6 |

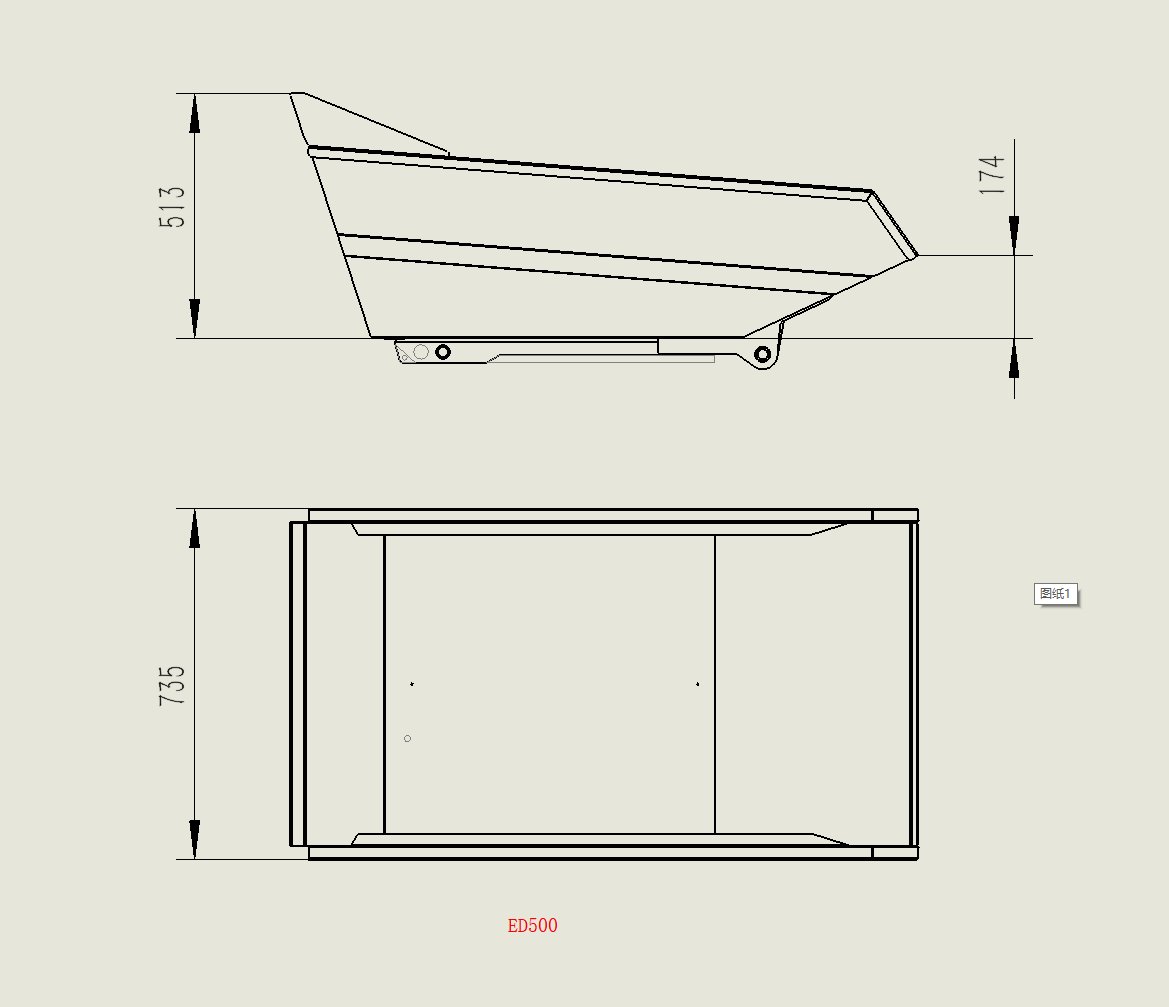

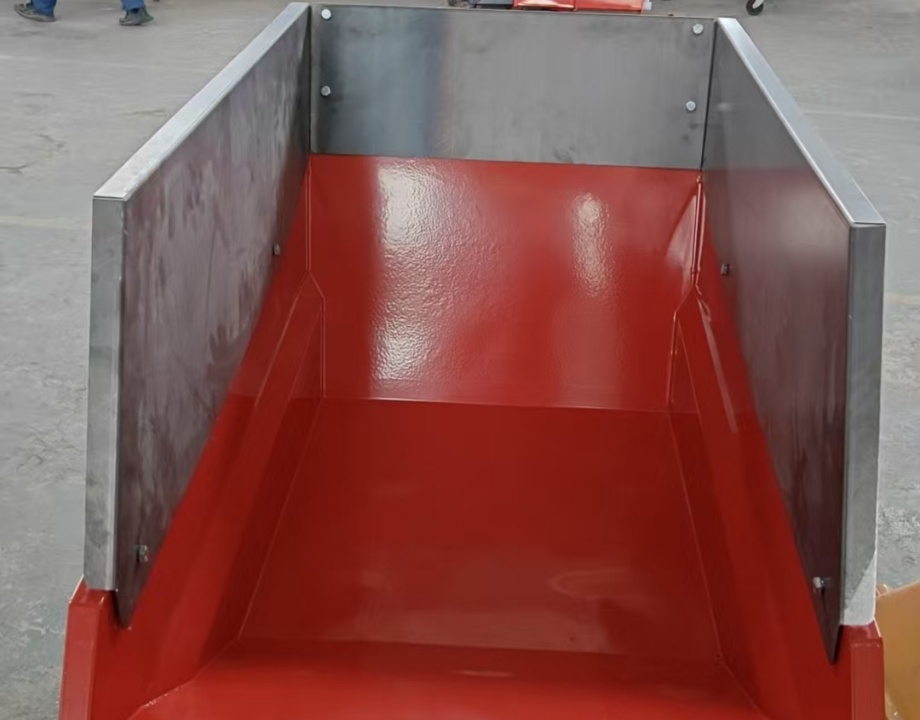

Bucket Volume | 238L |

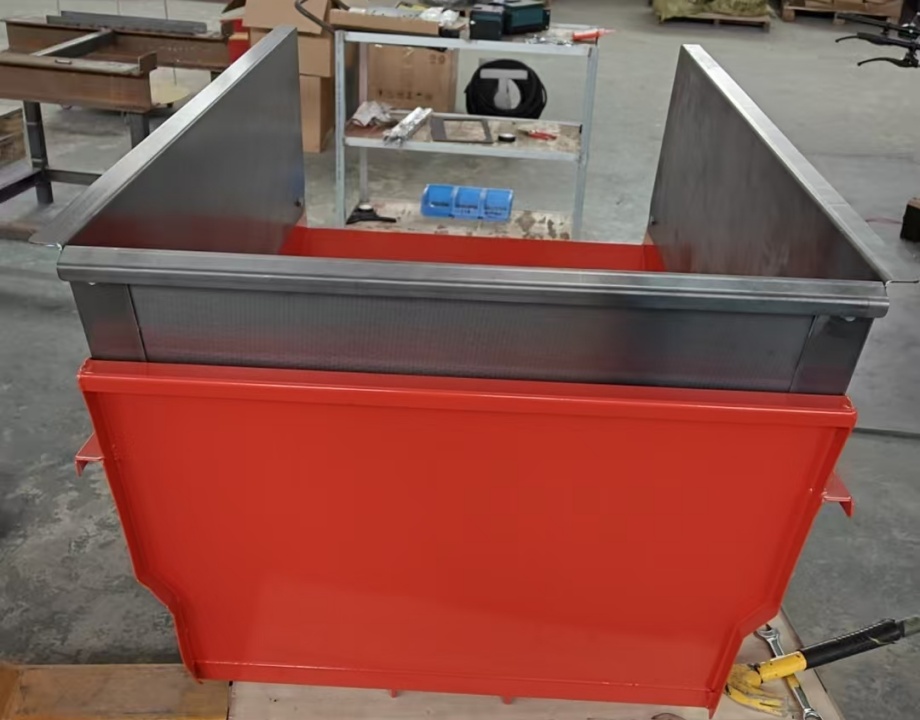

Bucket type | Welded |
Net Weight | 228KG |
Gross Weight | 248KG |
Overall Size | 1850*770*1080mm |
Package Size | 1430×770×865mm |

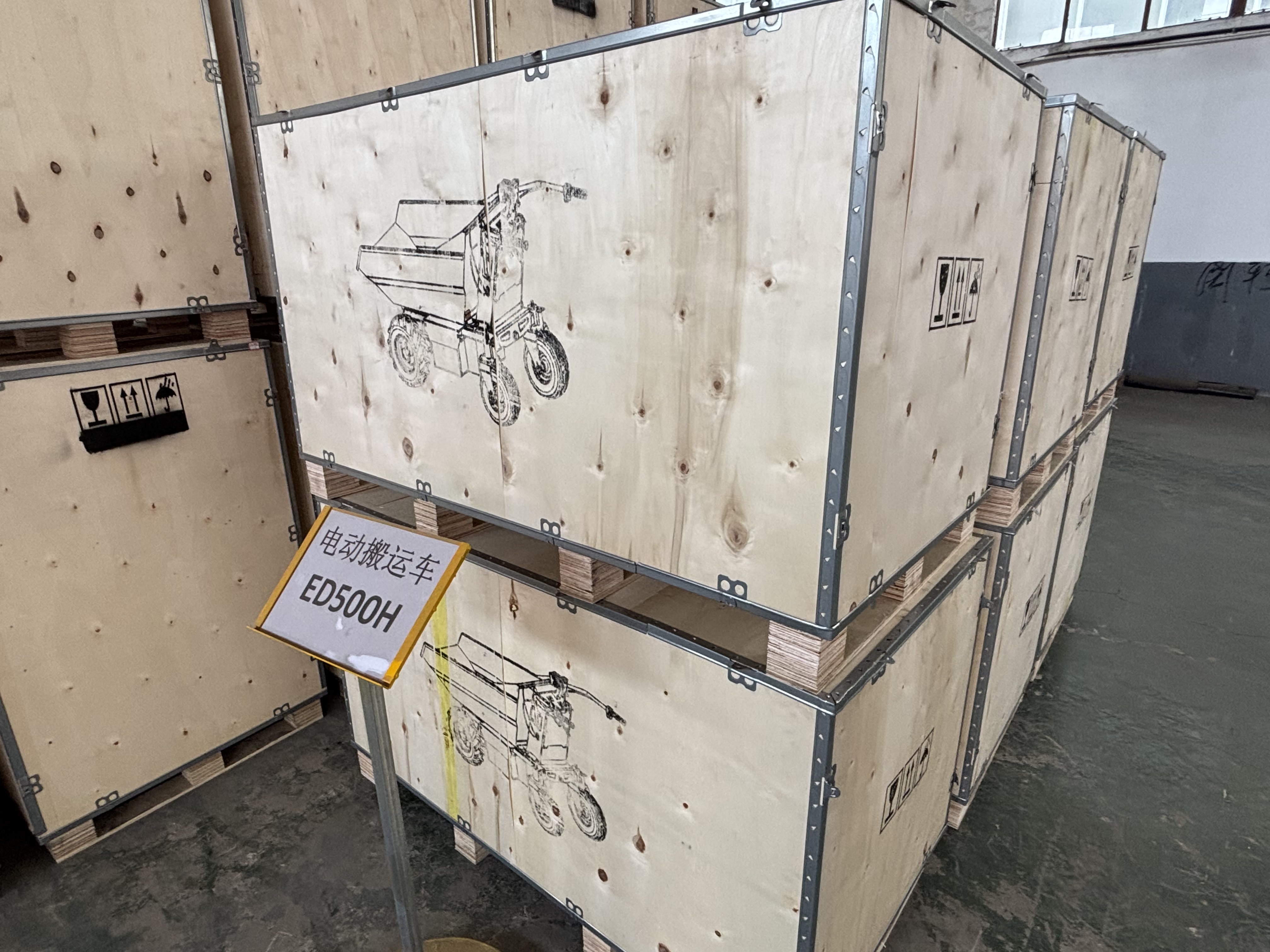

40HQ Loading Qty. | 72pcs |
Q & A
1.Q: What is the internal volume in liters?
A: The ED500 and ED500H have a capacity of 235 liters.
2. Q:Are there dump trucks with four-wheel drive or only 6.5HP gasoline mini dumper? In particular, electronic mini dumper should be equipped with four-wheel drive.
A: The only four-wheel drive mini dumper is the MD250, which is powered by a 6.5HP gasoline engine. The ED500 and ED500H mini dumper are electric two-front-wheel drive, and the HCD500 and HCD500FL are fully hydraulic crawler mini dumper. Electric four-wheel drive mini dumper are under development.
3. Q: What slope can your dump truck climb?
A: All dump trucks have a climbing angle of 20°
4. Q: Please describe the braking system
A: The brakes of the ED500 and ED500H dump trucks are achieved through electromagnetic brake discs.
5. Q: Do the 9HP gasoline dump truck and the electronic dump truck include remote controls?
A: Neither has a remote control.
