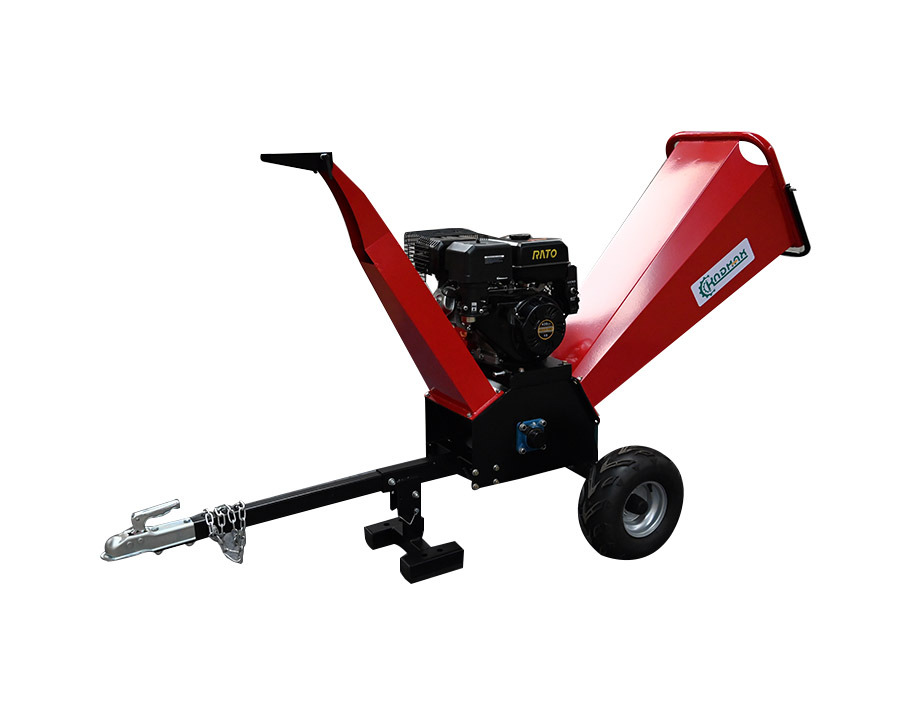

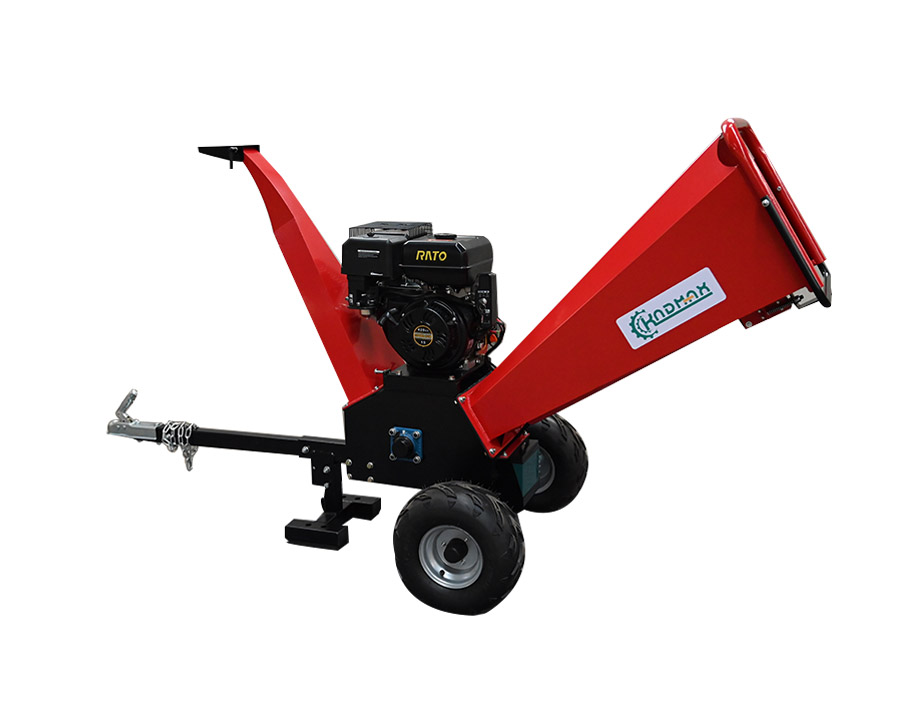

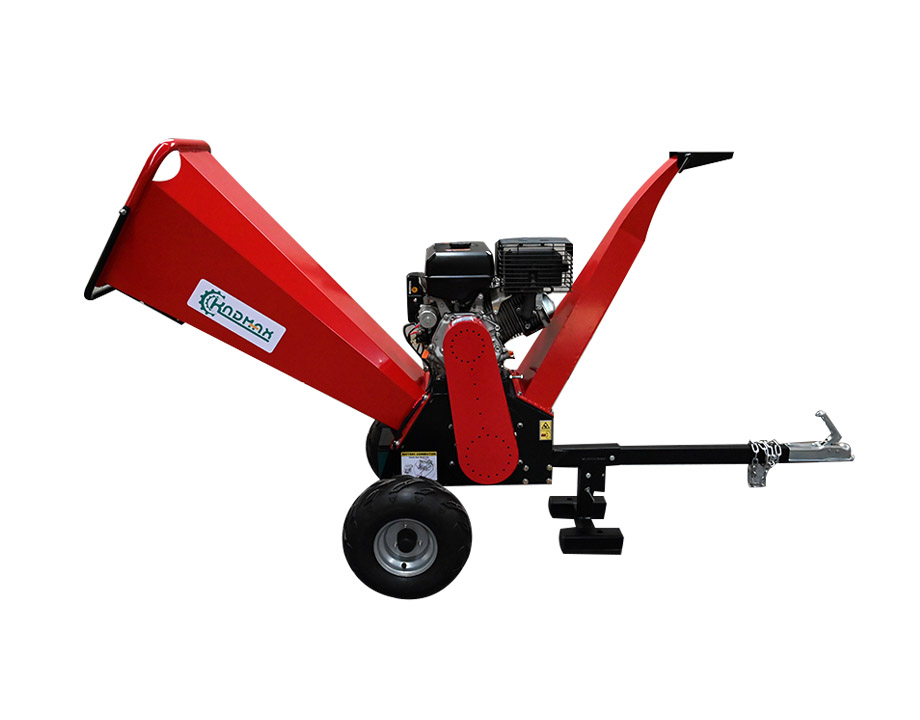

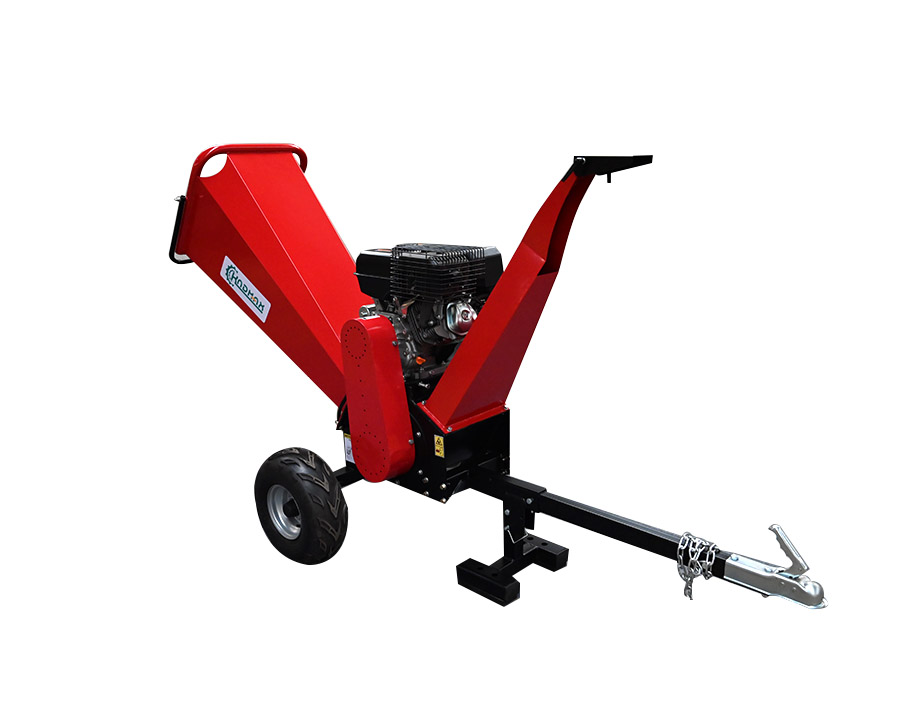

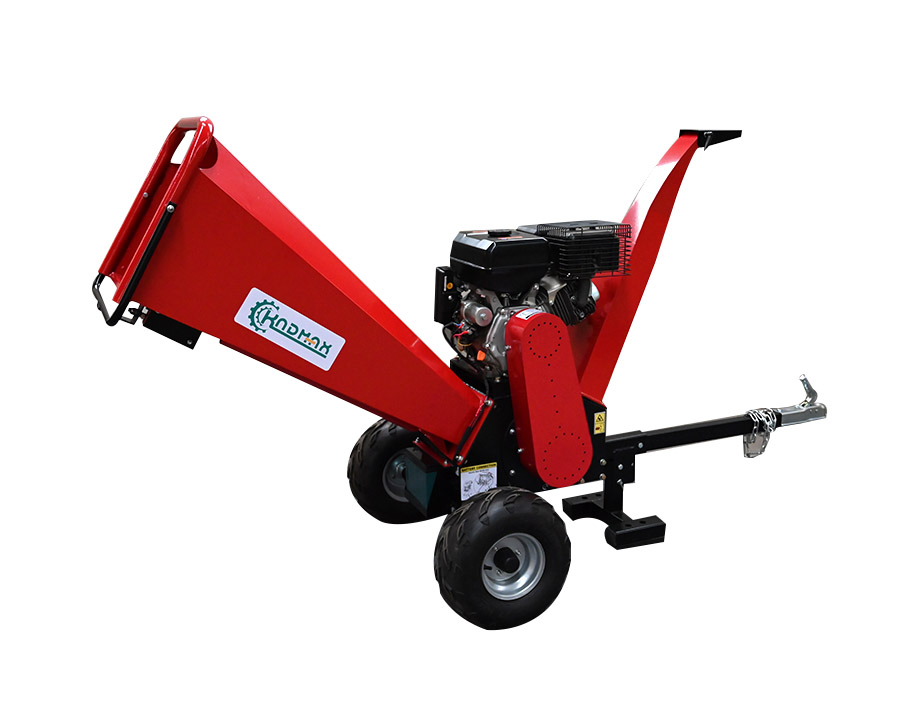

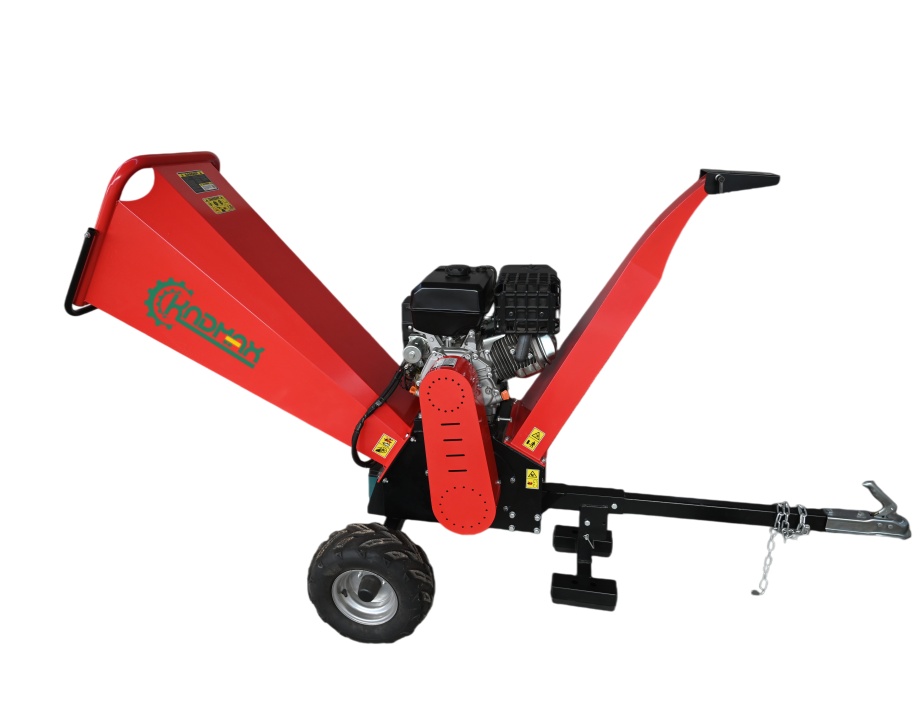

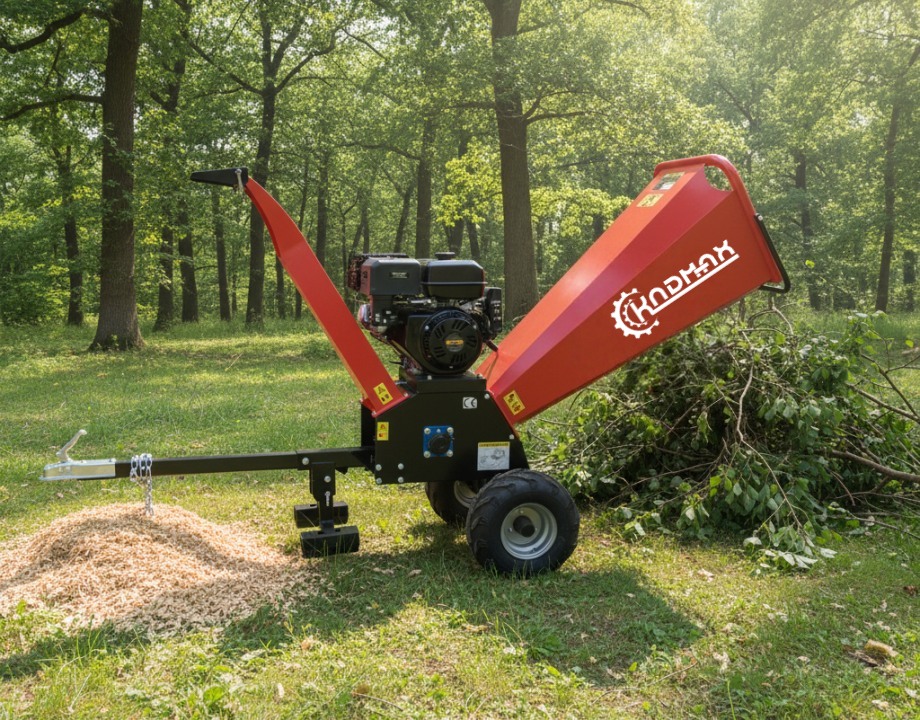

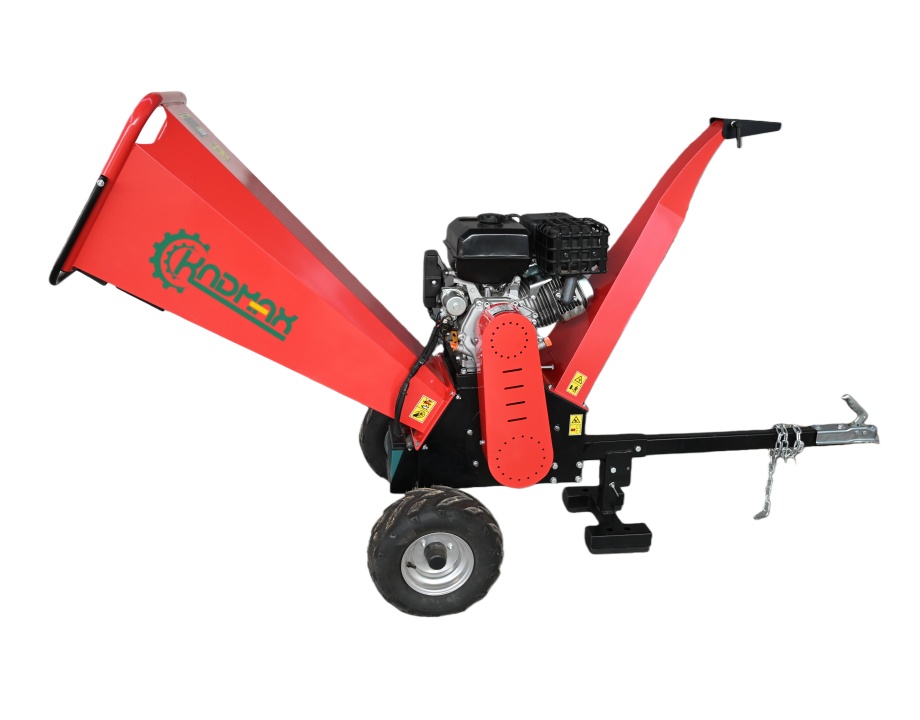

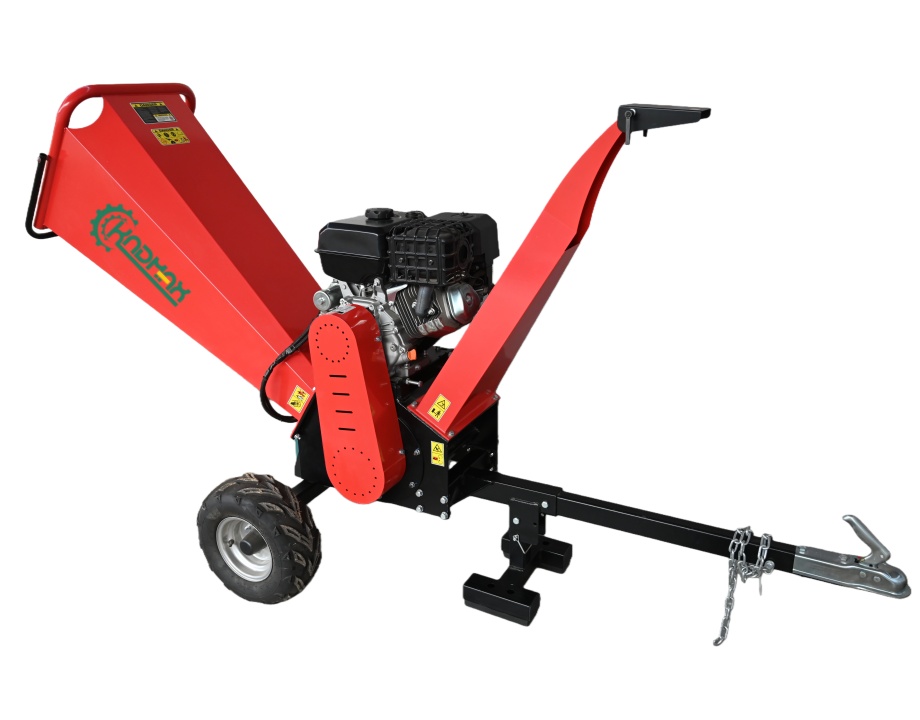

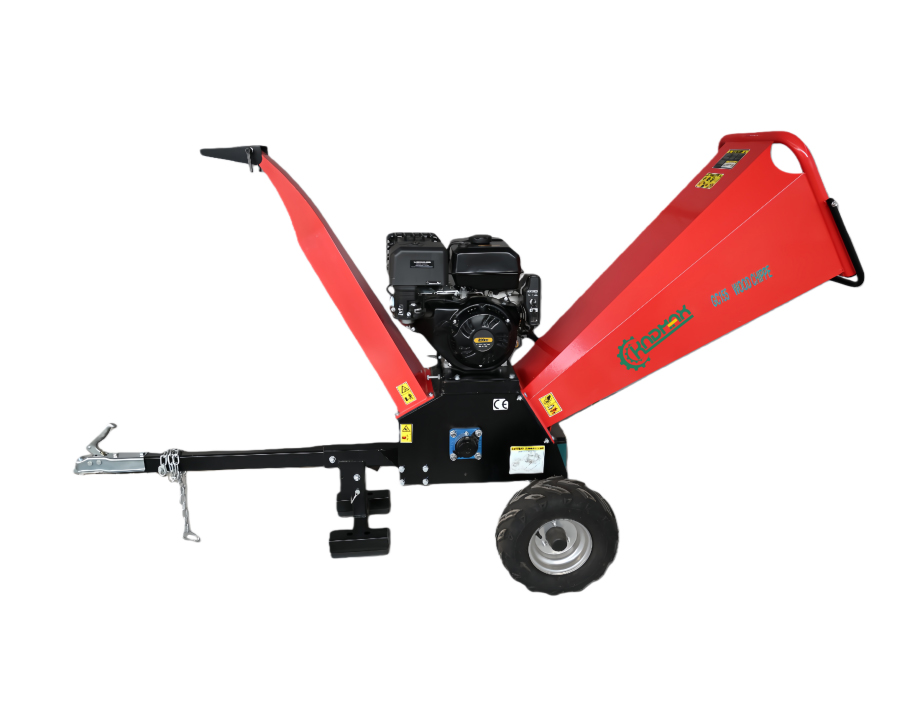

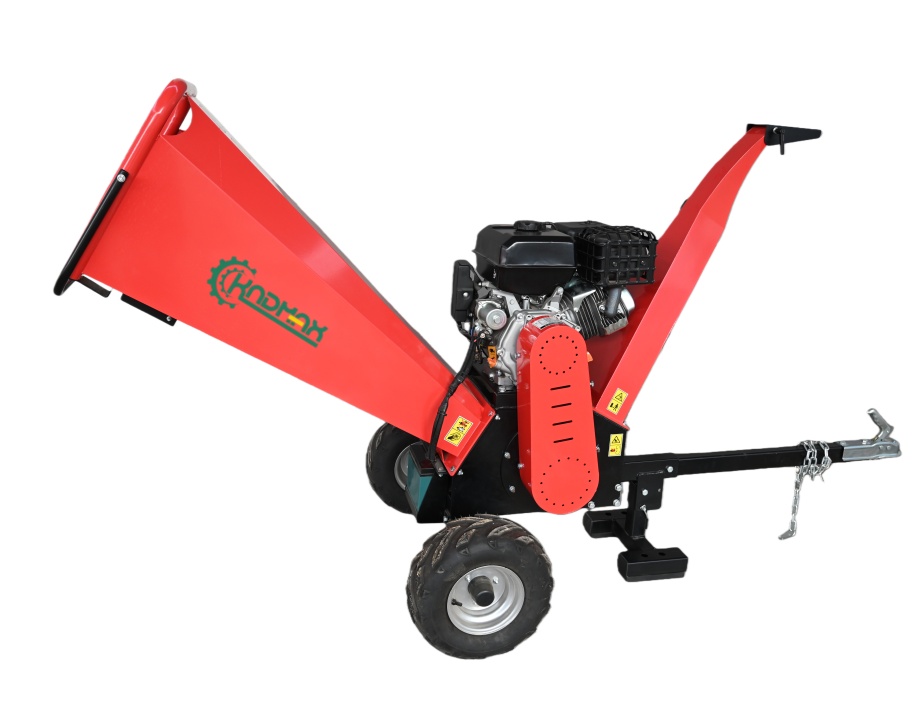

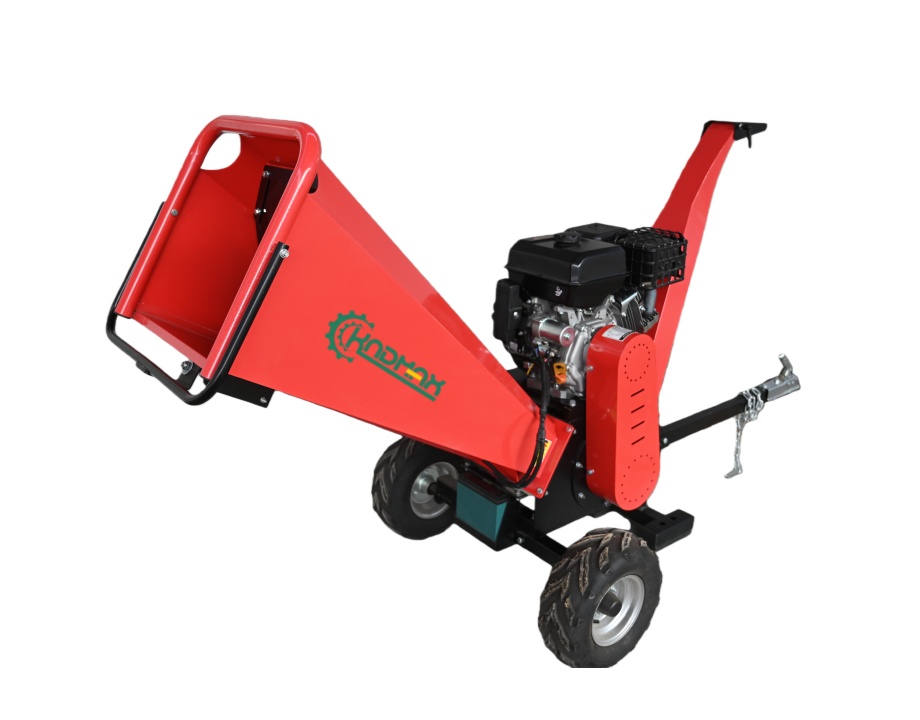

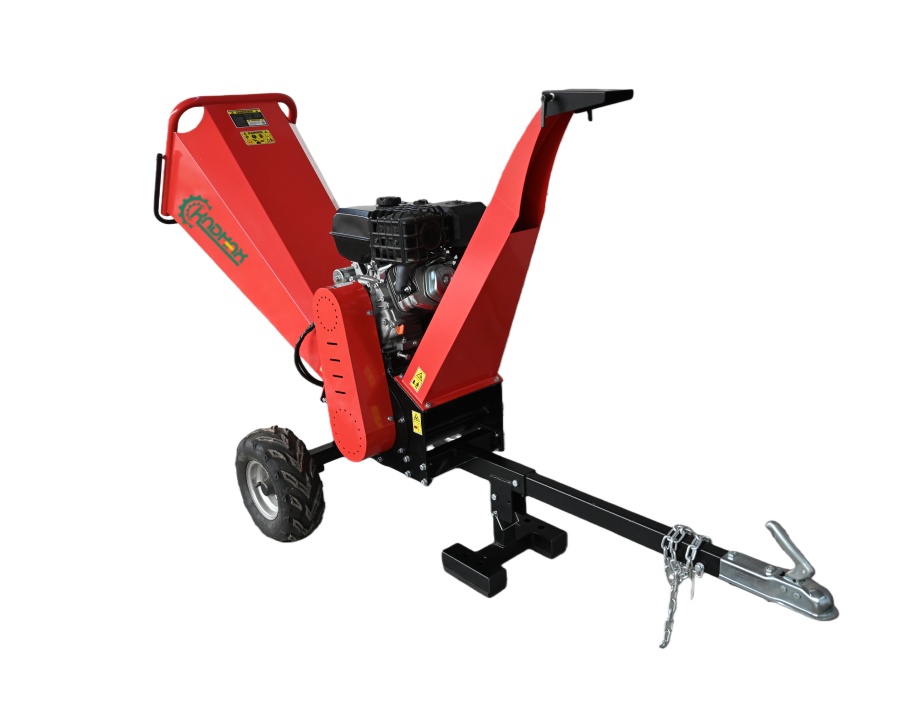

The KNDMAX GC155 wood chipper is a powerful and professional little chipper which is great for keen gardeners or to add to a hire fleet. This wood chipper will break down all your garden waste up to an impressive 12cm. This machine is made with a handy portable chassis and large wheels making it easy to maneuver over rough ground. The twin blade rotary is driven by a 15hp petrol engine. The blades catch onto the materials and pull them through the drum which produce nice square chip that will quickly rot down. The swivel head allows you to direct the waste where you need it. The large intake allows kinked branches and, in some cases, whole plants to be fed in with little or no preparation. Put resources into the KNDMAX 5 INCH GC155 Branch shredder and experience the ideal mix of force, unwavering quality, and exemplary plan. Whether you are an expert gardener or a property holder enthusiastically for keeping an immaculate outside space, this branch shredder is a definitive instrument to easily handle your wood chipping needs.
Overview:
Wood chipper GC155 is powered by 15hp gasoline engine, which is designed with safety in mind and is fitted with an emergency break system. Maximum chipping capacity is 5 inches.
The modern design, tubless wheels and well-balanced construction allow the chipper to be manoeuvred easily.
Double-edge cut reversible blades greatly increase the service life.
The machine is equipped with a trailer bar[2" Coupler hitch] for easy towing.
The gravity tilt chute effortlessly feeds lawn clippings, branches, shrubs, compost and any other debris to be disposed of. The durable cutting blade stays sharp for a long time, but can also be flipped over when you need to replace it.
Gasoline/Petrol: Clean, fresh, unleaded gasoline
Oil: 10W-30

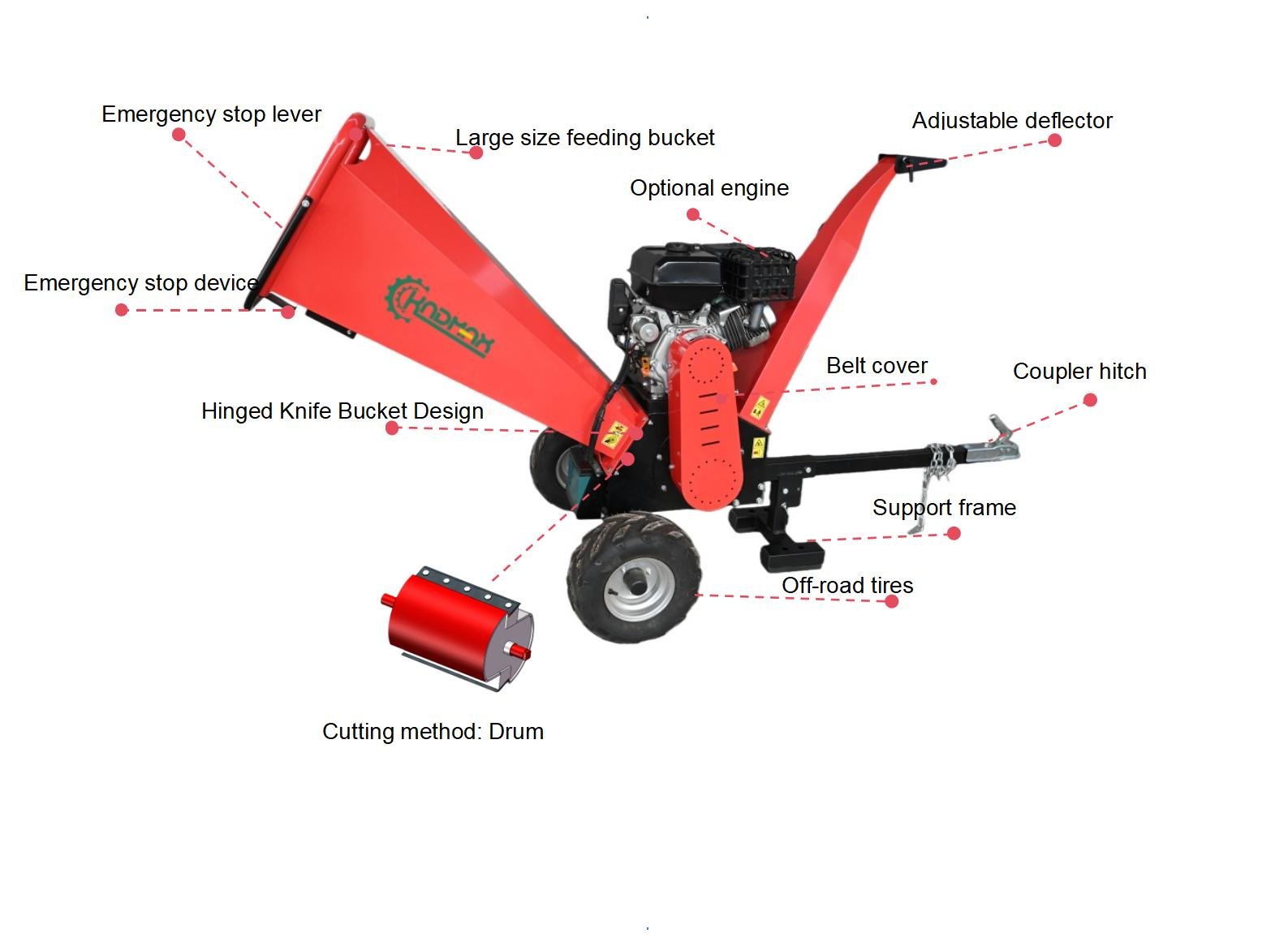

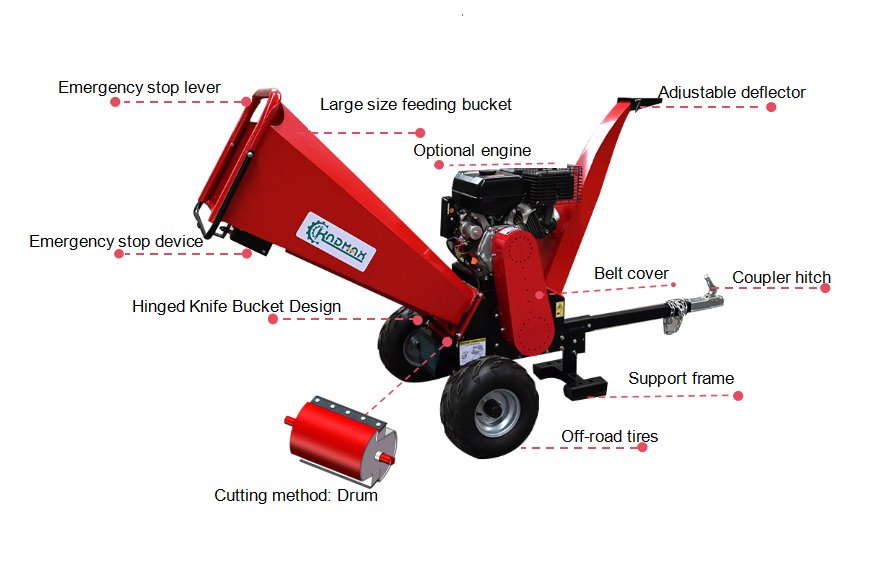

Feature:
Efficient Petrol Engine - The 420cc, 15 HP petrol engine with recoil start delivers the power you need for efficient operation.
Twin Blade Rotary - The blades catch onto the materials and pull them through the drum, producing a nice square chip that will quickly rot down. The swivel head allows you to direct the waste where you need it.
Towable Design - With 16-inch large tires. This chipper can easily tow behind an ATV or UTV for convenient movement.
Smooth Operation - The double V-belt drive ensures smooth operation of the chipper.
| Model | GC155 |
| Engine | 15HP, Single cylinder, four stroke, air cooling |
| Net Power | 3600rpm,11kw |
| Max. Chipping Diameter | 120mm |
| Weight | 194kgs |
| External dimensions | 2600×950×1390mm |
| Type of Fuel | Gasoline |
| Starting method | Electric |
| Wheel Tire | 16×8-7 |
| Cutting method | Drum |
| Cutter wheel RPM | 2160 rpm/min |
| Blade Nos. | 2 × fly knives, 1 fixed knife |
| Drive | Direct Belt Drive /Centrifugal Clutch |
| Chipper | Yes |
| Shredder | No |
| Recommended Oil | 10W-30 oil (5W-30 is recommended for cold weather climate) |
| Feeding system | Self-feeding |
| Hydraulic oil and oil tank capacity | No |
| Package Size | 900×770×1230mm |
| Net Weight | 194kg |
| Gross Weight | 214kg |
| 20GP Loading Qty. | 18pcs |
| 40GP Loading Qty. | 39pcs |
| 40HQ Loading Qty. | 78pcs |
