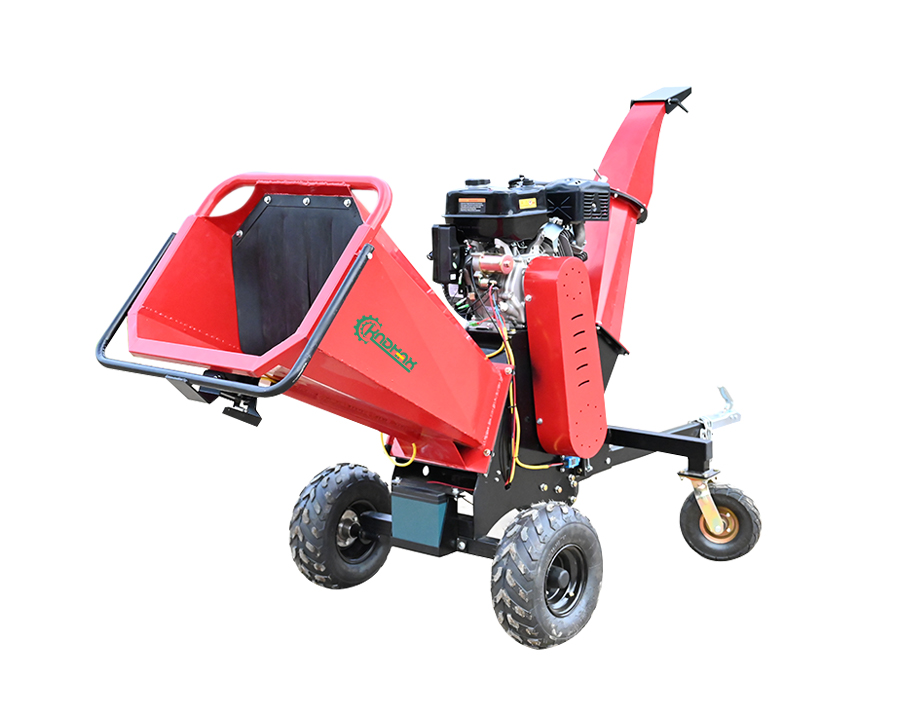

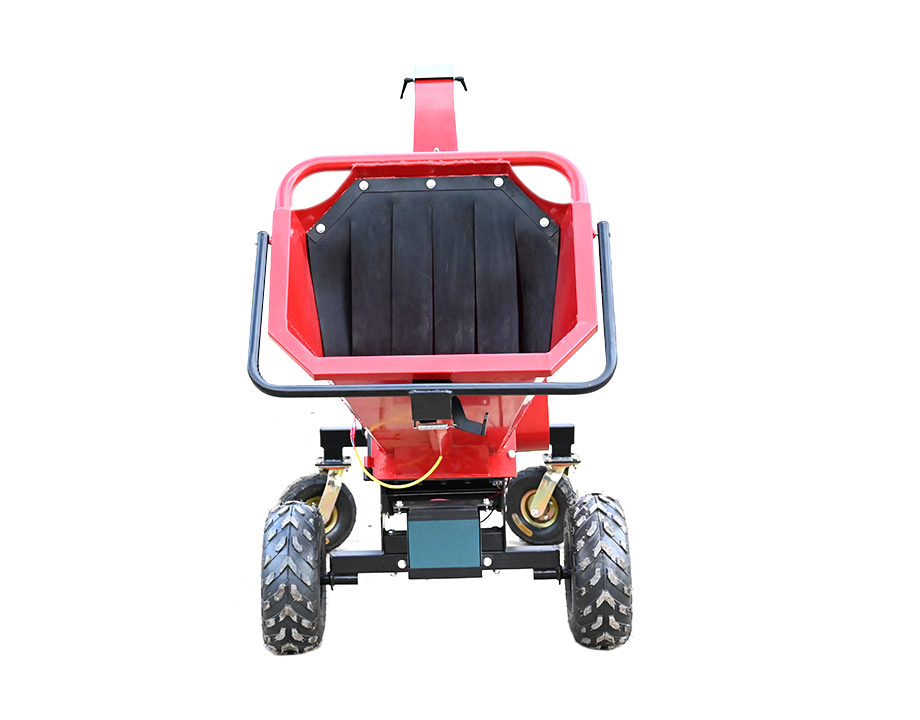

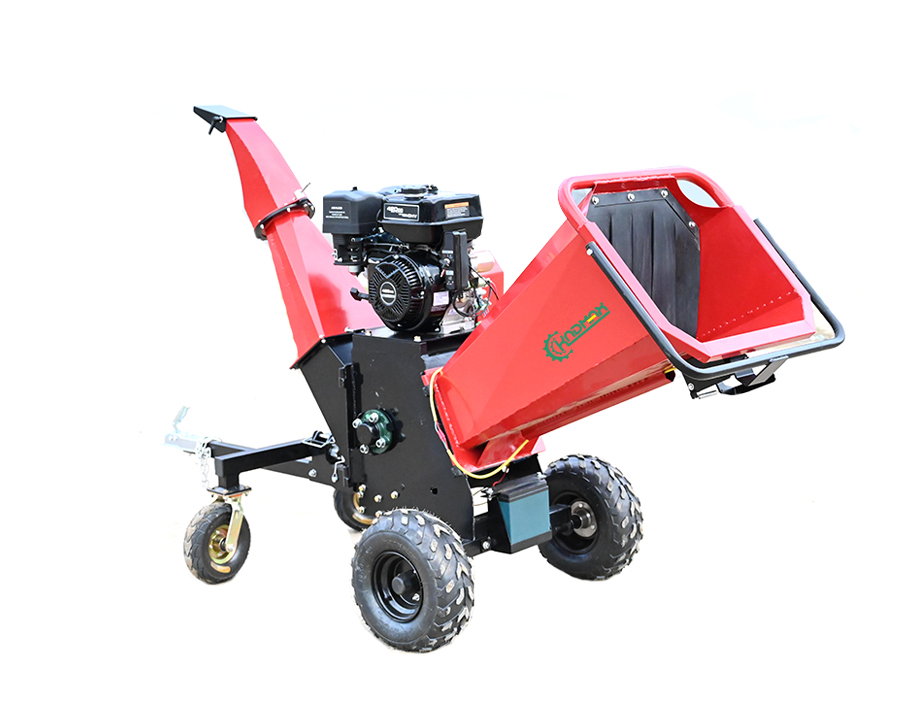

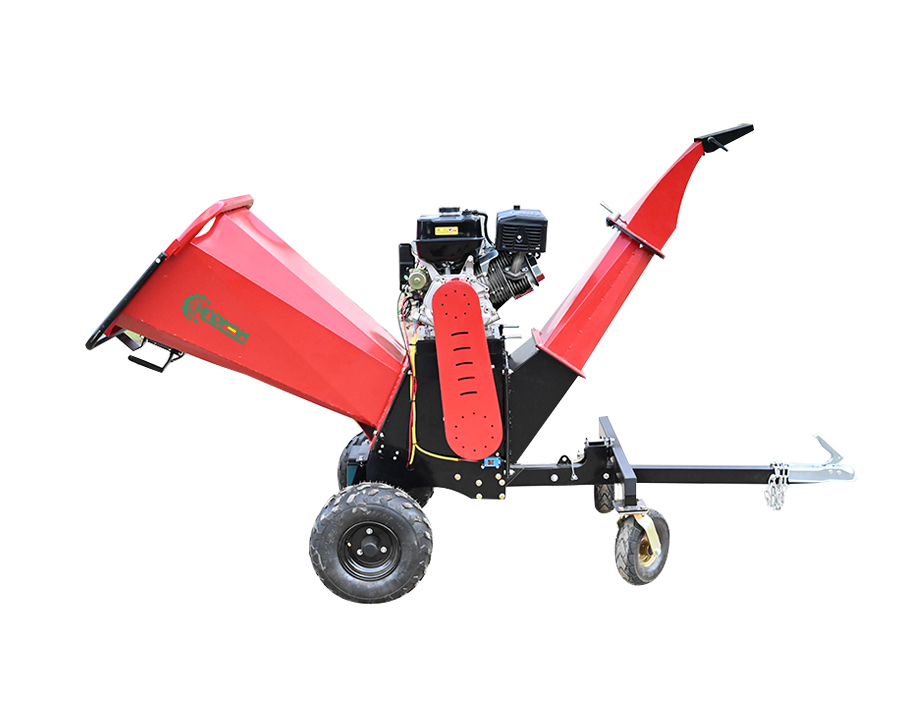

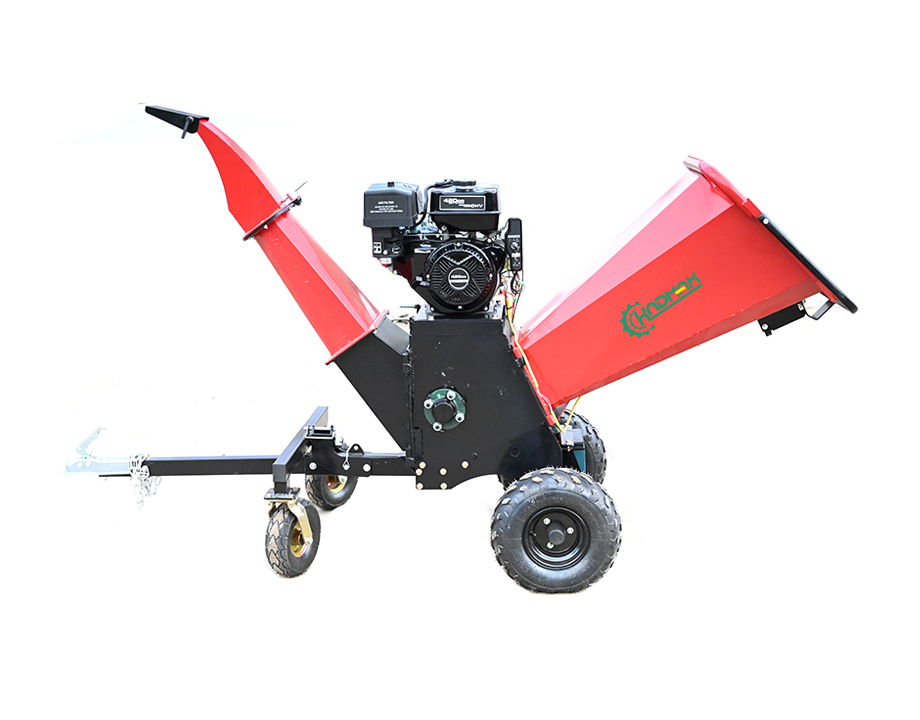

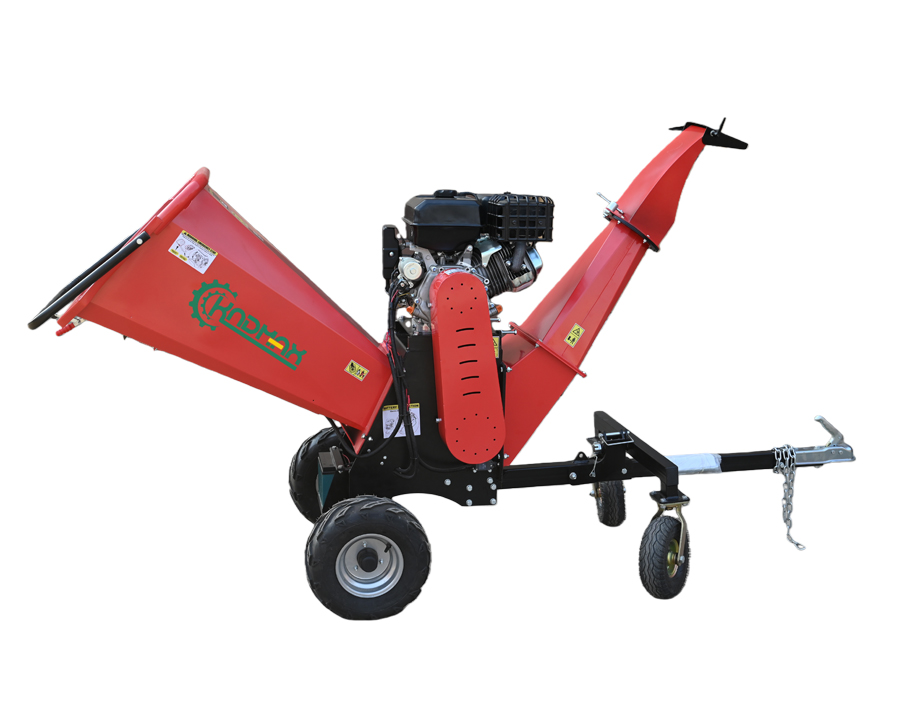

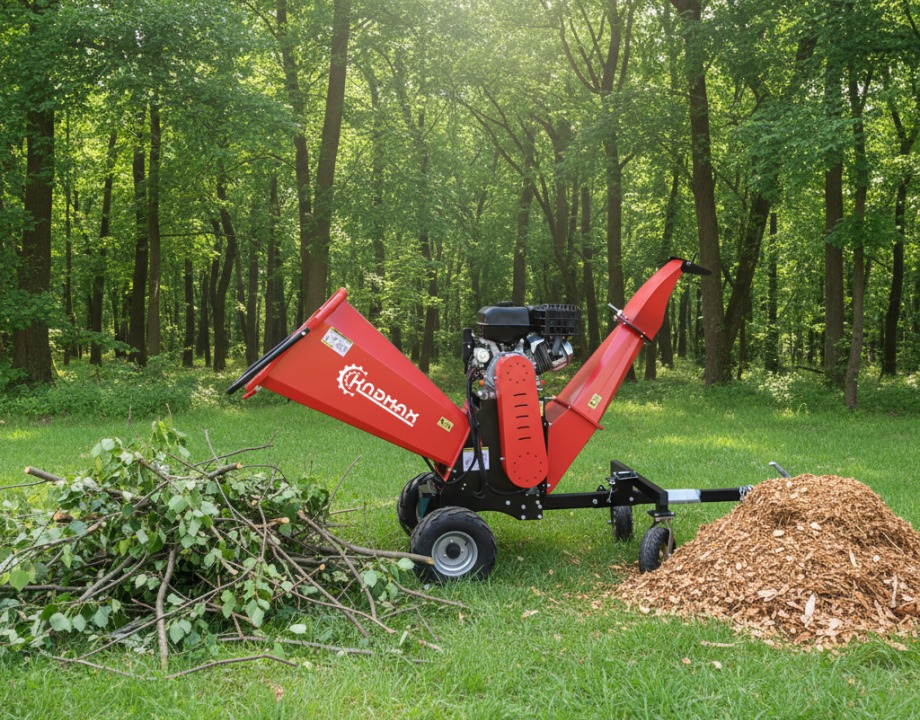

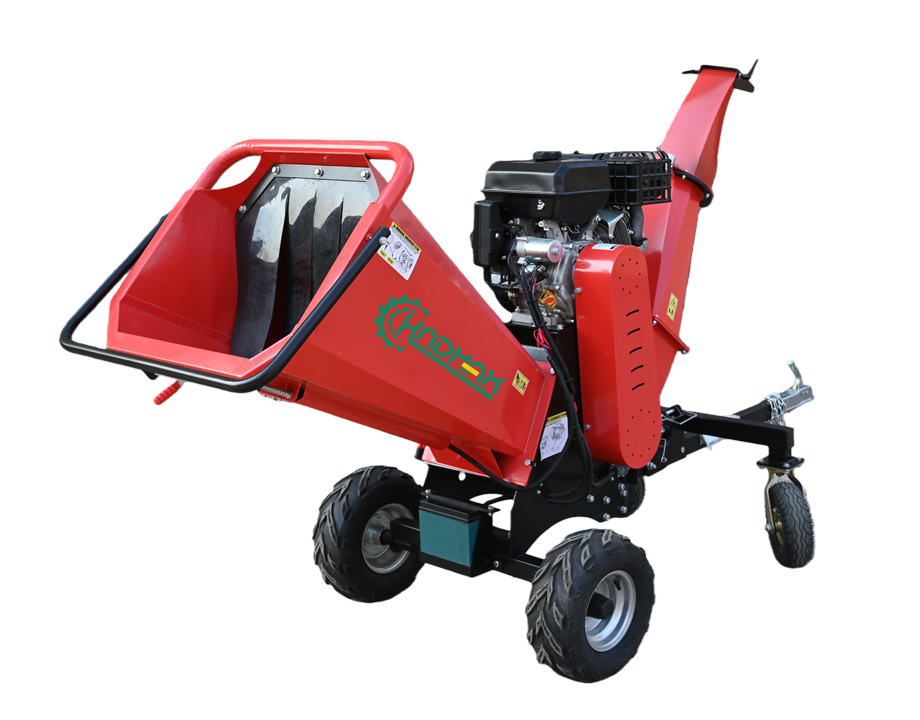

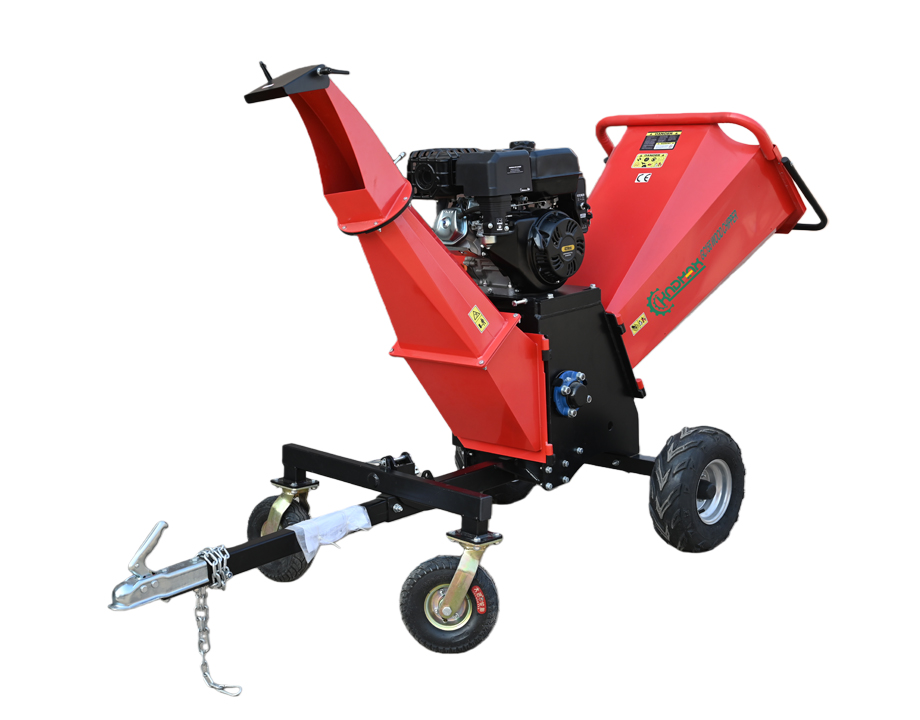

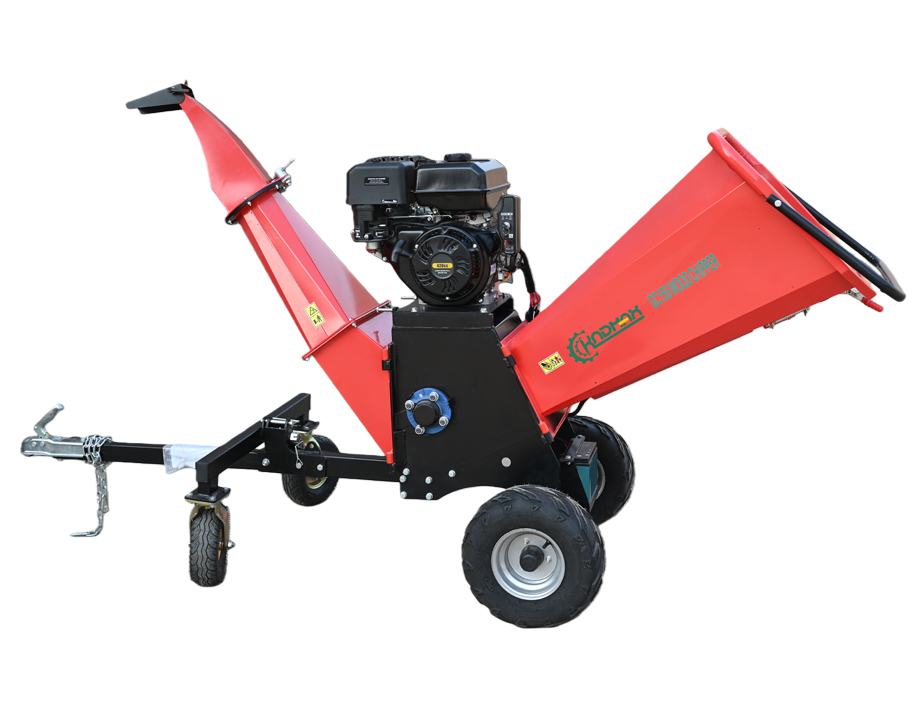

GC156 WOOD CHIPPER

Product Description

Overview:


15HP engine provide strong power to help the machine maximize the performance.


 Durable fly wheel ensures the operation is more stable ,more powerful.

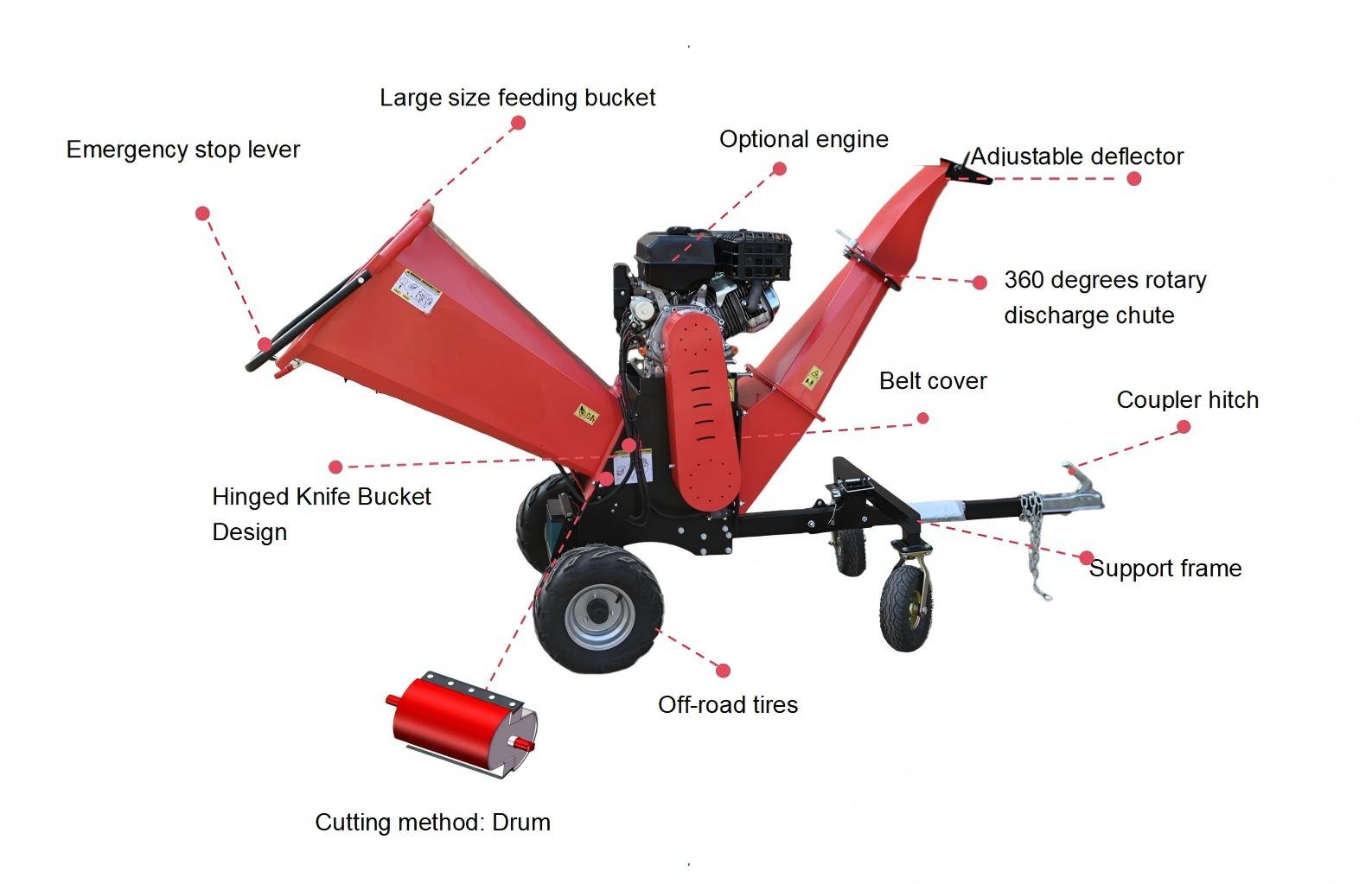

Quick hitch draw bar, agricultural field tires, 360 degree rotating discharge chute.


Max diameter of wood chipper up to 6''





ModelGC156
Engine15HP, Single cylinder, four stroke, air cooling
Displacement420cc
Net Power3600rpm,11kw
Max. Chipping Diameter150mm
Net Weight232kgs
Gross Weight252kgs
External dimensions2750×950×1520mm
Type of FuelGasoline
Starting methodManuel/Electric
Wheel Tire16×8-7
Cutting methodDrum
Cutter wheel RPM2160 rpm/min
Blade Nos.2 × fly knives, 1 fixed knife
DriveDirect Belt Drive /Centrifugal Clutch
ChipperYes
ShredderNo
Recommended Oil10W-30 oil (5W-30 is recommended for cold weather climate)
Feeding systemSelf-feeding
Hydraulic oil and oil tank capacityNo

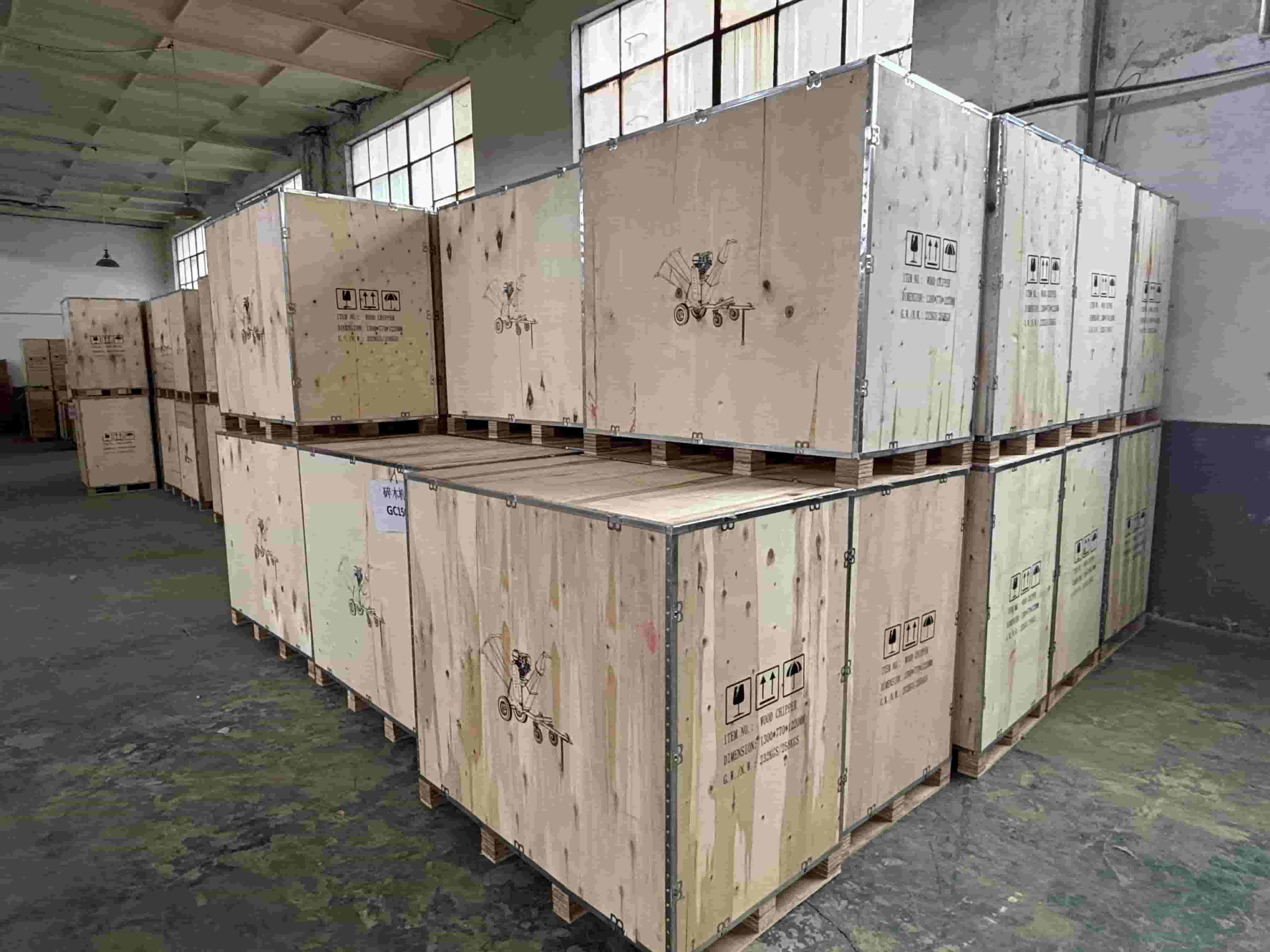

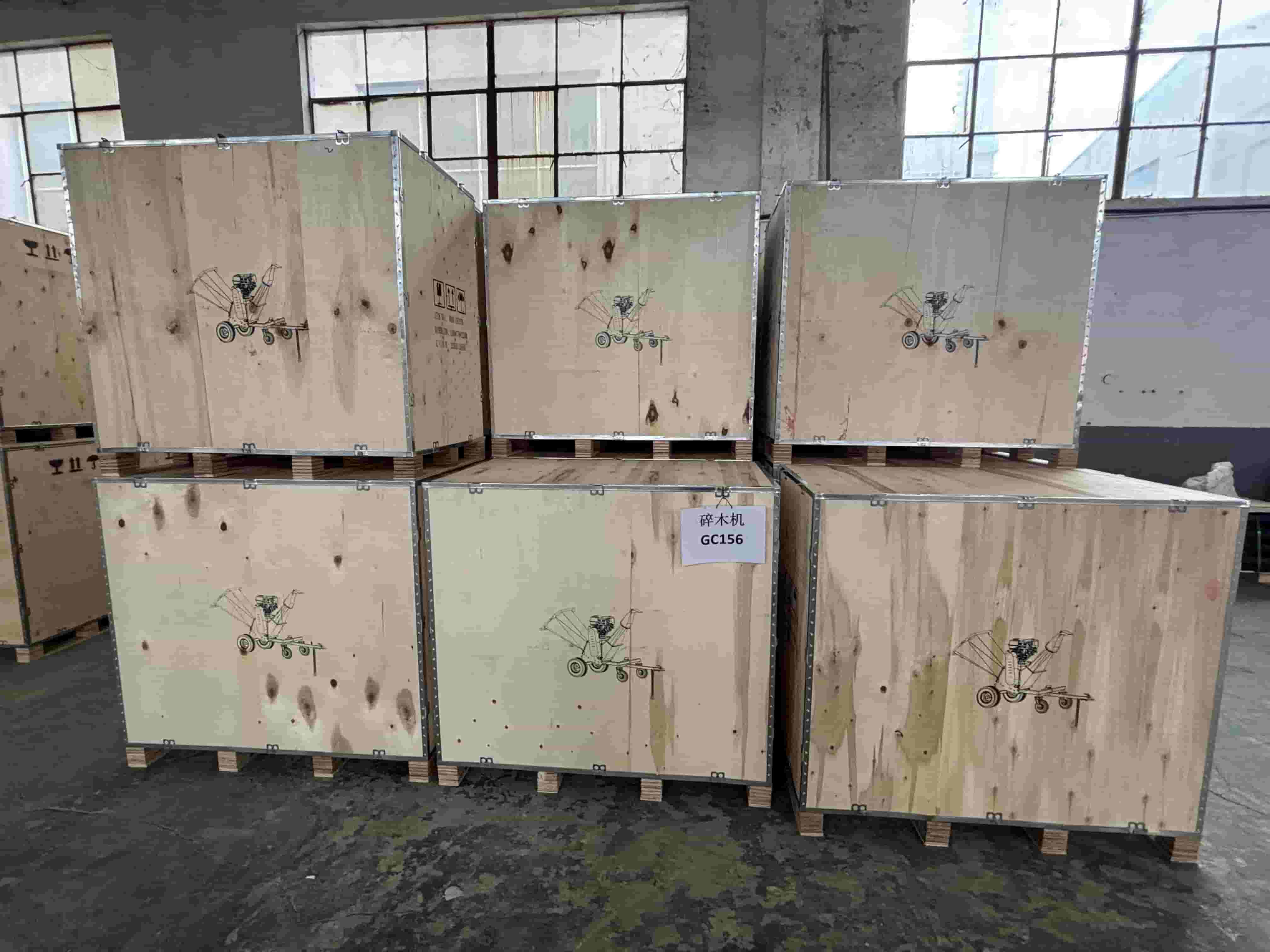

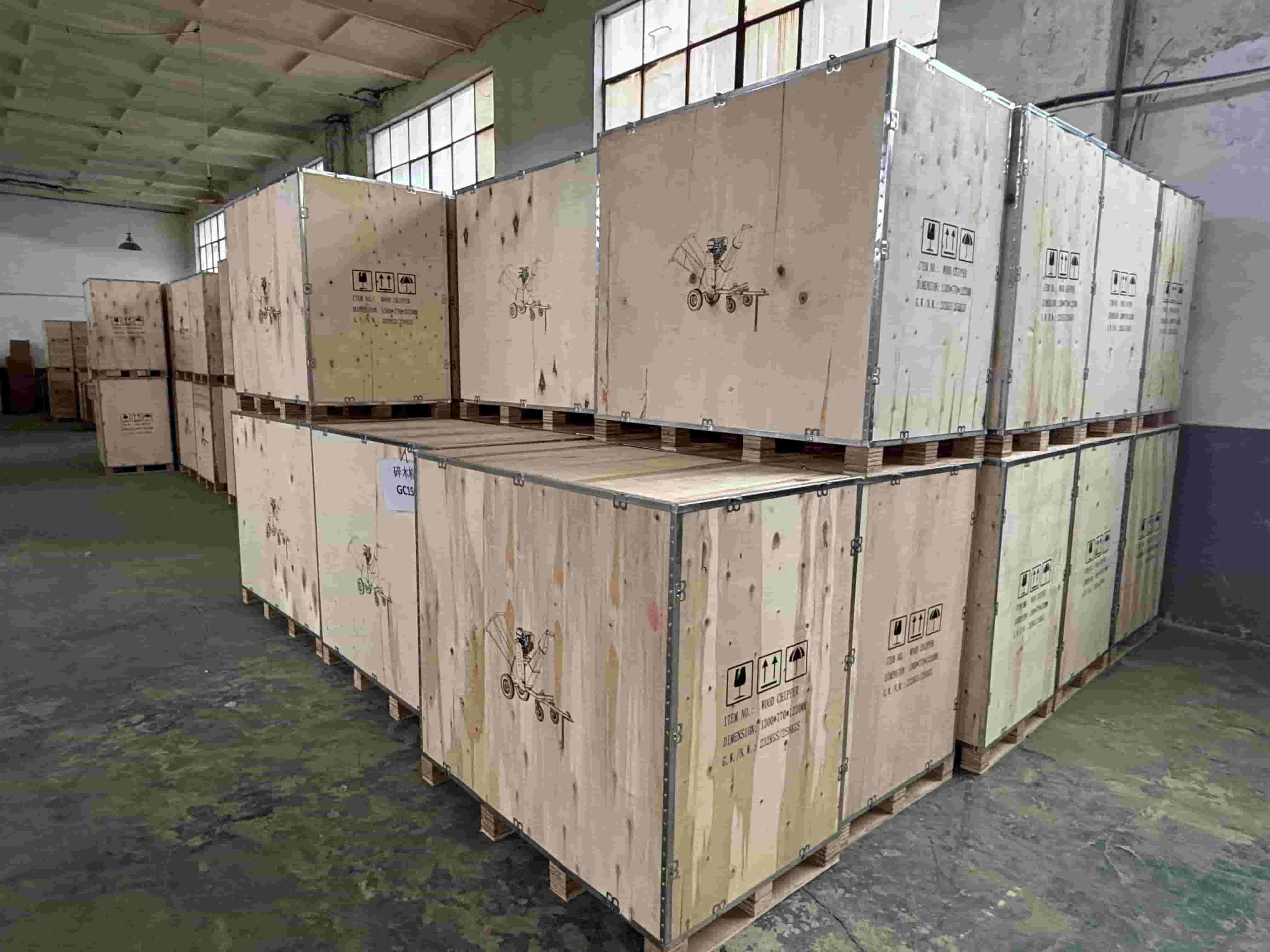

Package Size1300×770×1220mm
40HQ Loading Qty.54pcs
