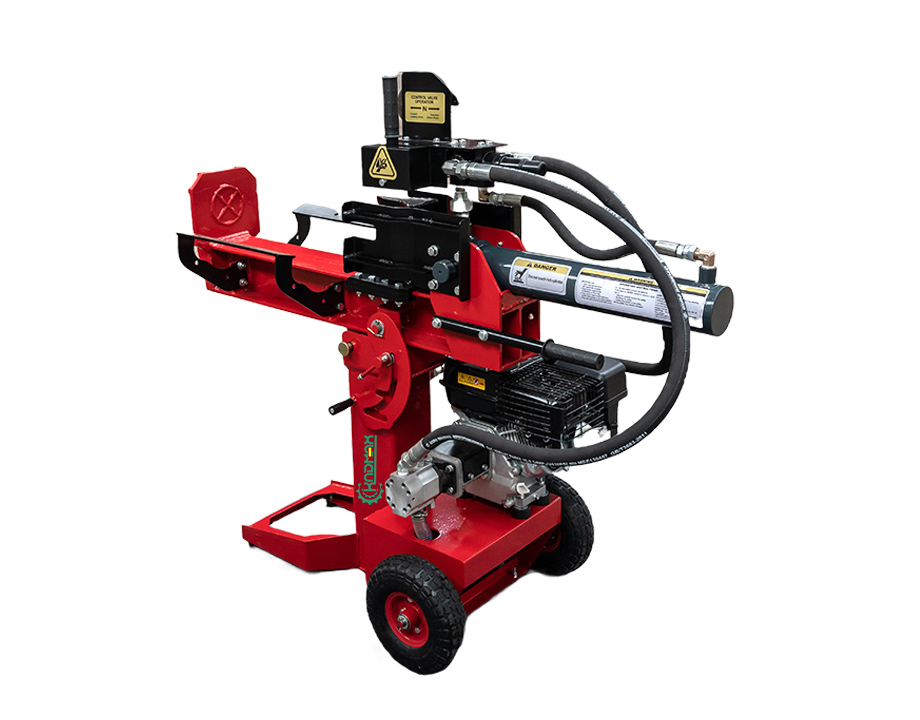

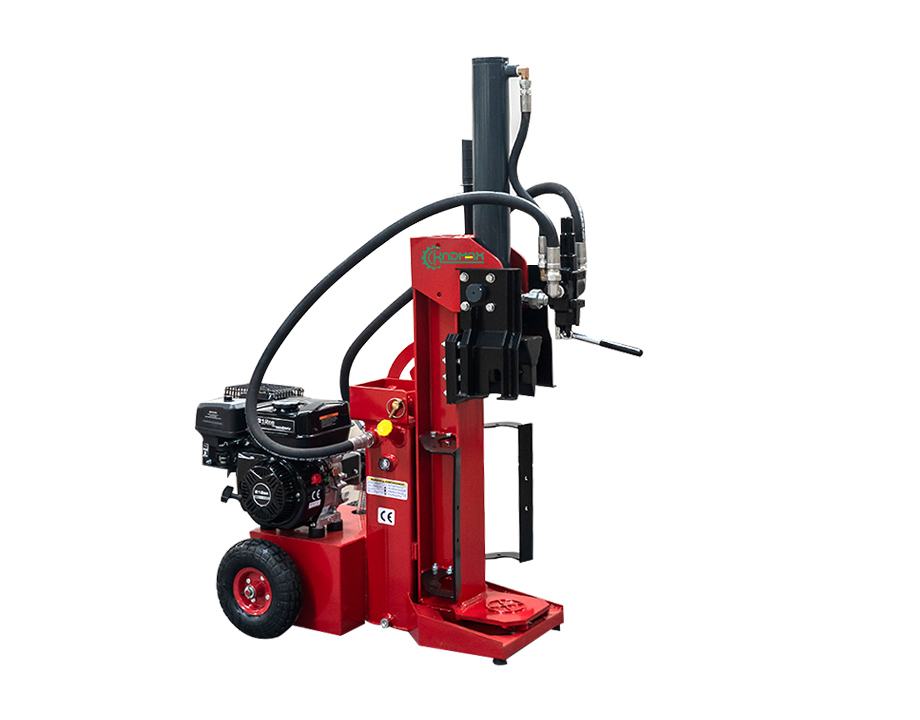

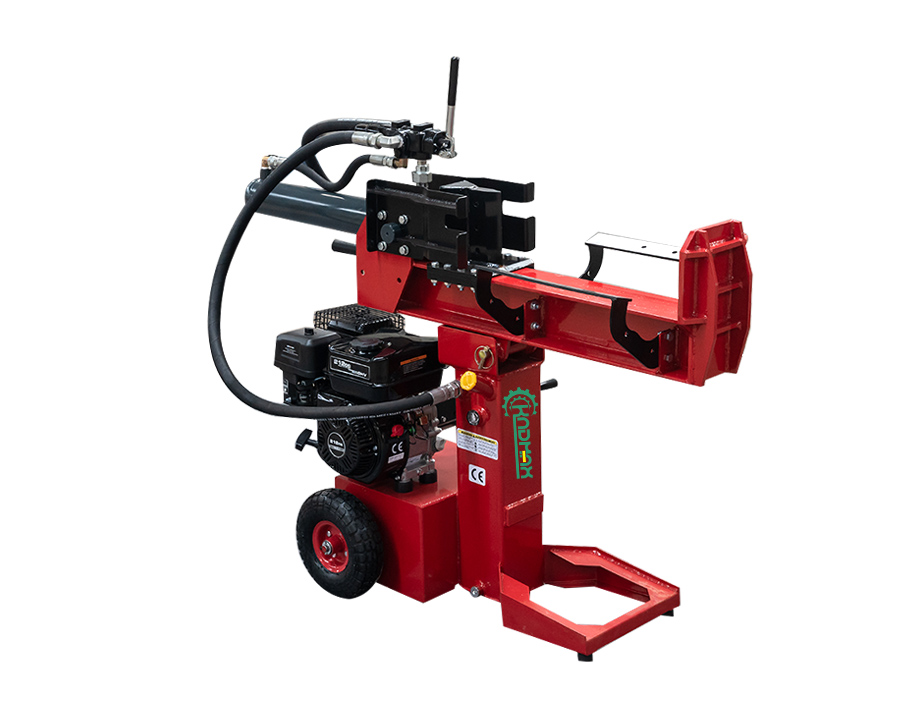

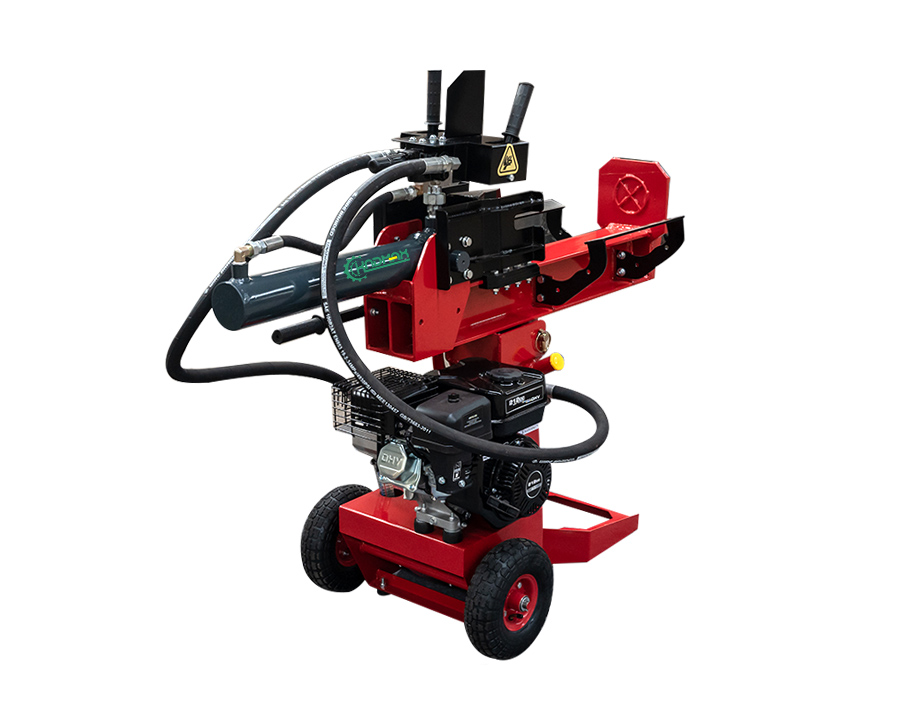

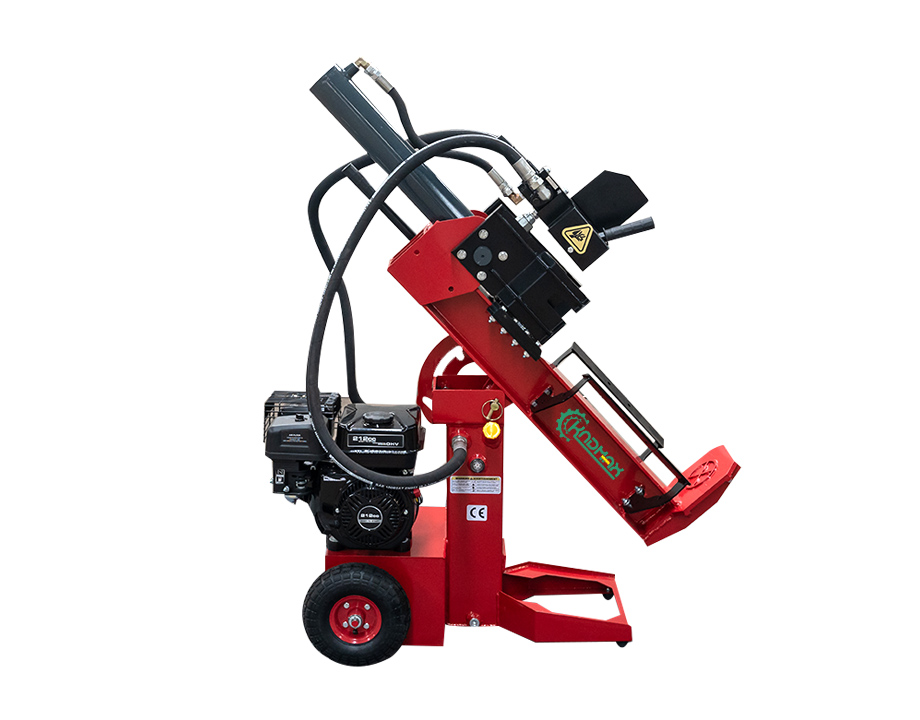

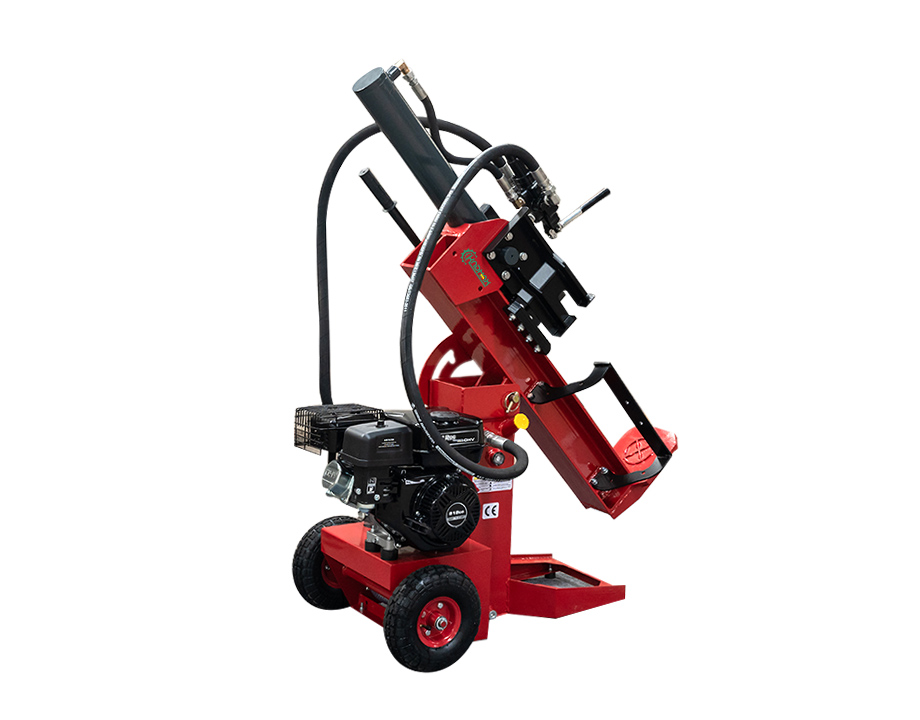

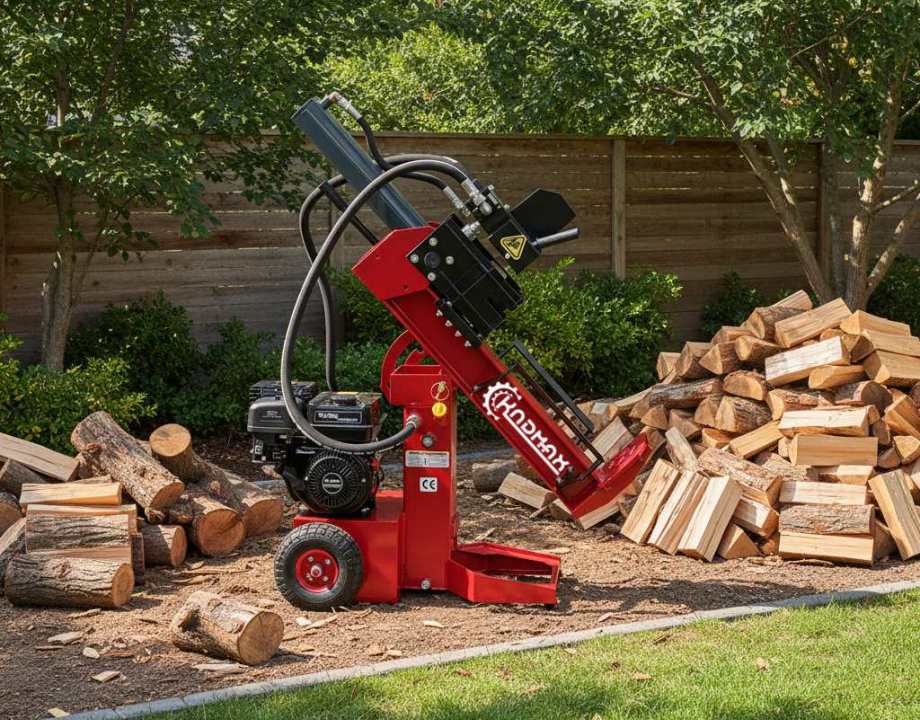

15-ton petrol log splitter with a sturdy frame and designed for the most demanding firewood cuts.

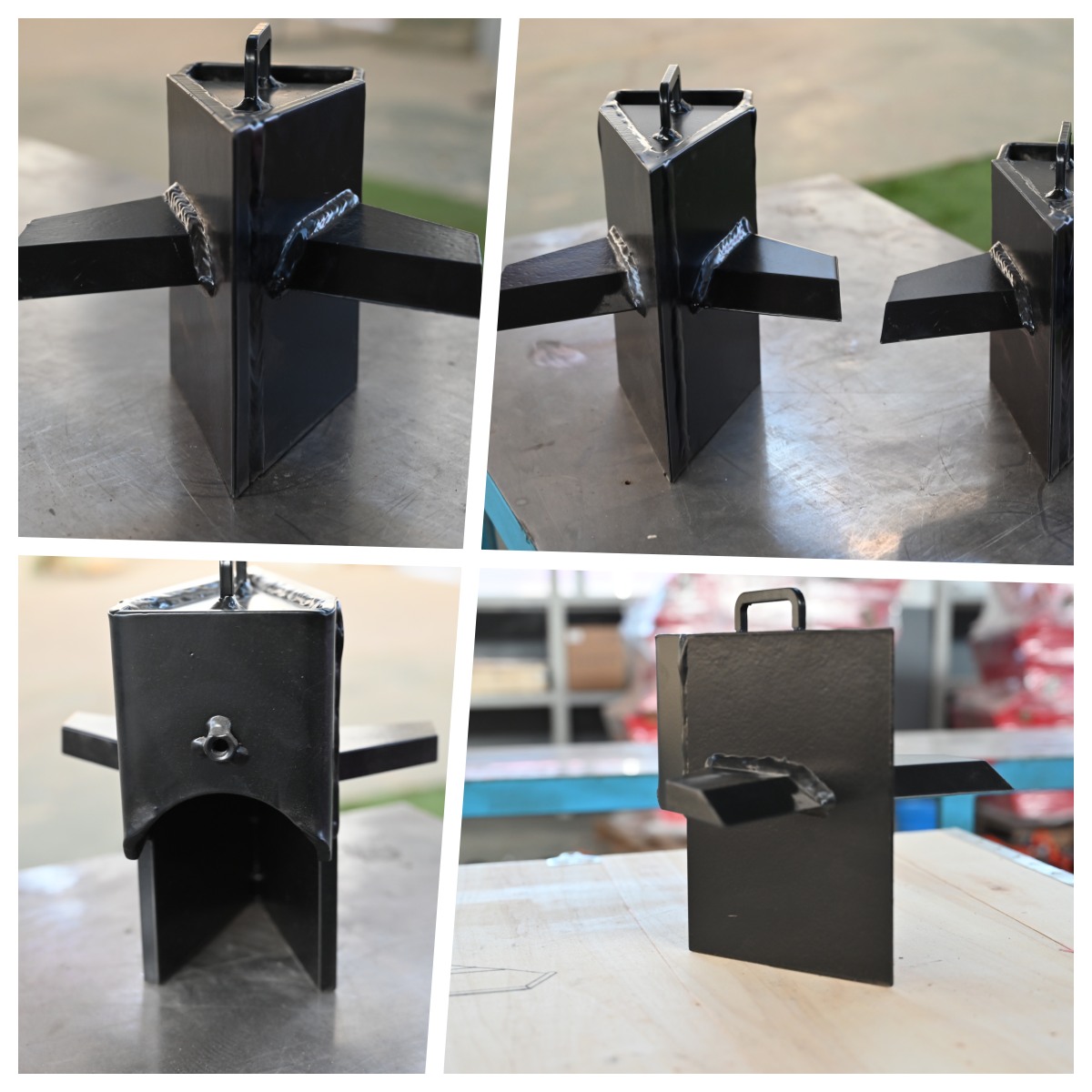

15 ton petrol log splitter. Horizontal and vertical use. Cuts in 2 or 4 parts.
| Model: | HBWS15S |
| Split Force: | 15t |
| Log Capacity: | 525mm |
| Control valve: | Auto Return with Adjustable Detent |
| Pump Size: | 10 GPM |
| Cylinder inner Diameter: | 3inch |
| Hydraulic Rod Diameter: | 44.5mm |
| Hydraulic Cylinder Stroke: | 502mm |
| Cylinder Cycle Time: | 10S |
| Hydraulic Capacity （L） | 9L |
| Fuel Capacity (L) | 3.6L |
| Whether the hydraulic oil is pre filled: | Not Included |
| Size of cleaver: | 165mm |
| Tire: | 10inch |
| Engine: | 7HP |
| Overall dimensions: | 1422×580×1189 |
| Net weight | 140kgs |
| Gross weight | 160kgs |
| Package Size | 830×455×1150mm |
If you have any questions, please leave a message, we will reply as soon as possible.
