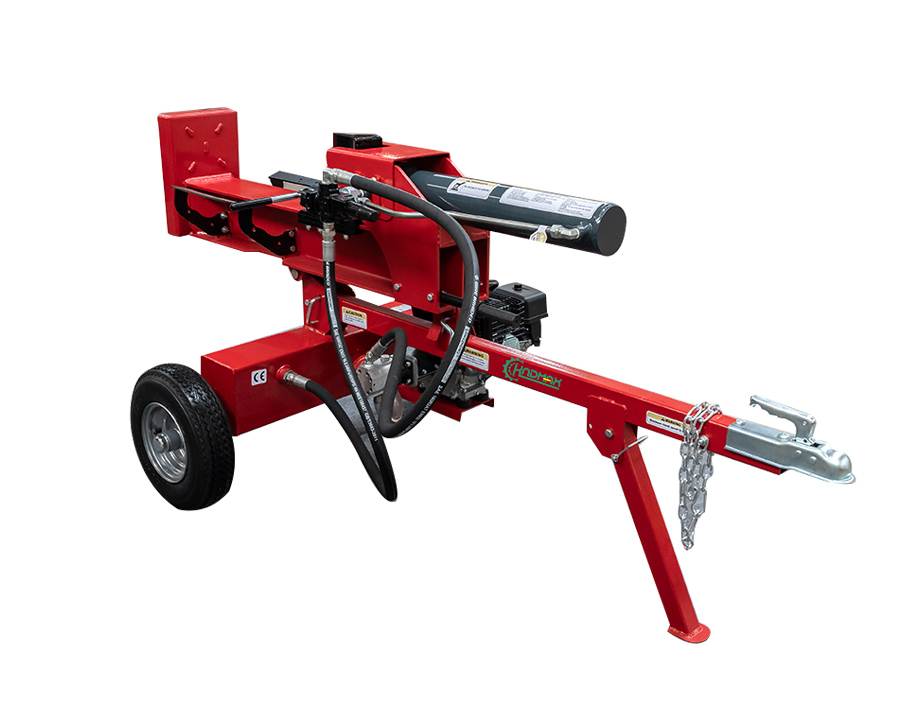

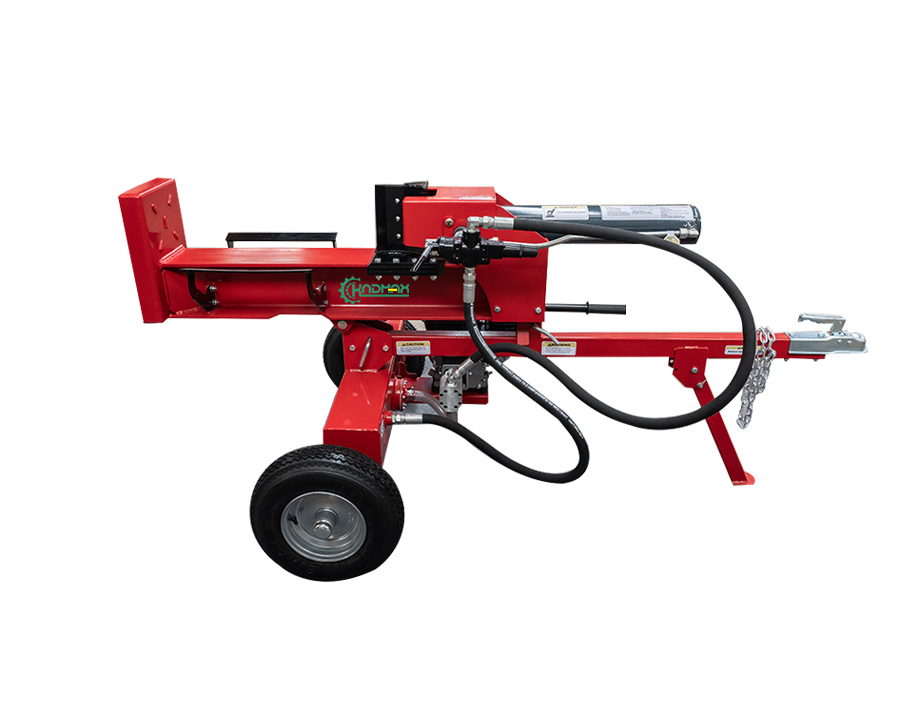

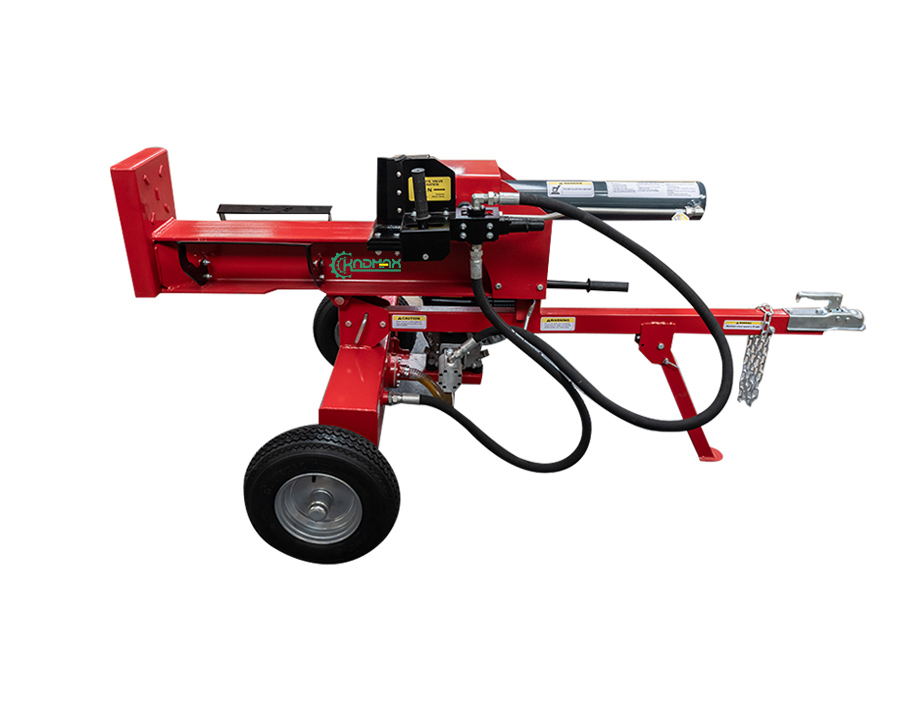

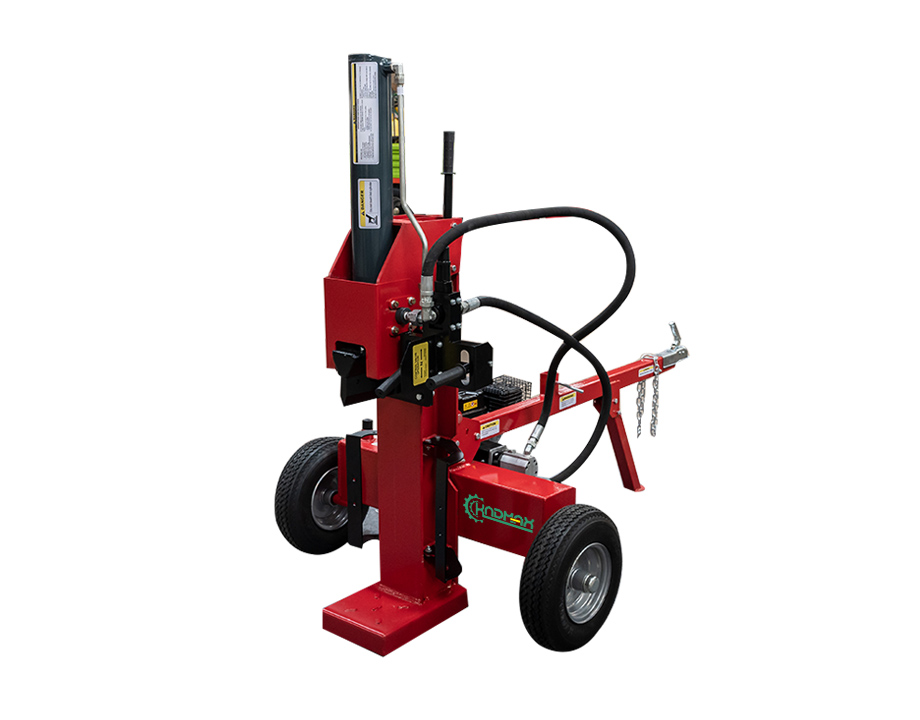

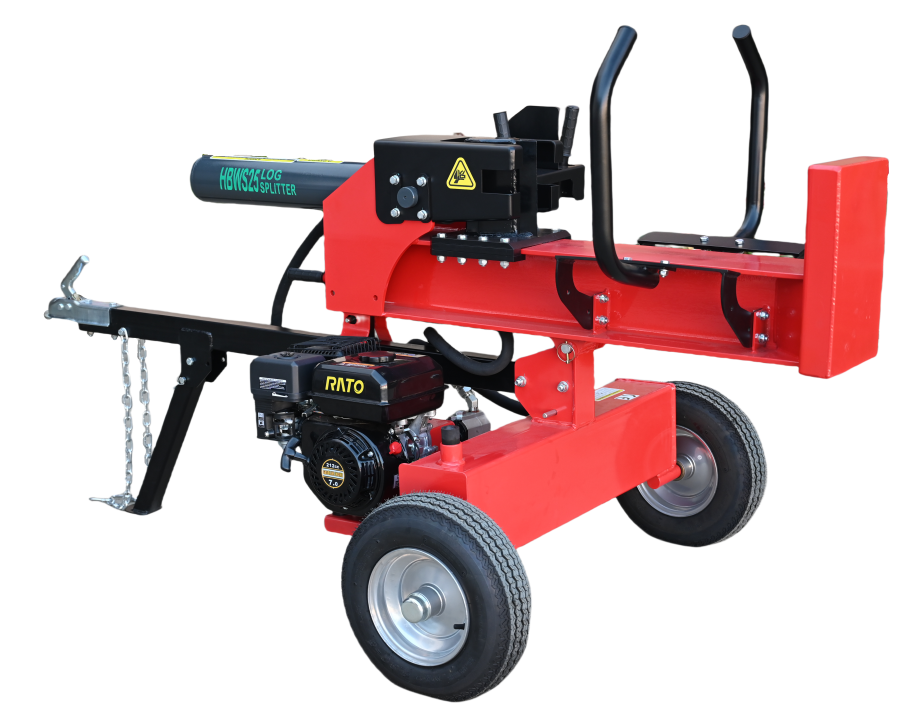

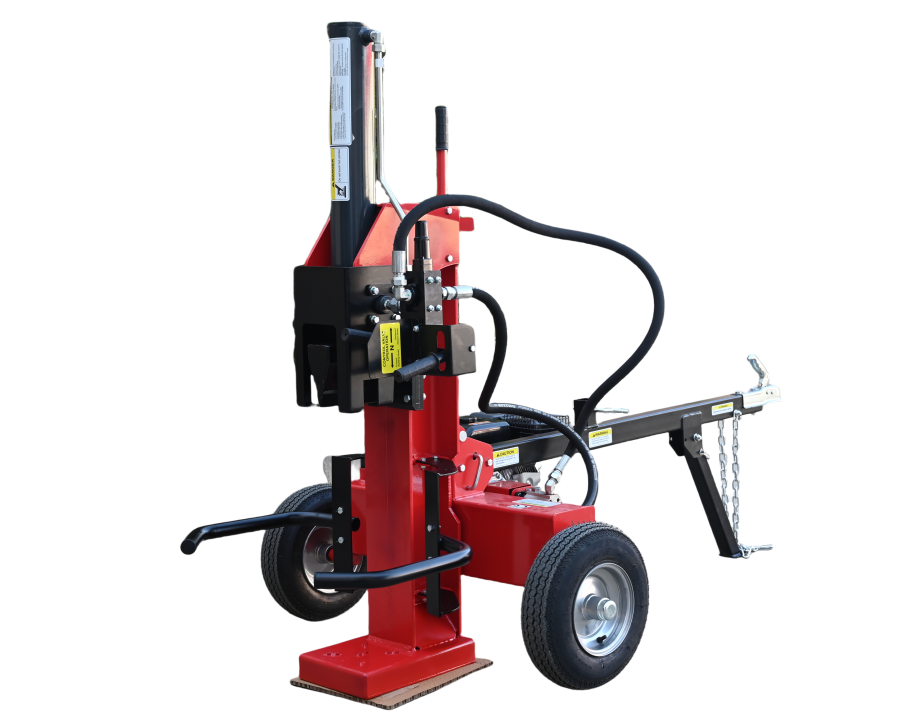

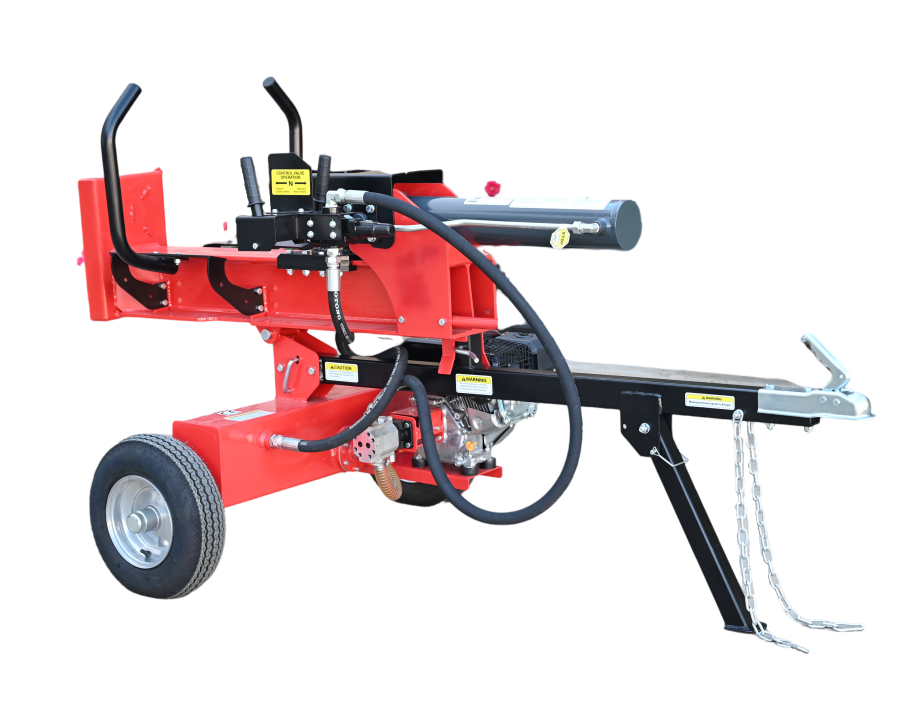

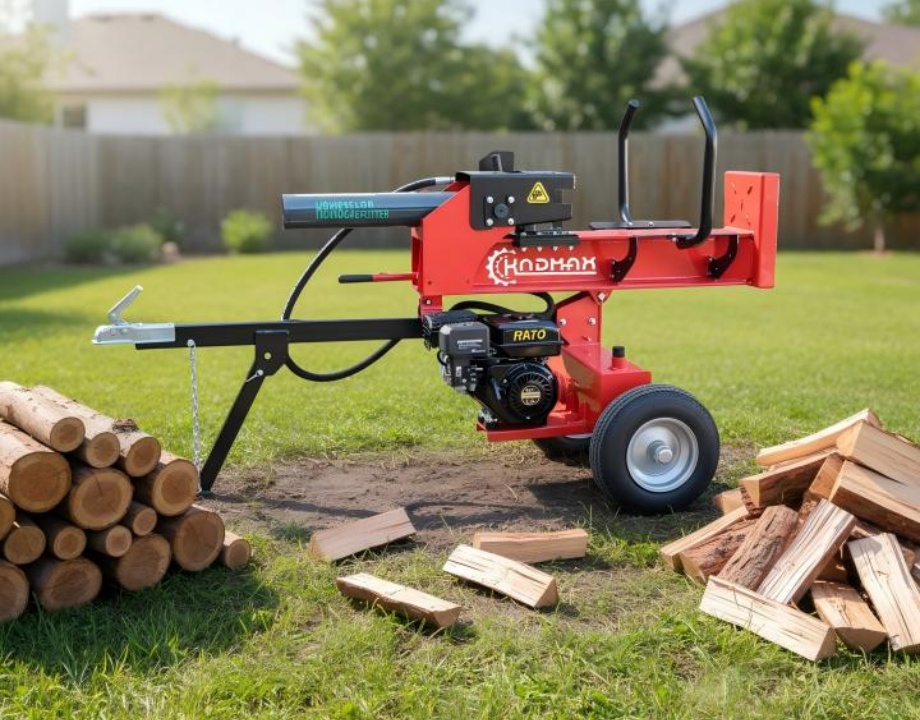

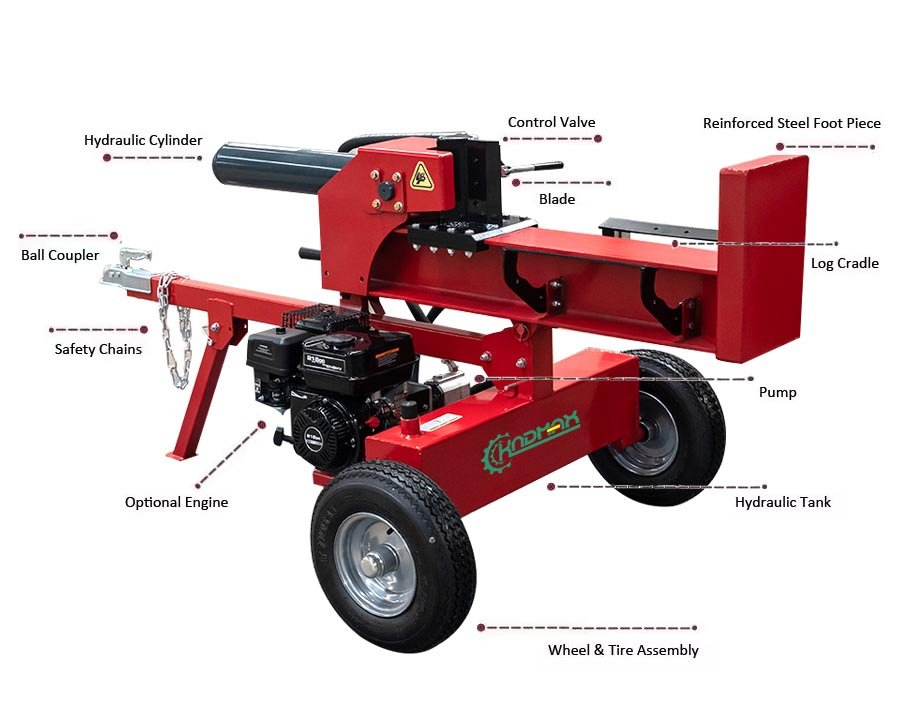

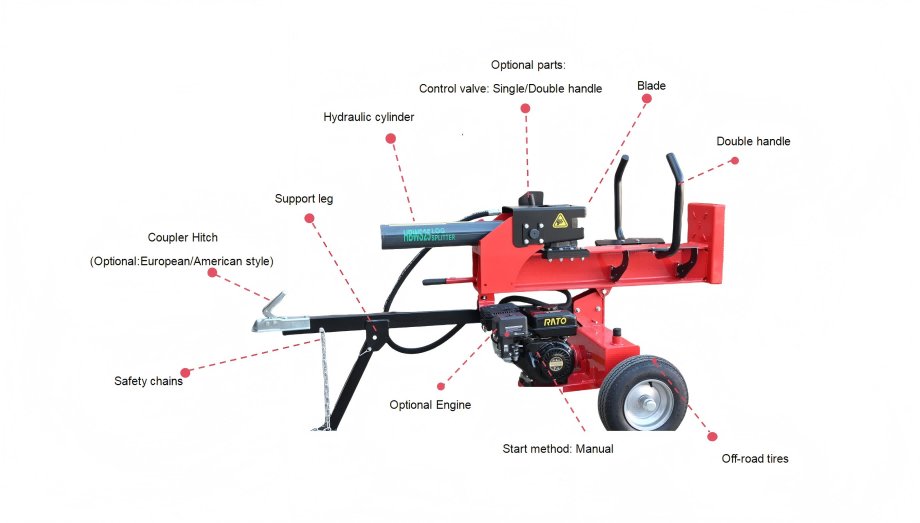

The HBWS25/30 Log Splitter runs on the hard-working 212cc overhead valve (OHV) engine and can split a log in a quick 19 seconds. With heavy-duty construction, cast-iron splitting wedges and 25/30 tons of RAM force, this towable machine will quickly make a stack of firewood out of even your largest trees and logs. This machine offers a 25 In. log capacity, a full beam and a 2 In. ball tractor hitch with chains to assist in operation. This machine will keep your chores simple as it easily changes from vertical to horizontal operation. Purchase the HBWS25/30 today for all your log splitting needs this season.
| Model: | HBWS25 | HBWS30 |
| Split Force: | 25t | 30t |
| Log Capacity: | 630mm | 630mm |
| Control valve: | Auto Return with Ajustable Detent | |
| Pump Size: | 14 GPM | 14 GPM |
| Cylinder inner Diameter: | 4inch | 4.5inch |
| Hydraulic Rod Diameter: | 44.5mm | 44.5mm |
| Hydraulic Cylinder Stroke: | 602mm | 602mm |
| Cylinder Cycle Time: | 10.9S | 14.3S |
| Hydraulic Capacity （L） | 23L | 24.5L |
| Fuel Capacity (L) | 3.6L | 3.6L |
| Whether the hycraulic oil is pre fillec: | Not Included | |

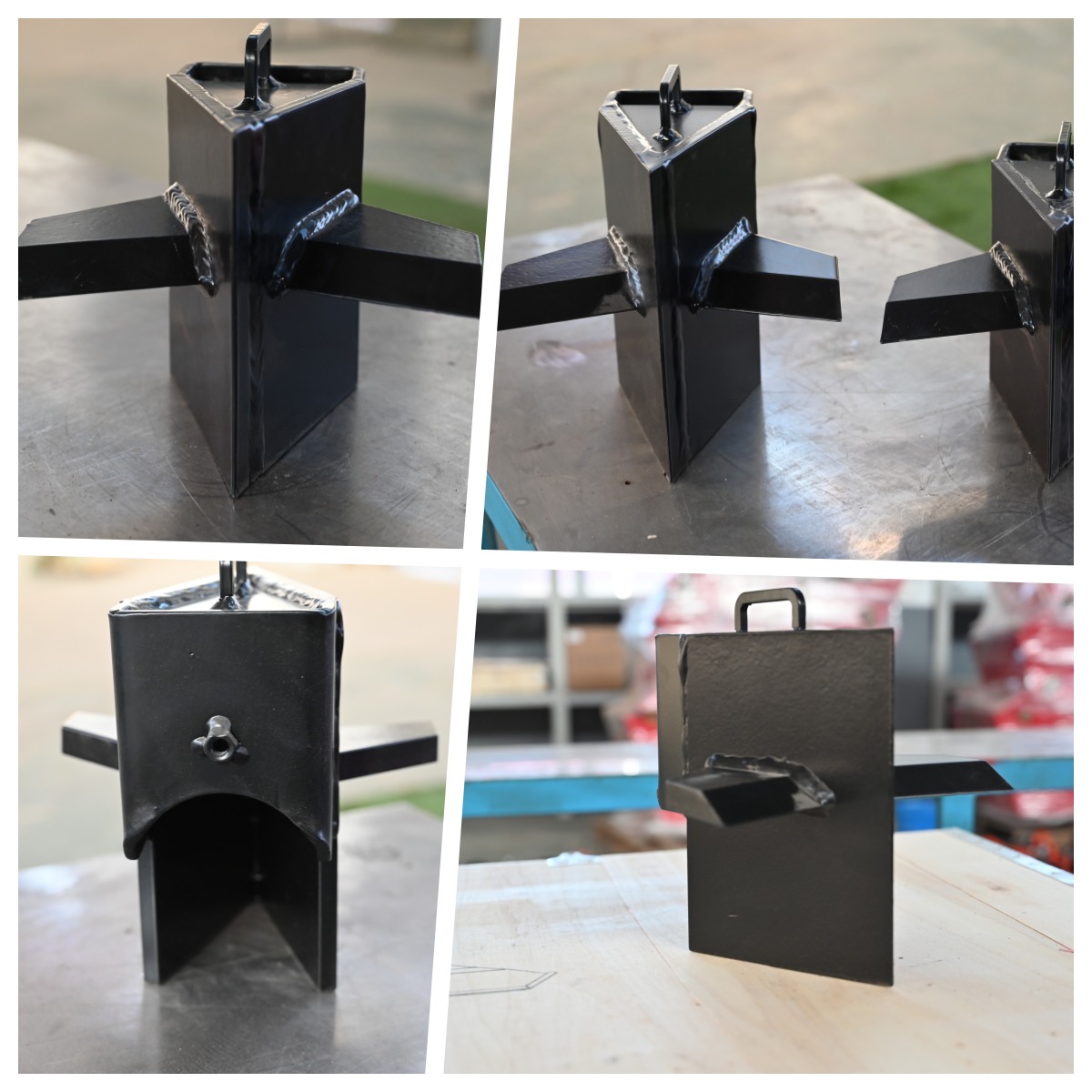

| Size of cleaver: | 200mm | 200mm |
| Tire: | 4.8-8 | |
| Engine: | 7HP | 7HP |
| Displacement | 212cc | 212cc |
| Overall dimensions: | 2208×1186×1002 | 2208×1246×1002 |
| Net weight | 227kg | 227kg |
| Gross weight | 247kg | 247kg |
| Package Size | 1690×760×650mm | 1690×760×650mm |
