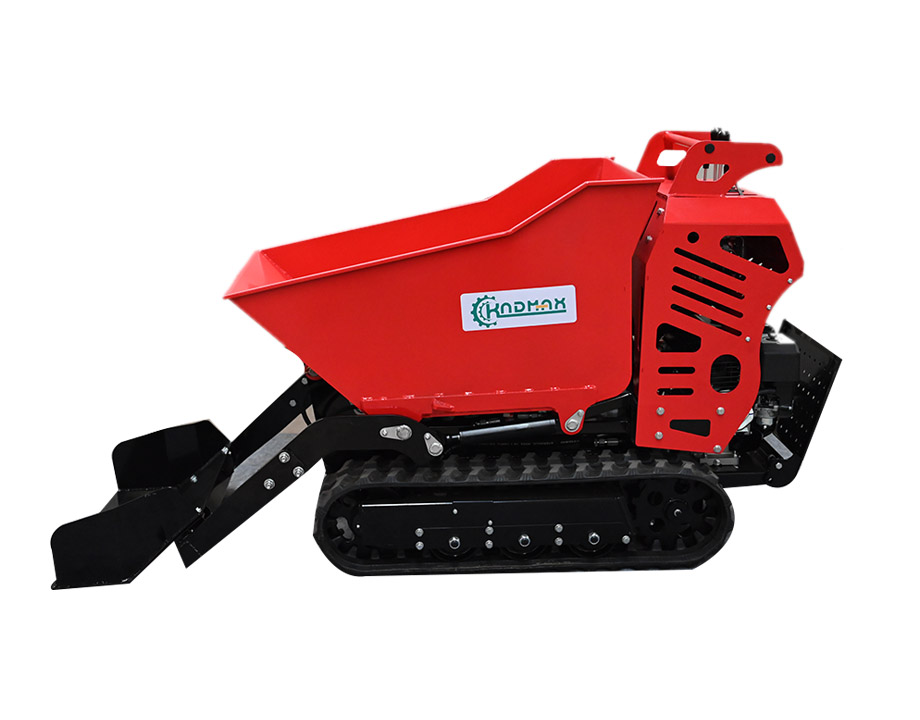

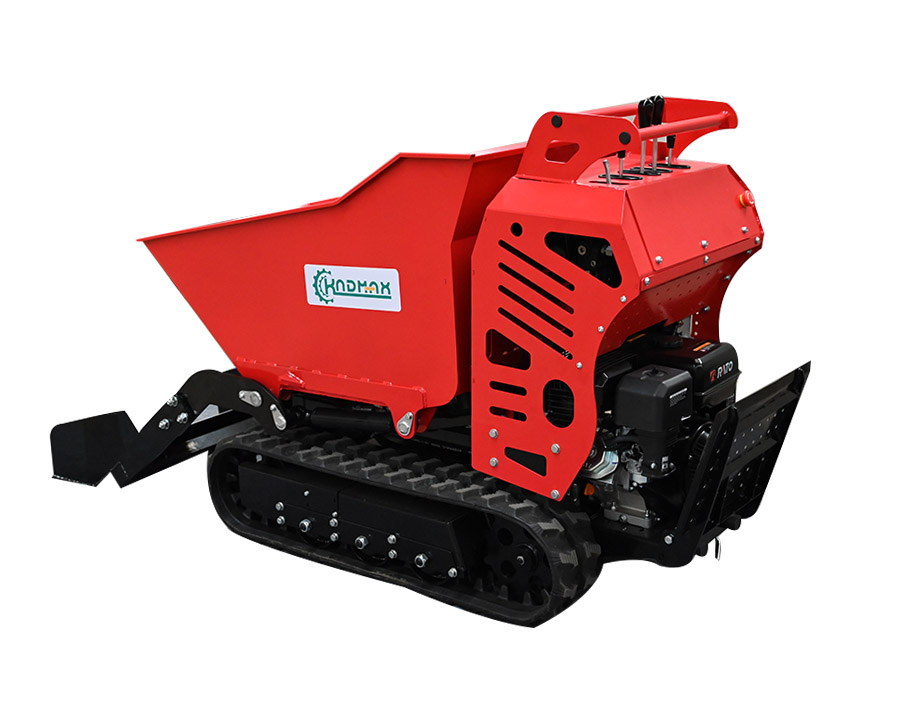

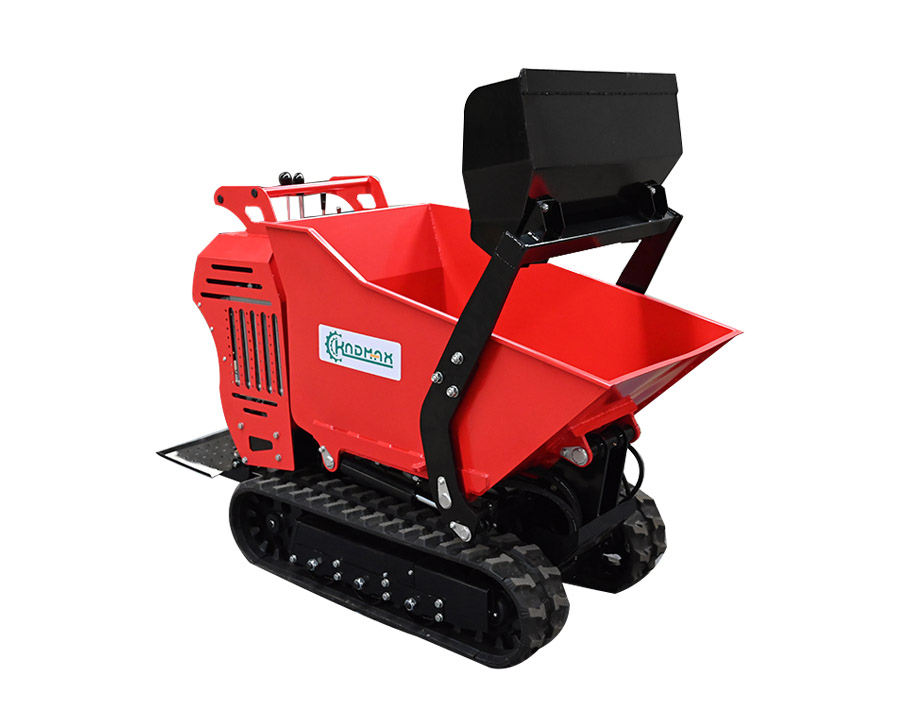

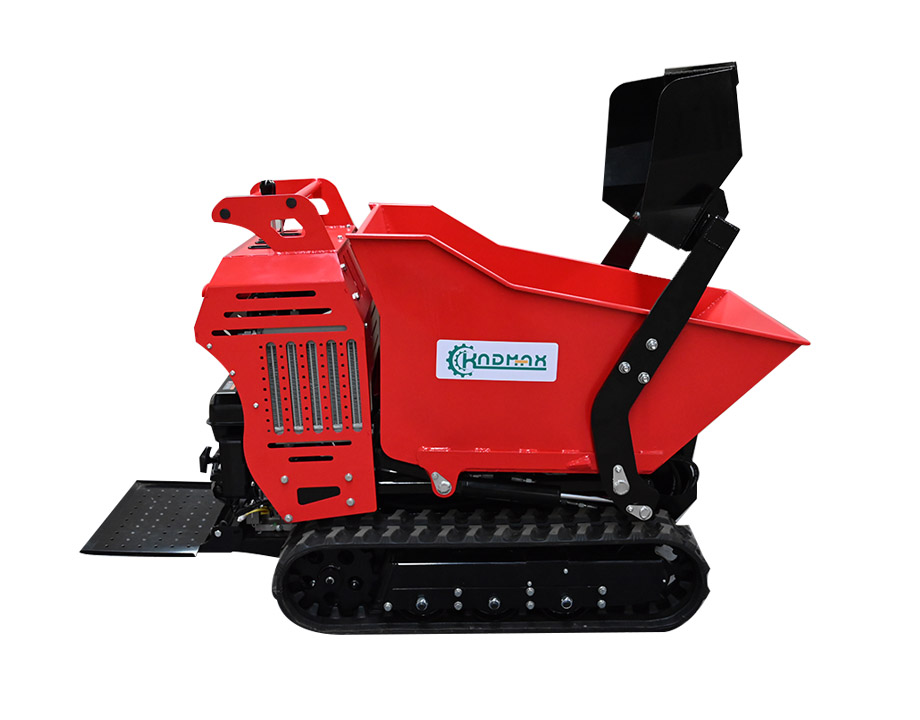

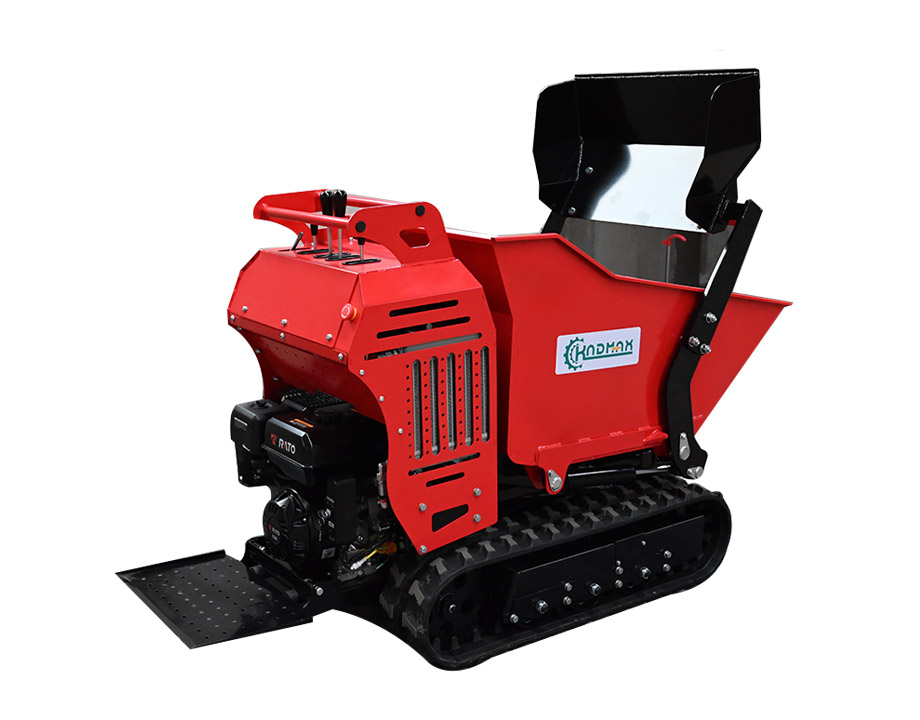

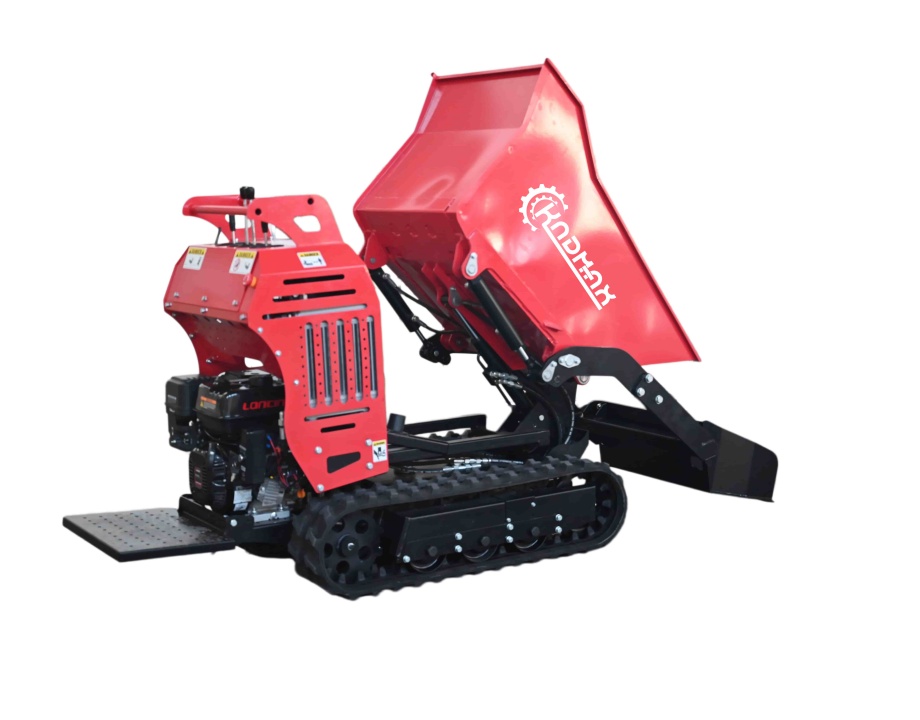

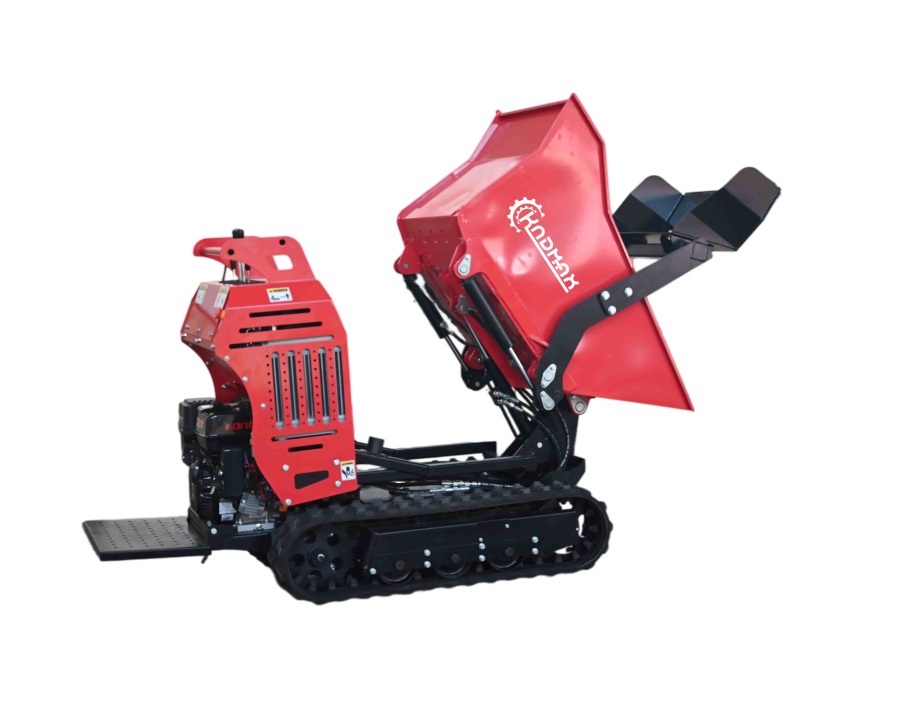

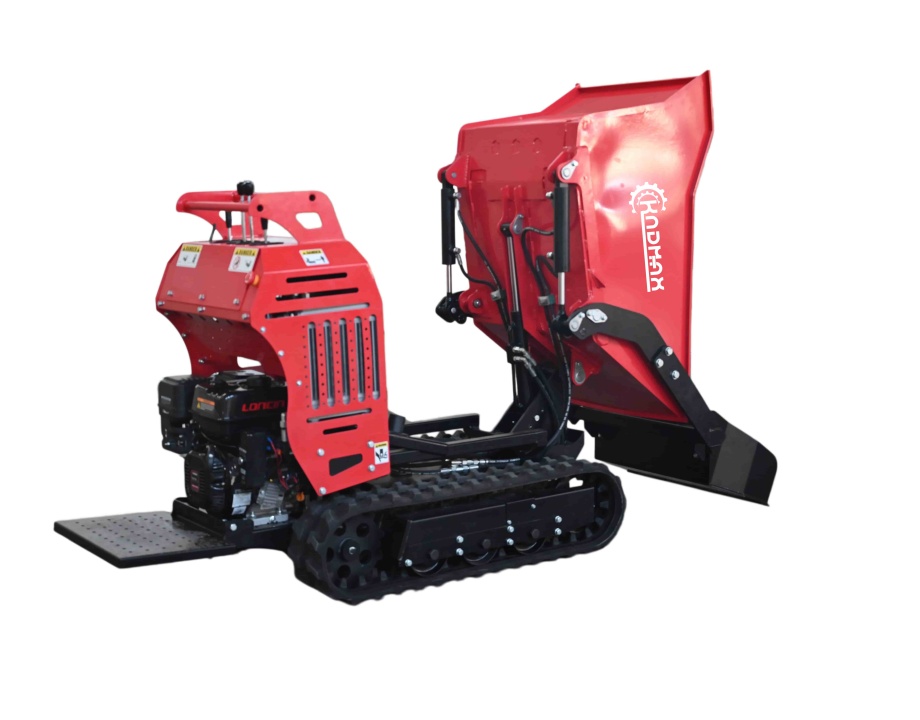

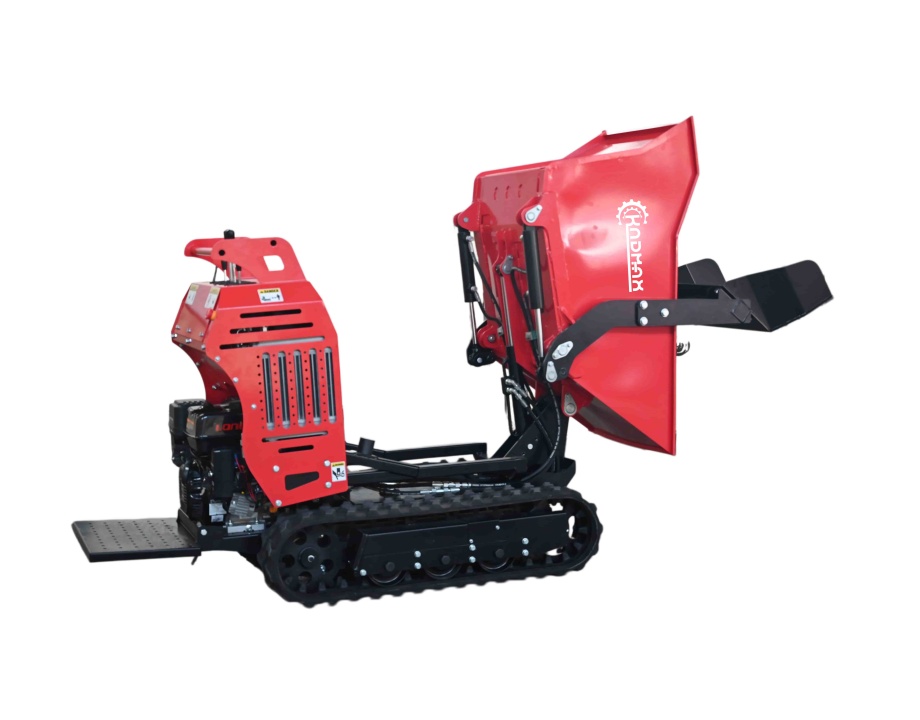

All-terrain crawler dumper, the crawer dumper replaces traditional wheeled walking with rubber tracks,large carrying capacity,strong grip and low noise, at the same time, the crawler type walking device increases the contact area between the machine and the ground, Do not harm farmland and roads, Has good driving and through performance, it can adapt to complex anddifficult road conditions such as paddy fields, marshes, and muddy field roads. The specific size can be customized according to your needs. Strong carrying capacity, strong climbing ability, simple operation and convenient maintenance.
| Model | HCD500FL |
| Engine | Single cylinder, four stroke, air cooling, 9HP |
| Displacement | 270cc |
| Net Power | 3600rpm,6.6kw |
| Fuel Tank | 6.5L |
| Loading Capacity | 500Kg |
| Track Width | 180mm |
| Net Weight | 358Kg |
| Gross Weight | 378Kg |
| External dimensions | 1890×730×1500mm |
| Max.Travel Speed | 0-3.5km/h |
| Max.Gradeability | 20° |
| Platform Ground Clearance | 205mm |
| Hydraulic pressure | 20MPa |
| Pump Type | Double gear pump |
| Working Type | Self Loading and Unloading |
| Oil tank capacity | 19L |
| Hydraulic Oil | N46 |
| Bucket Capacity | 0.25m³ |
| Package Size | 1710×770×1290mm |
| 40HQ Loading Qty. | 42pcs |
Q & A
1.Q: What is the internal volume in liters?
A: The HCD500 and HCD500FL have a capacity of 262 liters.
2. Q:Are there dump trucks with four-wheel drive or only 6.5HP gasoline mini dumper? In particular, electronic mini dumper should be equipped with four-wheel drive.
A: The only four-wheel drive mini dumper is the MD250, which is powered by a 6.5HP gasoline engine. The ED500 and ED500H mini dumper are electric two-front-wheel drive, and the HCD500 and HCD500FL are fully hydraulic crawler mini dumper. Electric four-wheel drive mini dumper are under development.
3. Q: What slope can your dump truck climb?
A: All dump trucks have a climbing angle of 20°
4. Q: Please describe the braking system
A: The brakes of the HCD500 and HCD500FL dump trucks are achieved through the self-locking of the hydraulic system.
5. Q: Do the 9HP gasoline dump truck and the electronic dump truck include remote controls?
A: Neither has a remote control.
If you have any questions, please leave a message, we will reply as soon as possible.
