This machine has a hydraulic feed roller driven by an independent hydraulic device on the tool. This is very helpful for feeding and makes work easier. This machine has speed adjustment for feeding and discharging rollers. There are safety hoops and splash pads inside the feeding hopper to prevent kickbacks and ensure safety. This machine is designed for safe use. It is recommended to use fresh wood without leaves to achieve maximum capacity.

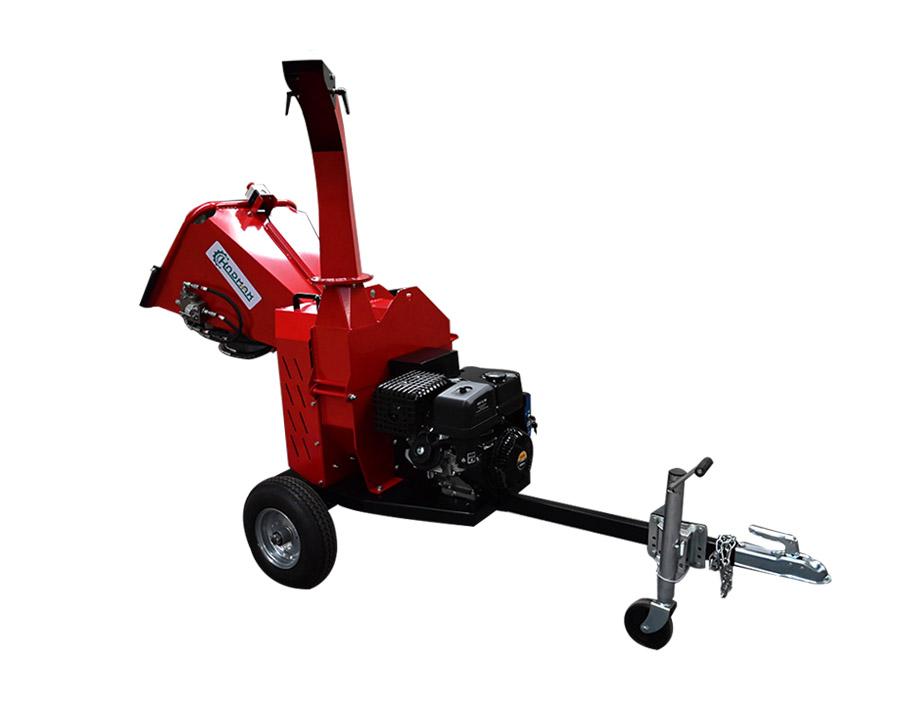

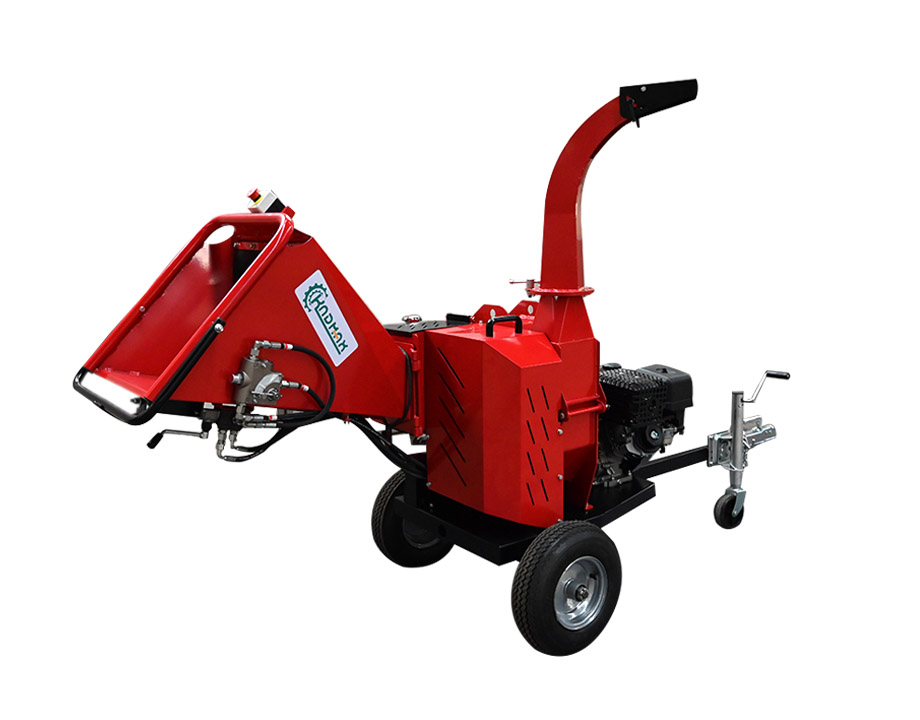

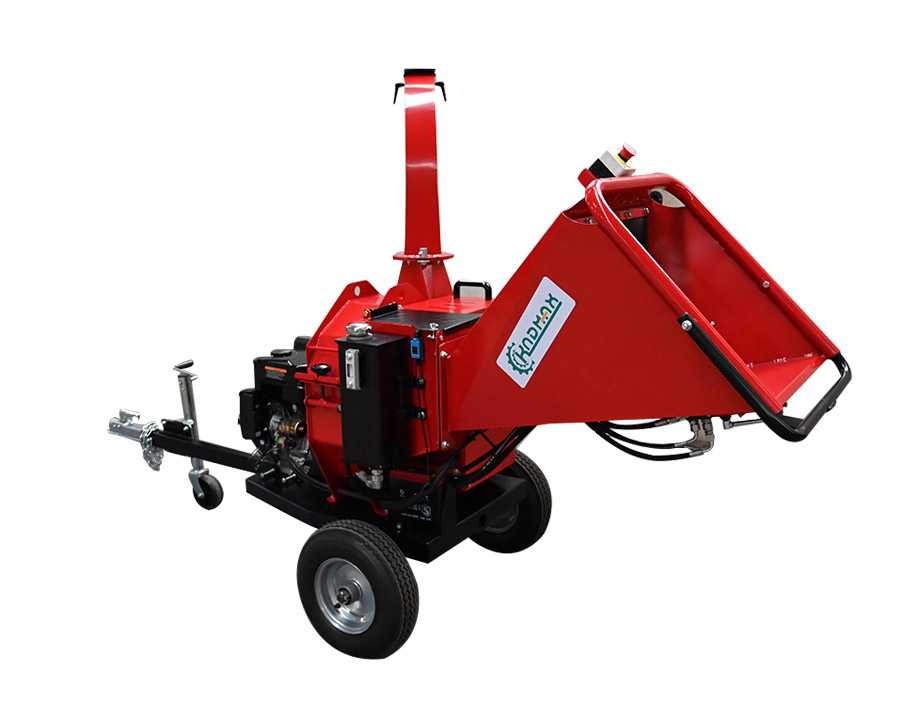

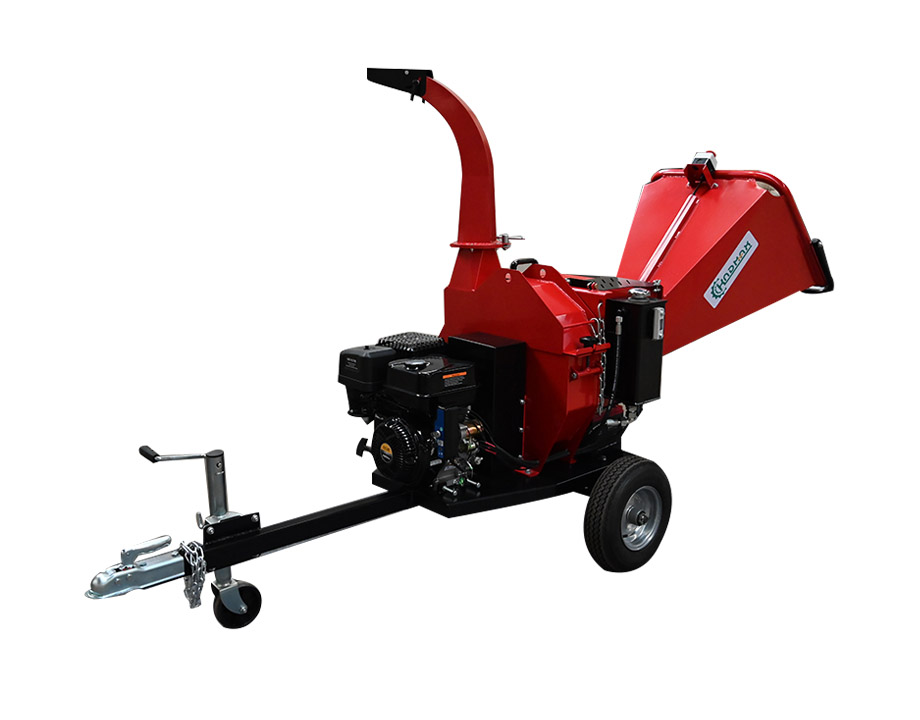

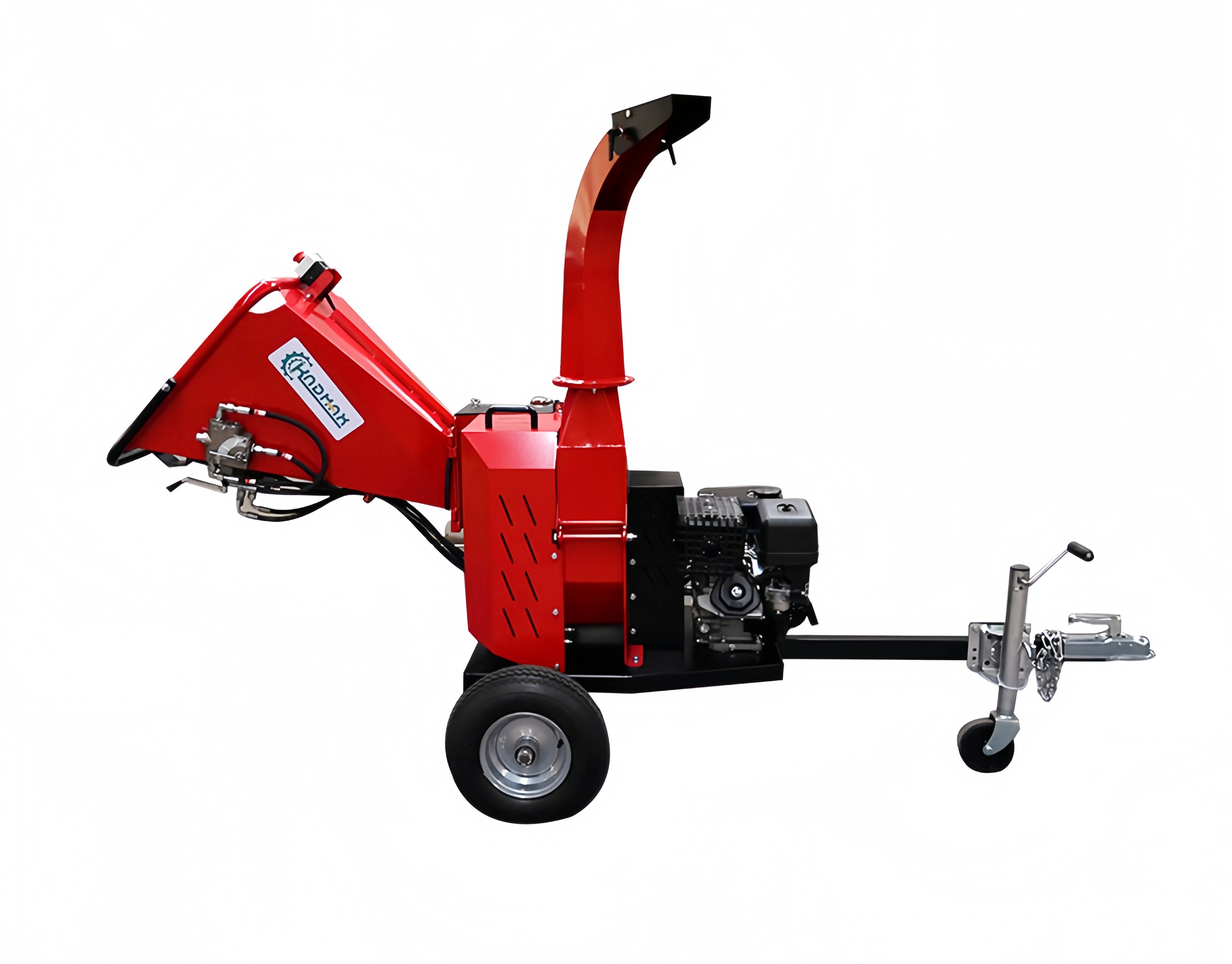

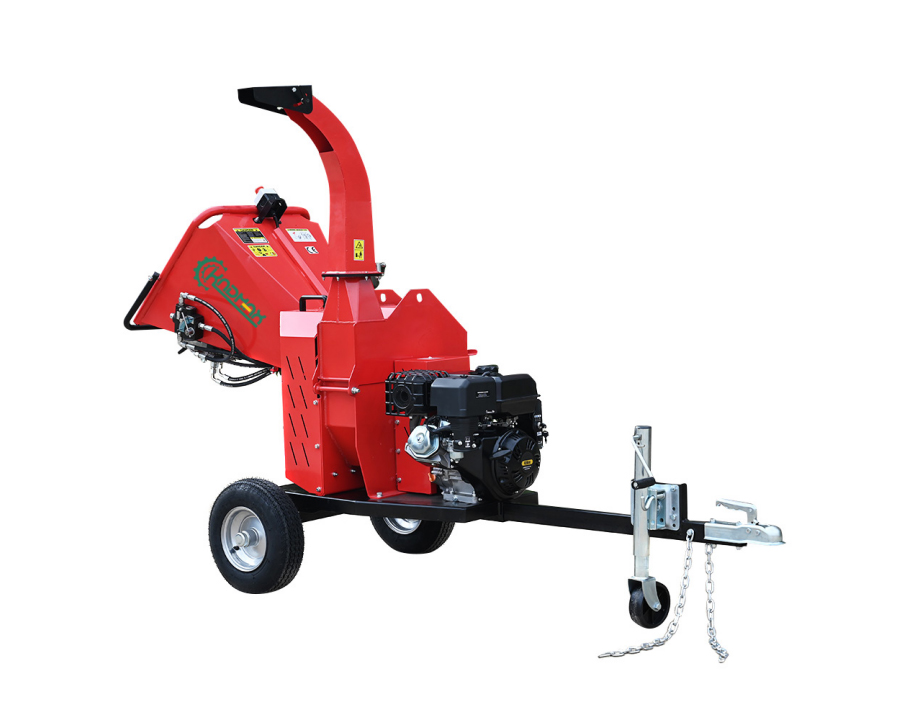

Invest in the KNDMAX HGC155 AUTOFEED HYDRAULIC SYSTEM WOOD CHIPPER and experience the power and efficiency it brings to your wood-chipping tasks. This professional-grade wood chipper is an indispensable tool for landscaping or forestry professionals.

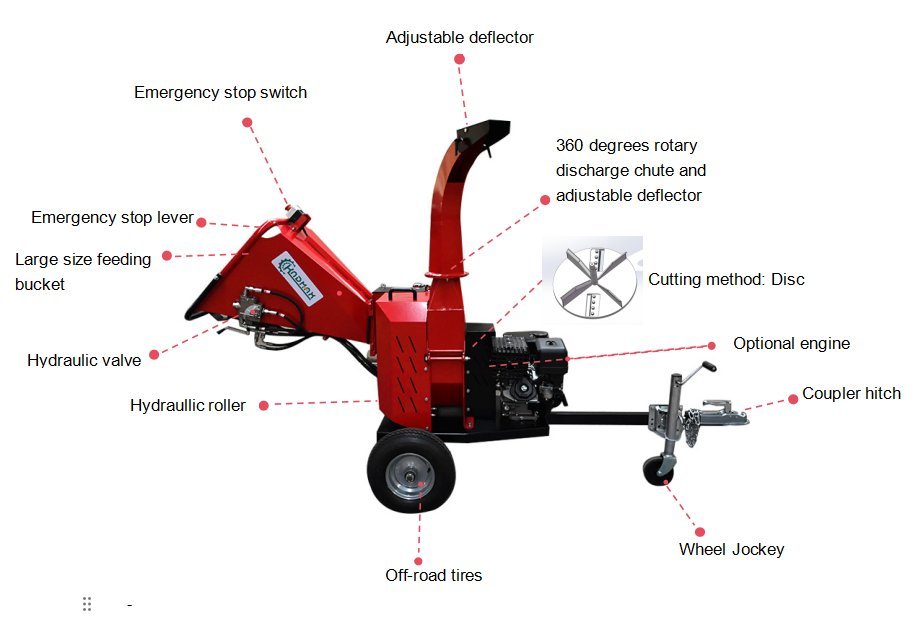

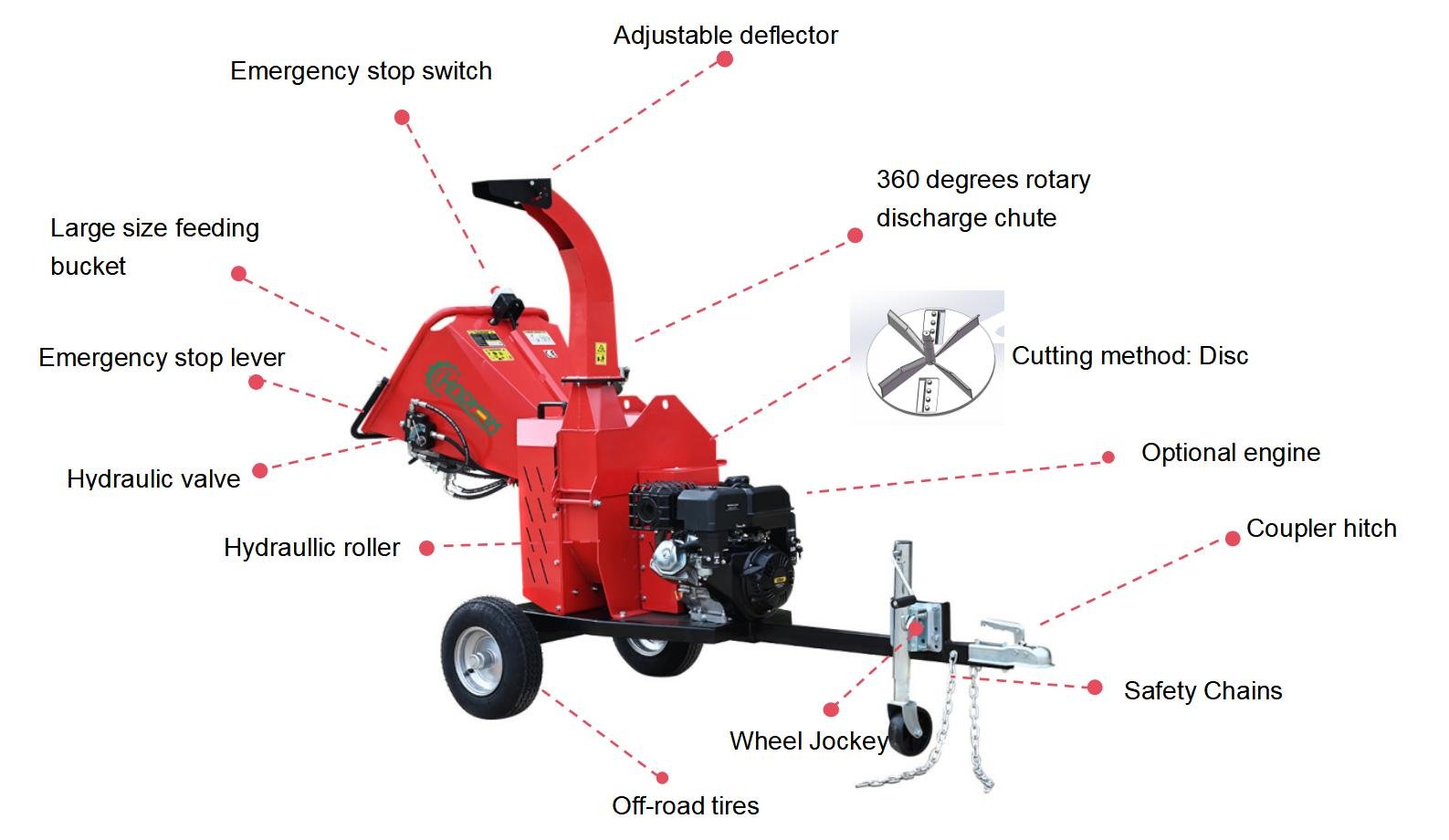

Overview:
15HP engine provide strong power to help the machine maximize the performance.
Durable fly wheel ensures the operation is more stable ,more powerful.
Hydraulic control roller makes the feed are adjusting more easily.
Quick hitch draw bar, agricultural field tires, 360 degree rotating discharge chute.
Max diameter of wood chipper up to 5''
Feature:
Efficient Petrol Engine - The 420cc, 15 HP petrol engine with recoil start delivers the power you need for efficient operation.
Road Towable Hitch - This chipper can easily tow behind an ATV or UTV for convenient movement and it is ready to go wherever the job takes you.
Hydraulic Feeding System - Facilitates easy feeding of logs and branches into the chipper, maximising efficiency and reducing workload.
Cutting method - Disc
| Model | HGC155 |
| Engine | 15HP, Single cylinder, four stroke, air cooling |
| Net Power | 3600rpm,11kw |
| Max. Chipping Diameter | 130mm |
| Weight | 301kgs |
| External dimensions | 2885×1030×1735mm |
| Type of Fuel | Gasoline |
| Starting method | Electric |
| Wheel Tire | 4.8-8 |
| Cutting method | Disc |
| Cutter wheel RPM | 2000 rpm/min |
| Blade Nos. | 2 × Moving knives, 1 fixed knife，10×fly knives |
| Drive | Direct Belt Drive /Centrifugal Clutch |
| Chipper | Yes |
| Shredder | No |
| Recommended Oil | 10W-30 oil (5W-30 is recommended for cold weather climate) |
| Feeding system | Hydraulic Feeding System |
| Hydraulic oil and oil tank capacity | N46，4L |
| Package Size | 1520×1130×1130mm |
| Net Weight | 301kg |
| Gross Weight | 321kg |
| 20GP Loading Qty. | 14pcs |
| 40GP Loading Qty. | 30pcs |
| 40HQ Loading Qty. | 30pcs |
