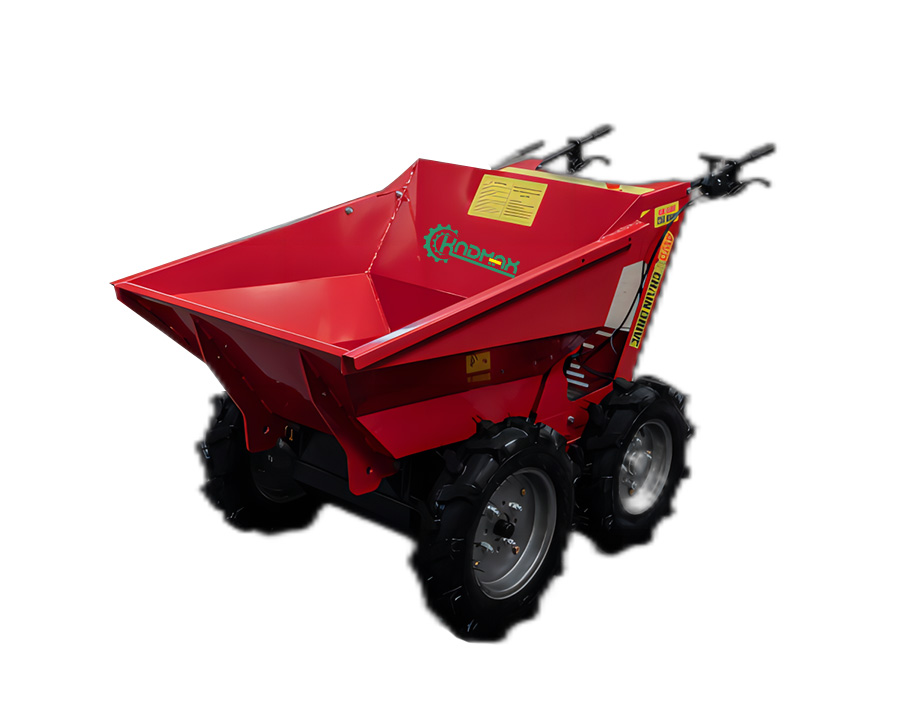

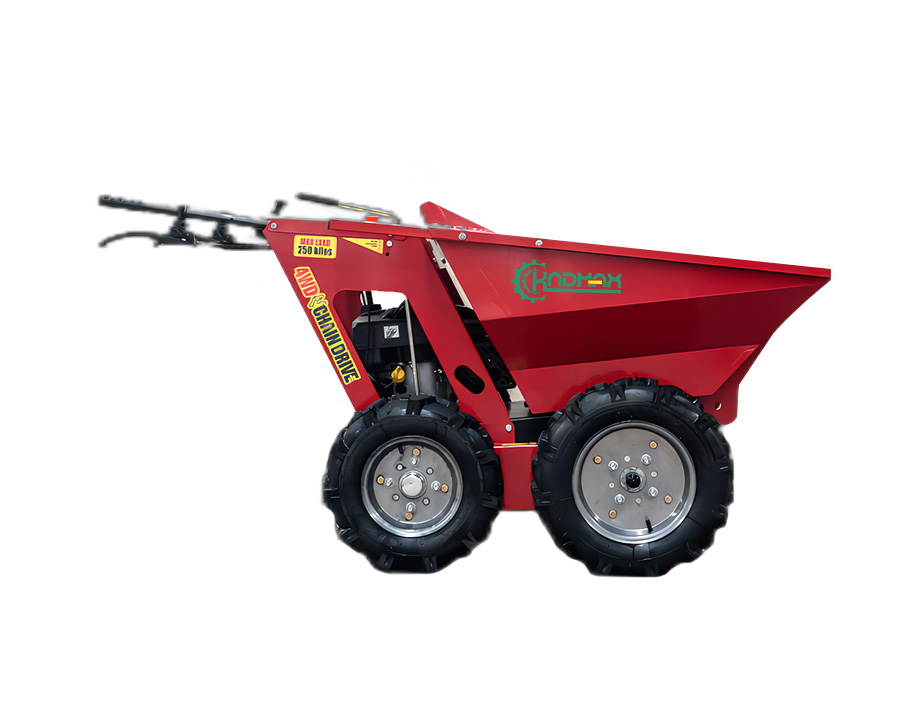

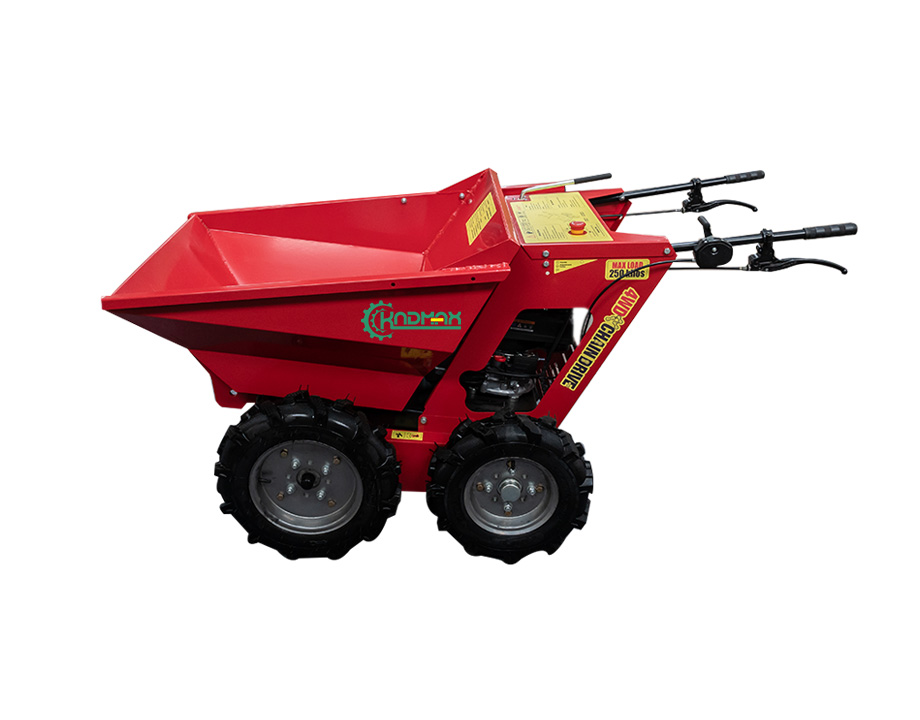

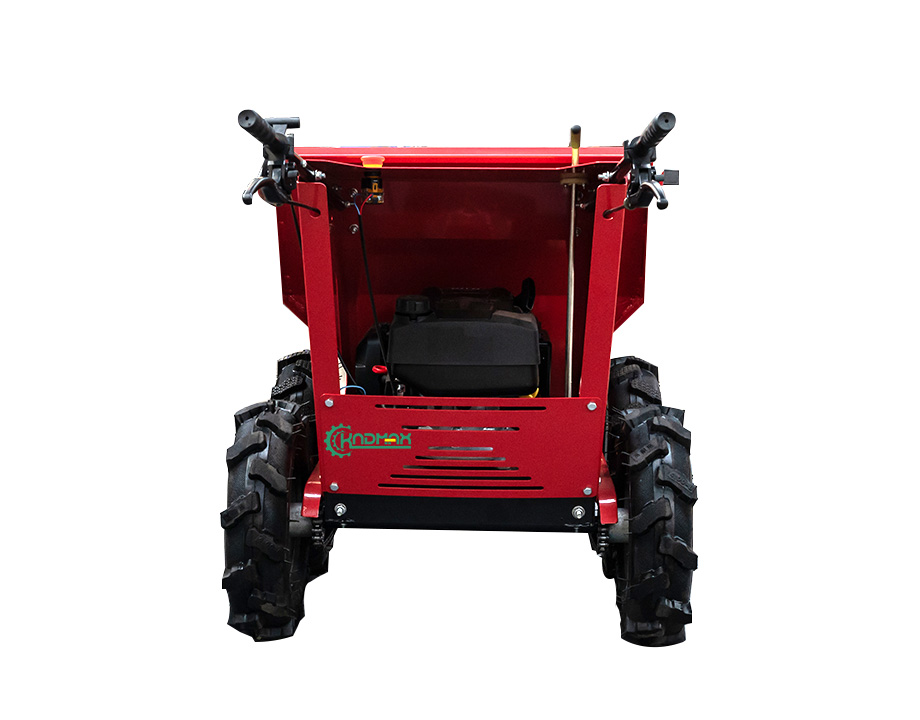

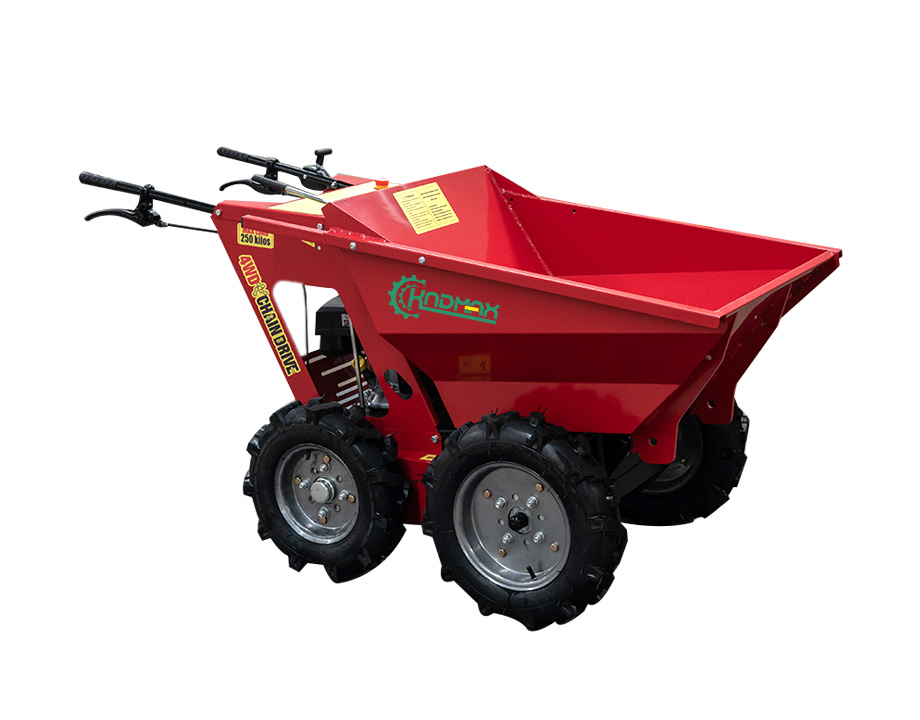

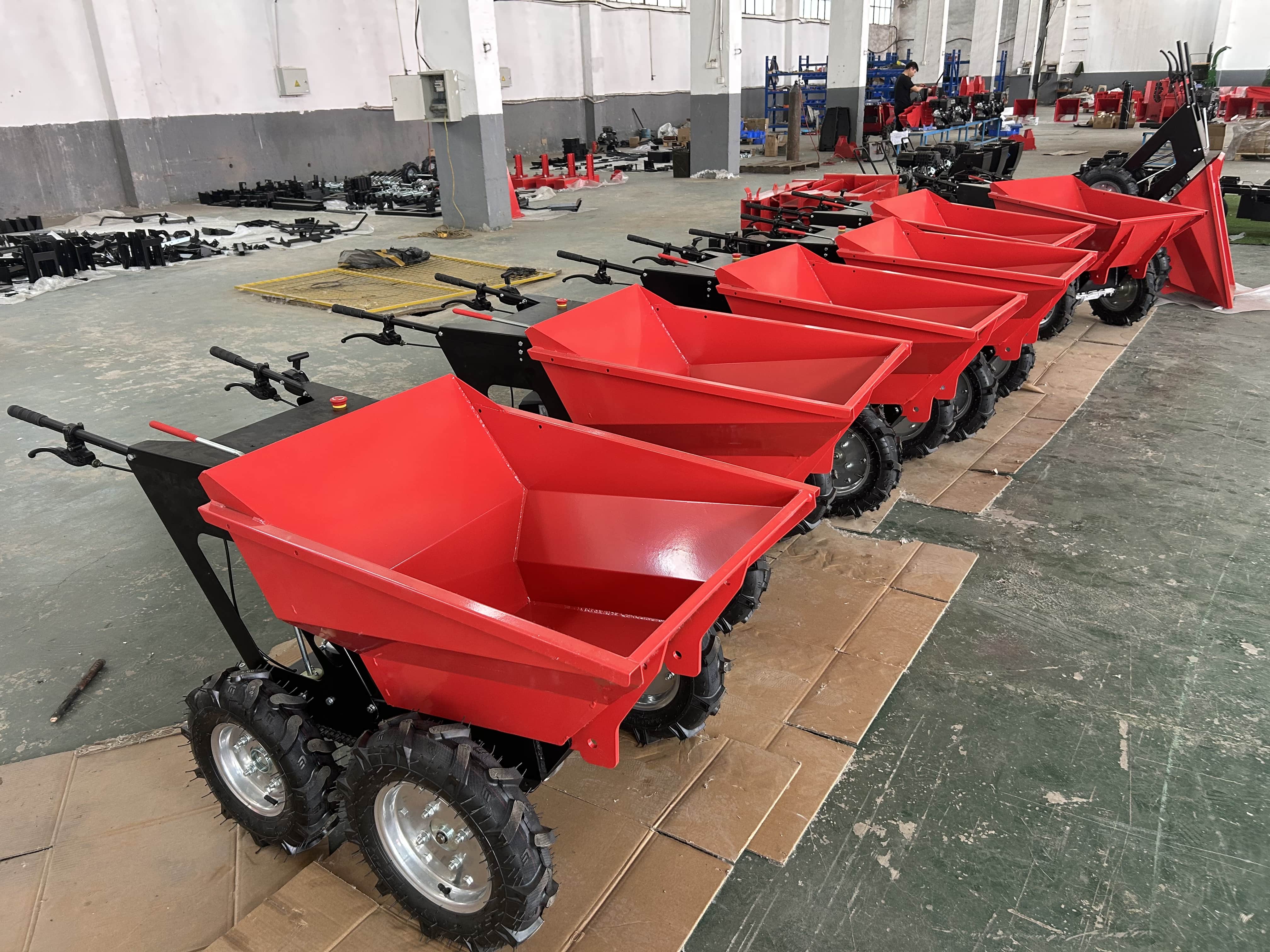

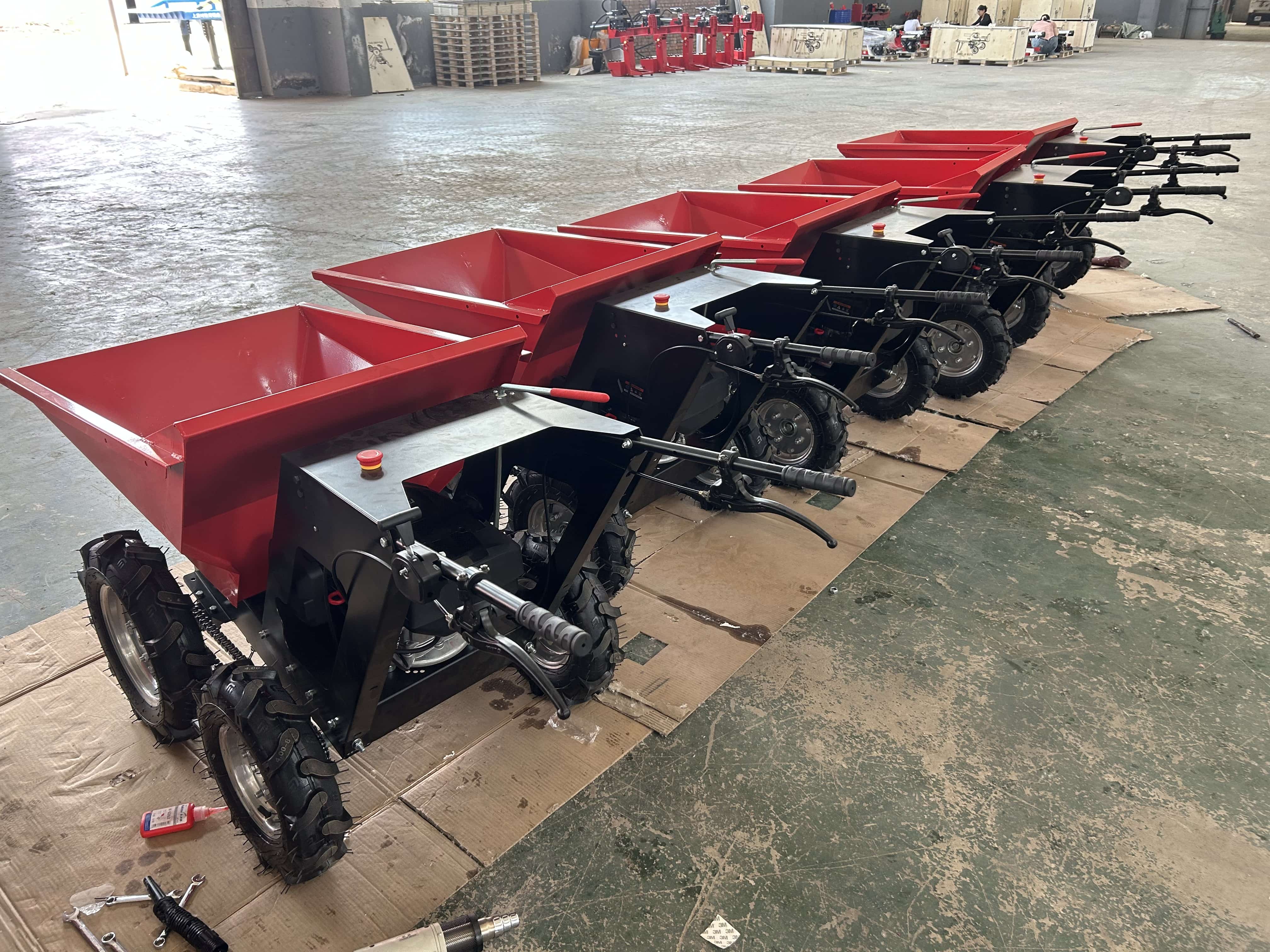

KNDMAX MD250 Mini Wheel Dumper is a vertical shaft gasoline engine powered 4*4 wheel dumper, with 4F+1F driven mechanical transmission, the left & right unilateral brake helps the steering. The Max. loading capacity is 250kgs. The dumper tipping bucket thickness is 2mm, suitable for various conditions for loading stones and bricks, wood, crops and fruits.
| Engine | Single cylinder, four stroke, air cooling,6.5HP |
| Transmission | 4F + 1R |
| Manuel/Electric | Manuel |
| Net Weight | 128kgs |
| Gross Weight | 148kgs |
| Loading Capacity | 250kgs |

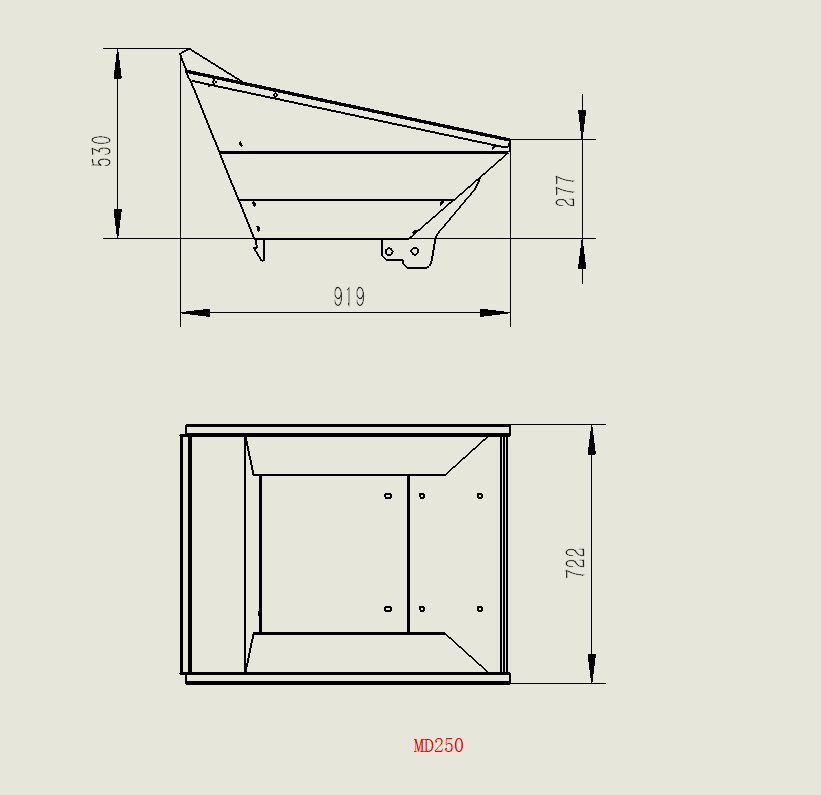

| Bin size | 920×666×520mm |
| Tire size / Track Width | Front 400-10，Rear 400-8 |
| Tipping | Manual |
| Speed | Forward Speed：0-5.5 km/h，Reverse Speed：0-2.5 km/h |
| Recommended Oil | 10W-30 oil (5W-30 is recommended for cold weather climate) |
| Type of Fuel | Gasoline |
| Hydraulic oil and oil tank capacity | No |

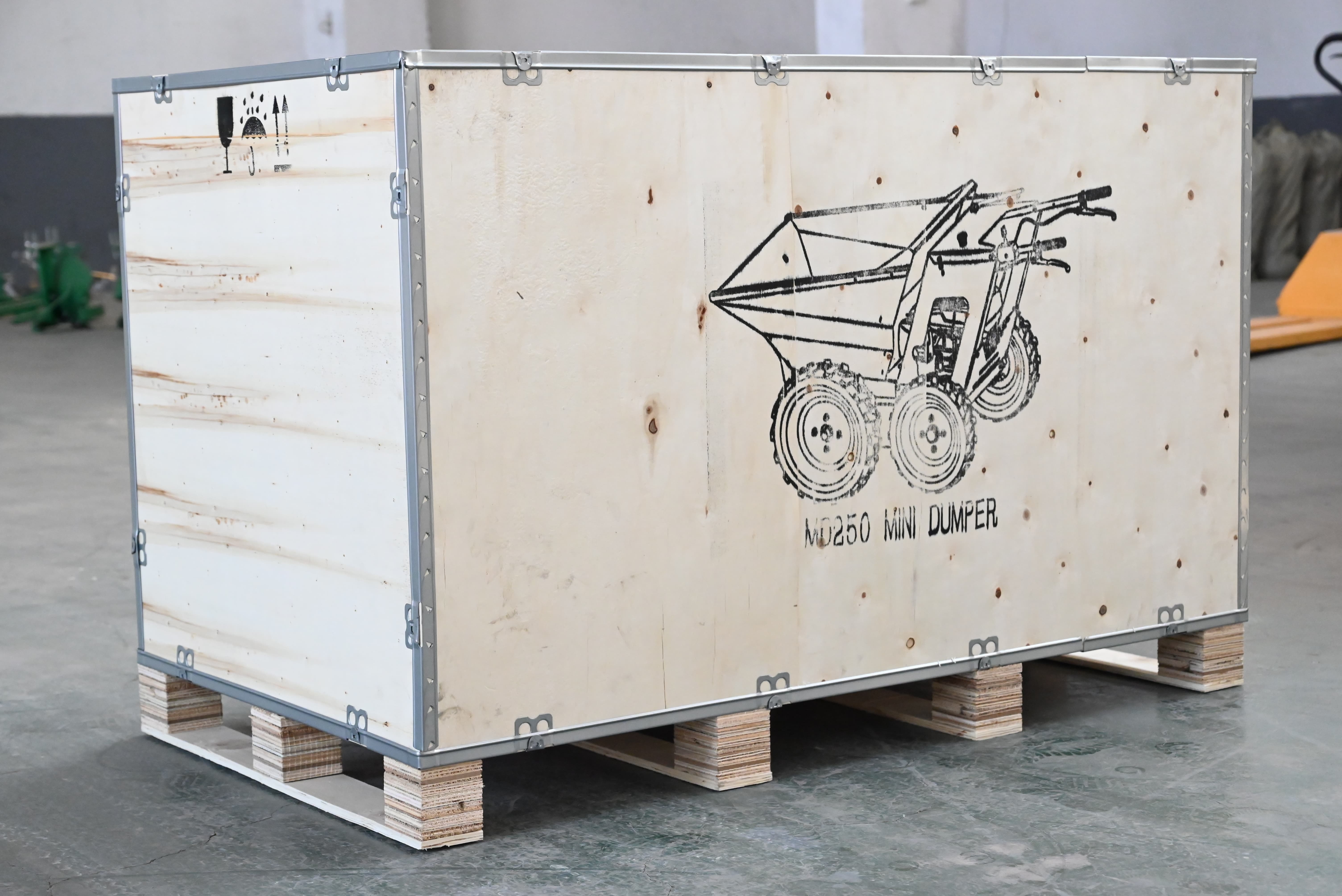

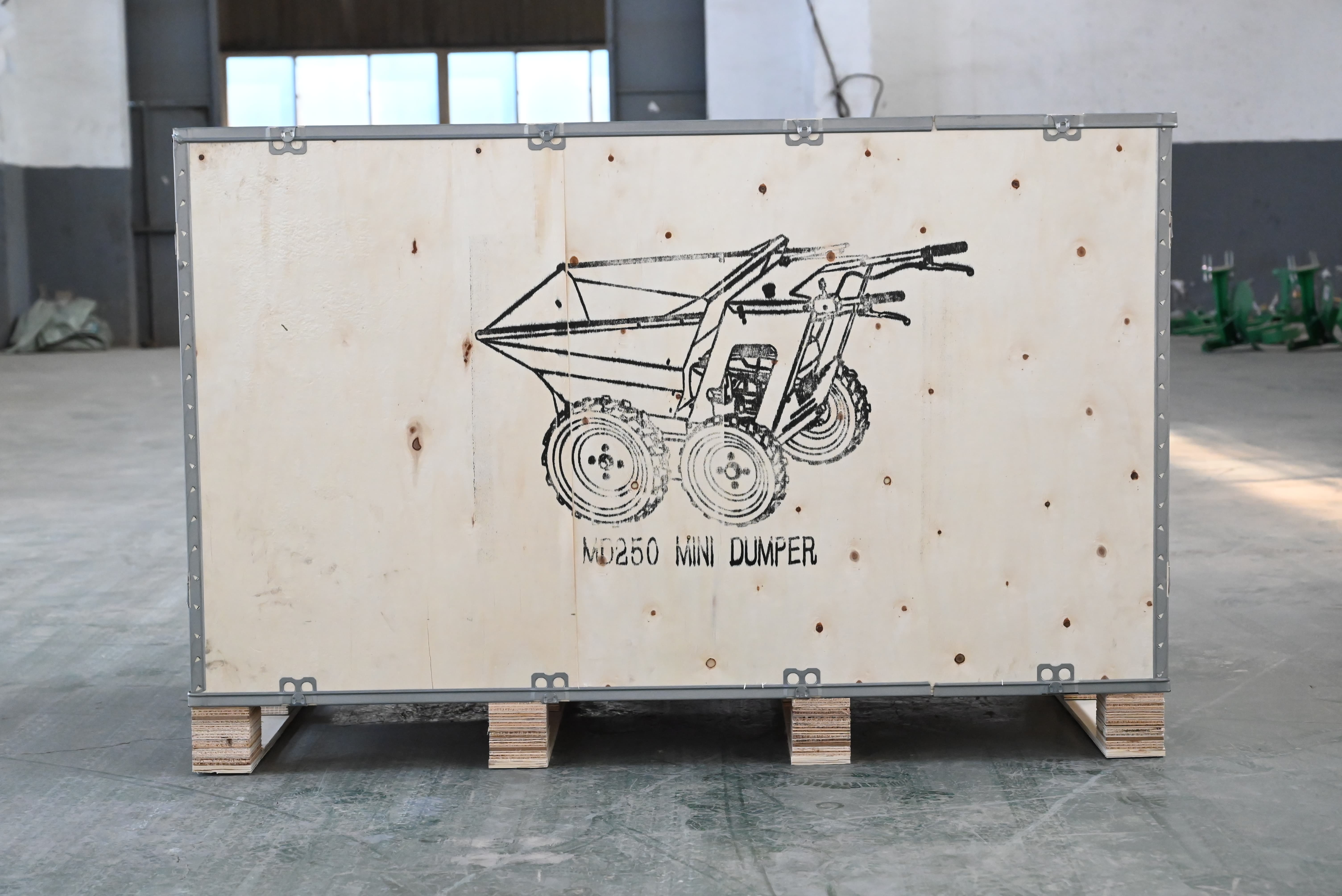

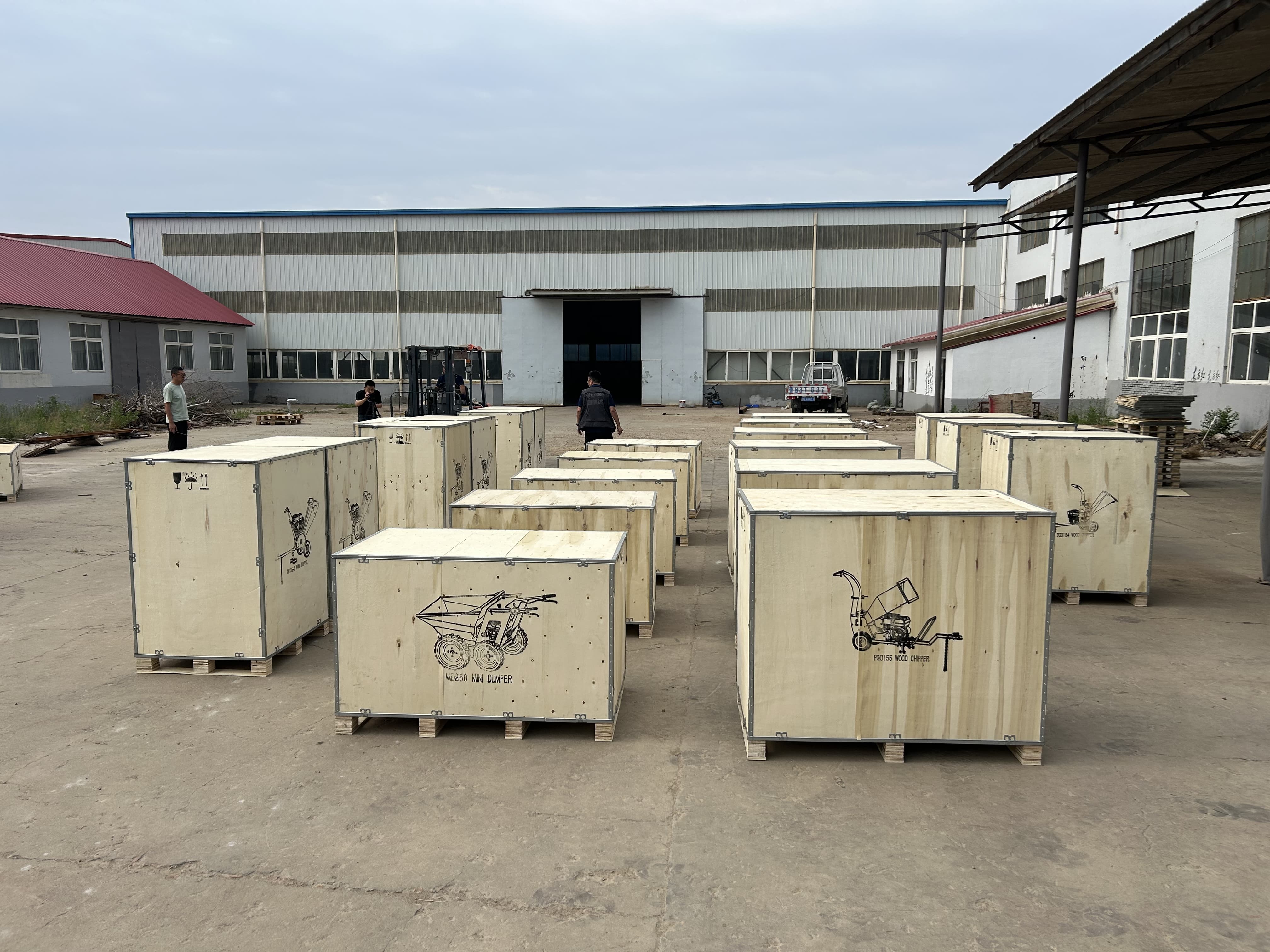

| Package Size | 1330×770×865mm |

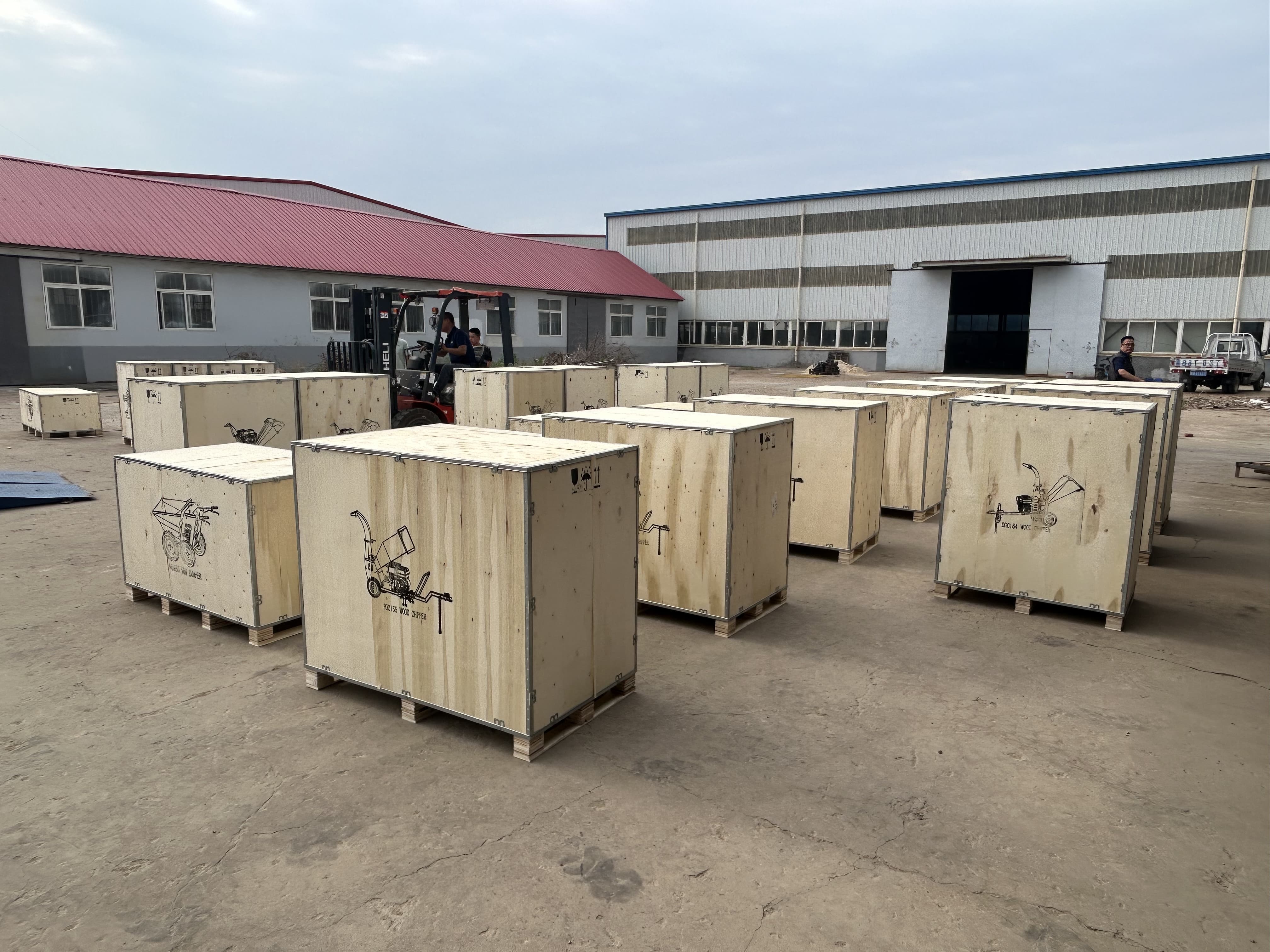

| 40HQ Loading Qty. | 81pcs |
Q & A
1.Q: What is the internal volume in liters?
A: The MD250 dumper has a capacity of 147 liters.
2. Q:Are there dump trucks with four-wheel drive or only 6.5HP gasoline mini dumper? In particular, electronic mini dumper should be equipped with four-wheel drive.
A: The only four-wheel drive mini dumper is the MD250, which is powered by a 6.5HP gasoline engine. The ED500 and ED500H mini dumper are electric two-front-wheel drive, and the HCD500 and HCD500FL are fully hydraulic crawler mini dumper. Electric four-wheel drive mini dumper are under development.
3. Q: What slope can your dump truck climb?
A: All dump trucks have a climbing angle of 20°
4. Q: Please describe the braking system
A: The MD250 dump truck is clutch-brake linked, and the brake is achieved through the friction brake disc on the gearbox.
5. Q: Small four-wheel drive gasoline dump truck: Can you provide a loading capacity of 300 kg?
A: In fact, it can load 300 kg, but it is not recommended to load 300 kg. If the dump truck is loaded with 300 kg, it will be difficult to turn. After all, the steering of this car relies on people pushing the transporter push rod to use the differential of the gearbox to achieve steering. If the transporter is loaded with 300 kg, it will be more difficult to turn.
