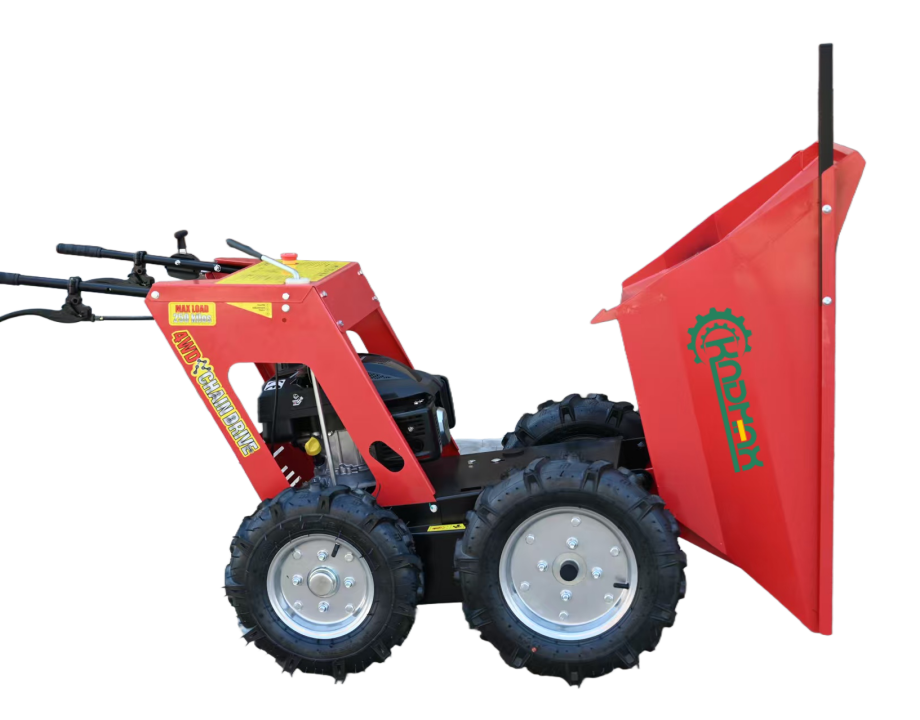

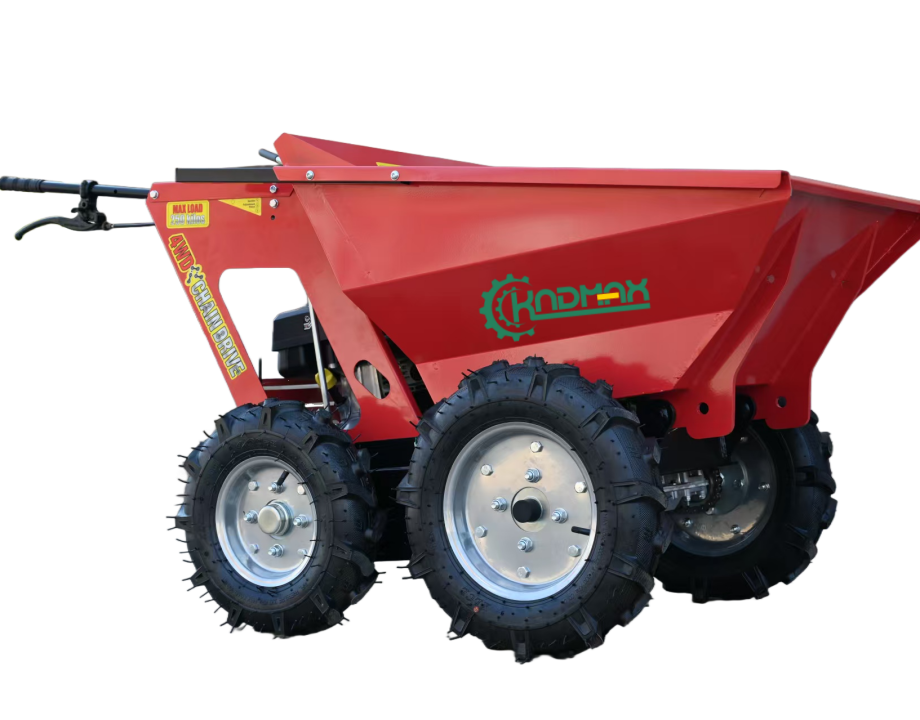

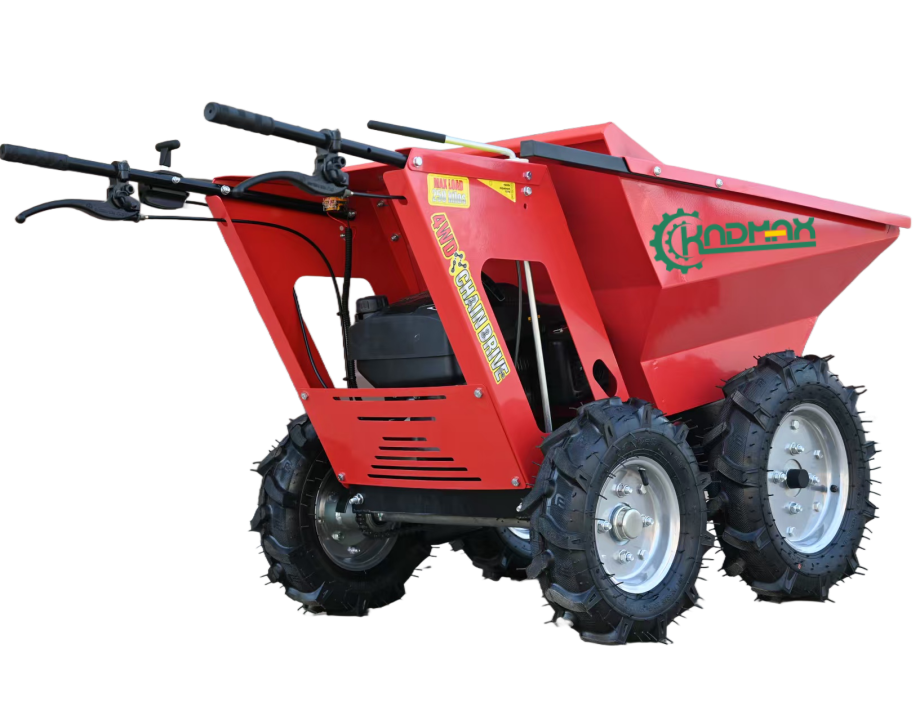

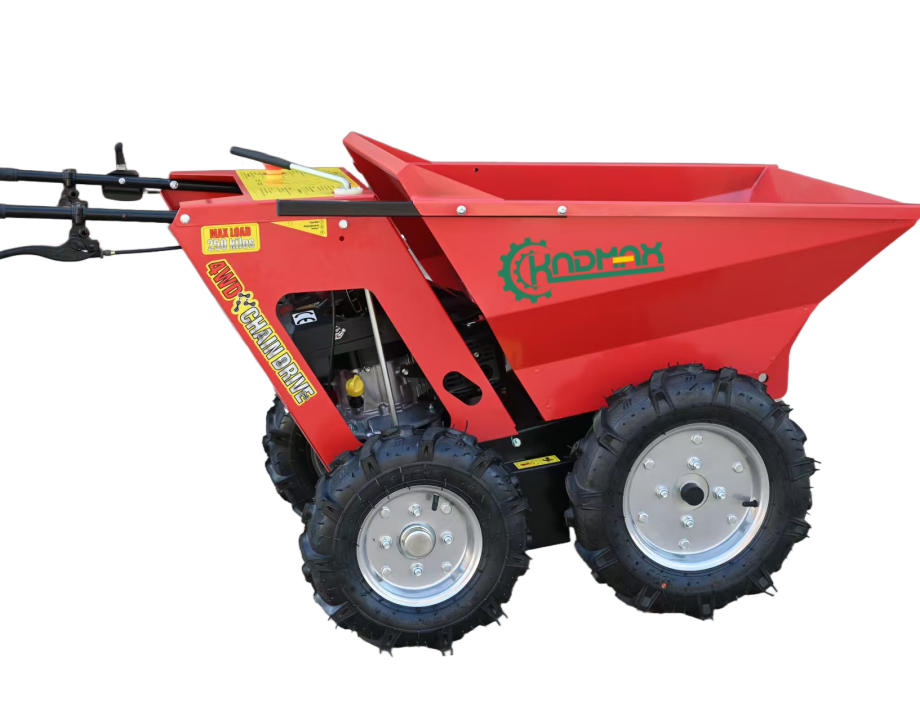

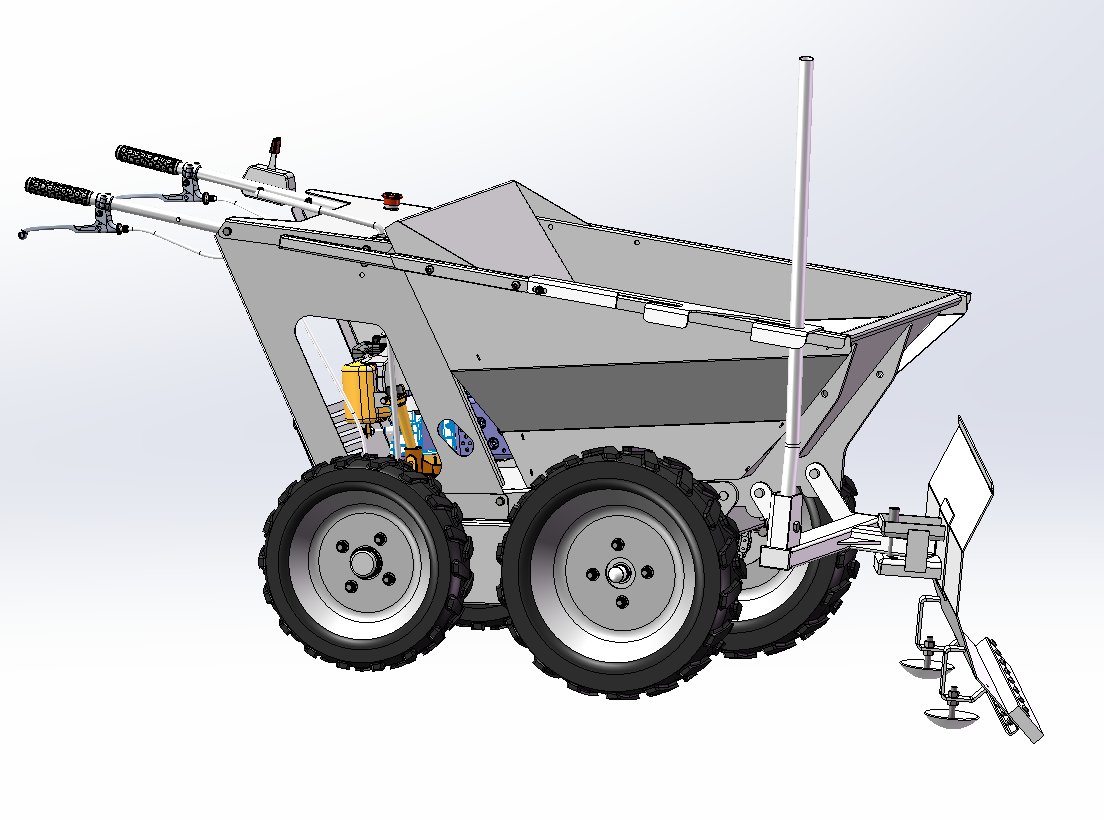

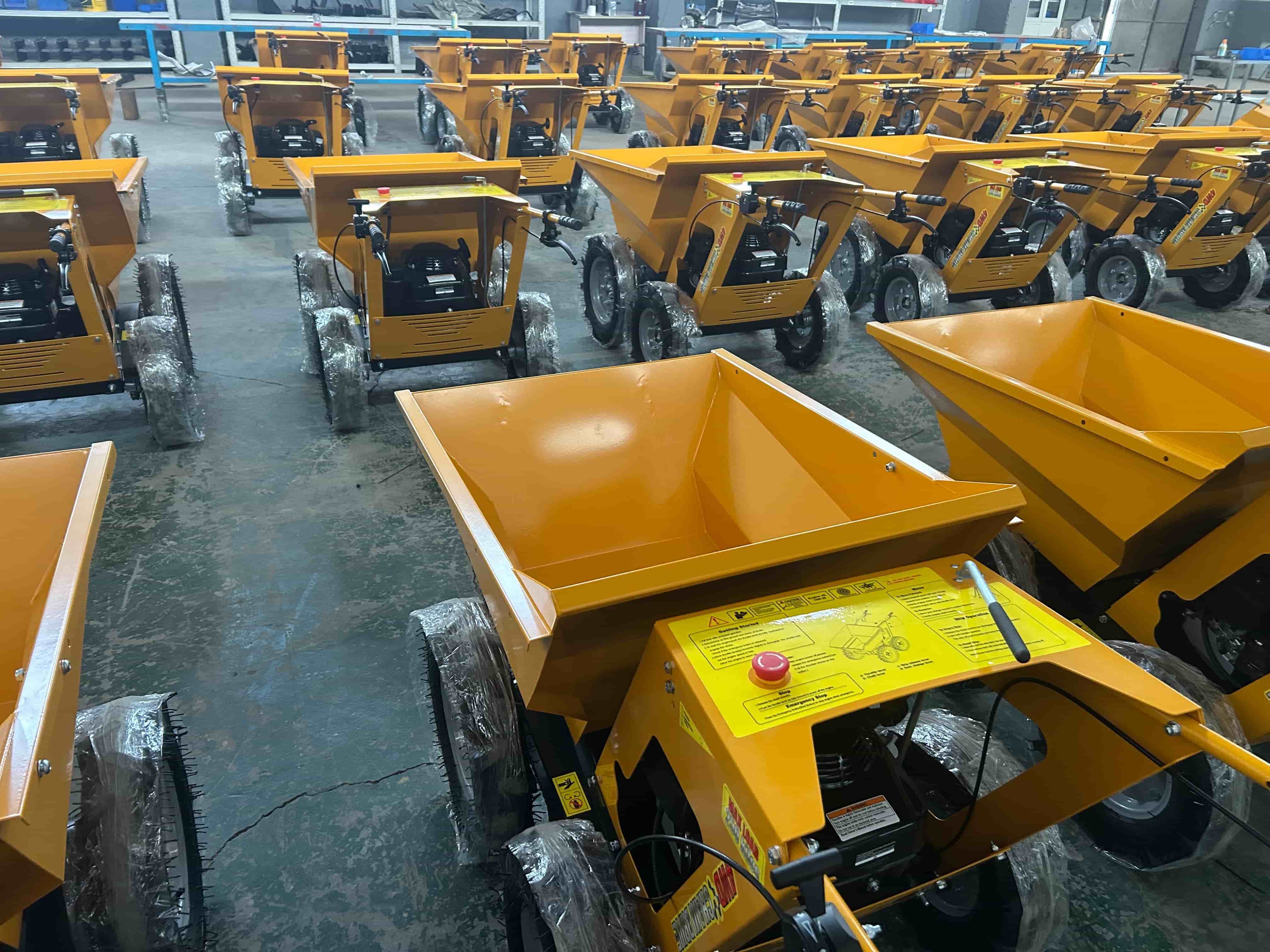

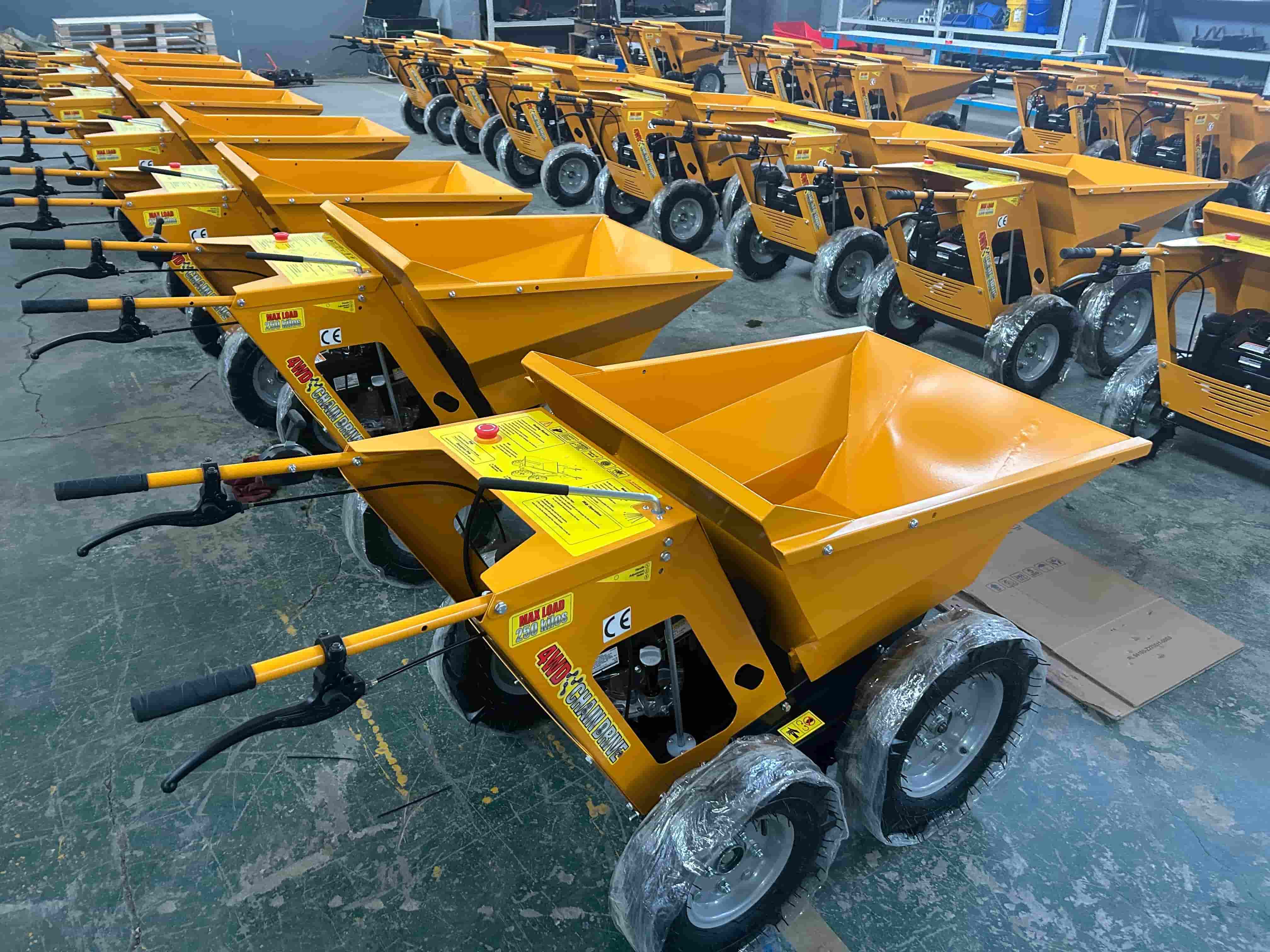

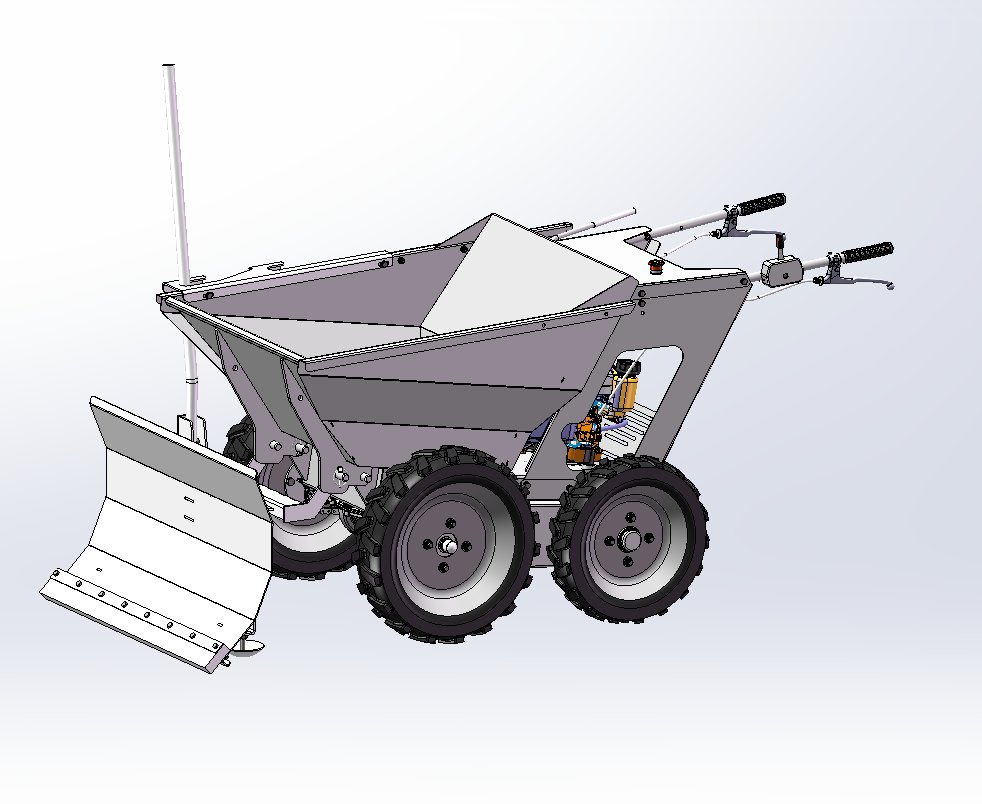

KNDMAX MD250 Mini Wheel Dumper is a vertical shaft gasoline engine powered 4*4 wheel dumper, with 4F+1F driven mechanical transmission, the left & right unilateral brake helps the steering. The Max. loading capacity is 250kgs. The dumper tipping bucket thickness is 2mm, suitable for various conditions for loading stones and bricks, wood, crops and fruits.

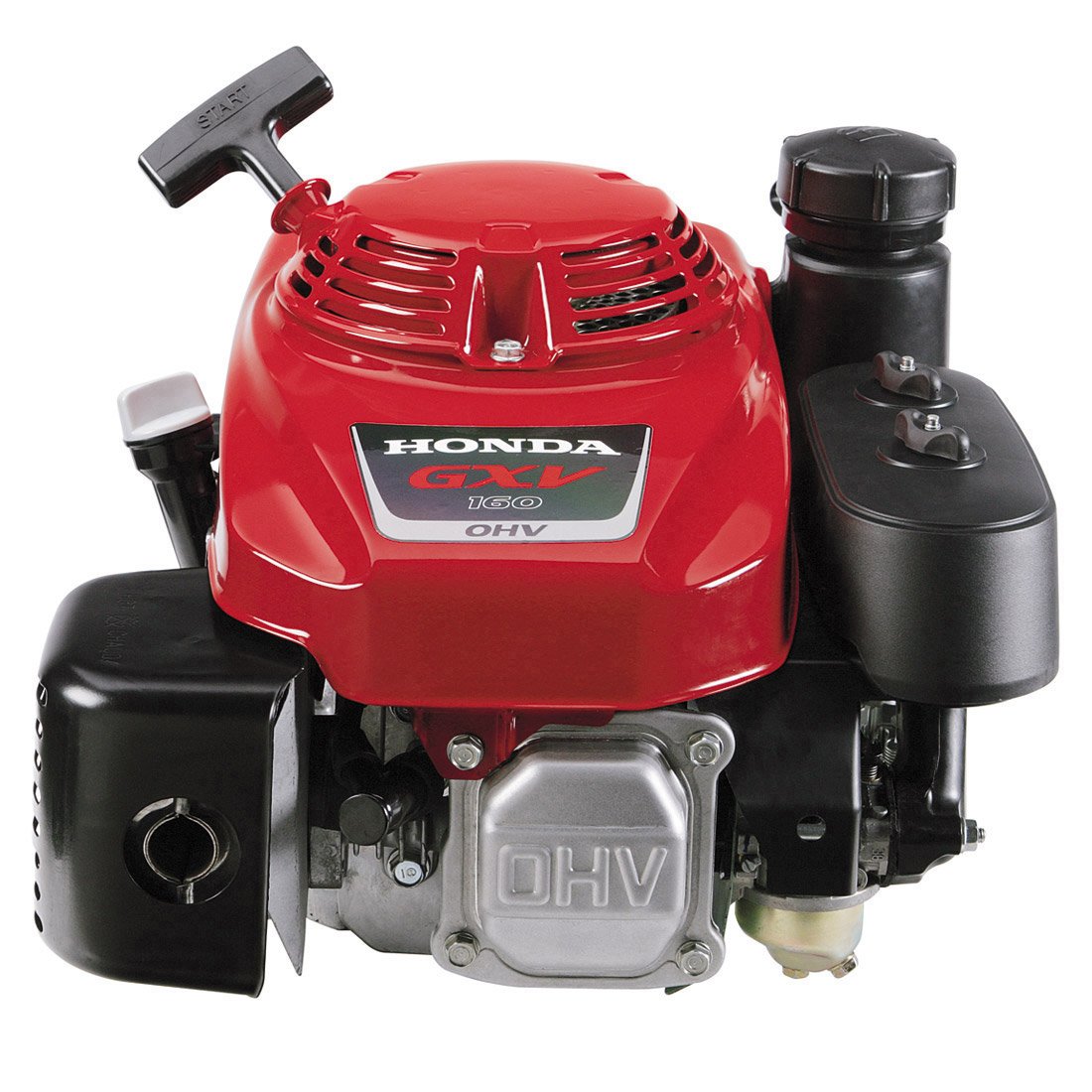

| Engine | Single cylinder, four stroke, air cooling, 6.5HP |
| Transmission | 4F + 1R |
| Manuel/Electric | Manuel |
| Net Weight | 128kgs |
| Gross Weight | 148kgs |
| Loading Capacity | 250kgs |

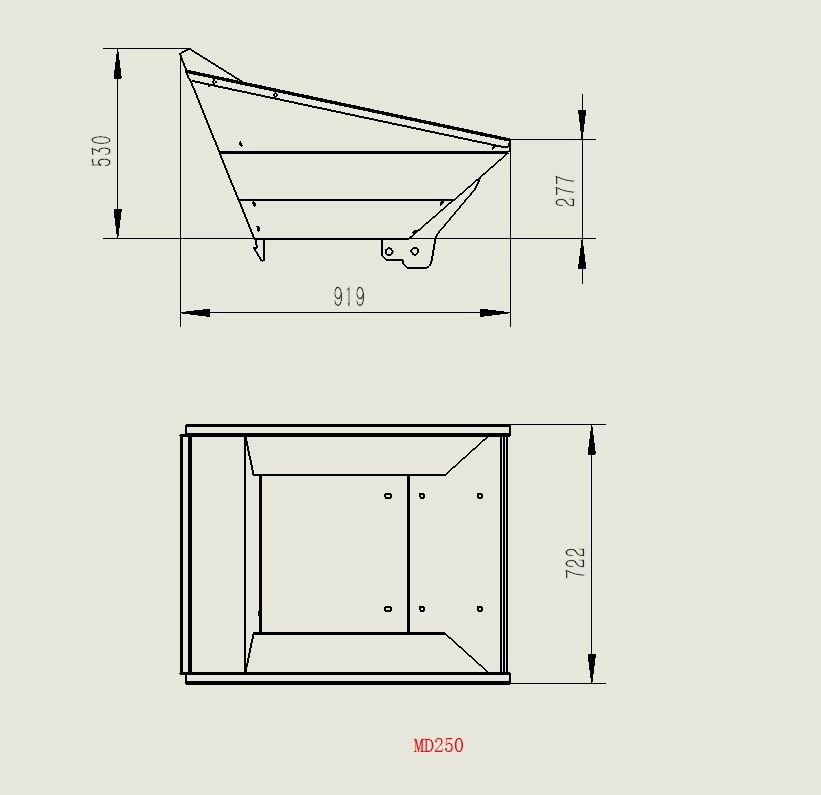

| Bin size | 920×666×520mm |
| Tire size / Track Width | Front 400-10，Rear 400-8 |
| Tipping | Manual |
| Speed | Forward Speed：0-5.5 km/h，Reverse Speed：0-2.5 km/h |
| Recommended Oil | 10W-30 oil (5W-30 is recommended for cold weather climate) |
| Type of Fuel | Gasoline |
| Hydraulic oil and oil tank capacity | No |
| Package Size | 1330×770×865mm |
| 40HQ Loading Qty. | 81pcs |
