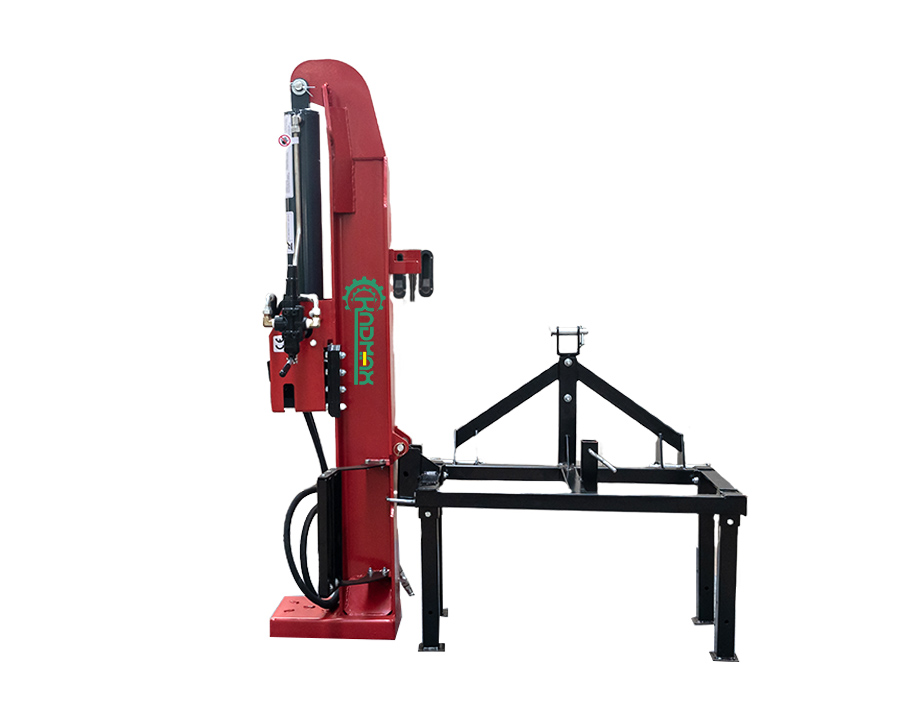

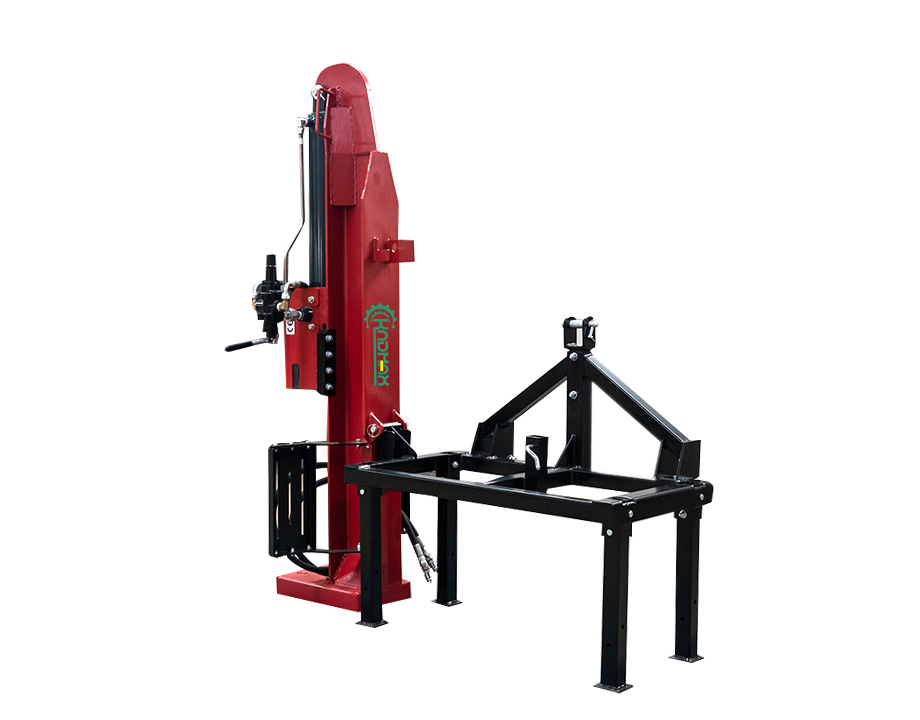

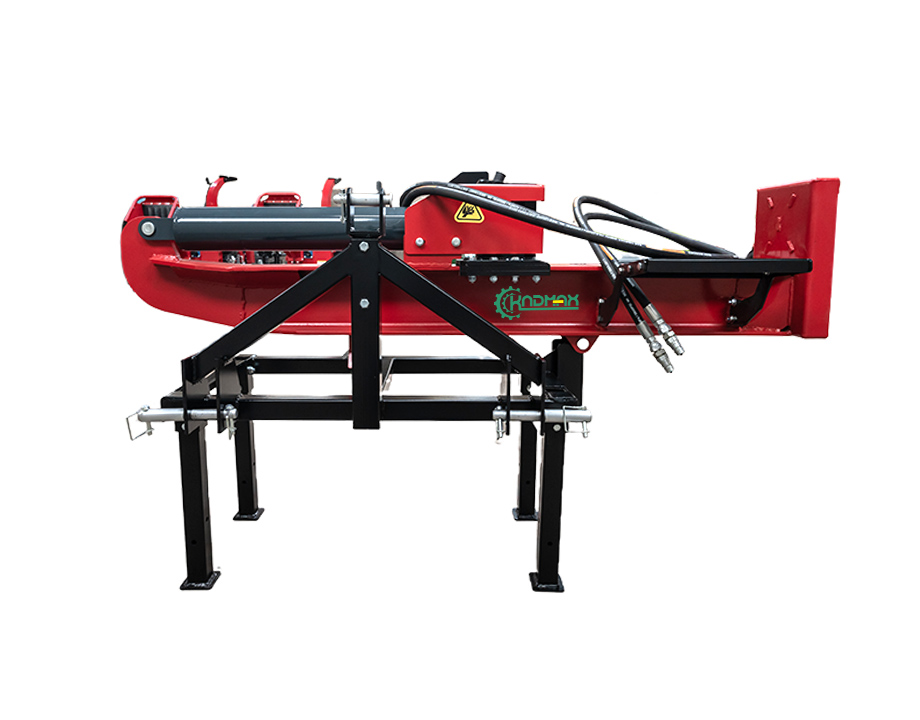

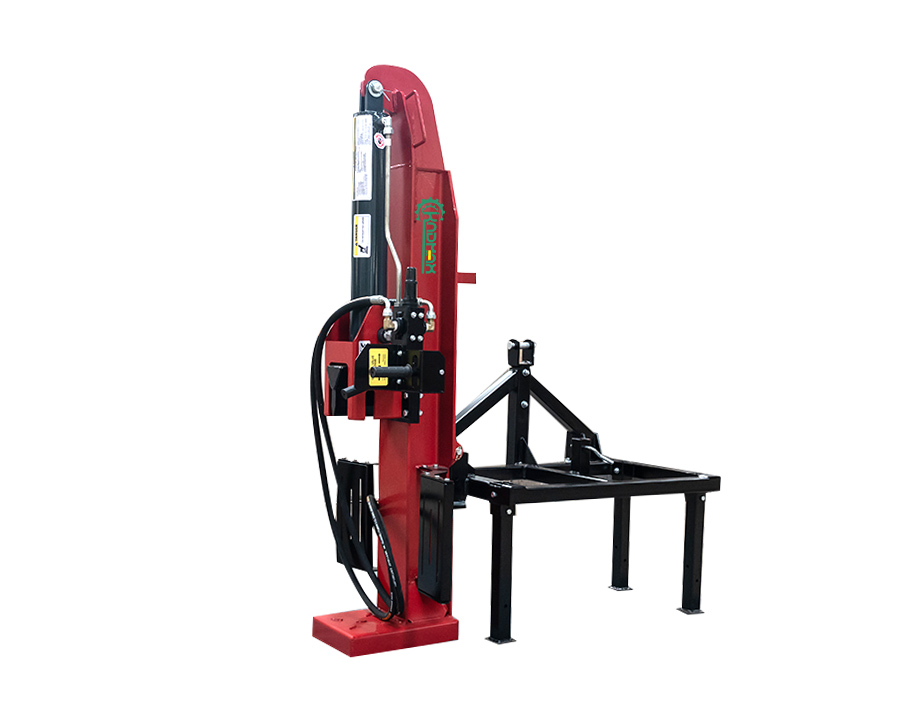

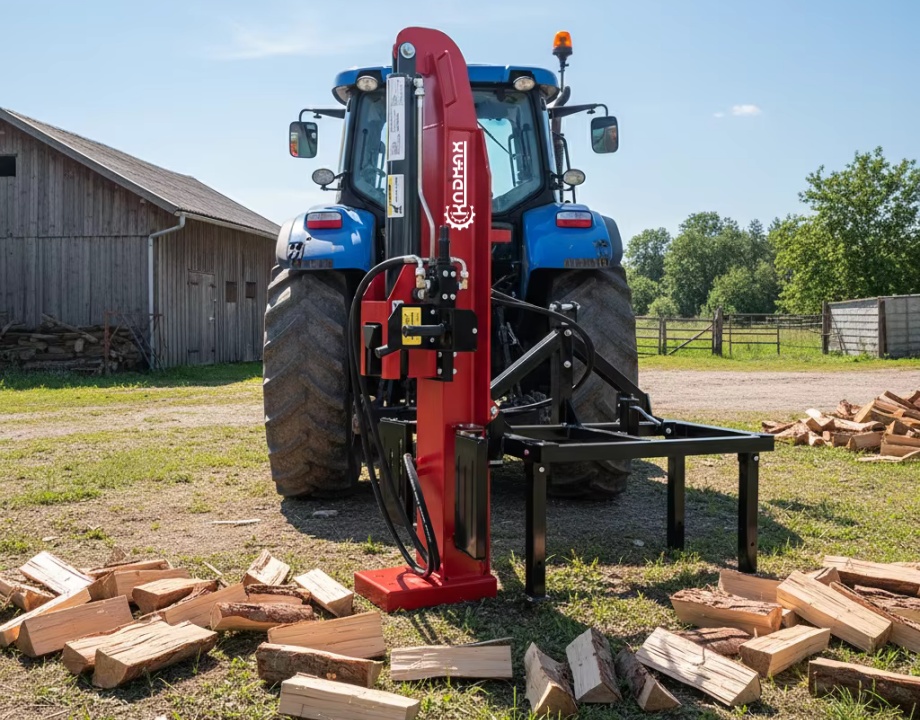

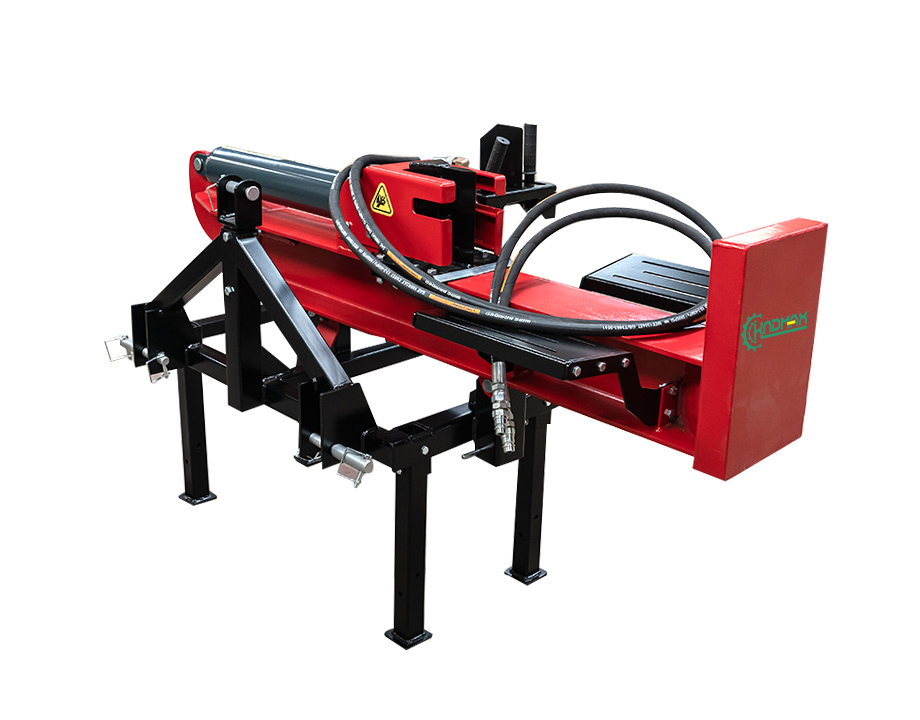

This Industrial 3 Point Tractor Drive Dual Action Horizontal / Vertical Log Splitter runs off your tractor's hydraulics and will split in both the horizontal or vertical position for the larger logs. This 3 point wood splitter is fully adjustable for any category 1 or category 2, 3-point hitch size. Working height is from waist level and can be lowered almost to the ground or as low as your 3 PT arms can go. We recommend your flow rate be a minimum of 8GPM. Your actual tonnage and split time will depend on your tractor's hydraulic output. Average split times can be from 6-11 seconds. The exact tonnage will depend on your tractor's output. Actual PSI of your tractor and other things such as environmental conditions can impact actual tonnage and cycle times. With the Industrial 3 Point Tractor Drive Dual Action Horizontal / Vertical Log Splitter, you will split wood like a pro and keep your fireplace full all winter.
| Model: | STWS0122 | STWS0128 | STWS0135 |
| Split Force: | 22t（Depending on the tractor） | 28t（Depending on the tractor） | 35t（Depending on the tractor） |
| Log Capacity: | 630mm | 630mm | 630mm |
| Recommended hydraulic system pressure for tractors | 15-28MPa | 15-28MPa | 15-28MPa |
| Cylinder inner Diameter: | 4inch | 4.5inch | 5inch |
| Hydraulic Rod Diameter: | 44.5mm | 44.5mm | 44.5mm |
| Hydraulic Cylinder Stroke: | 600mm | 600mm | 600mm |
| Size of cleaver: | 200mm | 200mm | 200mm |
| Tractor mounted | CAT1, CAT2 | CAT1, CAT2 | CAT1, CAT2 |
| Recommended hydraulic flow rate for tractors | 8-12GPM | 10-15GPM | 13-18GPM |
| Overall dimensions: | 1795*796*1006mm | 1795*796*1006mm | 1795*796*1006mm |
| Net Weight | 207kg | 211kg | 220kg |
| Gross Weight | 227kg | 231kg | 240kg |
| Packing size (mm) | 1840×720×630 | 1840×720×630 | 1840×720×630 |
| 40HQ FCL | 76 | 76 | 76 |
If you have any questions, please leave a message, we will reply as soon as possible.
