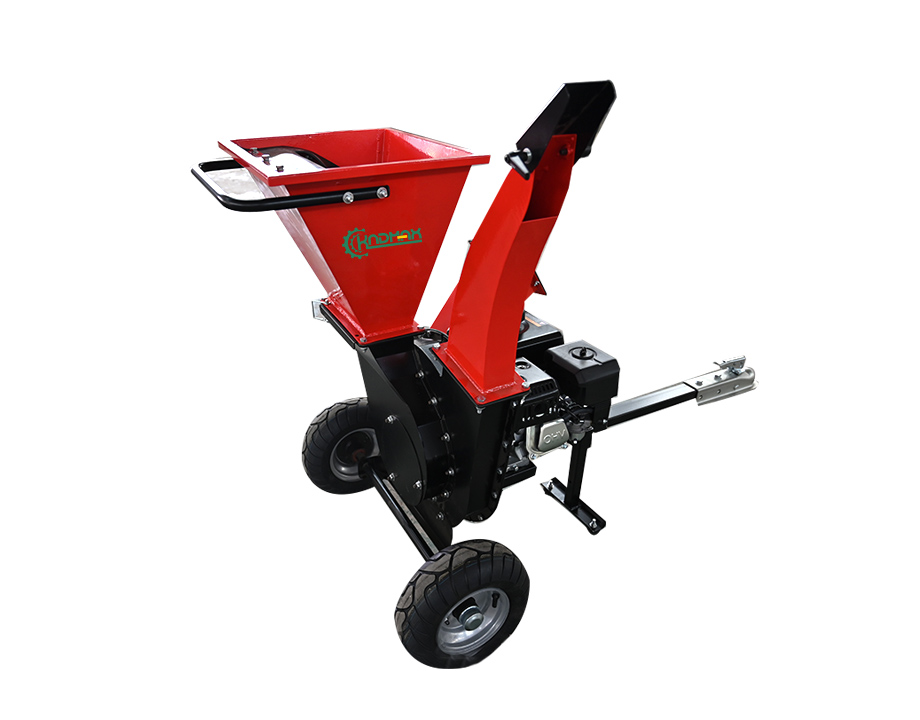

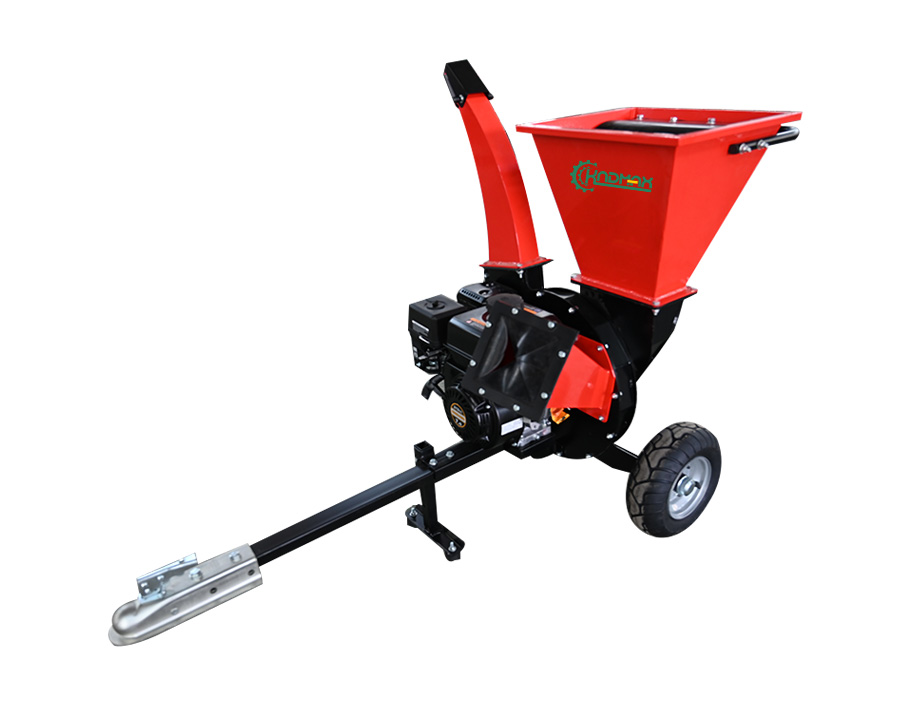

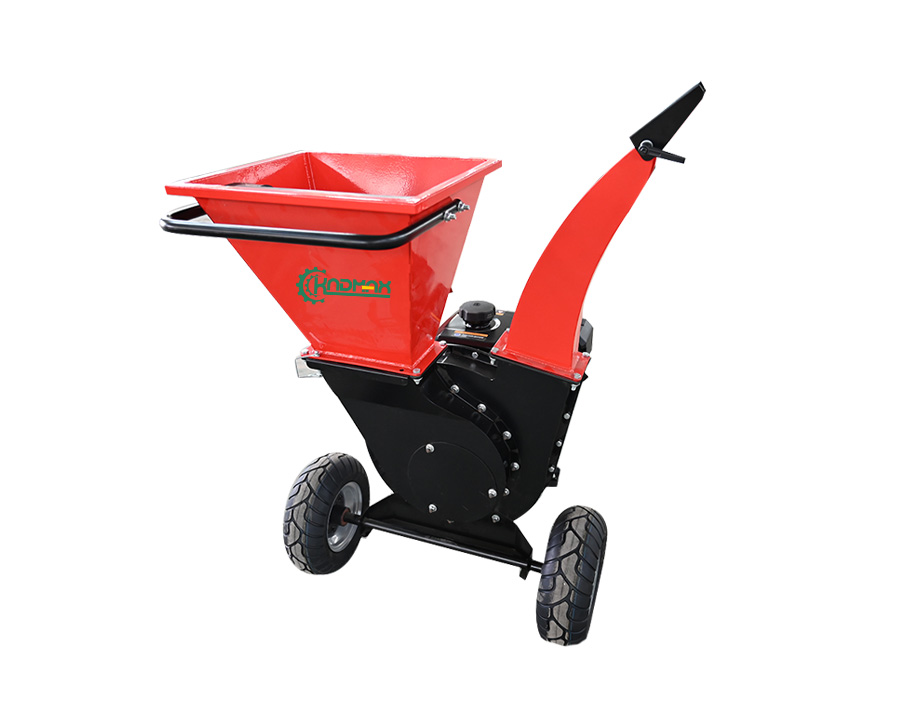

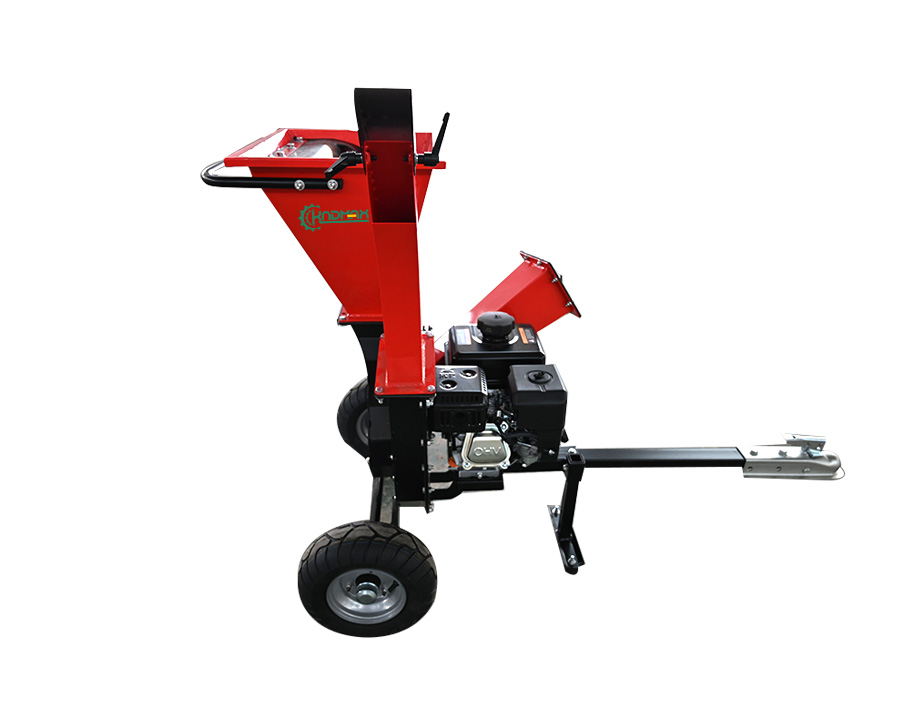

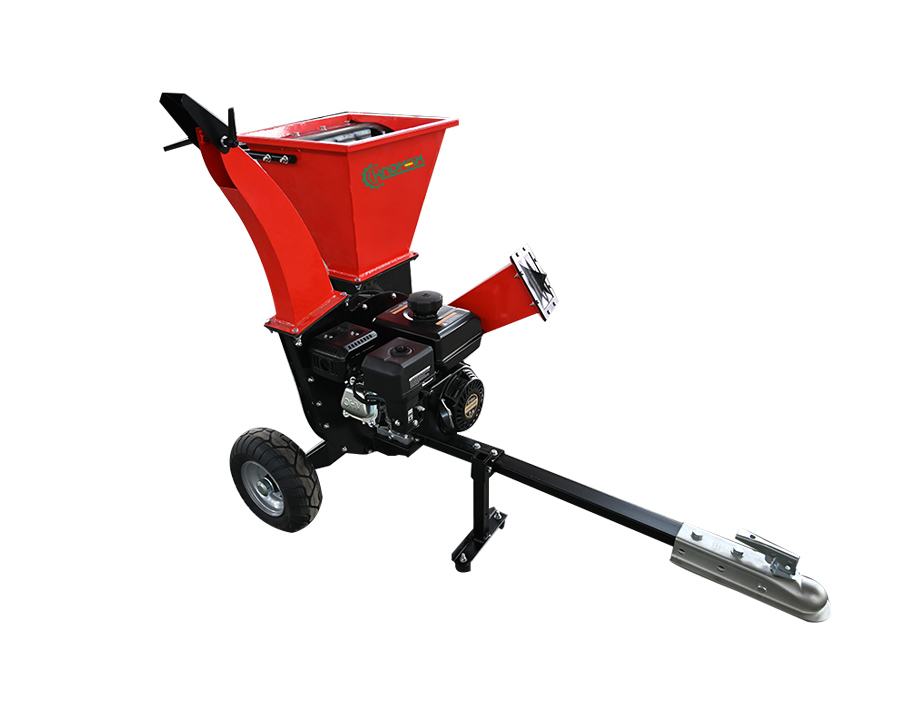

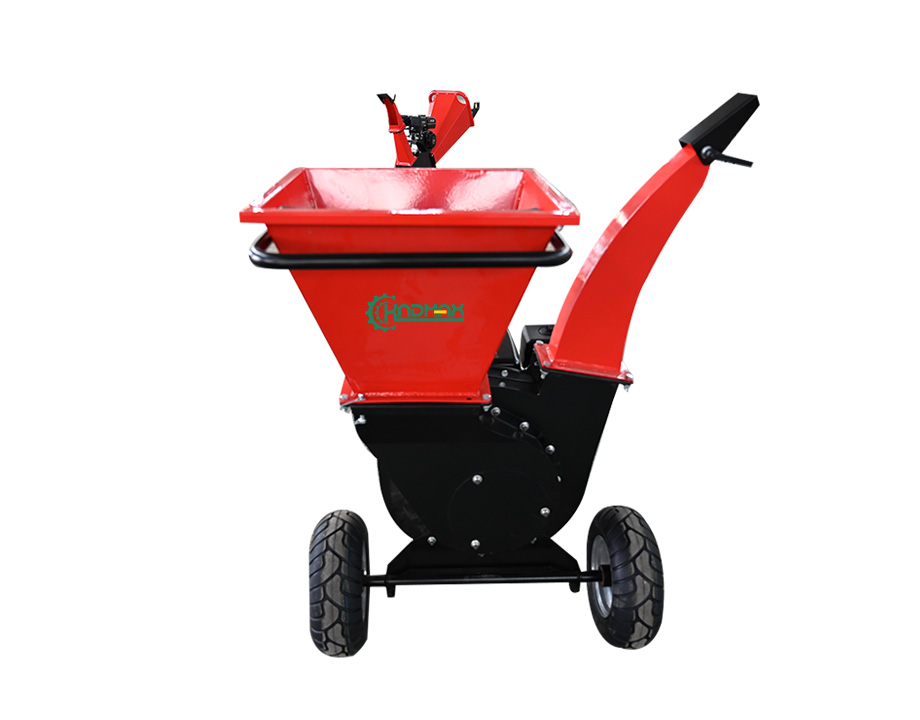

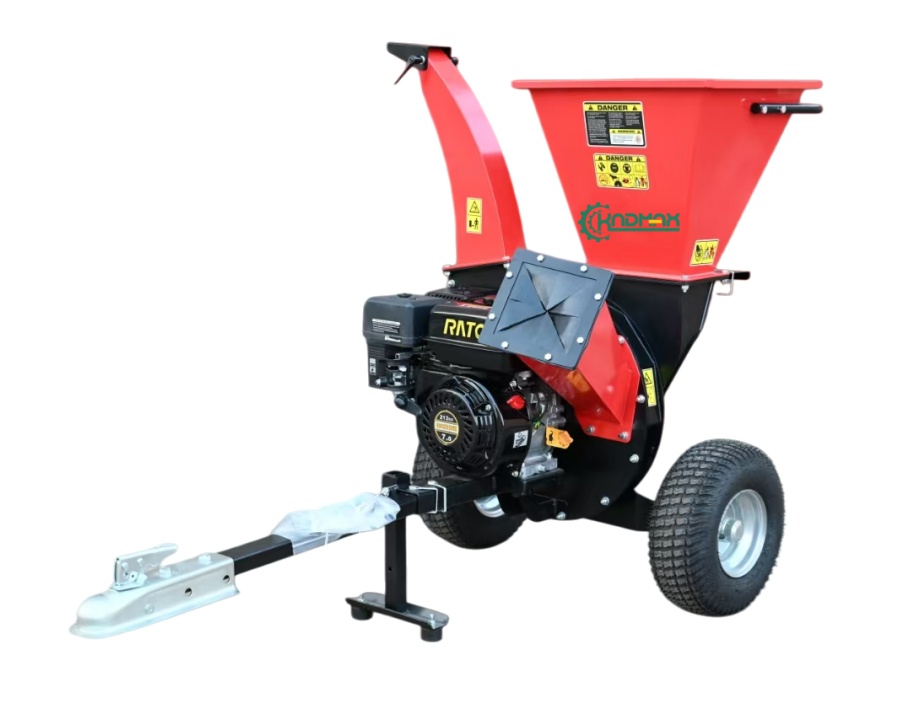

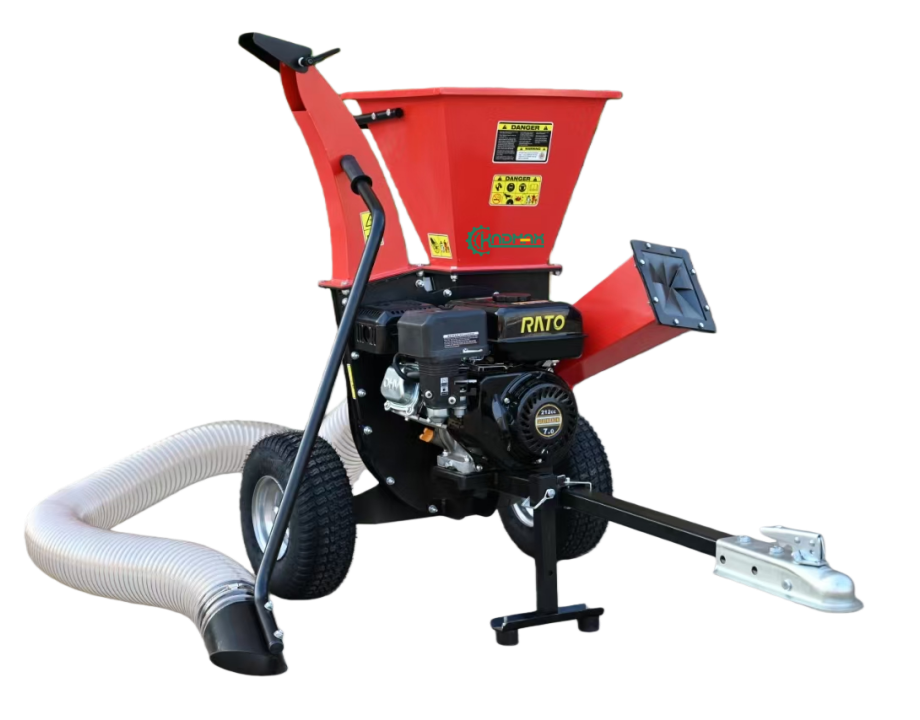

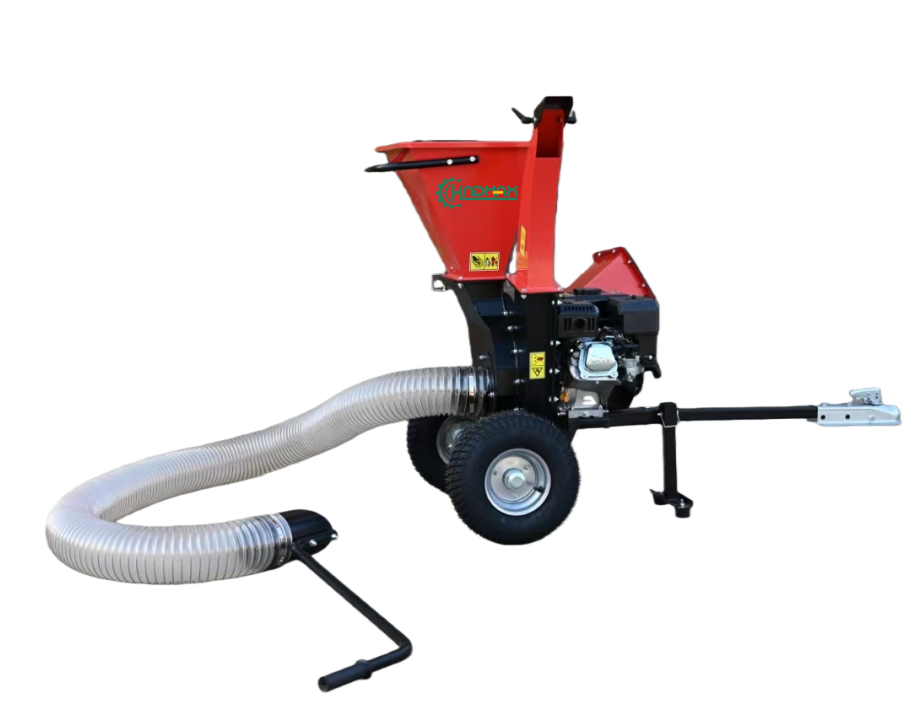

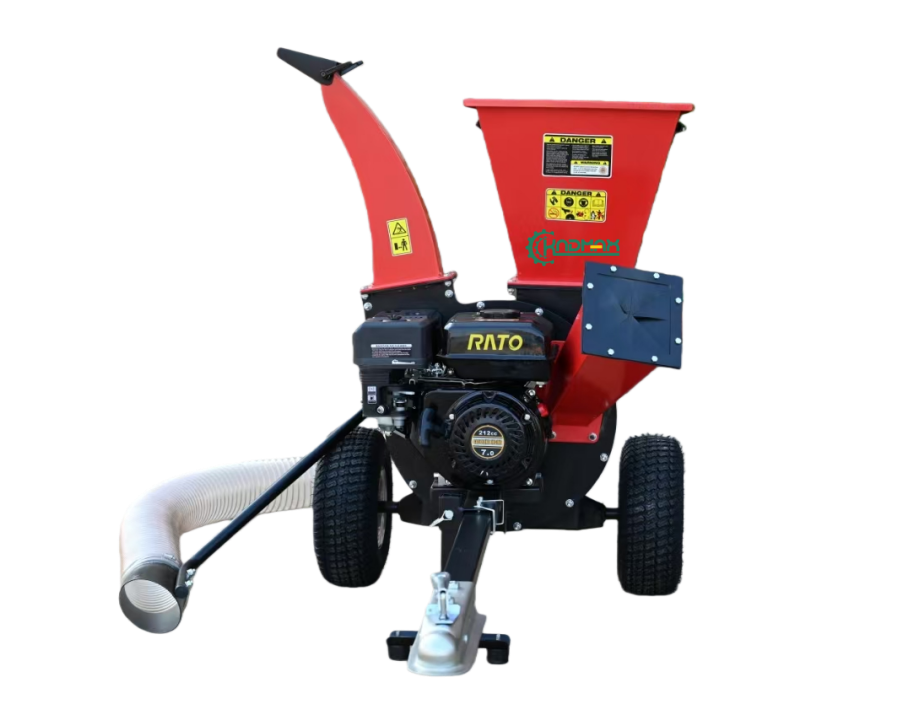

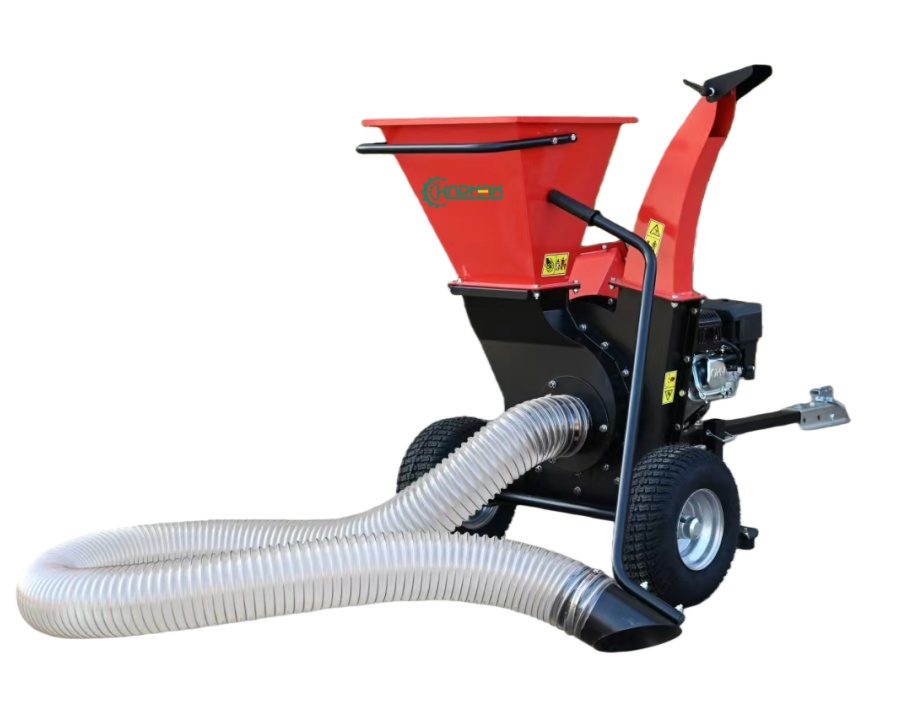

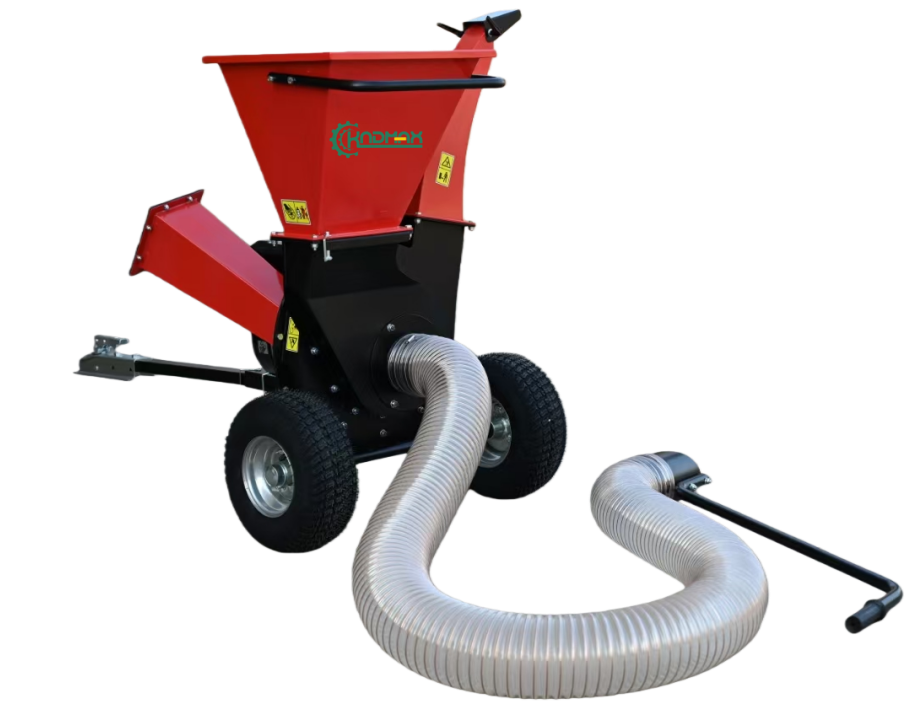

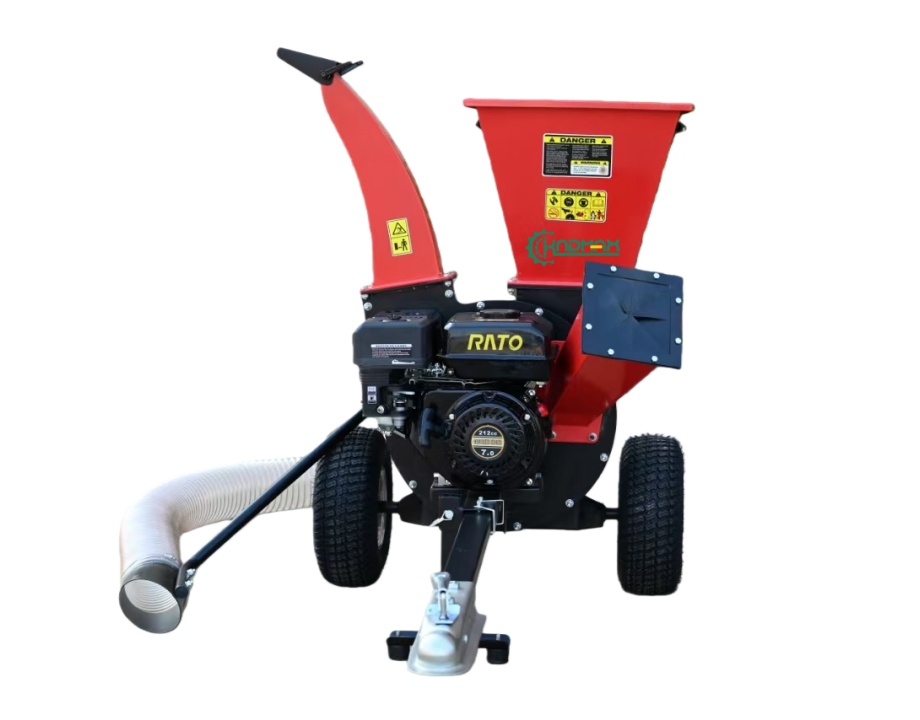

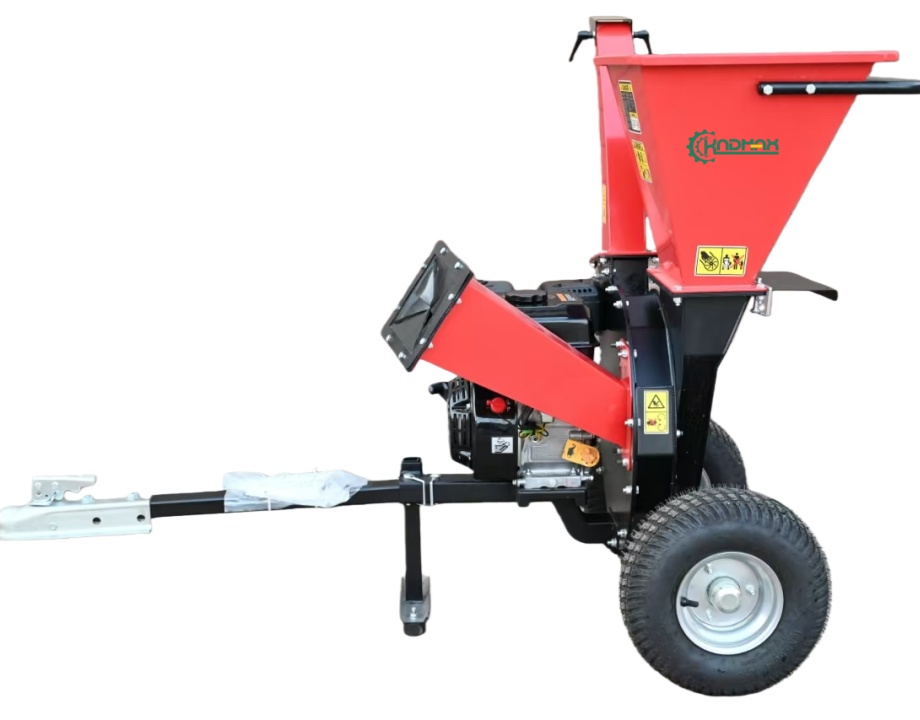

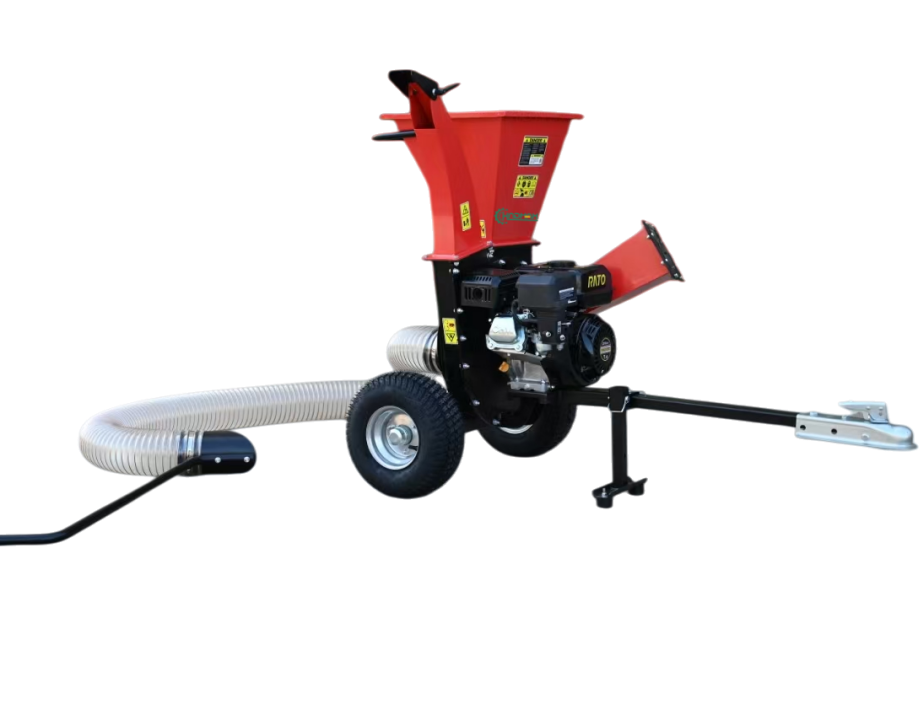

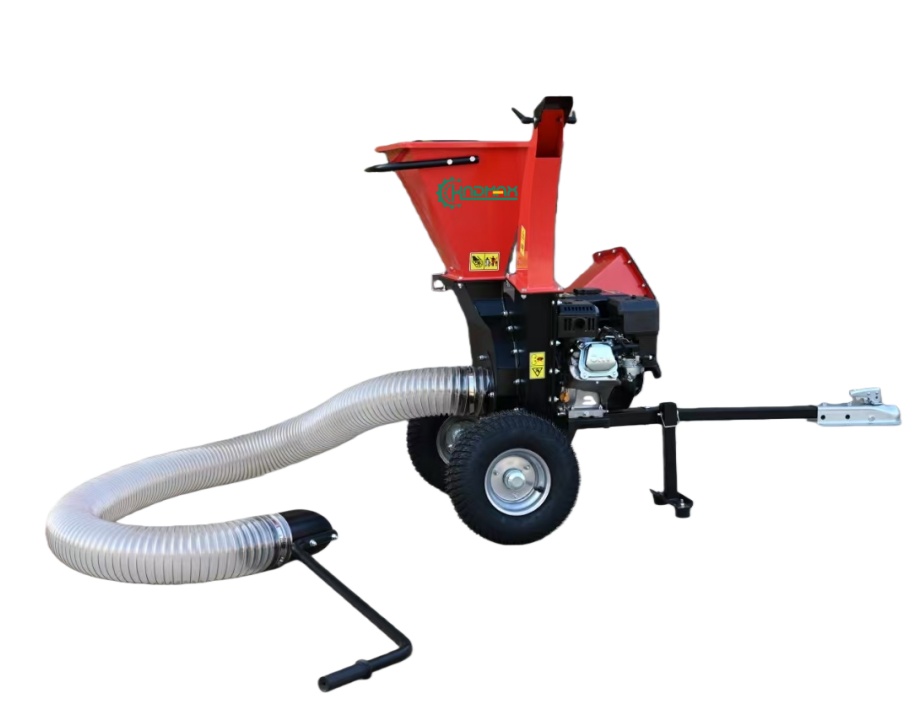

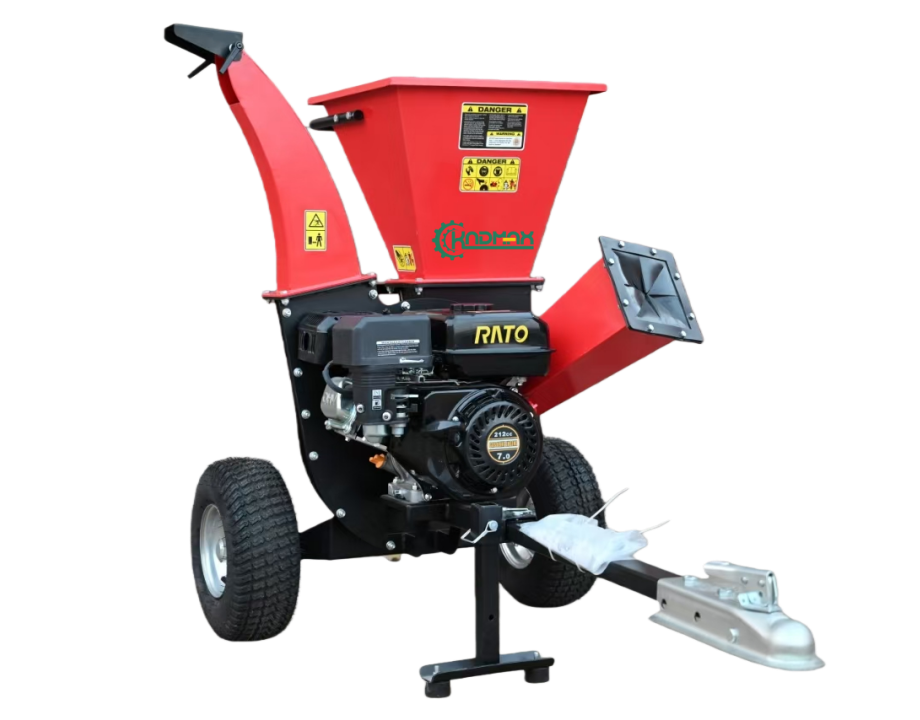

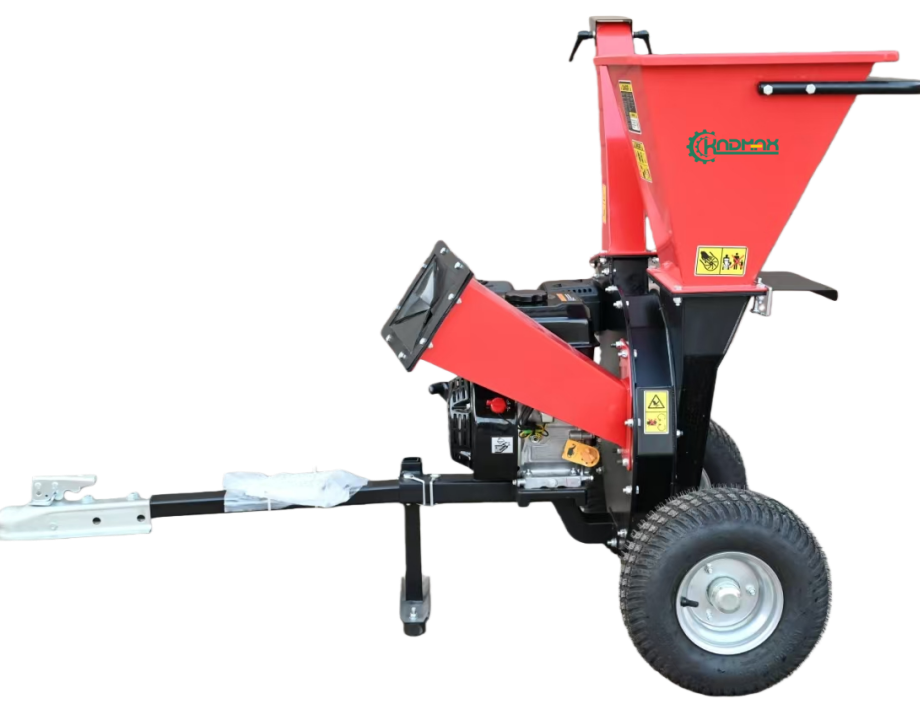

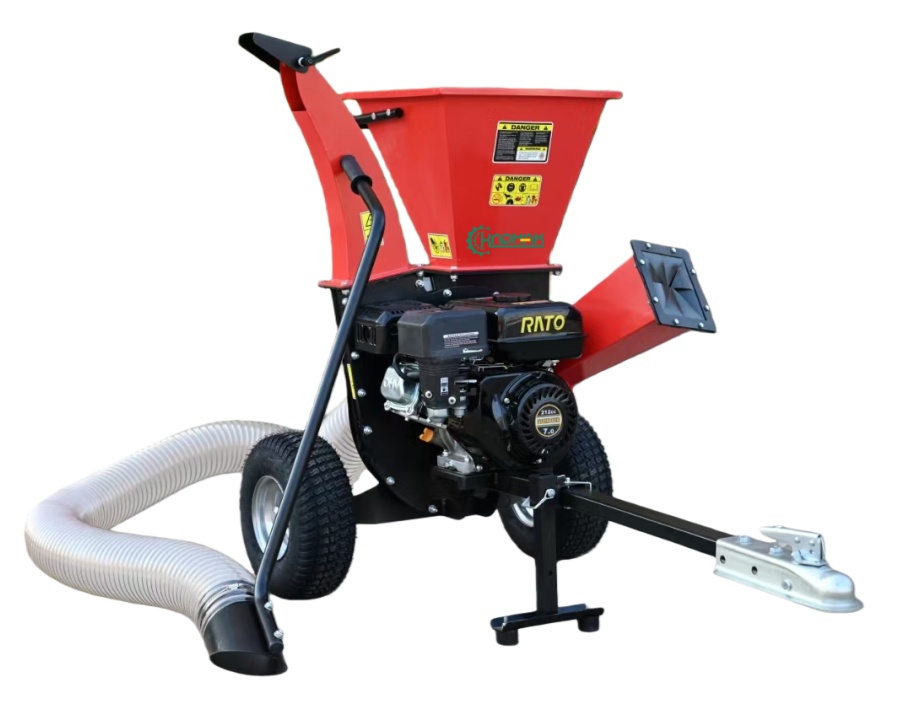

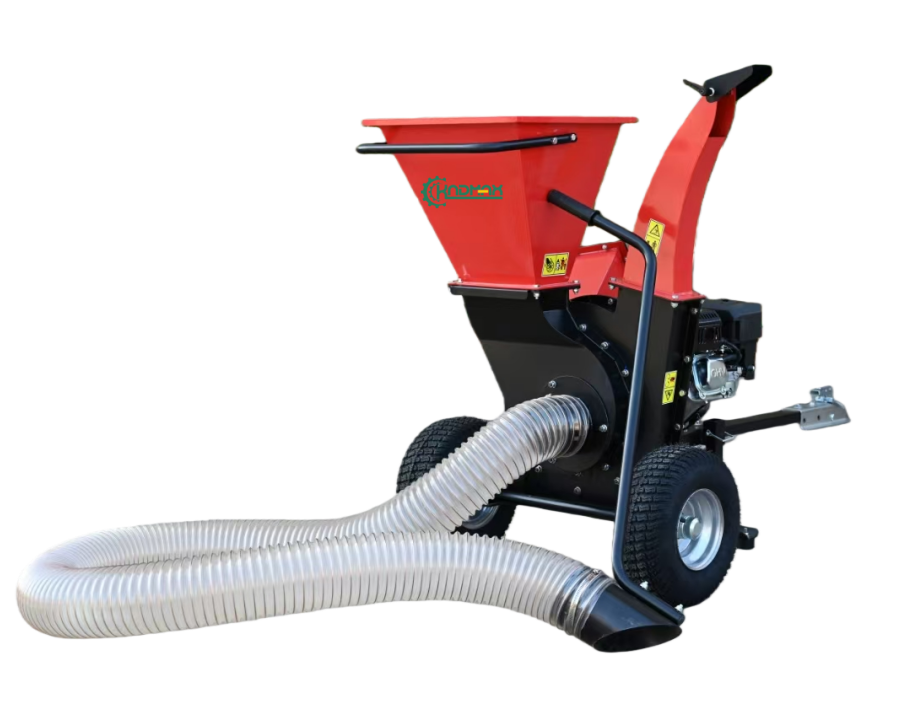

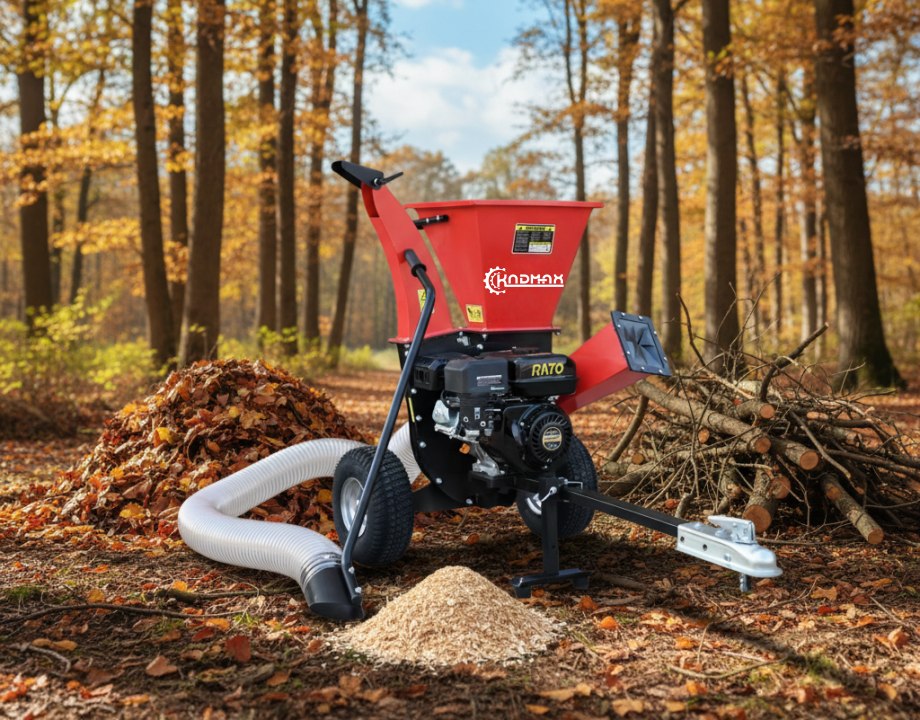

CS703 WOOD CHIPPER

Product Description

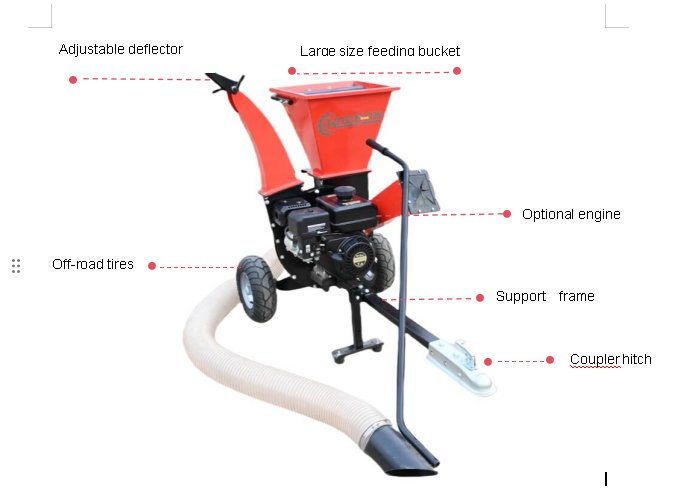

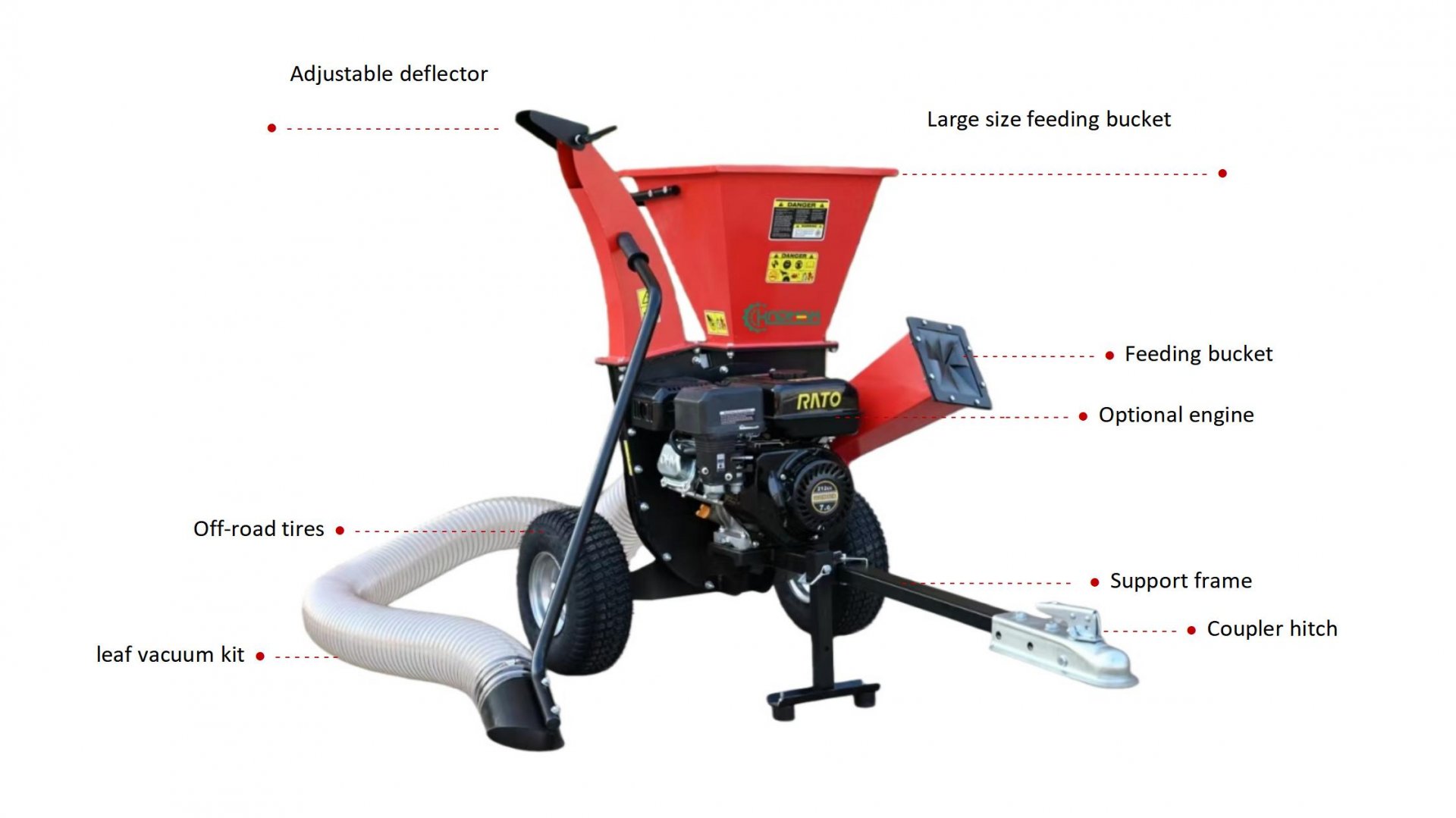

Overview:


7HP engine provide strong power to help the machine maximize the performance.


 Durable fly wheel ensures the operation is more stable ,more powerful.


Quick hitch draw bar, agricultural field tires.


Max diameter of wood chipper up to 3''


ModelCS703
Engine7HP, Single cylinder, four stroke, air cooling
Net Power3600rpm,4.8kw
Max. Chipping Diameter76mm
Net Weight74kgs
  Gross Weight   94kgs
External dimensions1528×815×1080mm
Type of FuelGasoline
Starting methodManuel
Wheel Tire13×5-6
Cutting methodDisc
Cutter wheel RPM3600rpm/min
Blade Nos.2× Moving knives, 1 crushing knife,4×fly knives
DriveDirect connection
ChipperYes
ShredderYes
Recommended Oil10W-30 oil (5W-30 is recommended for cold weather climate)
Feeding systemManual
Hydraulic oil and oil tank capacityNo
Package Size985×580×640mm
40HQ Loading Qty.192pcs
